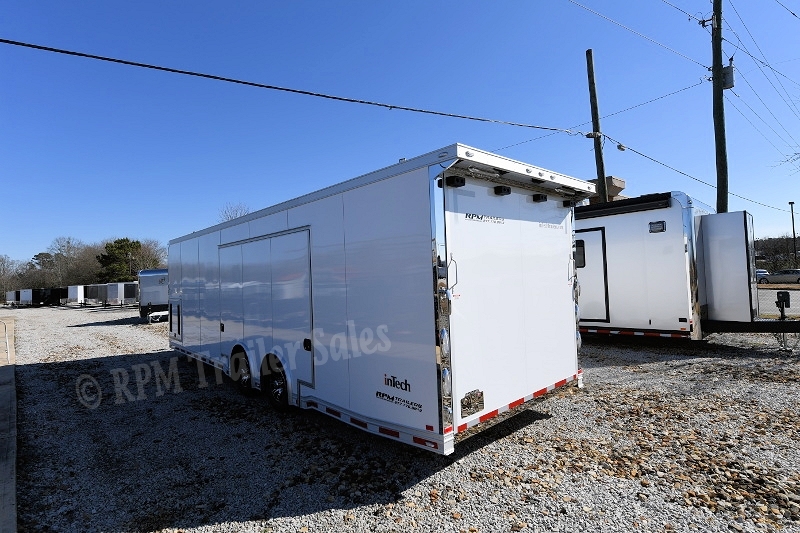

28' inTech Aluminum Trailer with Full Access Escape Door

28' Premium All Aluminum inTech Trailer with 10' x 6' Full Access Escape Door. This custom aluminum trailer is loaded with amazing options and is a must see. Check out all the detailed specifications and let us know what you think.

Product Specs

  • New
  • 11705
  • BTA8528TA4
  • 8′ 6″ x 28′
Request More Info

Details

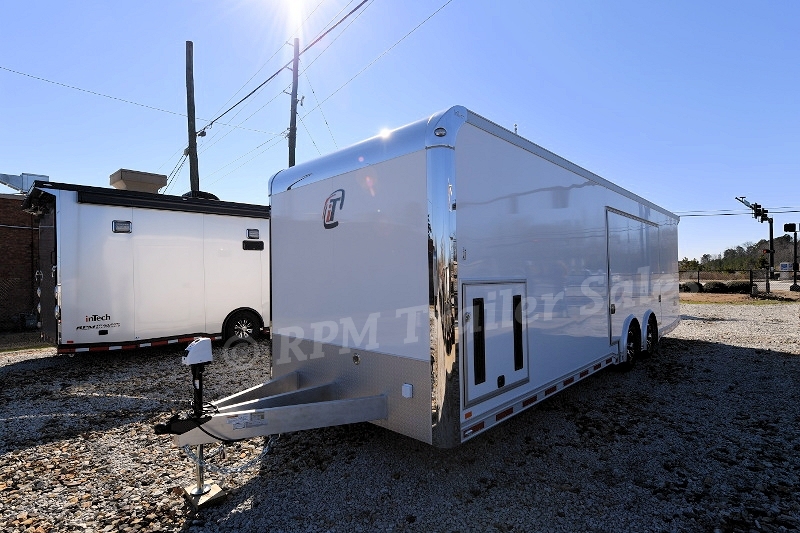

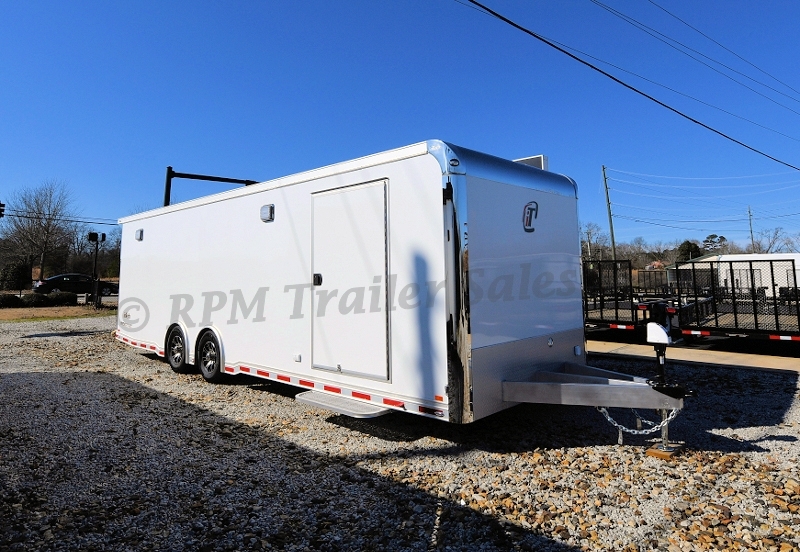

28' inTech Aluminum Trailer with Full Access Escape Door

A simple, but luxurious 28’ inTech aluminum car trailer.  The additional accents and features make it a work of art ready to tow your cars or toys any day of the week.  RPM Trailer Sales is committed to satisfying the unique needs of each individual shopping for an amazing car hauler that will work for you. RPM Trailer Sales offers a premium quality custom product at an affordable price. We take pride in the fact that we design the best aluminum trailers money can buy.  We design and custom build to not only meet but exceed the expectations of our customers.

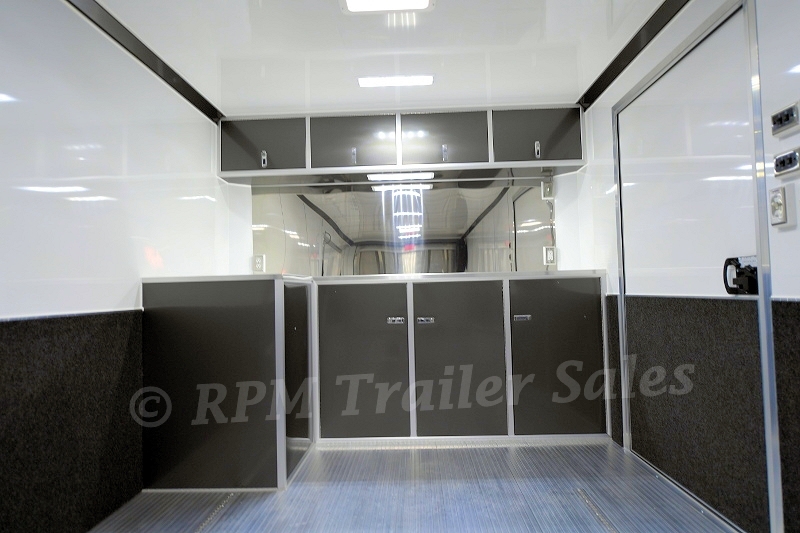

This 28’ custom aluminum trailer features our popular L-Base cabinet design with generator compartment.  It also includes 34’ high carpet on interior walls, 10’ x 5’ Full Access Escape Door, rear spoiler with LED Loading lights, and so much more.  Dependability, unique design, and quality construction are all key elements of every trailer we design. RPM Trailer Sales meets each owner’s unique requirements. Plus, we've got years of experience in designing work areas to match your work routine perfectly.
If you haven’t already, check out this amazing 28’ aluminum inTech car trailer with full access escape door.  If this is not exactly what you are looking for and you need a custom design, RPM Trailer Sales is the first choice for custom aluminum race car trailers and haulers. Our designs are second to none! “Often Imitated – Never Duplicated” It's time for you to experience the RPM Trailer Sales Difference! Contact us today for your next aluminum trailer at 706-654-2882.

Model: BTA8528TA4
Product Number: 11705

GVWR: 10,000
Shipping Weight: 5,100 lbs.
Interior Height: 8’ Interior Height
Axle Type: Tandem 6,000 lbs. Dexter Torsion Axles

Check out all the details and specifications for this 28’ inTech Aluminum Car Hauler with Full Access Escape Door here:

Chassis
Full Perimeter Aluminum Frame
All-Tube Aluminum Construction
Triple Tube A-Frame - Dexter Torsion Axles
Electric Brakes - All Axles - Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
5000 lb. Manual Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/80R16 Nitro Filled Tires w/ Steel Wheels

Interior
One-Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
2) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent w/ Switch
6.5' Interior Height
4) 5000# Recessed D-Rings
4' Interior Beavertail

Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
4" Upper and 6" Lower Rub Rail
Clear Anodized Exterior Trim Package
LED Premium Clearance Lights
LED Slimline Tail Lights
24" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks - Rear Ramp Door
Rear Skid Plates

Selected Options:
28' iCon Package
Exterior Upgrades

Upgrade to 7' Interior Height
Extended Tongue
Upgrade to 48" 405 Series Door
Aluminum Slide Out Step
Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to Stainless Steel Paddle Latches
40" x 36" 405 Series Generator Door
Awning Rail

Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25' Shore Cord
12V Battery & Box Wired
12V Fuse Panel
60 Amp Converter for 12V
3) 20 Amp Interior Recepts
1) 20 Amp Exterior Recepts
4) 12V 18" LED Interior Lights - Replaces Domes
3 Way Light Switch for Interior LED Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights

Interior Upgrades

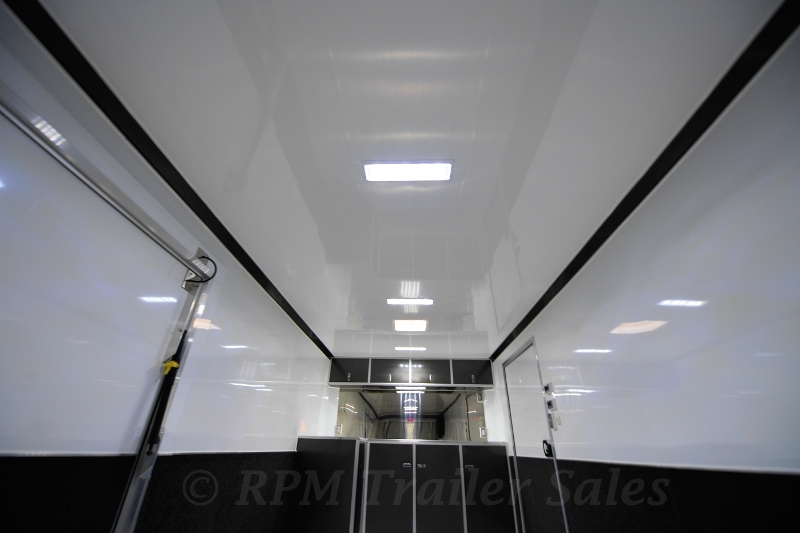

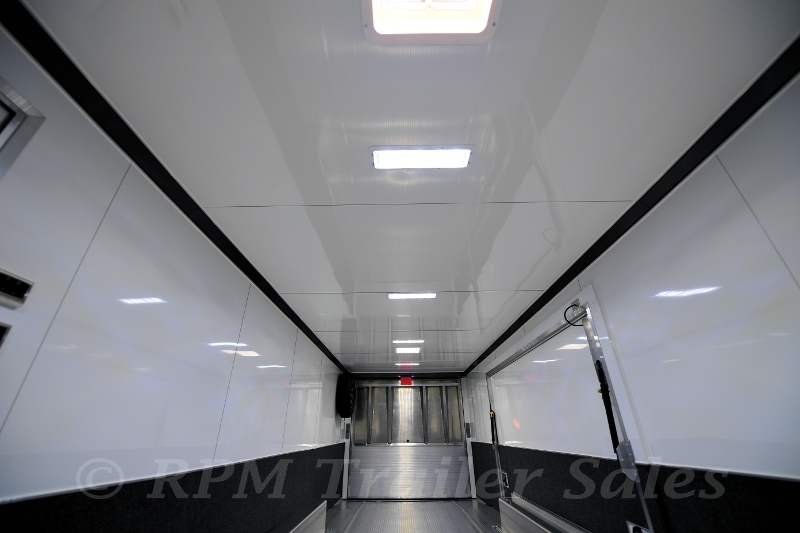

Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC

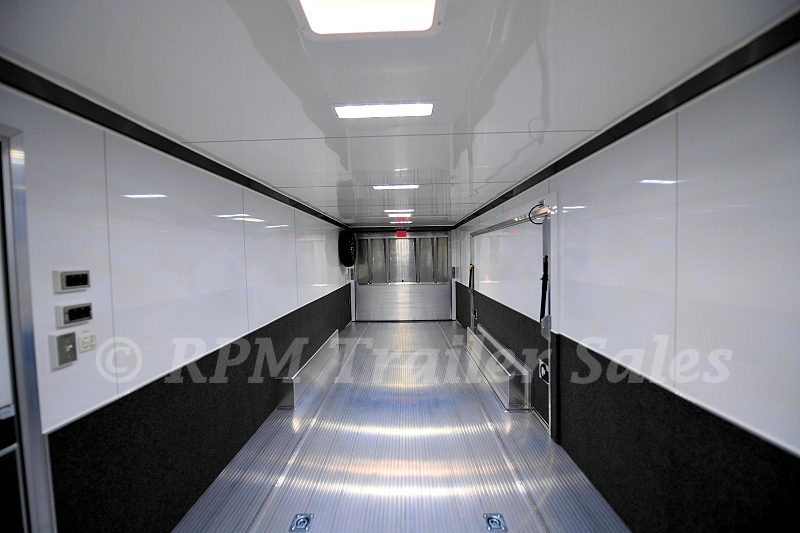

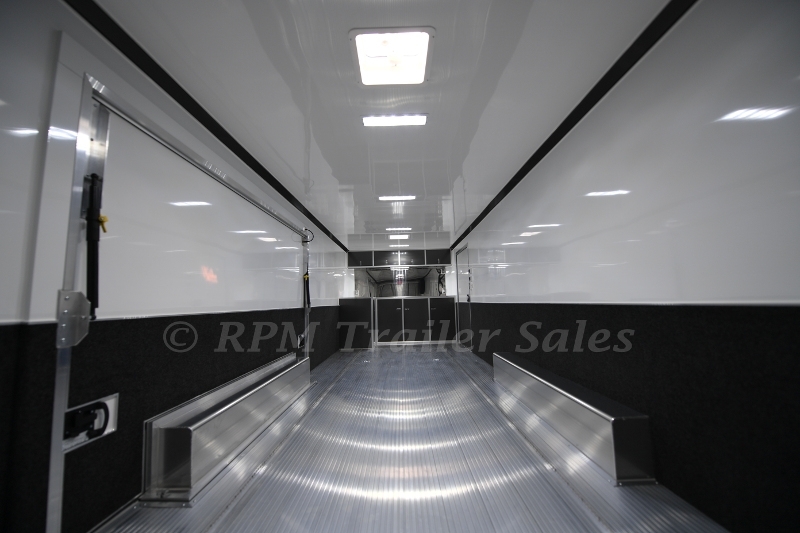

Extruded Aluminum Floor
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

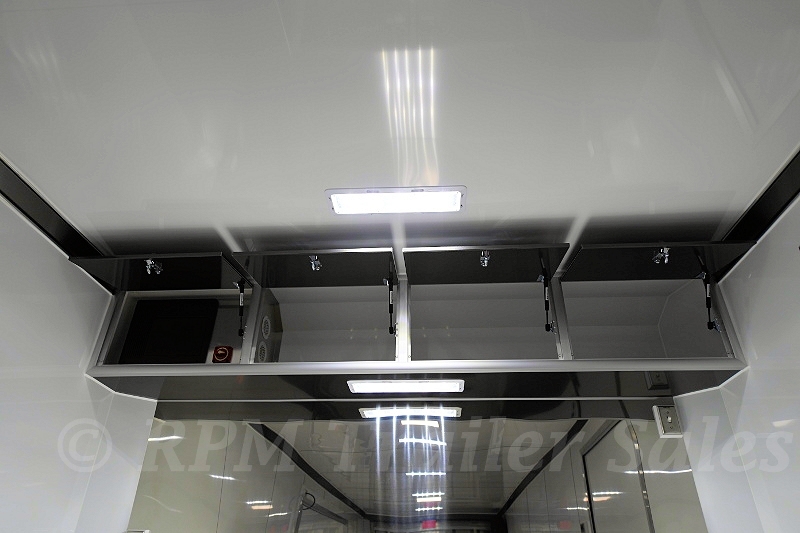

8' Premium Aluminum Upper Cabinet

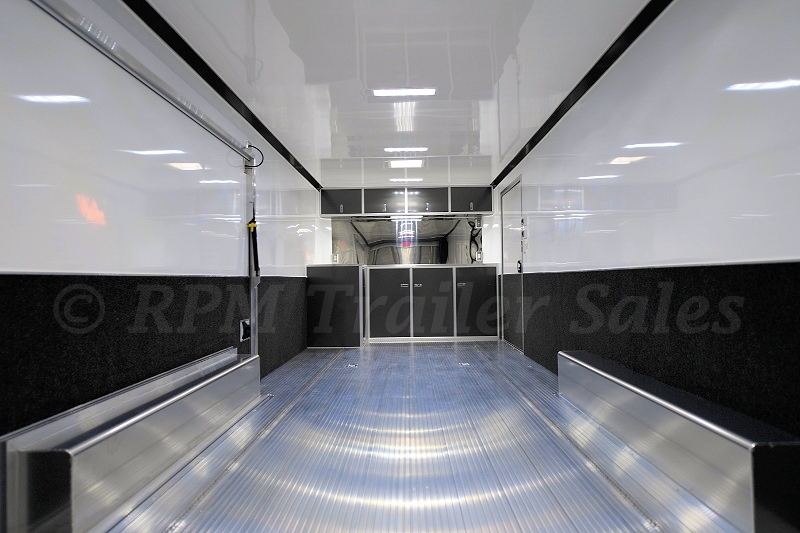

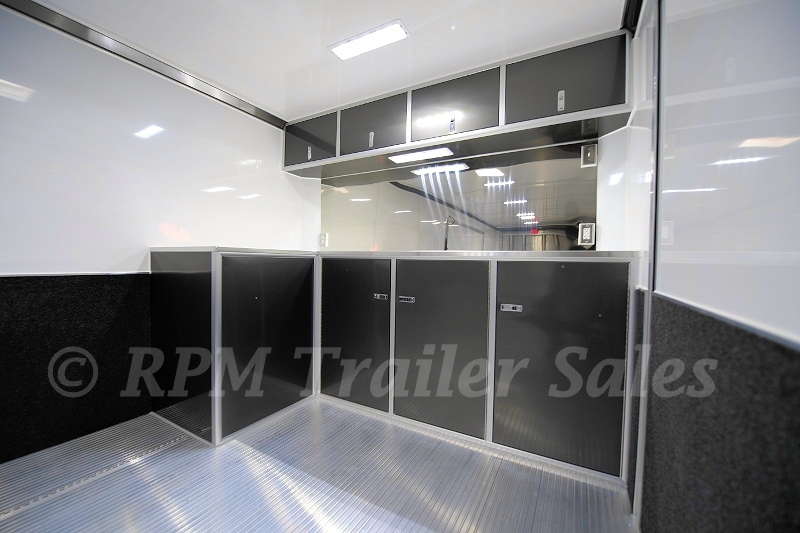

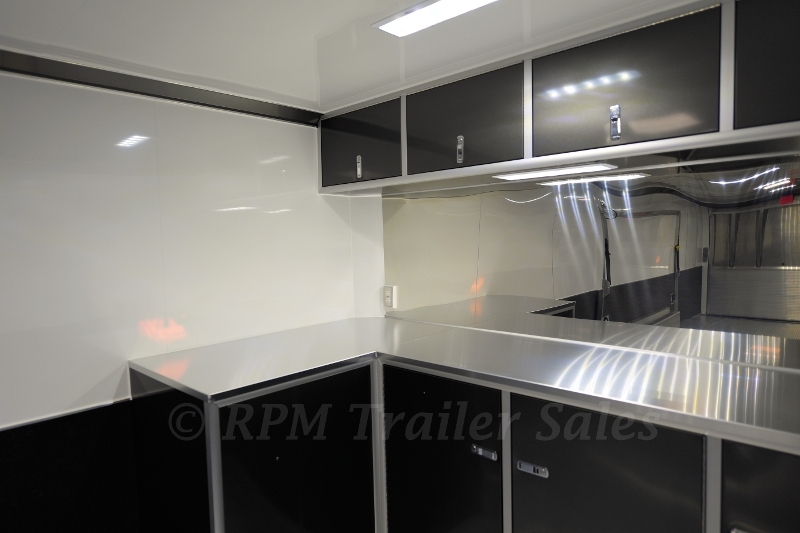

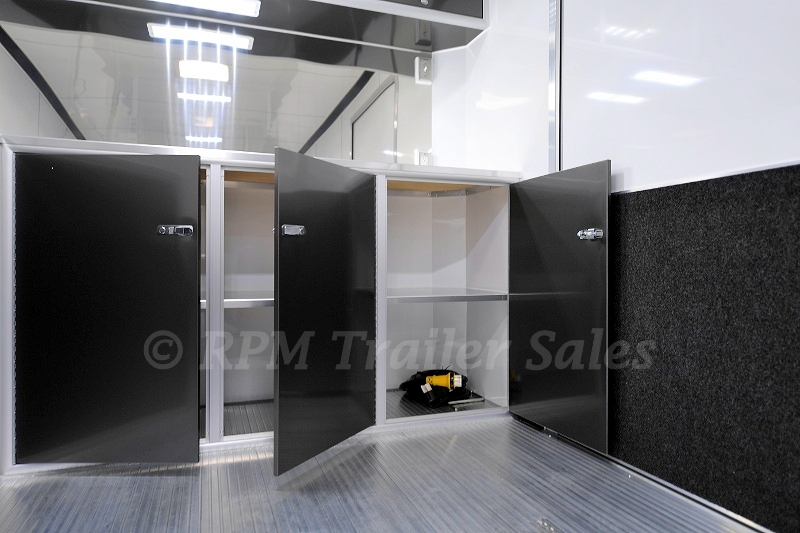

8' Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet
Upgrade 2) 500W Quartz Recessed Light to Whelen 900 Series Super LED
Rear Caster Wheels – Pair
Upgrade to 3,500 lb. Front Power Jack - Battery Not Included
Spare ST235/80R16 on Aluminum Wheel

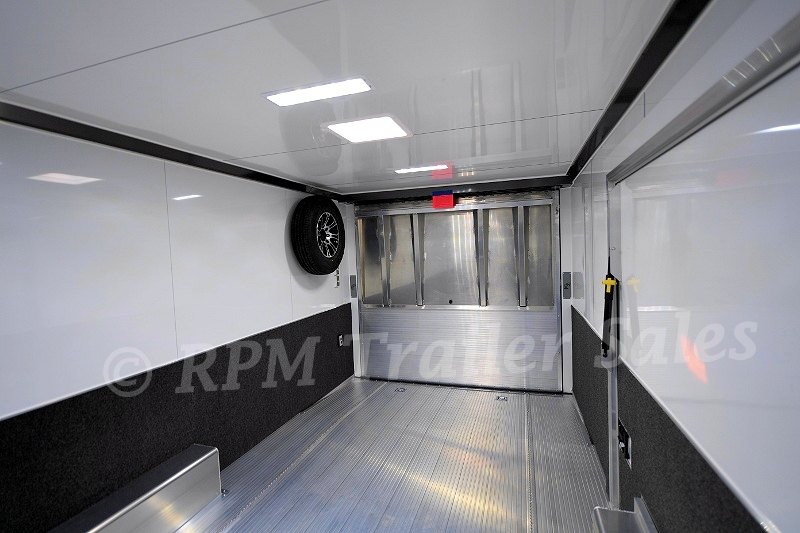

Spare Tire Wall Mount

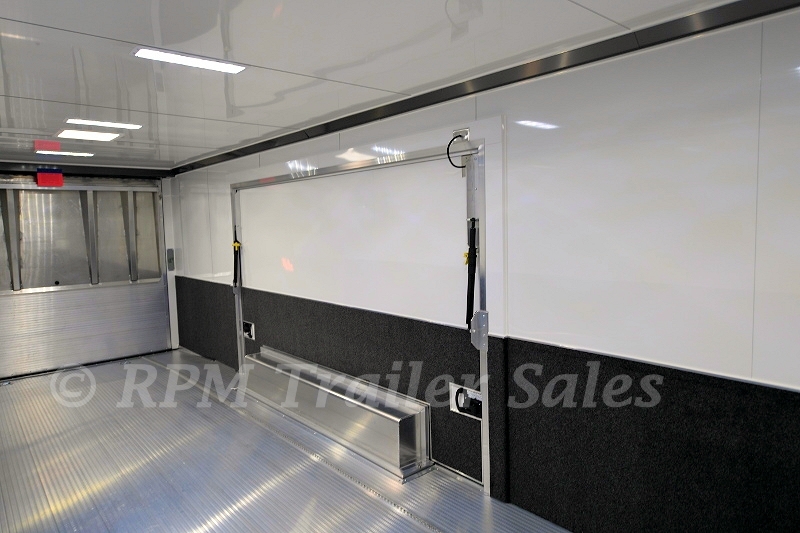

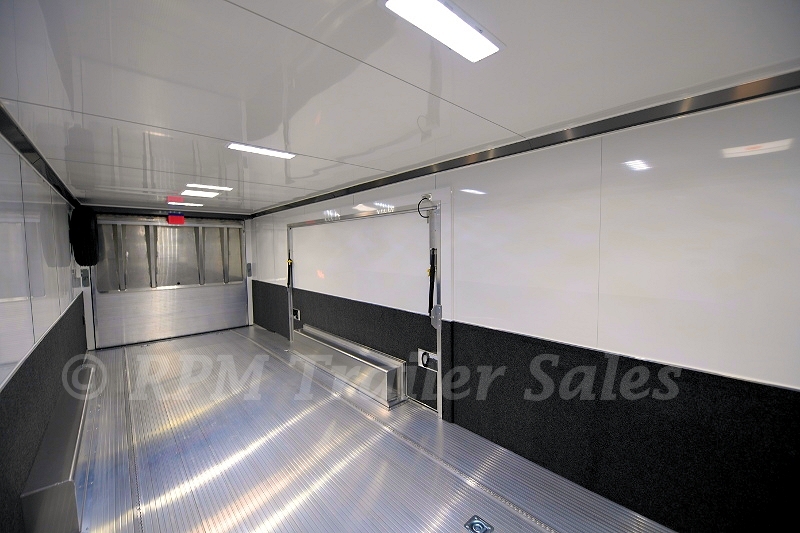

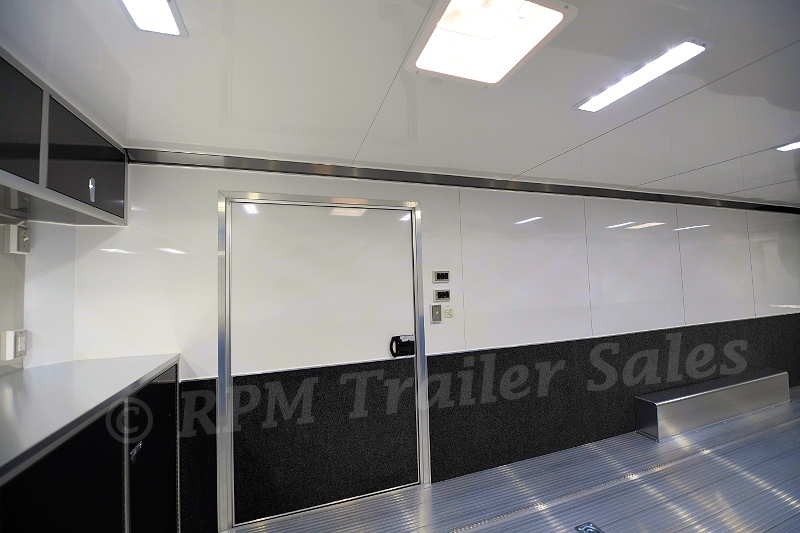

Full Access Escape Door - 10' x 6'
Upgrade to Full Width Ramp Extension Up to 48" Long w/ 3" Bumpers
Upgrade 12V Light Switches to 120V Style
12V 18" LED Interior Light
34” High Carpet on Interior Walls
Mirror Finish Stainless Steel Backsplash
Airline Track – Recessed
Upgrade to Lowered Skirt w/ Reverse Beavertail Design

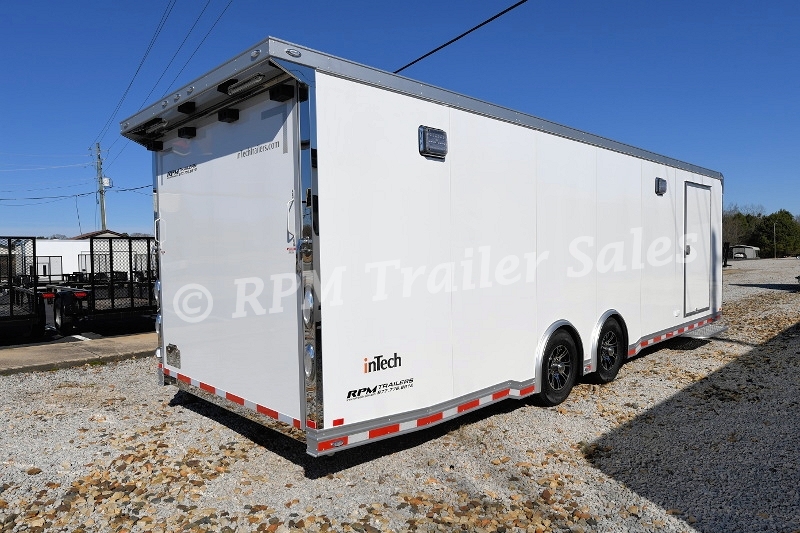

Color Matched Rear Spoiler
Includes 2) Integrated LED Loading Lights
