20' Custom inTech Aluminum Trailer

Product Specs

  • New
  • 11350
  • BTA8520TA3
  • 8′ 6″ x 20′
Request More Info

Details

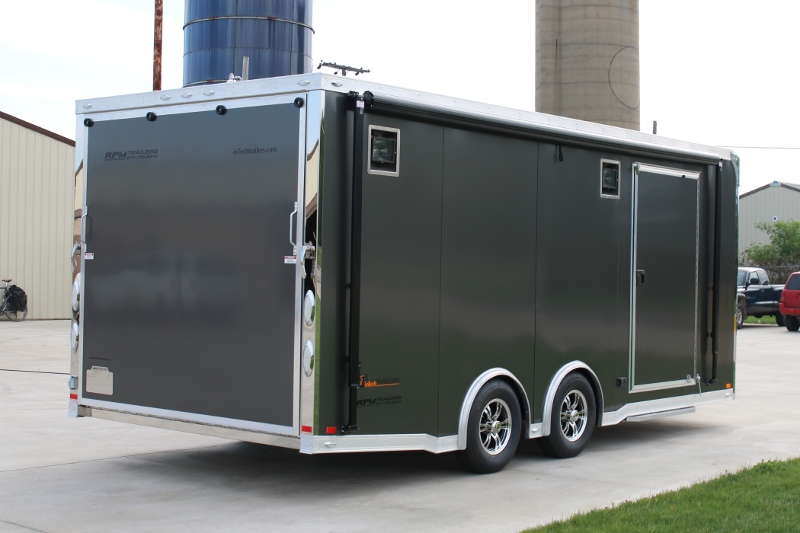

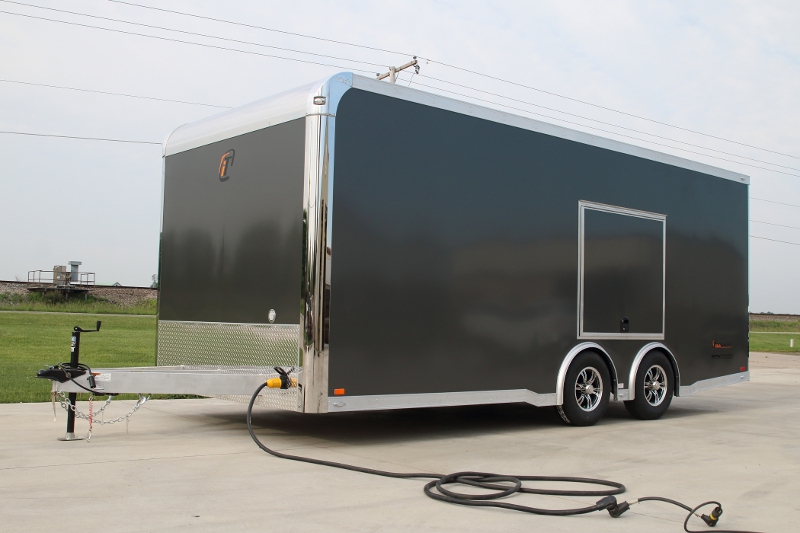

20’ Charcoal Gray Custom inTech Aluminum Trailer

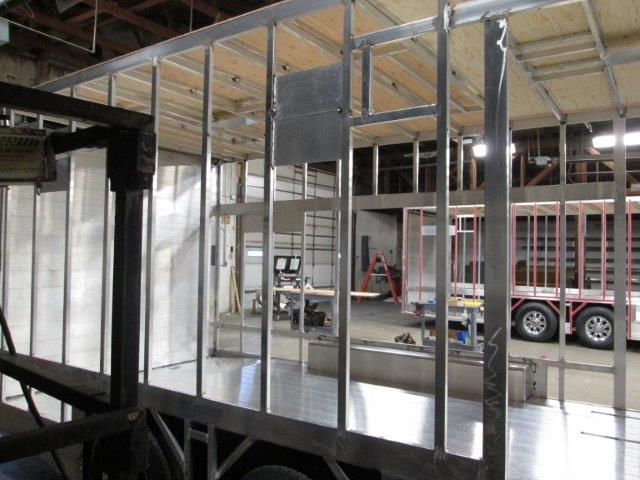

This 20' aluminum trailer might be small in size, but it makes up for it in features. Equipped with our iCon Series package, this trailer has all the bells and whistles that you're looking for in a quality trailer. Features that included, extruded aluminum floor and ramp, aluminum interior walls, base and overhead aluminum cabinets, 120V electrical package and it also includes our 54" x 48" 405 Series Top Hinged Escape Door w/ Gas Shocks & FMVSS Lock . Take a look at the images, we've even included some detailed production images so you can see exactly what RPM Trailer Sales has to offer in a custom aluminum car hauler.  Contact us today for detailed specifications & pricing at 706-654-2882. Custom aluminum race car trailers are our business “Often Imitated – Never Duplicated” RPM Trailer Sales Guarantees only the Best Customer Service!

GVWR: 10,000 lbs.
Width: 8.50
Shipping Weight: 4,010 lbs.
Height: 7' Interior Height
Axle Type: Tandem 5,200 lb. Torsion Axles

Model: BTA8520TA3
Product Number: 11350

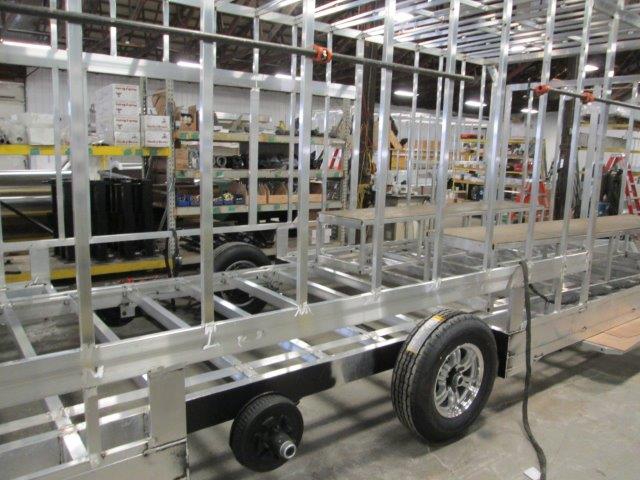

Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
5,000 lb. Manual Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
ST225/75R15 Nitro Filled Tires w/ Steel Wheels

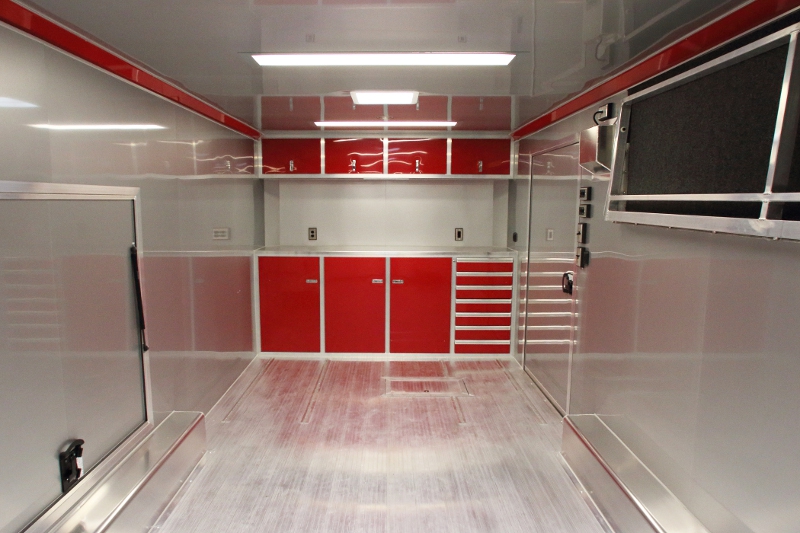

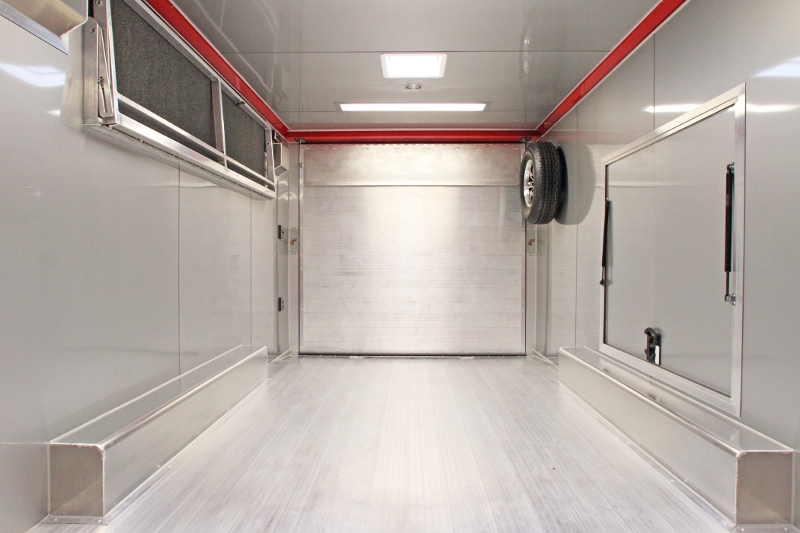

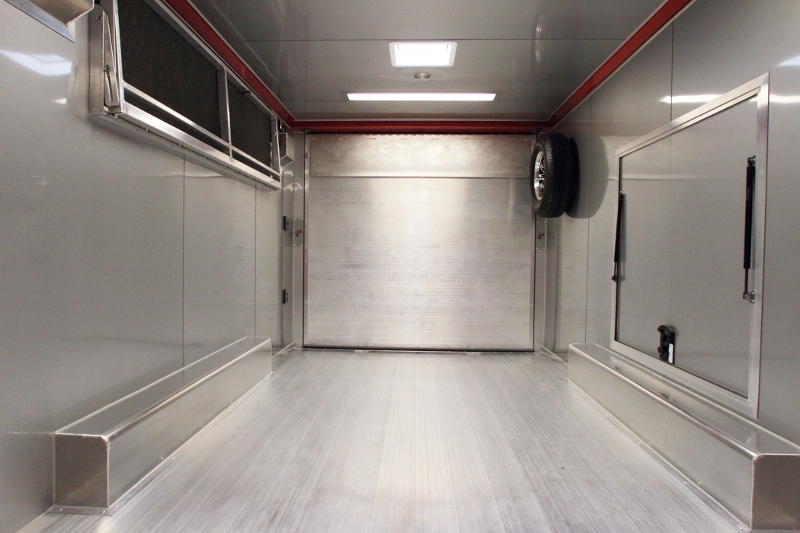

Interior
One Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
2) Dome Lights
1) 12V Power Roof Vent
6.5' Standard Interior Height
4) 5000# Recessed D-Rings
3' Beavertail
Exterior
.030 Aluminum Skin
Screwless Aluminum Exterior
One Piece Aluminum Roof
Arched Walk on Trussed Roof System
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
24" ATP Stoneguard
36" 405 Series Entrance Door
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Hinge
Aluminum Bar Locks
Rear Skid Plates

Selected Options:
20’ iCon Package
Electrical Upgrades

1) 15 Amp Exterior Recept
2) 120V 500 Watt Quartz Halogen Lights
3) 15 Amp Interior Recepts
3) 48" Fluorescent Lights – Recessed
12V Battery & Box Wired
12V Cutoff Switch
12V Fuse Panel
3 Way Light Switch for Fluorescent Lights
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
60 Amp Converter for 12V
Motorbase Plug & 25' Shore Cord
Upgrade to Dual Brake Lights
Upgrade to Panel Lite Exterior Lights

Exterior Upgrades
40" x 36" 405 Series Generator Door
Aluminum Slide Out Step
Awning Rail
Extended Tongue
FMVSS Side Door Lock
Stainless Steel Rear Header & Posts
Upgrade to .040 Exterior Aluminum Skin
Upgrade to 4" Upper & Lower Side Trim
Upgrade to 48" 405 Series Door
Upgrade to 7' Interior Height
Upgrade to Aluminum Wheels
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Upgrade to Stainless Steel Paddle Latches

Interior Upgrades

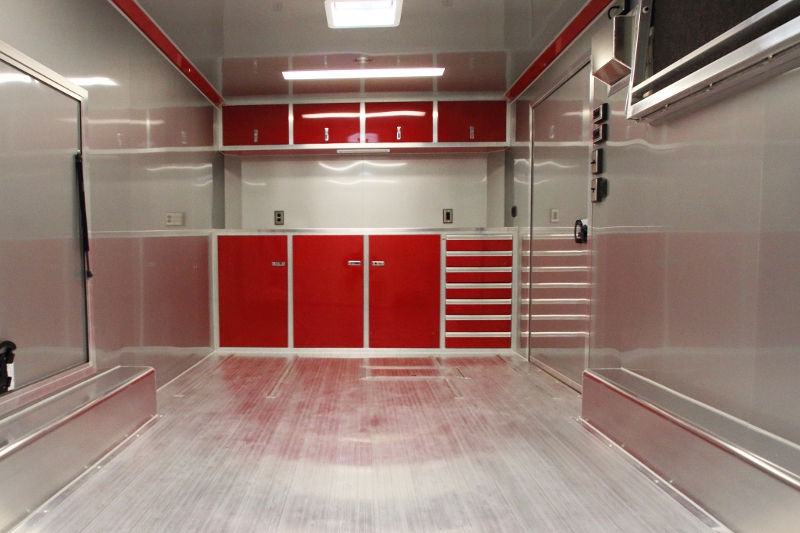

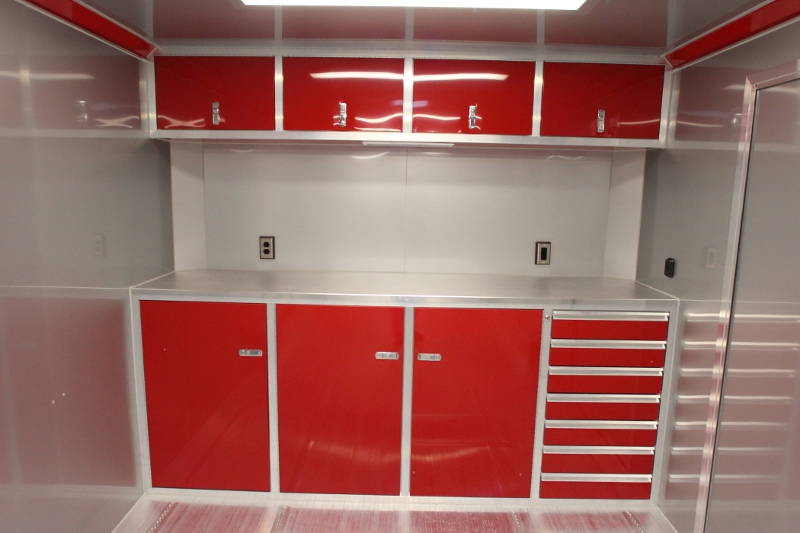

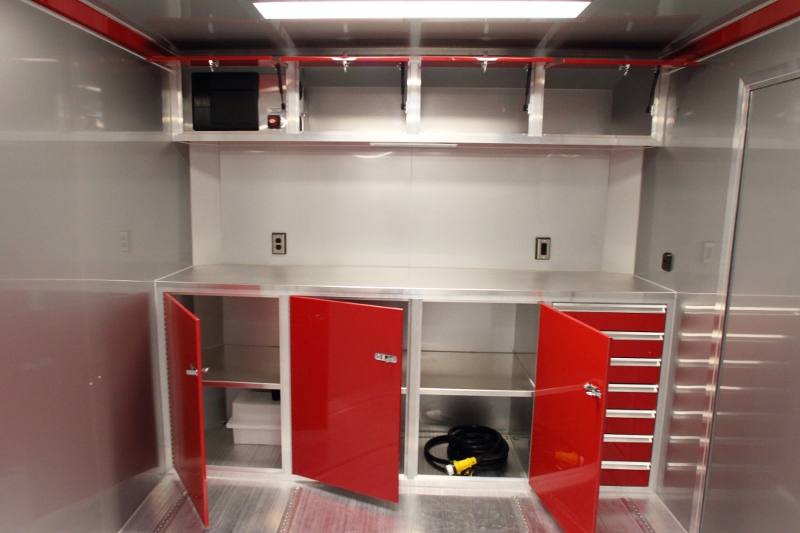

8' Premium Aluminum Lower Cabinet
8' Premium Aluminum Upper Cabinet
Add Roof Vent w/ Wire for Future AC

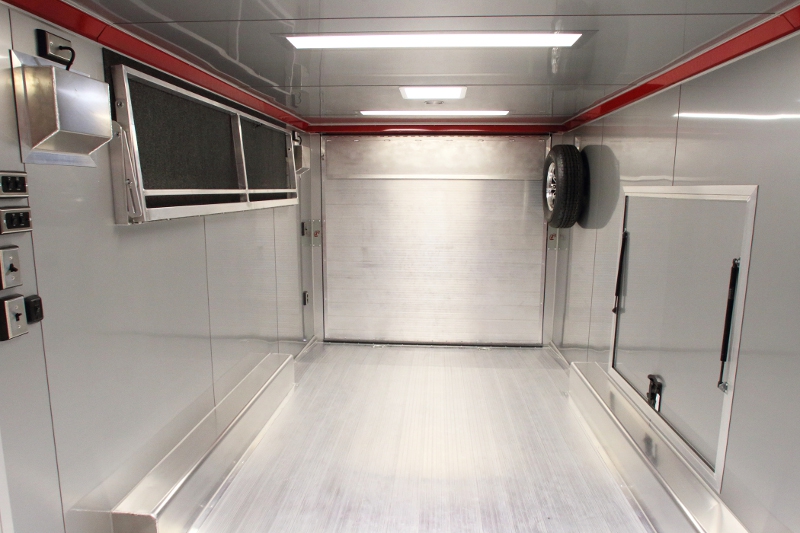

Extruded Aluminum Floor
Extruded Aluminum Ramp
LED Light Under Upper Cabinet
One Piece Aluminum Transition Flap
Screwless Aluminum Walls & Ceiling

Additional Selected Options:
Spare Tire on Aluminum Wheel
Spare Tire Wall Mount

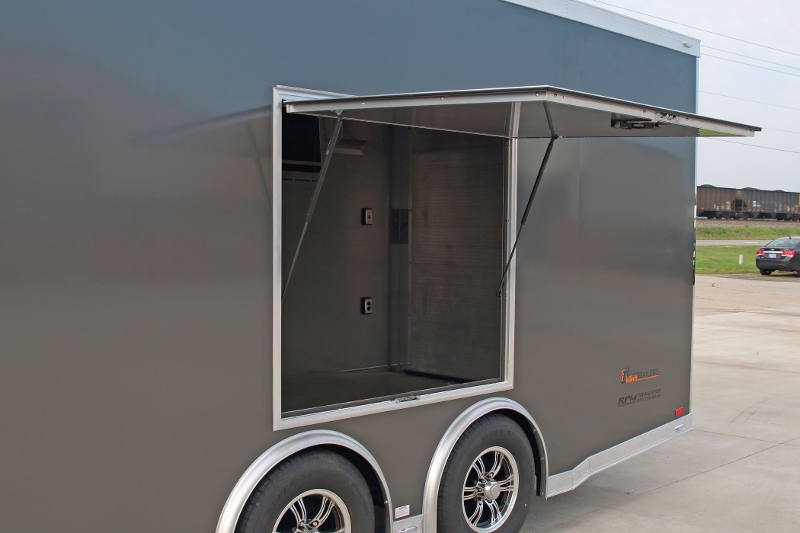

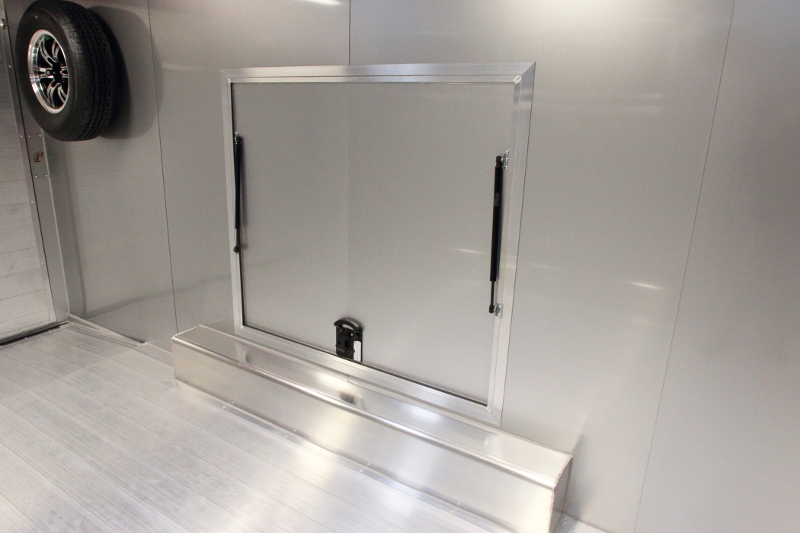

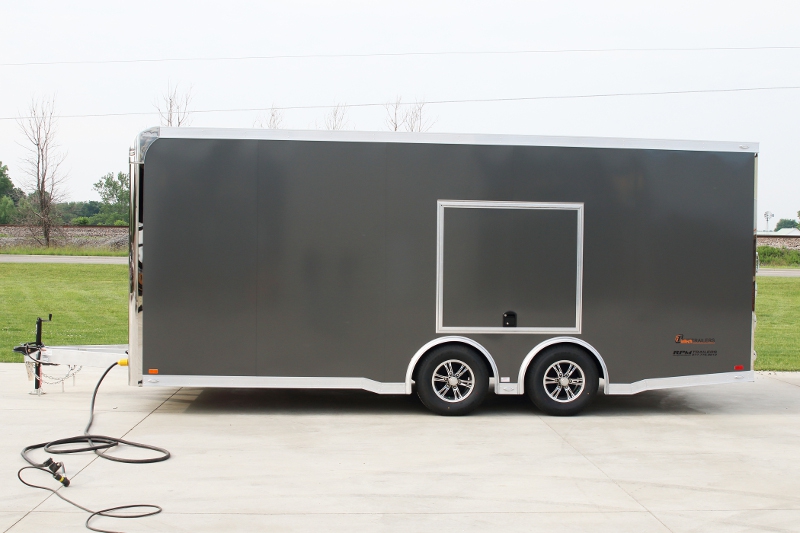

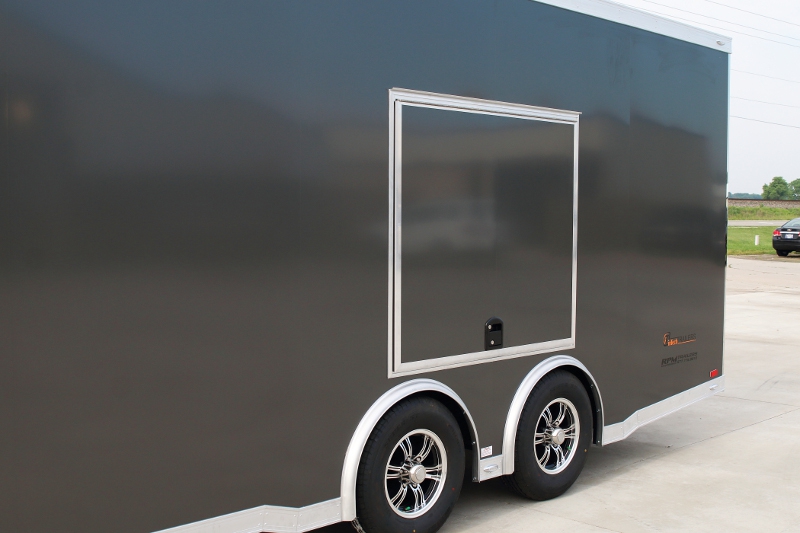

54" x 48" 405 Series Top Hinged Escape Door w/ Gas Shocks & FMVSS Lock
7 Drawer Tool Chest added to Lower Cabinet
Upgrade 2) Standard D-Rings to 6,000 lb Swivel
Recessed Airline Track

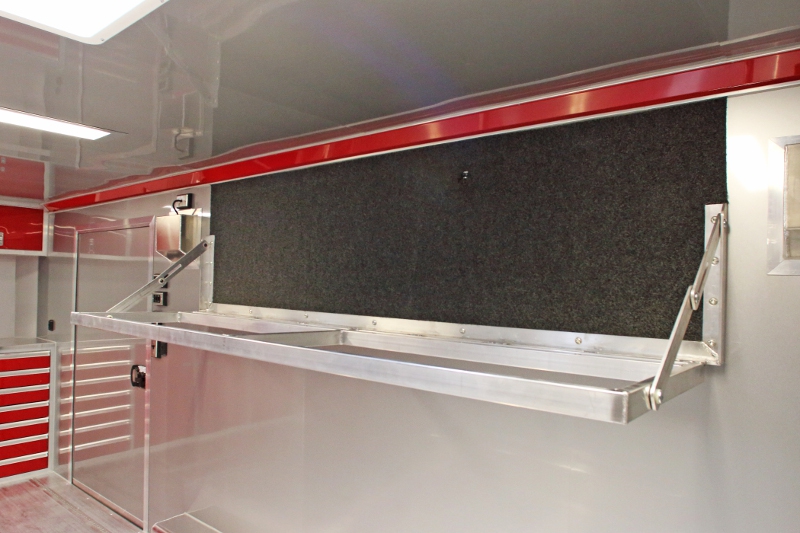

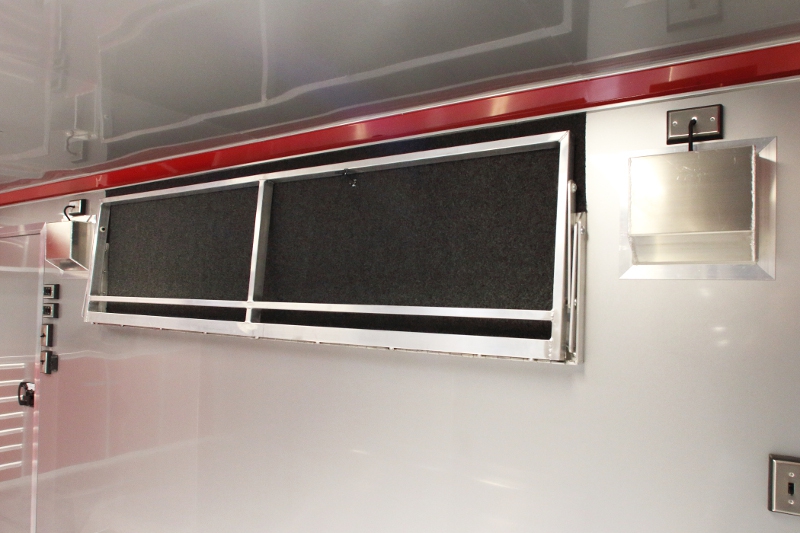

8' Fold Up Tire Rack
Upgrade to Lowered Skirt w/ Reverse Beavertail Design
17' Dometic Manual Awning
4,000 lb. Winch w/ Wireless Remote Control

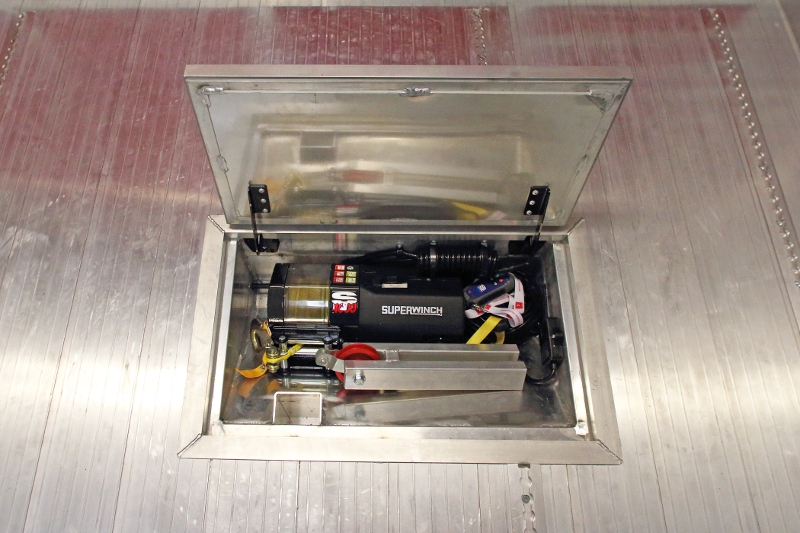

In Floor Winch Box w/ Pulley - Angle Mounted
