24' Custom Mobile Classroom Trailer

Product Specs

  • SPT
  • BTA8524TA3
  • 8′ 6″ x 28′
Request More Info


24’ Custom Aluminum Mobile Classroom Trailer

Need a trailer to conduct classes or presentations? A mobile classroom designed by RPM Trailer Sales can serve many educational functions for colleges and universities, educational associations, groups or businesses.  Designs are flexible and our mobile classroom can be equipped with conference tables, private offices, desks, satellite and computer systems, multi-media centers, kitchens, restrooms and more. So what we are saying is that we can equip your specialty trailer with everything from laptops and multi-media technology of a modern college or high school to the high-tech equipment of your industries profession.
Explore a few of the options some of our past clients have built custom trailers for:
Mobile classroom to conduct off-site classes, training, assessment or instructional programs
Mobile training by companies for new products, services or computer programs/systems
Dealer or employee training in the field
Mobile Gaming Trailers
Mobile science lab, mobile computer lab, or mobile research lab
Mobile training and recruiting for police departments and other agencies
Product demonstrations
Mobile museum exhibits
Call RPM Trailer Sales Specialty Trailer Specialist at 706-654-2882 to discuss designing and building a mobile classroom or mobile training unit specific to your needs.

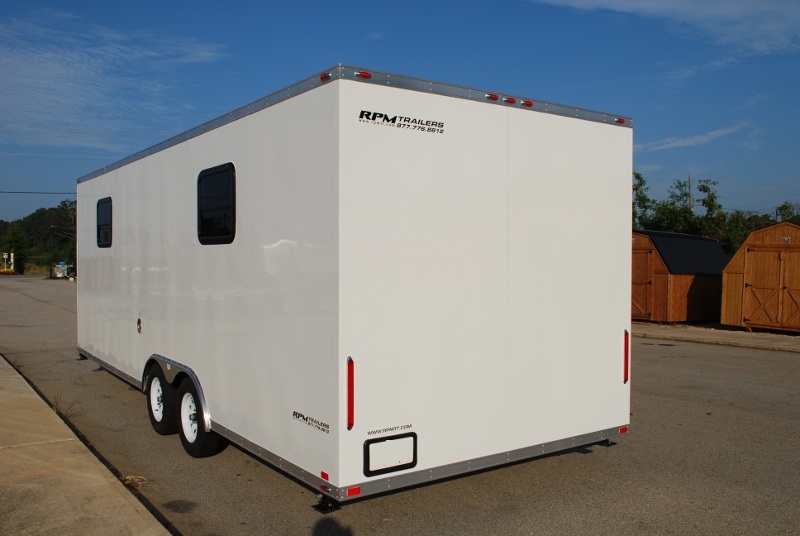

24' inTech Aluminum Mobile Classroom Trailer

GVWR:  10,000lbs.
Width: 8.5                                 Height: 7’
Number of Axles: 2                   Axle Type: 5200# Torsion Axles
Model: BTA85X24TA3                 Stock Number:
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes-All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16” Ball Coupler
Safety Chains w/Storage Loop
2000# Side Crank Manual Jack
16” O/C Floor Crossmembers
16” O/C Wall Studs
16” O/C Roof Studs
ATP Wheels Boxes
¾” Alum. Faced Plywood Subfloor
(2) Dome Lights
(1) 12V Power Roof Vent
6.5’ Interior Height Std.
(4) 5000# Recessed D-Rings
.030 Aluminum Skin
Screwless Aluminum Exterior
One Piece Aluminum Roof
Arched Walk on Roof
3” Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
24” ATP Stoneguard
36” 405 Series Entrance Door
Cast Aluminum Front Verticals

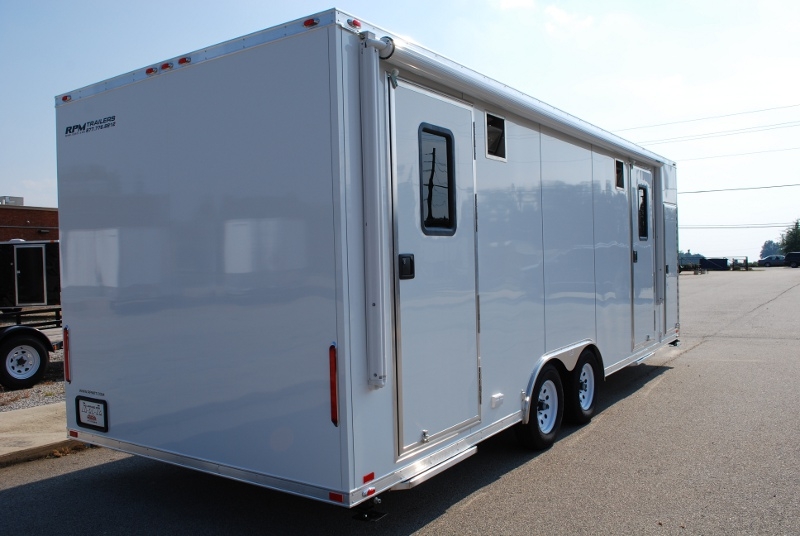

Rear Ramp Door w/Gapless Hinge
Aluminum Bar Locks
Additonal Upgrades:

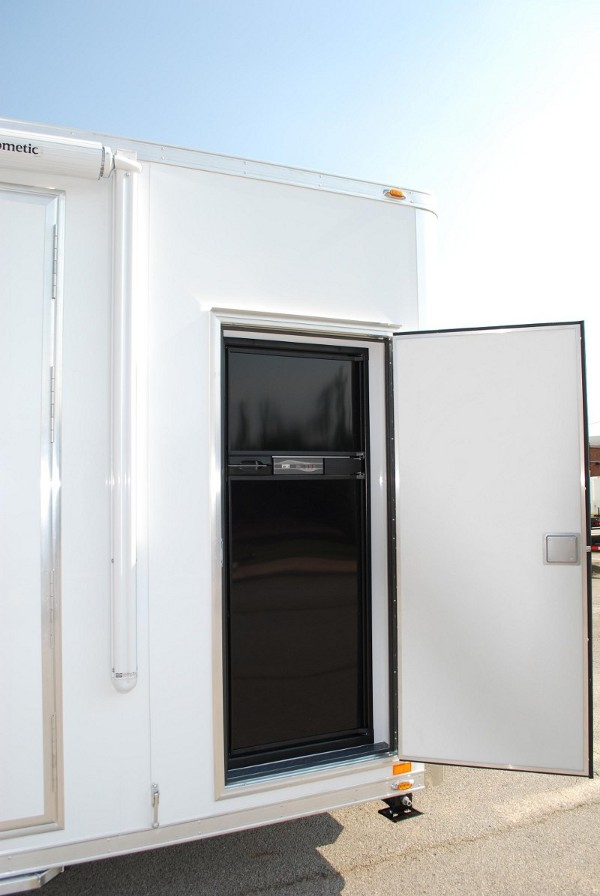

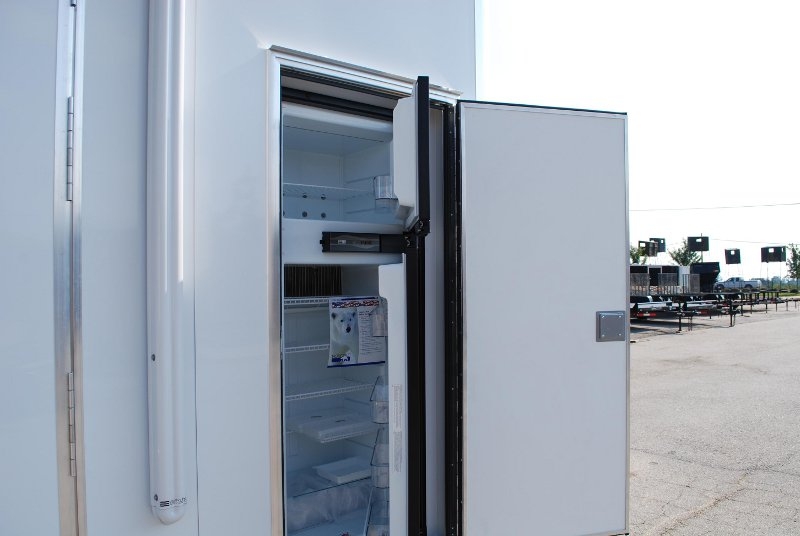

7.5 Cu Ft. 3 Way Refrigerator

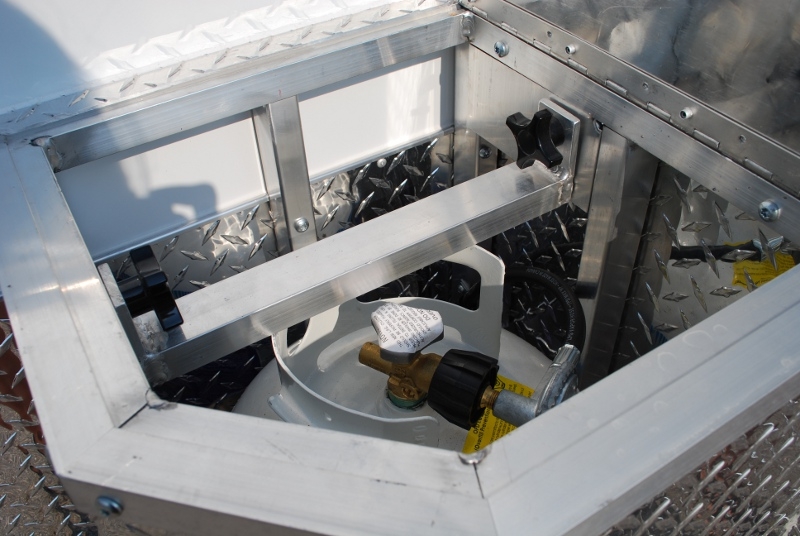

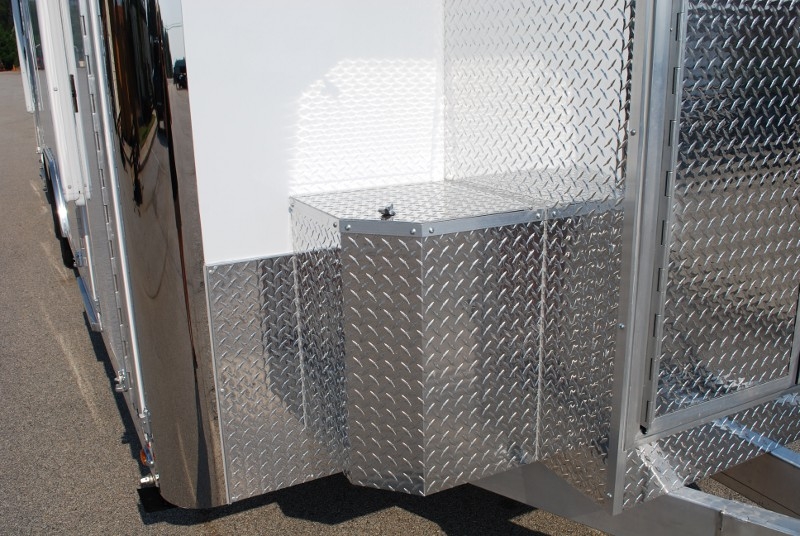

LP Compartment w/ 20Lb LP Tank Kit
28”x64” Side Hinged 405 Series Baggage Door
Weight Distribution Prep w/ Hangers
18 Gallon In Frame Fuel Tank w/ Shield
Grey Carpet on Walls

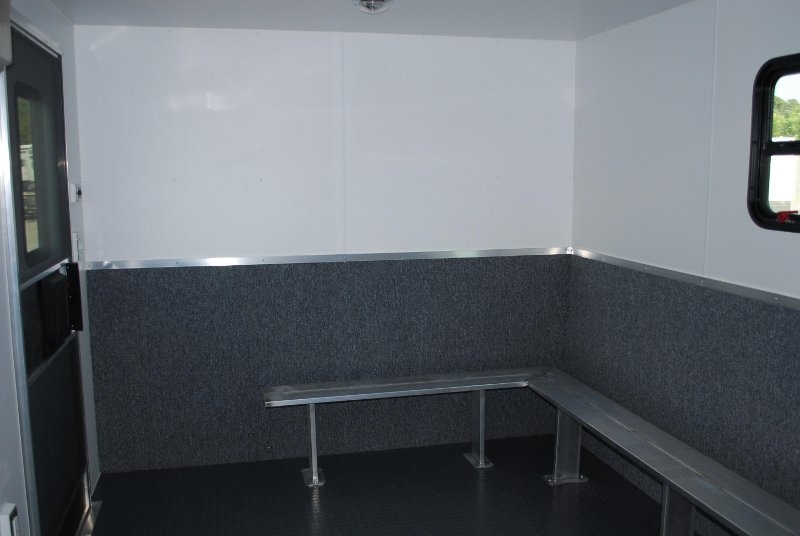

Aluminum Bench Seat Package
Wind Sensor for Power Awning
6” Additional Height
Rear Heavy Duty Stabilizer Jacks-Pair-5000# Capacity
Front Heavy Duty Stabilizer Jacks-Pair-5000# Capacity
Upgrade to 3500# Power Jack-Battery Not Included
12” Extended Tongue
36” 405 Series Entrance Door

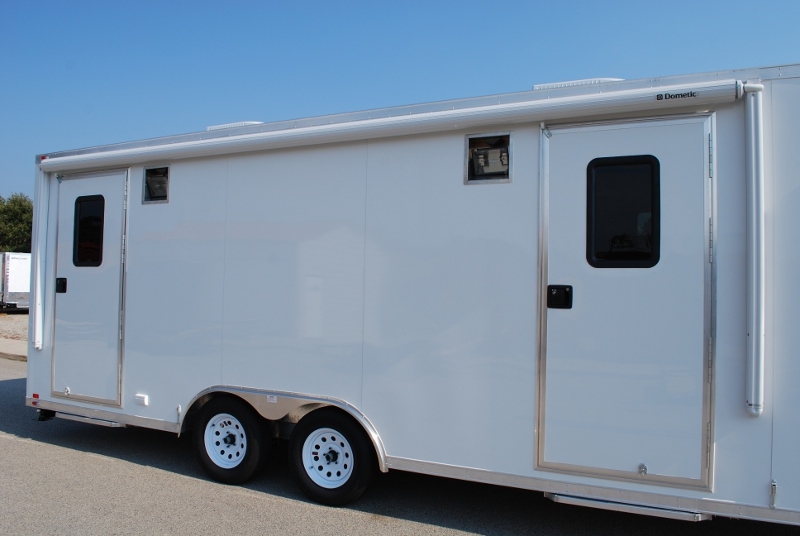

(2) 455 Series RV Style Door w/ Screen
                -Tinted Window
                -Screen Door Behind Main Door
                -Upgrade to Premium Lock Inc.
(2) Slideout Aluminum Step
(2) 30” x 22” Egress Vertical Slider Window
14” Power Roof Vent

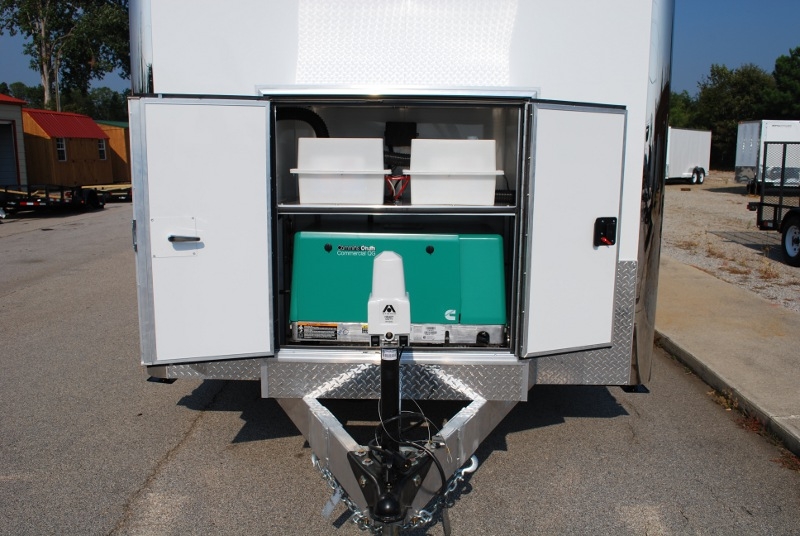

5.5KW Onan Generator Package (120V Only)-Gasoline

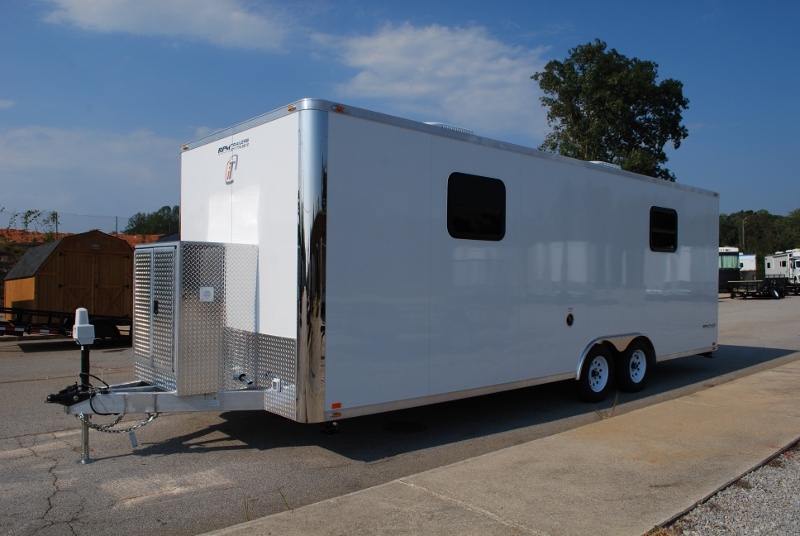

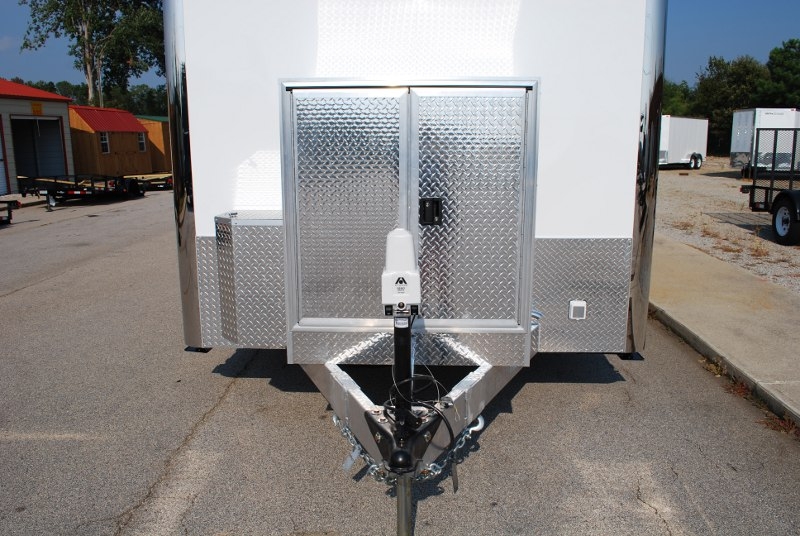

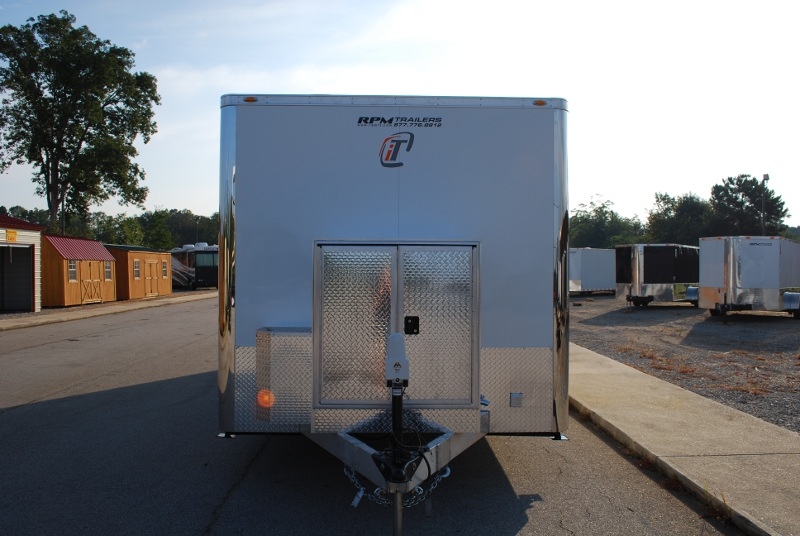

                -Insulated Generator Cabinet
                -Fuel Compartment Cabinet
                -13 Gallon Fuel Cell Above Frame
                -Locking Fuel Door
                -Locking Generator Door
                -Remote Start
                -Automatic Transfer Switch
                -12V Battery & Box
12V Battery w/ Vented Box
50 Amp Electrical Service Package
                -50 Amp Breaker Box
                -12v Fuse Panel
                -60 Amp Convertor/Charger for Battery
                -25’ Shore Cord w/ Motorbase Plug
(5) 120V 15A Recept-GFI Protected Where Required
(4) 120V 48” Fluorescent Light
(2) 120V 500W Quartz Halogen Light
Black Coin Rubber Floor
EPS Insulation/Ft-R3 Rated (Walls & Ceiling)
White Vinyl Walls & Ceiling

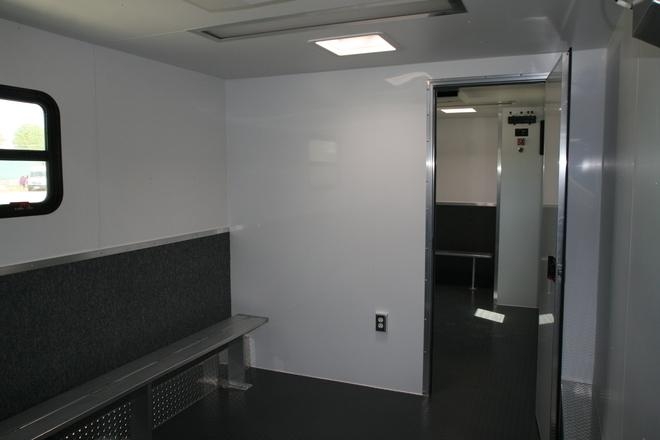

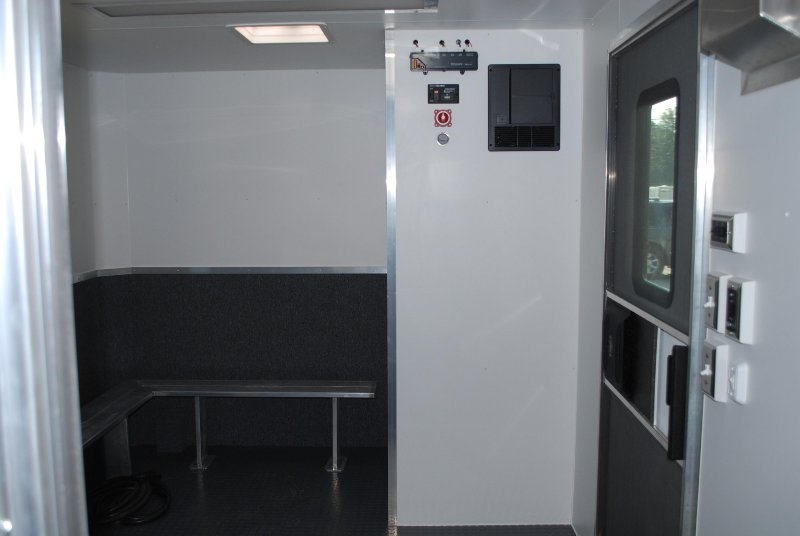

Partition Wall w/ 28” Swinging Door
(2) 13,500 BTU A/C

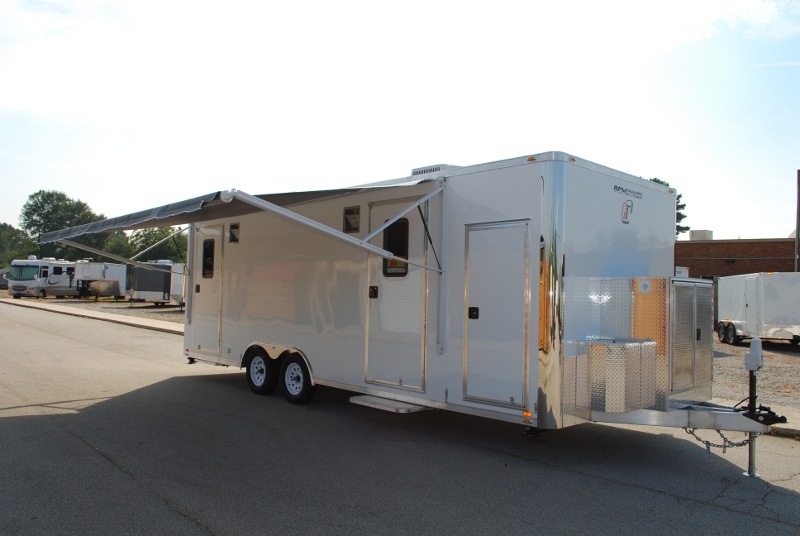

Awning-19’ Dometic w/ Weathershield-12V Power Awning
