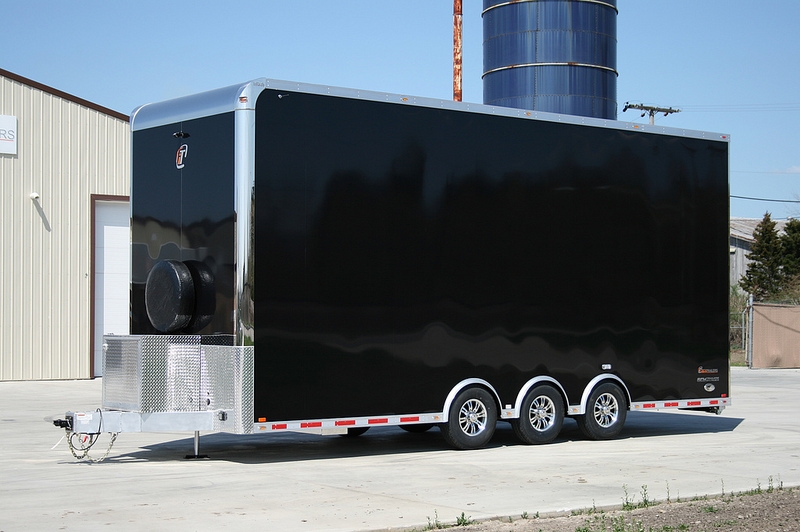

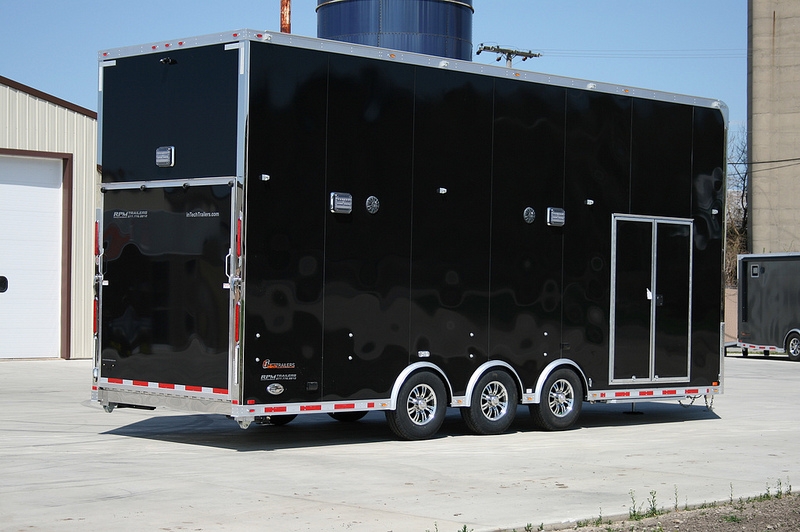

Custom All Aluminum Stacker Trailer
Another incredible stacker trailer designed by RPM Trailer Sales. Handcrafted aluminum inTech Trailer by RPM Trailer Sales is built by an all-Amish workforce and no other aluminum trailer is comparable. Custom design and features that will exceed the expectations of all who choose the best aluminum trailer in the industry. RPM Trailer Sales is determined to design the best aluminum trailers in the industry! The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest aluminum trailer dealer is the country!
GVWR: 23,100 lbs.
Shipping Weight: 7,890 lbs.
Width: 8.50
Height: 11’4” Interior
Axle Type: Triple 7,000lb. Dexter Torsion Axles
Model: BSA8526TTA5 Product Number: 11625
Take a look at all the incredible features this 8.5 x 26 custom inTech Aluminum Stacker Trailer has to offer. If this is not exactly what you are looking for call RPM Trailer Sales today for your custom trailer quote.
Chassis:
Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes- All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2) 5/16” Ball Coupler
Hydraulic Front Jack
Safety Chains w/ Storage Loop
16” O/C Floor Crossmembers
16” O/C Wall Studs
16” O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axles Design w/ individual Fenderettes
ST 235 85 R 16 Nitro Filled Tires w/ Steel Wheels
Interior:
One Piece Aluminum Subfloor Vapor Barrier
3/4” Plywood Subfloor
Extruded Aluminum Floor
Extruded Aluminum Ramp
.030 Screwless Aluminum Walls and Ceilings
6) Dome Lights
10’ Standard Interior Height
8) 5000# Recessed D-Rings
3’ Interior Beavertail
Exterior:
.040 Aluminum Skin
Screwless Aluminum Exterior
One Piece Aluminum Roof
Arched Walk on Trussed Roof System
4” Upper and Lower Rub Rail
LED Premium Clearance Lights
Dual LED Slimline Tail Lights
LED Slimline Backup Lights
36’ ATP Stoneguard
36’ 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Verticals & Radius
Polished Cast Aluminum Corners
Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates
Stacker Features:

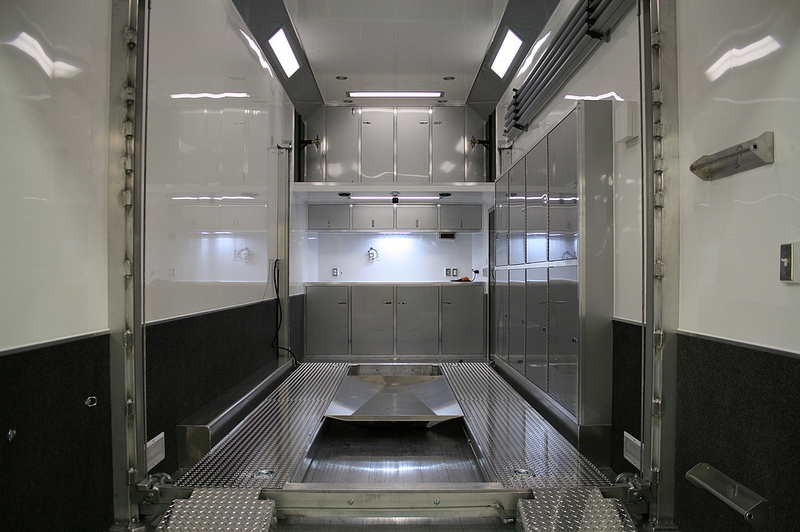

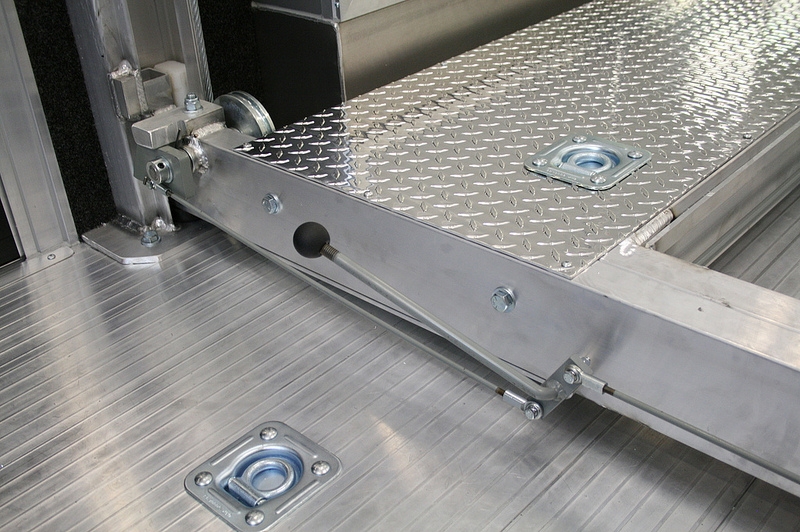

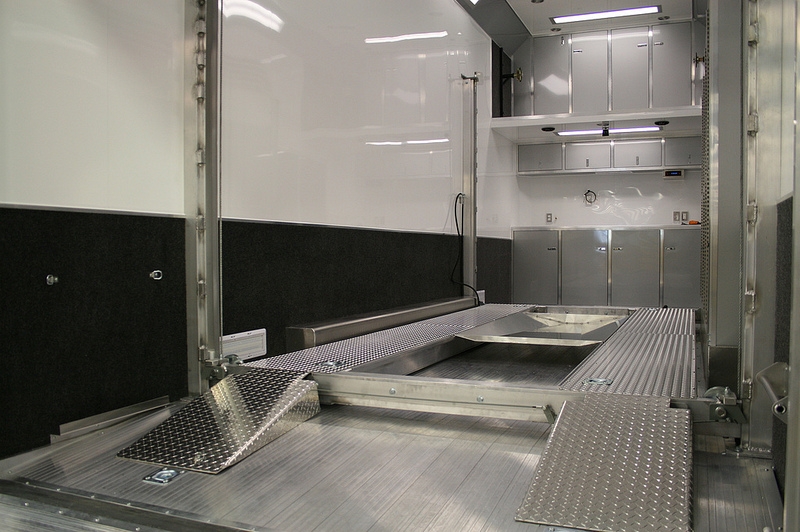

14’ Aluminum Split Rail Lift (4000# Capacity)
In Floor Hydraulic Lift Pump
2) 12V Deep Cycle Batteries w/ Vented Boxes
In Floor Battery Compartment
15A Motorbase Plug
45 Amp Converter Battery Charger
Rear Manual Stabilizer Jacks
Tongue Weight Scale
Underside of Lift Finished w/ .030 Aluminum
Additional Upgrades and Selected Options:
Upgrade to 11’4” Interior Height
Upgrade to .050 Exterior Aluminum
Upgrade to Aluminum Wheels
Spare ST 235 85R 16 on matching Aluminum Wheel

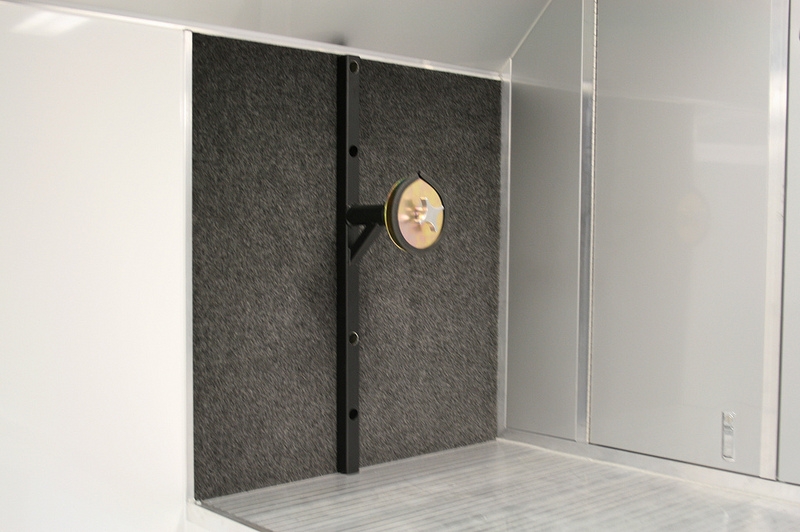

Spare Tire Wall Mount
Rear Caster Wheels
Weight Distribution Prep
12” Extended Tongue

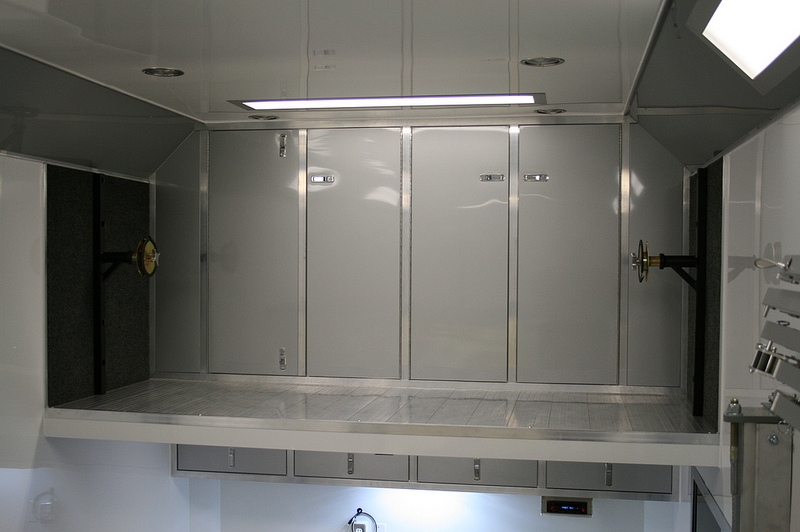

5’ Light Duty Attic w/ Matching Floor

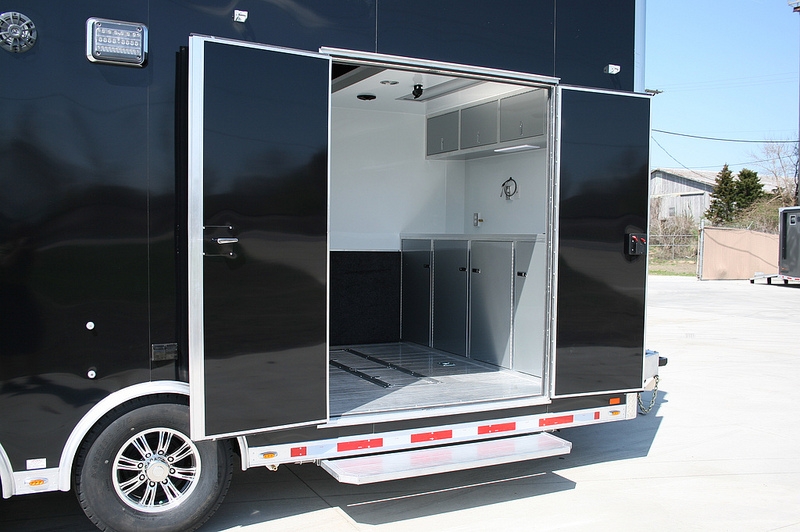

Upgrade to 60” Side Door
Slide Out Aluminum Step
50amp Generator Prep w/ Transfer Switch
5) 120v 15amp Recepts
1) Additional 12v Dome Light
3) 12v 18” LED Interior Lights
7) 120v 48” Fluorescent Lights
4) Lights Upgraded to 45 Degrees Mounted in Cove
1) Upgrade to 3 way light switches (pair)
10) LED Clearance Lights
1) Pair Side Mount LED Turn Signal/Clearance and Turn Combo
12V LED Docking Lights (pair)
3)120v 500w Quartz Halogen Light Upgraded to Flush Mounted LED
34” High Carpet on Interior Walls

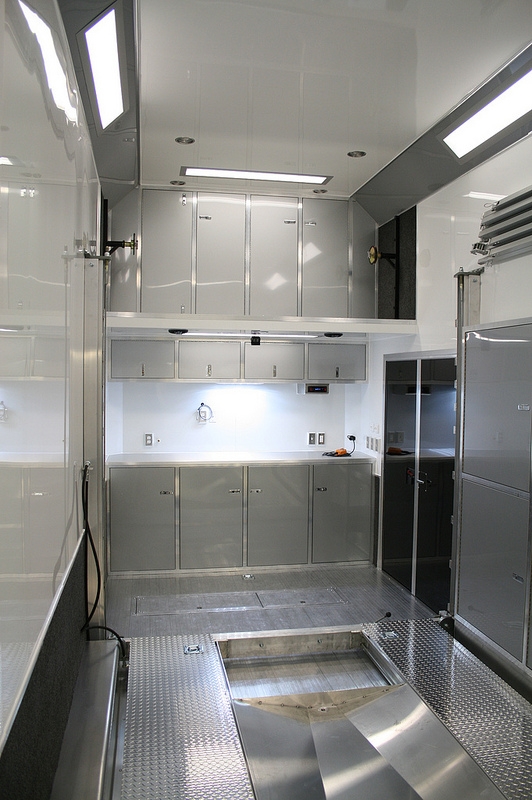

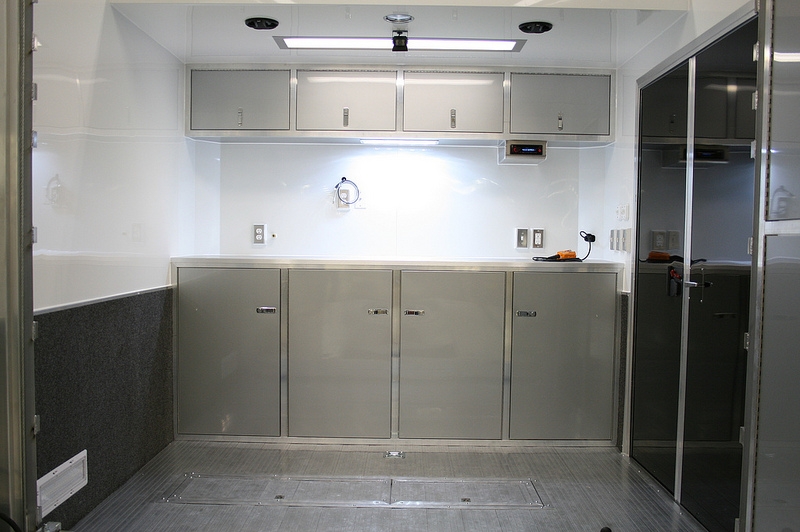

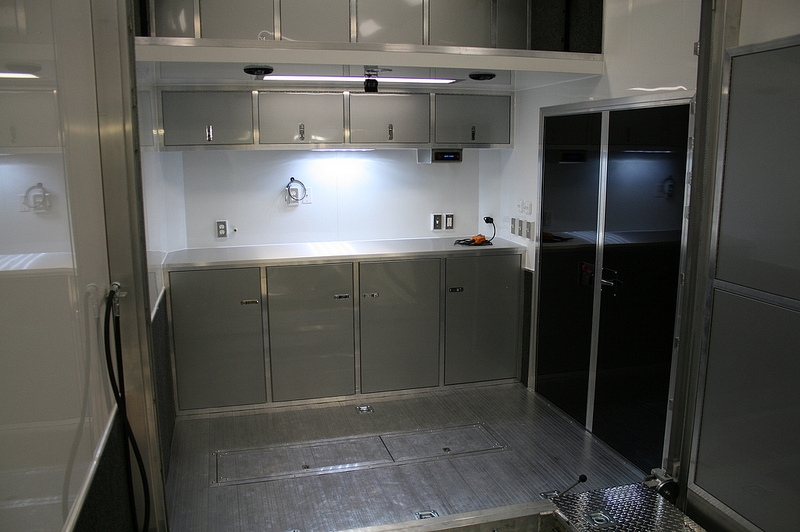

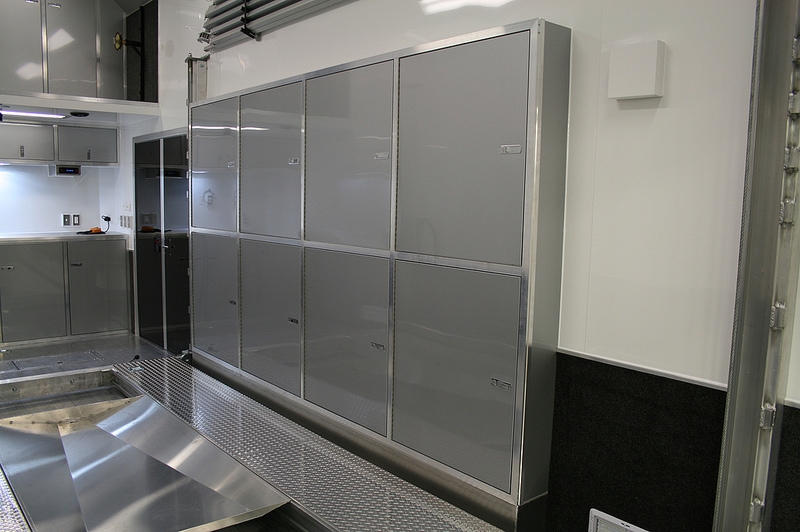

2) 8’ Premium Lower Aluminum Cabinets
8’ Premium Upper Aluminum Cabinet

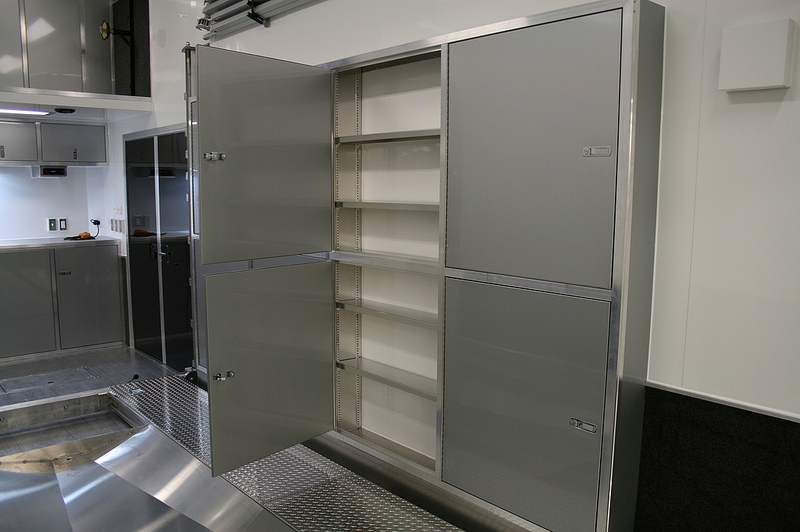

Triple Axle Wheel Well Cabinet
2) 5,000 lb. D-Rings Recessed
TV Prep Package
AM/FM/CD Stereo w/ 2 Interior Speakers & 2 Exterior Speakers

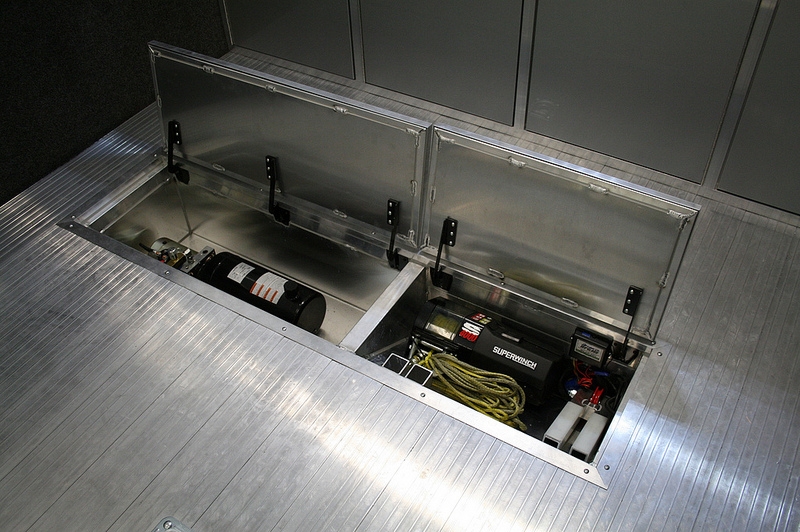

In Floor Winch Box
Airline Prep Package
50 amp Electrical Package
Arrow / Girard Awning Prep

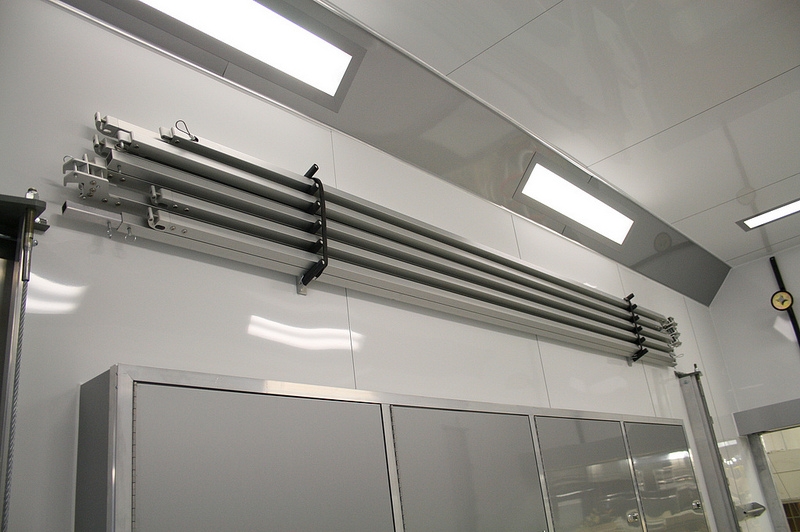

4)Spin on Dragster Slick Mounts – Carpeted Backing
2) Strap Hangers – Carpeted Backing
Tongue Mounted Generator Box
Custom Drain Pan
Customer Supplied Winch
Customer Supplied Weather Station
Customer Supplied 3 Position Camera
Contact RPM Trailer Sales today for all you custom trailer needs at 706-654-2882.
