Charcoal Gray All Aluminum Custom Concession Trailer

Contact RPM Trailer Sales to place an order for your next Custom All Aluminum Speciality Trailer.

Product Specs

  • New
  • 11898
  • BGA85X30TA4
  • 8′ 6″ x 30′
Request More Info


30' Custom BBQ Concession Trailer

Check out this really incredible BBQ trailer that we built for a business in Russia.   All Specialty Trailers, Custom Concession, and Vending Trailers are custom-built to your specifications so we build it to fit your exact needs. We've built a lot of BBQ trailers for both professional competition teams and amateur teams across the nation, so if you are a serious business savvy who want the best in an all-aluminum custom trailer then you have come to the right place.  If you have a specific trailer in mind, let us show you how we can make your dream a reality!
Every trailer we design includes a set of detailed CAD prints, including an interactive 3D CAD model that shows you every aspect of your trailer...before we've welded the first aluminum tube. We make building a custom trailer easy and hassle free.
This custom aluminum trailer was built for a customer that chose to install all his own cooking equipment, refrigerators, and freezers, so we packed in all the electrical and all the water supply to make it easy once the trailer arrived in Russia.  It's a great design and very functional. RPM Trailer Sales is the industry leader in all-aluminum, custom-built trailers, learn more about what RPM Trailer Sales had to offer you or your business by contacting us at 706-654-2882.

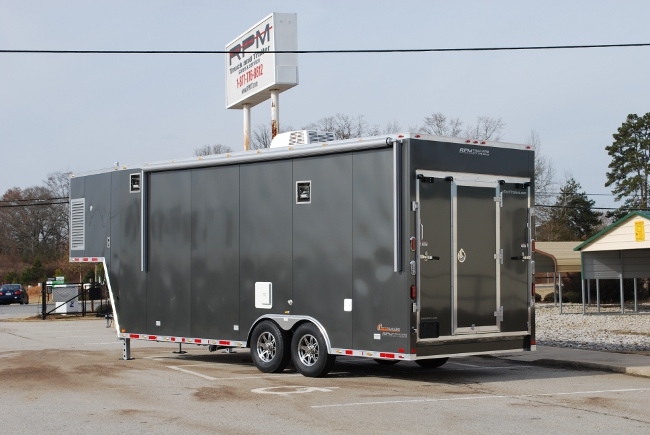

8.5 x 30 All Aluminum Custom BBQ Concession Trailer

GVWR: 14,400 lbs.
Shipping Weight: 7,900 lbs.
Width: 8.50
Interior Height: 8.5'
Axle Type: Tandem 6,000 lbs. Dexter Torsion Axles

Model: BGA85X30TA4
Product Number: 11898

Take a look at the custom options this customer chose for his custom BBQ Trailer.
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Nitro Filled Tires w/ Steel Wheels

3/4" Plywood Subfloor
One Piece Aluminum Subfloor Vapor Barrier
3) Dome Lights
1) 12V Power Roof Vent
6.5' Standard Interior Height
4) 5000# Recessed D-Rings

.030 Aluminum Skin
Screwless Aluminum Exterior
One Piece Aluminum Roof
Arched Walk on Trussed Roof System
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
ATP Enclosed Riser w/ (2) Storage Doors
36" 405 Series Entrance Door
Polished Cast Aluminum Corners

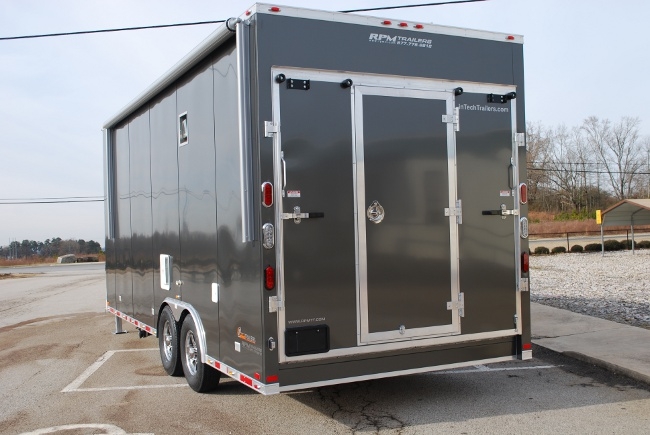

Rear Ramp Door w/ Gapless Hinge
Aluminum Bar Locks
FMVSS Premium Entrance Door Latch

Additional added features & selected options:

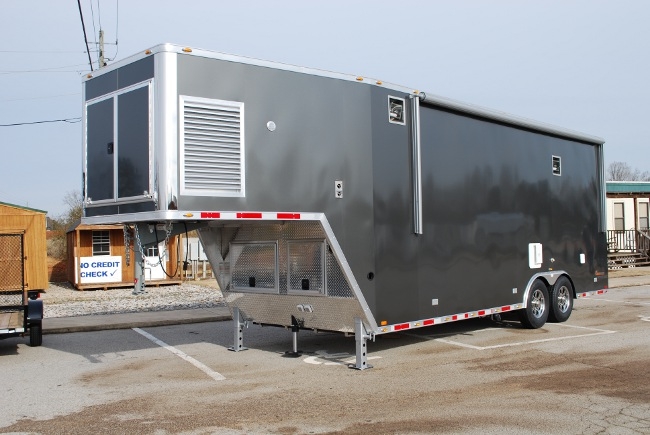

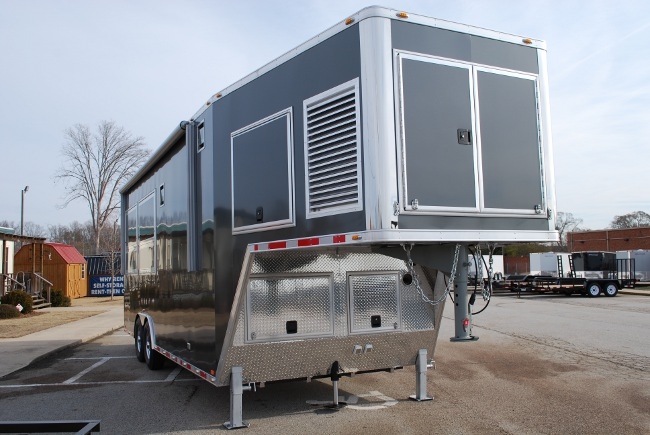

Tapered Nose for Gooseneck Trailer
18" Additional Height
Upgrade to Fantastic Fan w/Rain Sensor ILO 12V Power Roof Vent
Add 3 Stage Legs to Rear Ramp Door
Tank Heater & Plumbing Package

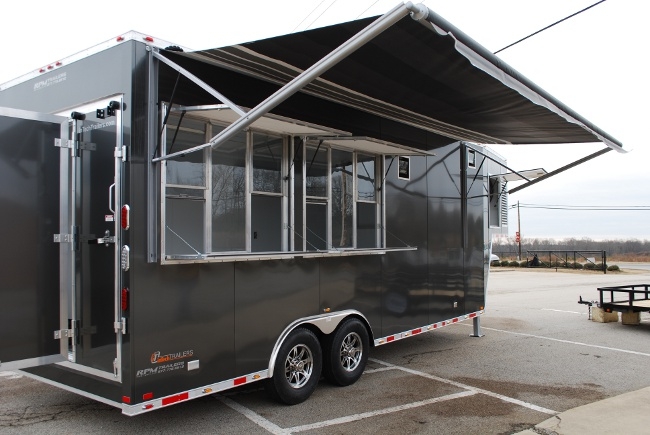

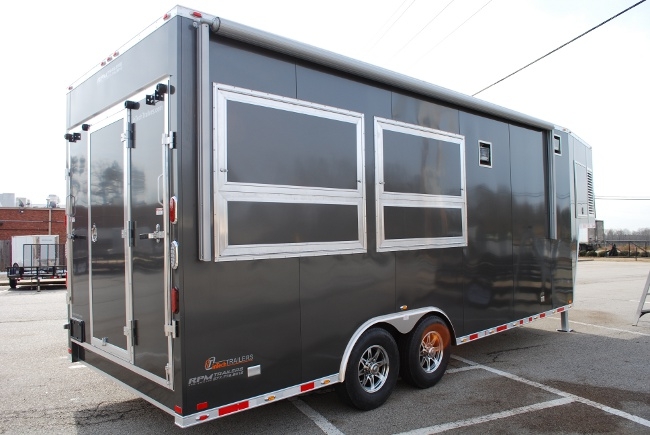

6' x 4' Concession Door w/ Fold Down Counter & Sliding Serving Windows

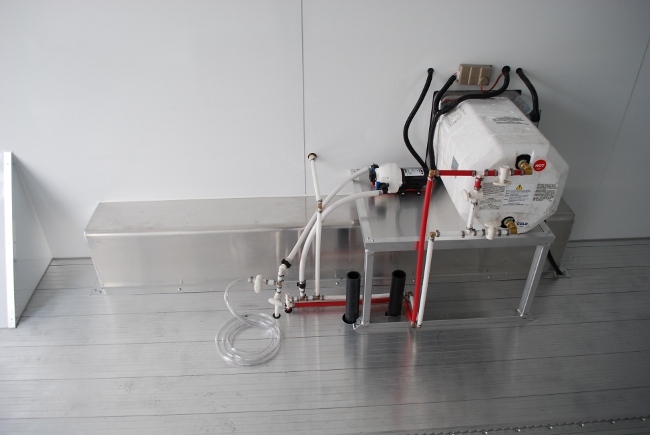

Complete Plumbing Package:
Includes Fresh Water Stubs for Triple Sinks
75 Gallon Fresh Water Tank
2) 50 Gallon Grey Tanks
Tank Monitor
City Water Fill
Gravity Water Fill
Dump Valves
120v 5.7 GPM Water Pump
10 Gallon DSI Water Heater
25,000BTU LP Furnace - Includes 2) 20# LP Tanks

20 KW Powertech Diesel Generator Package:
Louver Sizes for Generator are 25" x 35"
Insulated Generator Box
405 Series Baggage Door
Dual Automatic Transfer Switches
50 amp Motorbase Plug
Remote Start & Fuel Gauge
50 Gallon in Frame Fuel Tank
136" x 18" Stainless Steel work table w/ Full Depth Stainless Shelf Underneath
Tempcoat Spray in Insulation for floor
Tempcoat Spray in Insulation for Walls & Ceiling
Upgrade to Single Post Hydraulic Jack
2) Spare ST235 80 R 16 on Aluminum wheels

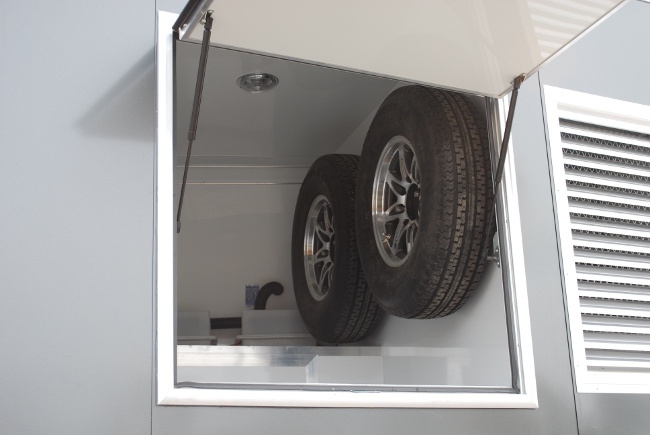

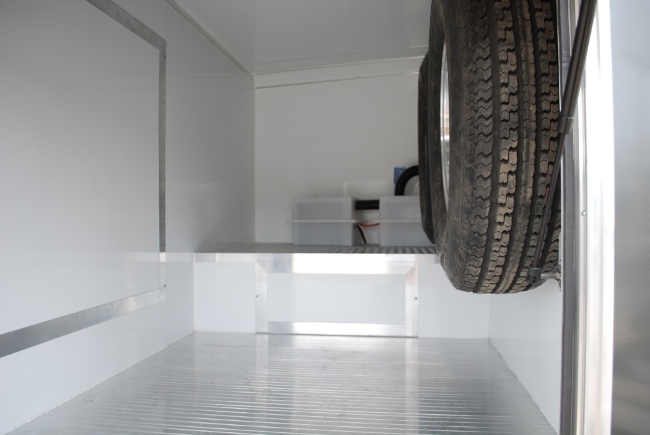

2) Spare Tire Wall Mounts in Bunk

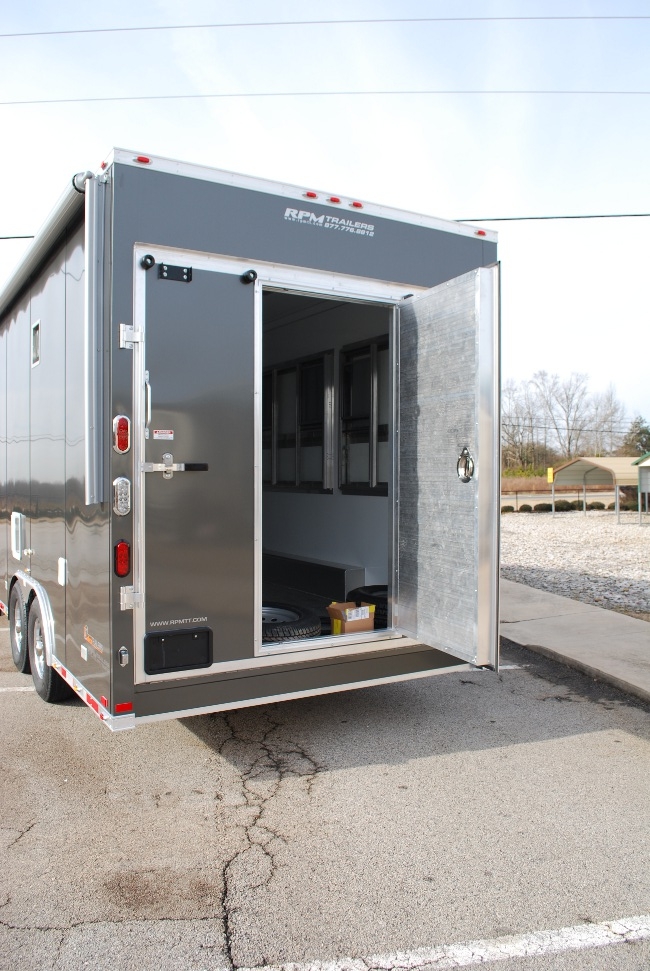

36" 405 Series Entrance Door Built into Ramp Door
12v Battery w/ Vented Box & 2 Batteries

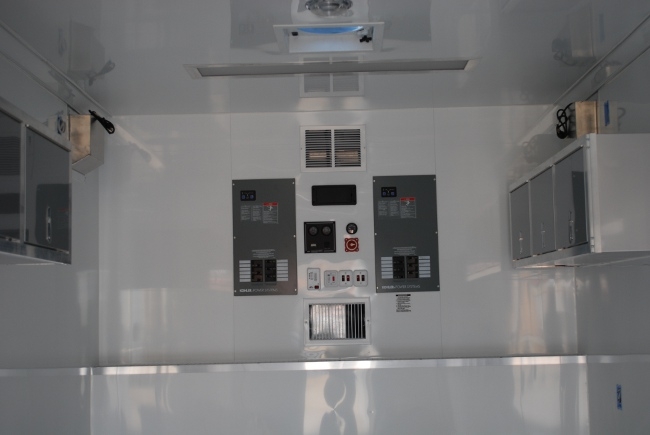

2)50 amp Breaker Boxes
12v Fuse Panel
60 amp Converter / Charger for Battery
2) 25' Shore Cords w/ Motorbase Plug
15) 120v 20amp GFI Recepts:
5) 48" Fluorescent Lights Recessed
2) 3 Way Light Switches
20) LED Clearance Lights - 10 Each Side
Add LED Slimline Brake Lights – Pair
Add LED Slimline Back up Lights – Pair
4) 120v 500w Quartz Halogen Lights

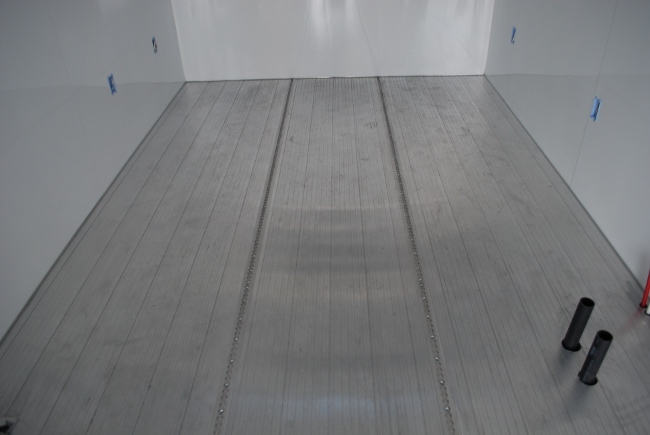

Extruded Aluminum Floor

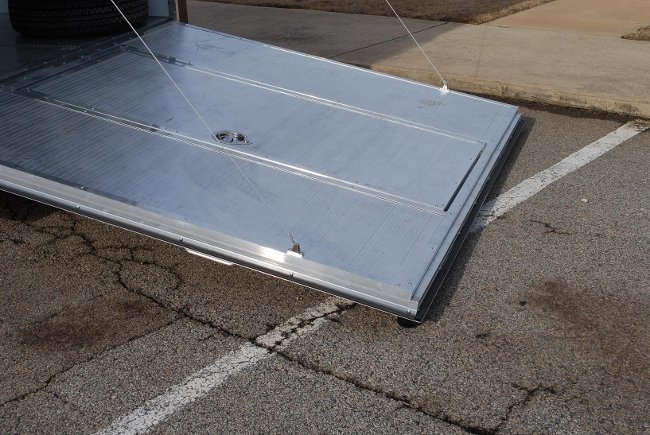

Extruded Aluminum Ramp
Screwless Aluminum Walls & Ceiling

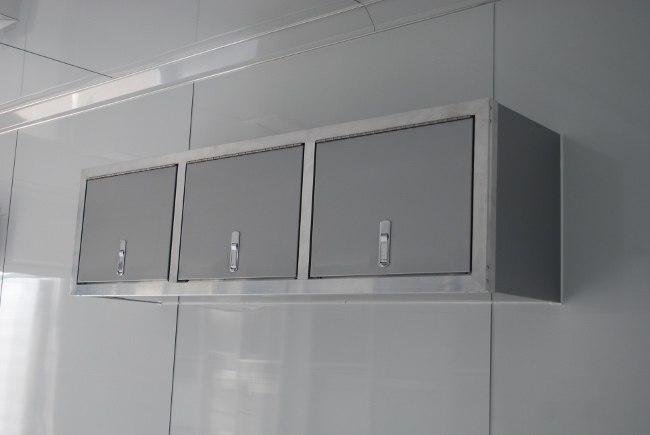

2) 5' Upper Aluminum Cabinets
44' Airline Track Recessed in Floor - 2 Rows
.040 Exterior Aluminum Skin
15,000 BTU A/C w/ Heat Strip
Digital Wall Mounted Thermostat for A/C
2) 19' 12v Power Dometic Awning w/ Weathershield
48" x 36" 405 Series Top Hinged Baggage Door
132' Wall Backer Plates for Self-installed equipment
