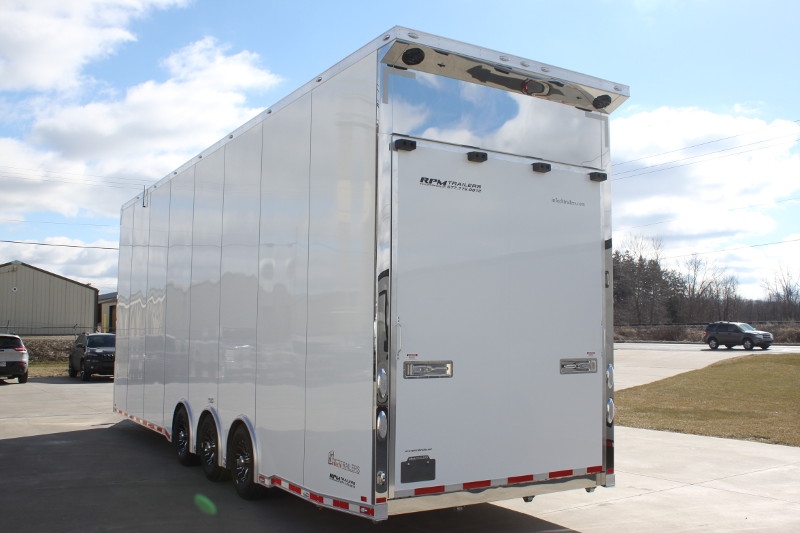

32' Custom Aluminum Sprint Car Trailer

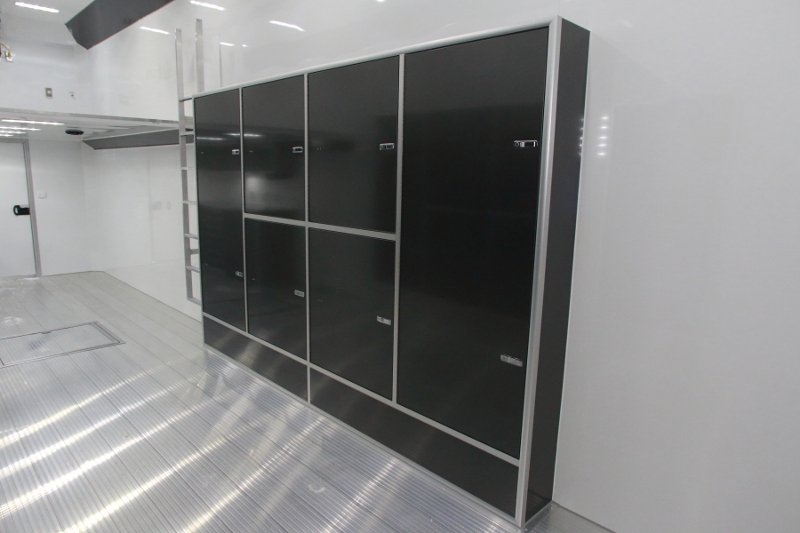

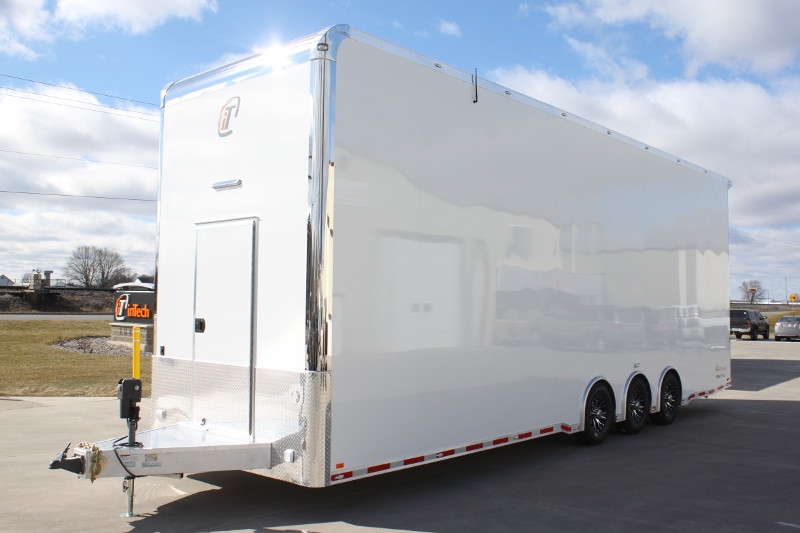

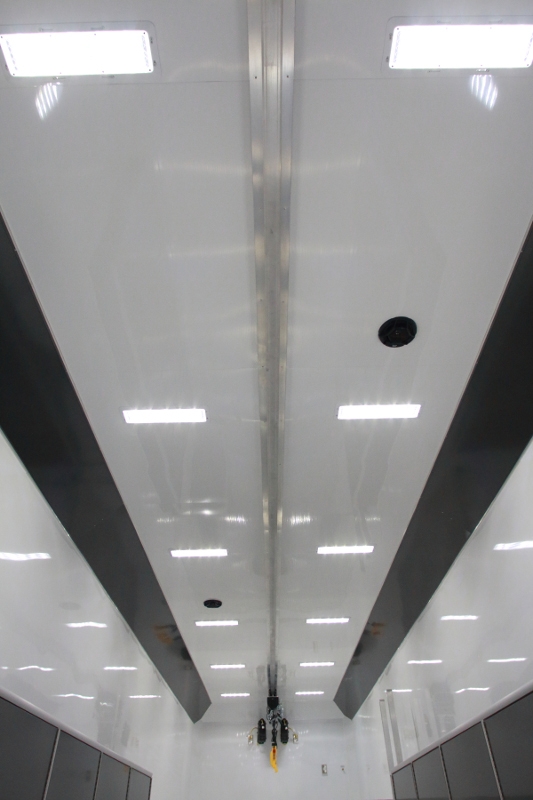

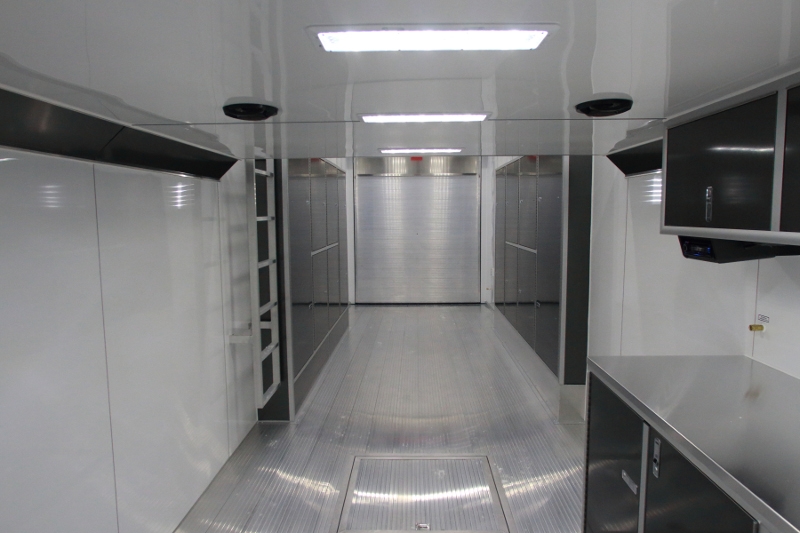

Whoever said less is more, lied. This is a beast on wheels! Check out this ultimate Sprint Car trailer design by RPM Trailer Sales. This amazing sprint car trailer offers many great options. The exterior is built to max height and offers our .050 white exterior aluminum, triple 7,000 lb. axles, full heavy duty walk on roof, and many more great options for one awesome trailer. The interior of this bad boy is set up for some serious racing. Our sprint car loading package features a 3” I-Beam that travels the length of the ceiling, two electric hoists and two electric cord reels to move the cars up into the attic and back out with ease. There’s tons of custom cabinets built into this unit for ample supply of storage and it even includes motor storage under the base cabinet as well.
This 32’ incredibly packaged aluminum sprint car race trailer will not disappoint. Custom trailers are our specialty and this aluminum sprint car hauler has it all. Browse through the images and see for yourself the unmatched attention to detail only found in an aluminum race trailer designed by RPM Trailer Sales. As always, we've included plenty of images so you can see every detail of this fabulous trailer. Isn't it time you give RPM a call and see for yourself a true custom trailer? RPM Trailer Sales is designing only the finest aluminum trailers in the industry! The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest aluminum trailer dealer in the country!
“Often Imitated – Never Duplicated”
Model: BTA8532TTA5
Product Number: 11985
GVWR: 21,000
Shipping Weight: 8,065 lbs.
Height: 11 ½’ Interior Height
Axle Type: Triple 7,000 lb. Dexter Torsion Axles
Check out all the details on this amazing 32’ Aluminum Sprint Car Trailer here
Chassis
Full Perimeter Aluminum Frame
All-Tube Aluminum Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
5,000 lb. Manual Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels
Interior
One-Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
2) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent w/ Switch
6.5' Interior Height
4) 5000# Recessed D-Rings
4' Interior Beavertail
Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
24" ATP Stoneguard

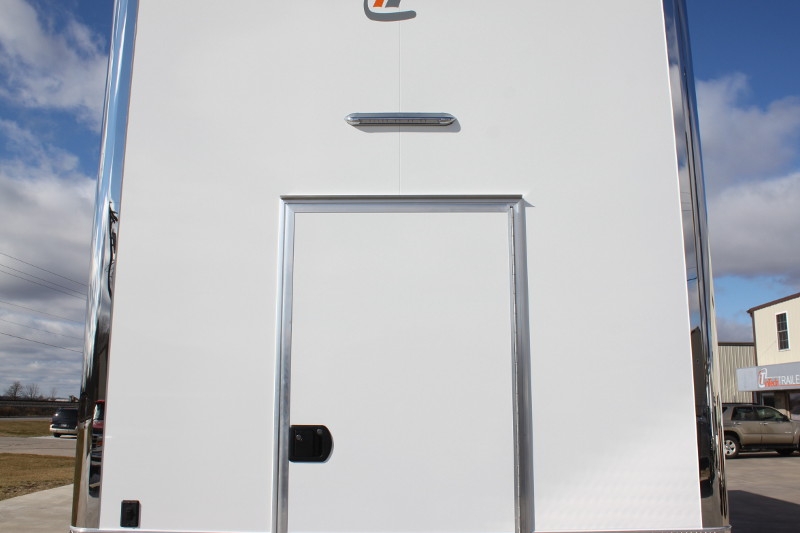

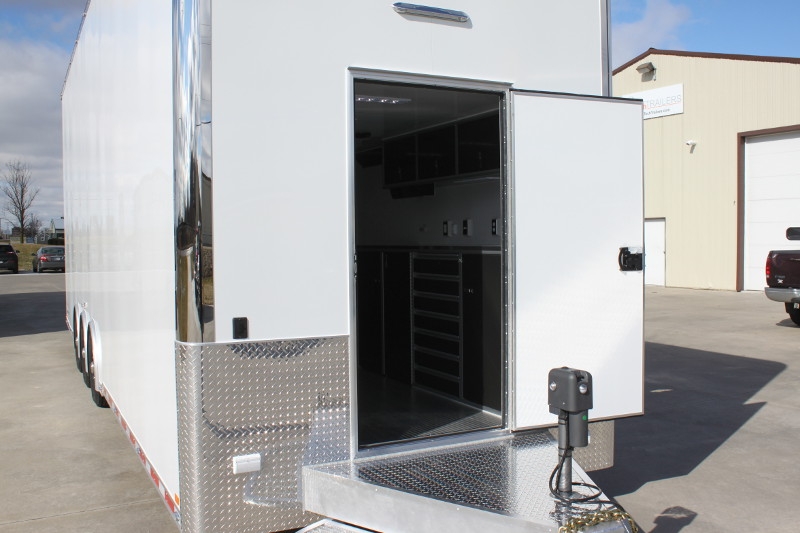

36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door
Rear Skid Plates
Packages & Additional Selected Options:
32' iCon Package
Exterior Upgrades
Upgrade to 7' Interior Height
Extended Tongue
Upgrade to 48" 405 Series Door
FMVSS Side Door Lock

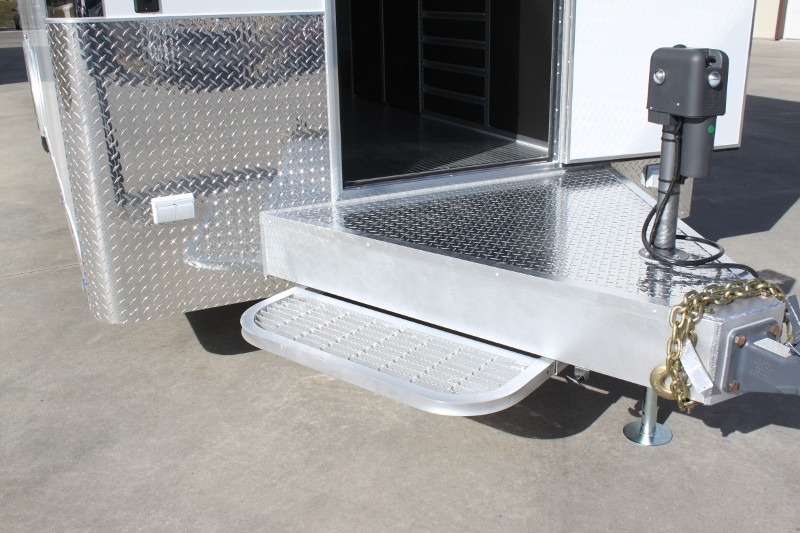

Aluminum Slide Out Step
Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4" Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches
40" x 36" 405 Series Generator Door
Awning Rail
Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25' Shore Cord
12V Battery & Box Wired
12V Fuse Panel
60 Amp Converter for 12V
3) 15 Amp Interior Recepts
1) 15 Amp Exterior Recept
4) 12V 18" LED Interior Lights - Replaces Domes
3 Way Light Switch for Interior LED Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights
Interior Upgrades
Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC
Extruded Aluminum Floor
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

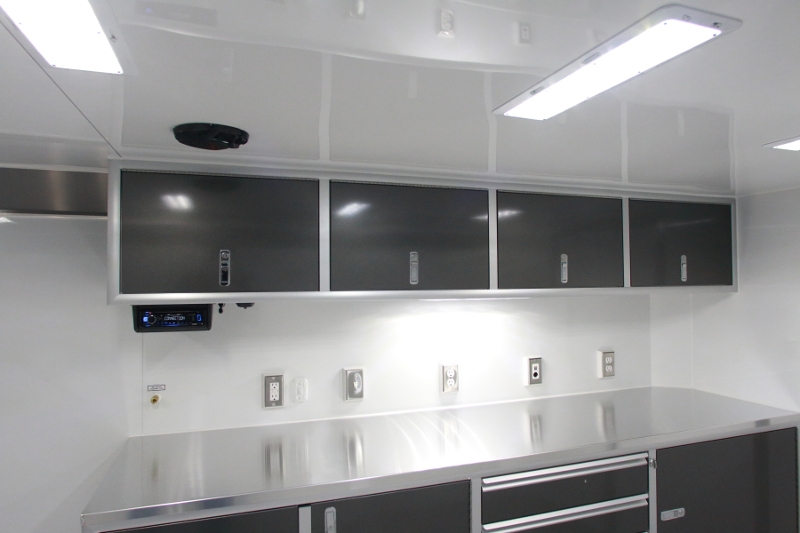

8' Premium Aluminum Upper Cabinet

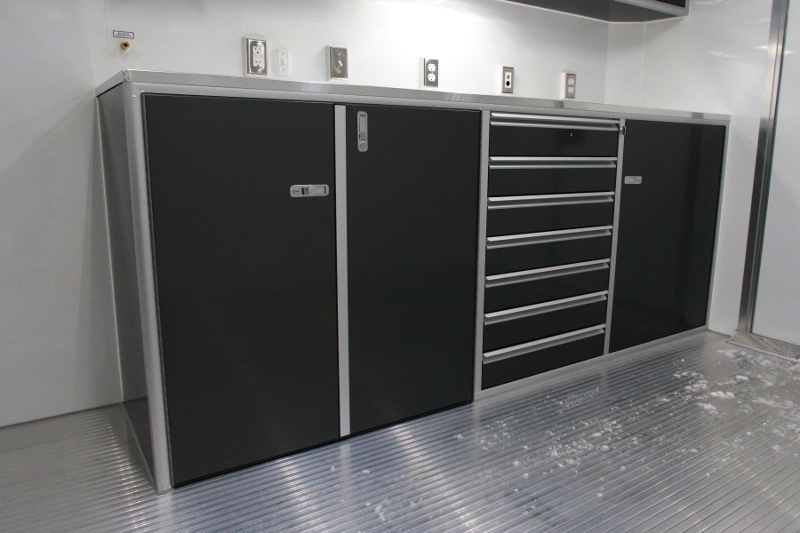

8' Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet
8' Interior Height Maximum w/ Package
Install Slide Out Step Under Tongue for Front Door

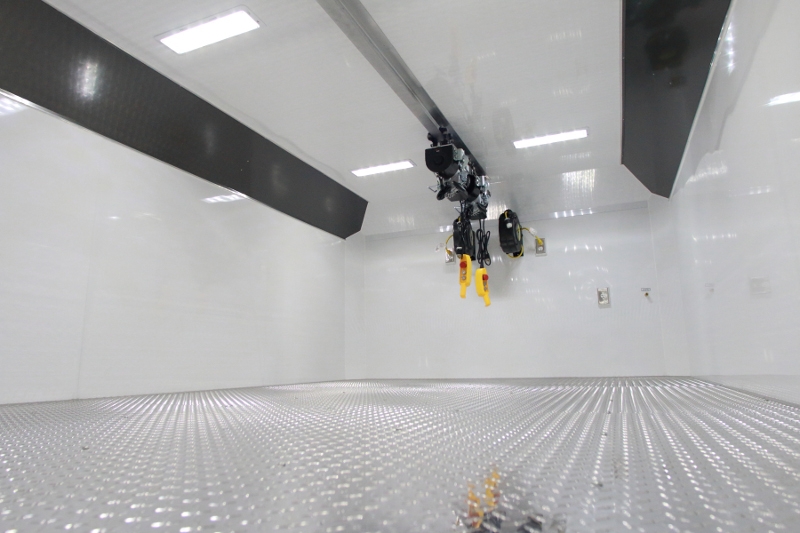

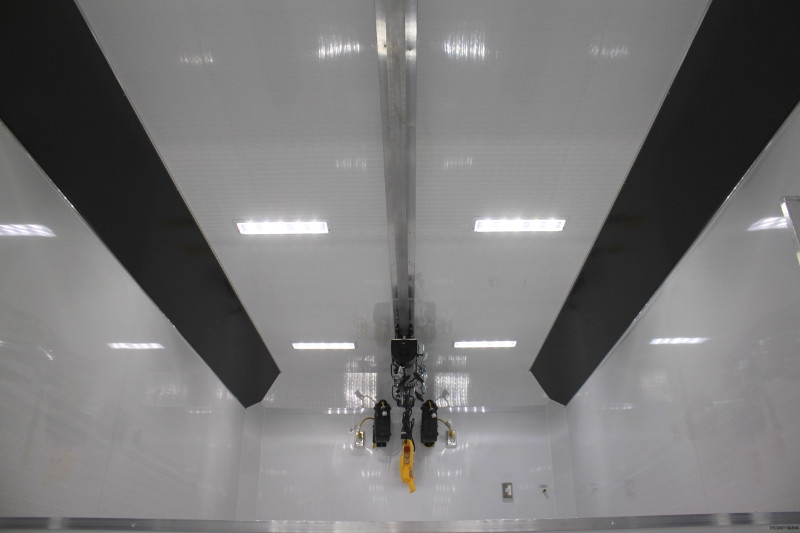

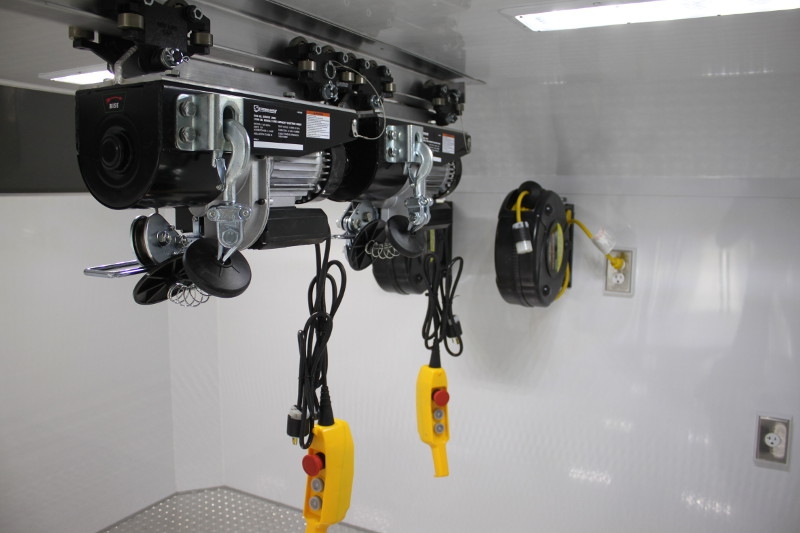

Sprint Car Loading Package
4) Trolleys
2) Hoists
Aluminum I-Beam
2) Electric Cord Reels
More additional Options & Upgrades
Downgrade to Straight Base Cabinet From L-Base

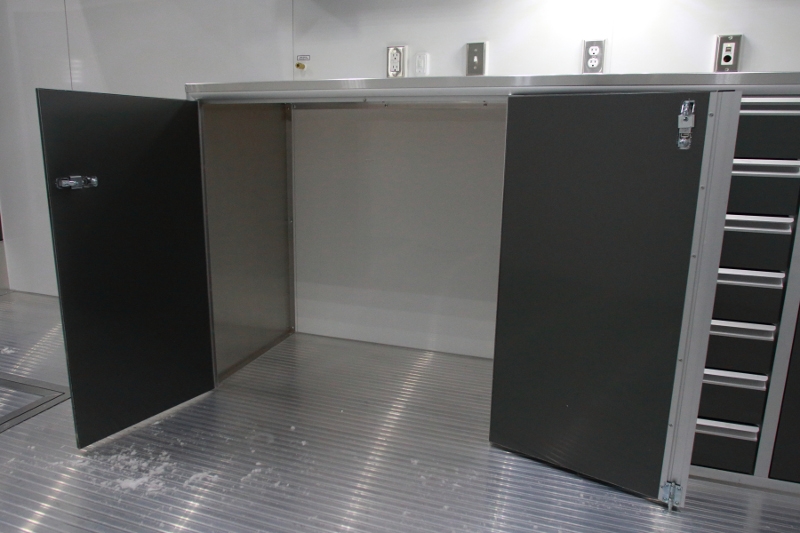

38" Engine Cabinet w/ No Center Stile and No Threshold
Delete 2) 500W Quartz Light
Downgrade to 36" 405 Series Entrance Door from 48"
Upgrade to .050 Exterior Aluminum Skin from .040
Upgrade to Recessed Stainless Steel Latches into Ramp Door From Paddle Latches- Pair
54" Additional Height - Additional Height for iCon Package
Upgrade to Heavy Duty Walk on Roof
Fixed Mount Interior or Exterior Ladder
2) Rear Caster Wheels – Pair
Upgrade to 4,500 lb. Front Power Jack
Spare ST235/85R16 on Aluminum Wheel
In Floor Spare Tire Compartment
Add 12V Power Outlet w/ (2) USB Charging Ports
6) additional 120V 15A Recepts
3 Way Light Switches - Pair
14) additional 12V 18" LED Interior Lights
22) additional Panelite LED Clearance Lights
Side Mount LED Turn Signal/Clearance and Turn Combo – Pair
12V MAX Loading /Tie Down LED 18" Light

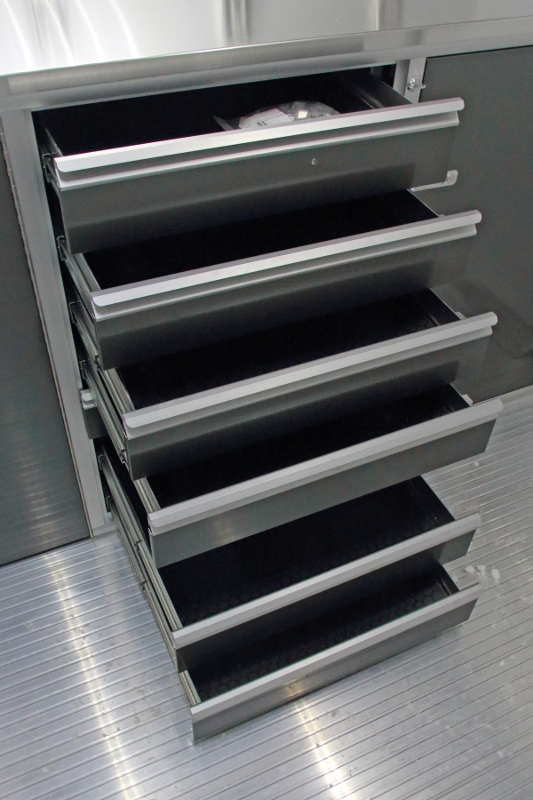

7 Drawer Tool Chest Bank to Lower Cabinet w/ Clear Anodized Trim
2) Wheel Well Cabinet Triple Axle
Upgrade to 36" ATP Stoneguard
Add ATP Tongue Cover
Upgrade to Lowered Skirt w/ Reverse Beavertail Design - Triple Axle
Color Matched Rear Spoiler - Specify Original or New Style
Airline Prep Package - 1 Inlet - 3 Outlets - Dedicated 20A Recept at Inlet
AM/FM/CD Bluetooth Stereo w/ Four Interior Speakers
Add (2) Exterior Speakers to Radio - Includes Amplifier
Delete 2) 12V Power Roof Vent

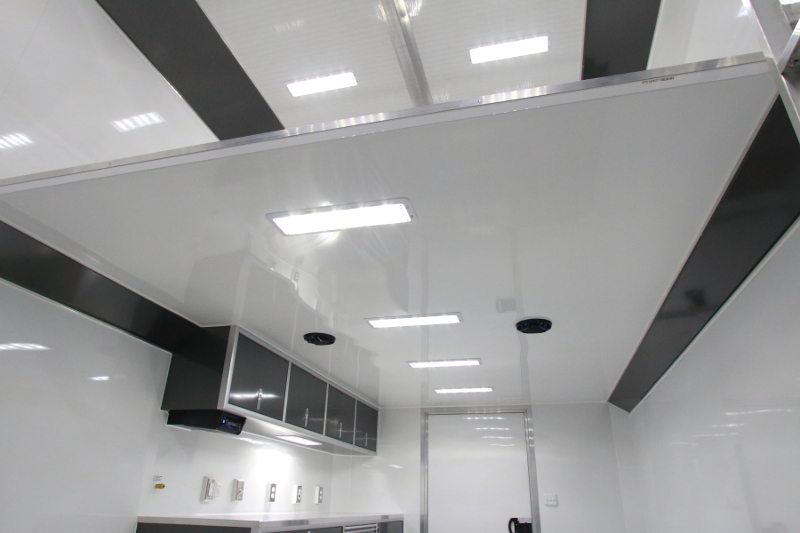

12’ Ultra-Light Duty Attic w/ ATP Flooring
If this Sprint Car Trailer is not exactly what you are looking for, give us a call at 706-654-2882 and we will get you a custom quote specifically for your needs.
