48' Aluminum Race Trailer with Lounge

Custom 48' Snowmobile Trailer with a Lounge Package.  Loaded with features and custom options.  This aluminum trailer is a must see.  For more details preview the specifications below and contact us at 706-654-2882 for more details.

Product Specs

  • New
  • 12634
  • BGA8548TTA5
  • 8′ 6″ x 48′
Request More Info

Details

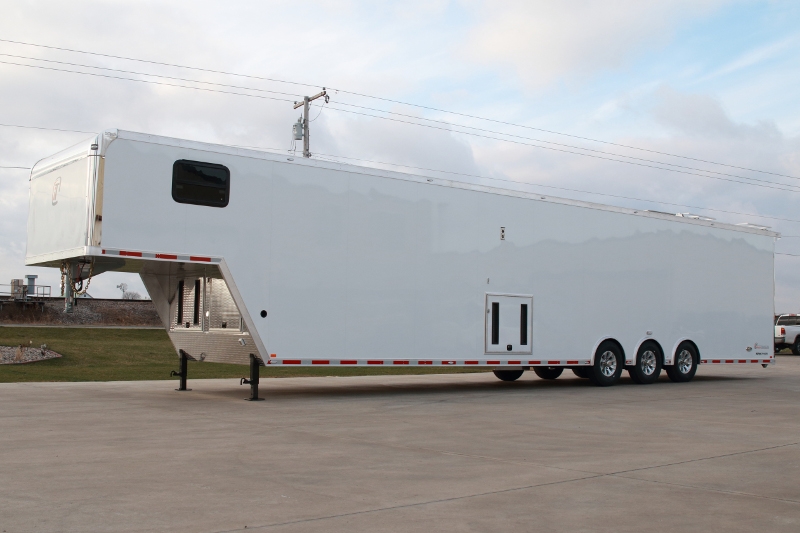

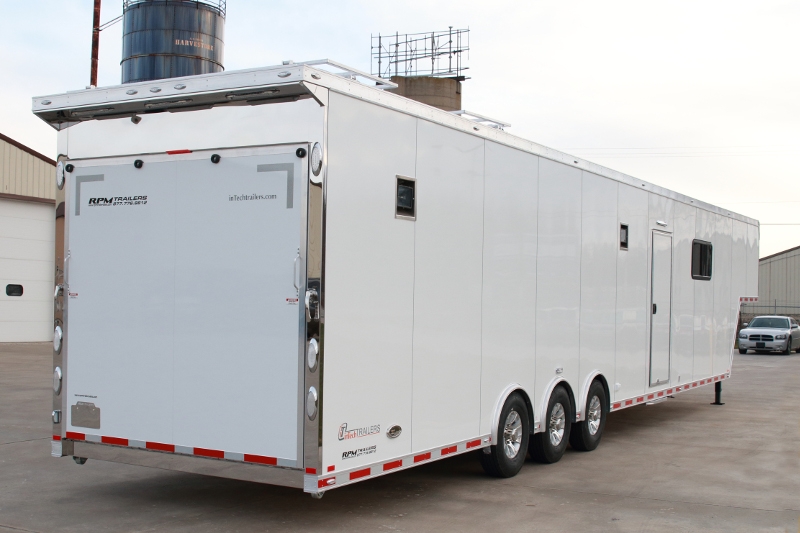

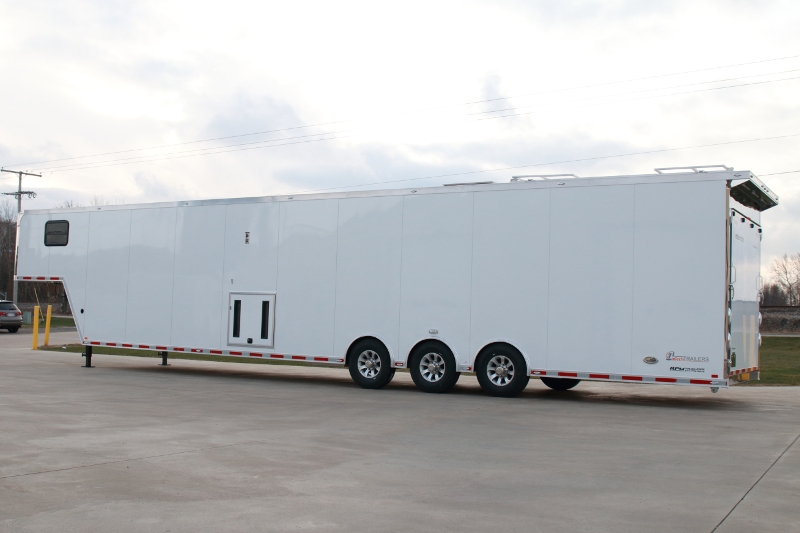

48' Aluminum Gooseneck Race Trailer with Lounge

Even at rest, a trailer designed by RPM trailer Sales has the ability to raise your heart rate. This 48’ Custom Race Trailer with Lounge Package is no exception.  Our level of quality, fit, finish and attention to detailed is unmatched in the trailer industry.  The all-aluminum tube construction creates a lightweight alternative to the more common steel frame trailers. In addition to weight savings, you can also take advantage of a trailer designed to last a lifetime.
This 48’ Aluminum Race Trailer features include a custom design specifically for the customers very own use.  When he wanted a snowmobile trailer RPM Trailer Sales provided.  Two Partition Walls separates the lounge area from the garage area. The rear double doors are a great asset at any location to keep from raising and lowering the ramp door.  The full walk on party roof and viewing rails make this trailer even better for viewing the entertainment right from your very own trailer. Performance, Dependability and Quality Construction are key elements of every trailer we design.  If you haven’t already, check out this amazing aluminum trailer.  If you need a full living quarters trailer, we build those too!  RPM Trailer sales is the first choice for custom aluminum race car trailers. Our designs are second to none! “Often Imitated – Never Duplicated” It's time for you to experience the RPM Trailer Sales Difference! Contact us today for your custom inTech aluminum trailers quote 706-654-2882.

GVWR: 21,000 lbs.
Shipping Weight: 10,840 lbs.
Width: 8.50
Height: 8’ Interior
Axle Type: Triple 7,000 lb. Dexter Torsion Axles

Model: BGA8548TTA5
Product Number: 12634

Check out the construction and all the added options and features on this 48’ Custom Gooseneck Snowmobile Trailer:
Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Adjustable GN Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels

Interior
One Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
3) Dome Lights
1) 12V Power Roof Vent
7' Standard Interior Height
4) 5000# Recessed D-Rings
4' Beavertail

Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
ATP Enclosed Riser w/ (2) Storage Doors
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals

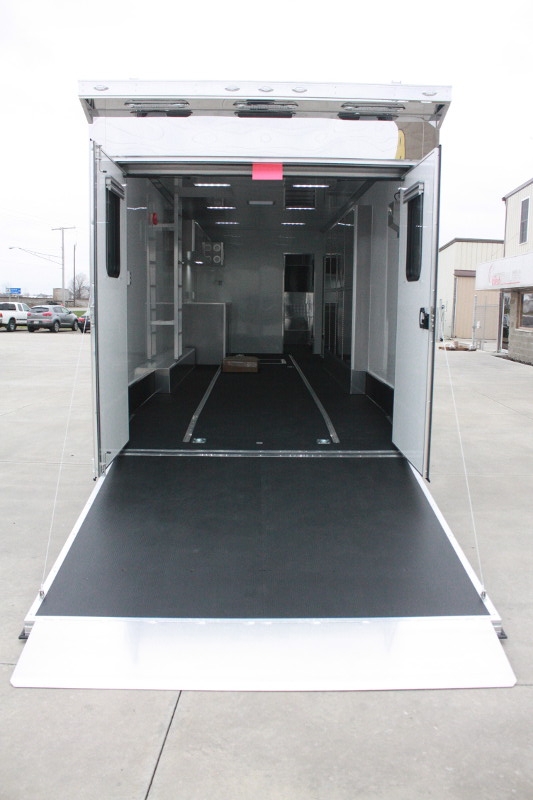

Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door
Rear Skid Plates

Additional Selected Options:
48' iCon Package
Exterior Upgrades

Upgrade to 48" 405 Series Door
FMVSS Side Door Lock
Aluminum Slide Out Step
Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4" Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches
40" x 36" 405 Series Generator Door
Awning Rail

Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25' Shore Cord
12V Battery & Box Wired
Battery Shelf in Riser Compartment
12V Fuse Panel
60 Amp Converter for 12V
3) 15 Amp Interior Recepts
1) 15 Amp Exterior Recept
4) 48" Fluorescent Lights – Recessed
3 Way Light Switch for Fluorescent Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights

Interior Upgrades
Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC
Extruded Aluminum Floor
Gray Carpet in Riser Area
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

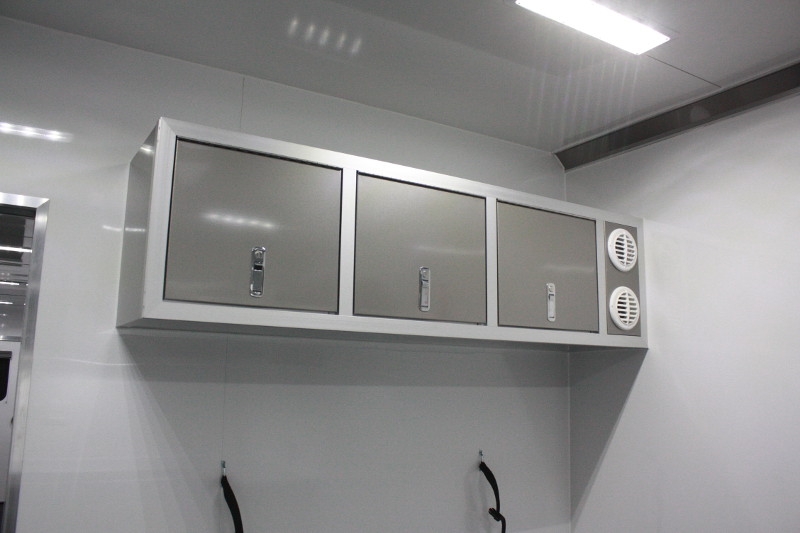

8' Premium Aluminum Upper Cabinet

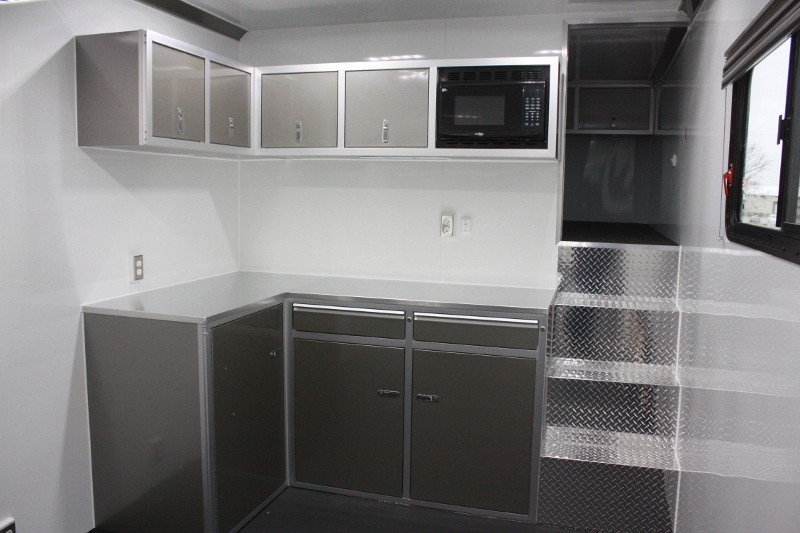

8' Premium Aluminum L Shaped Lower Cabinet

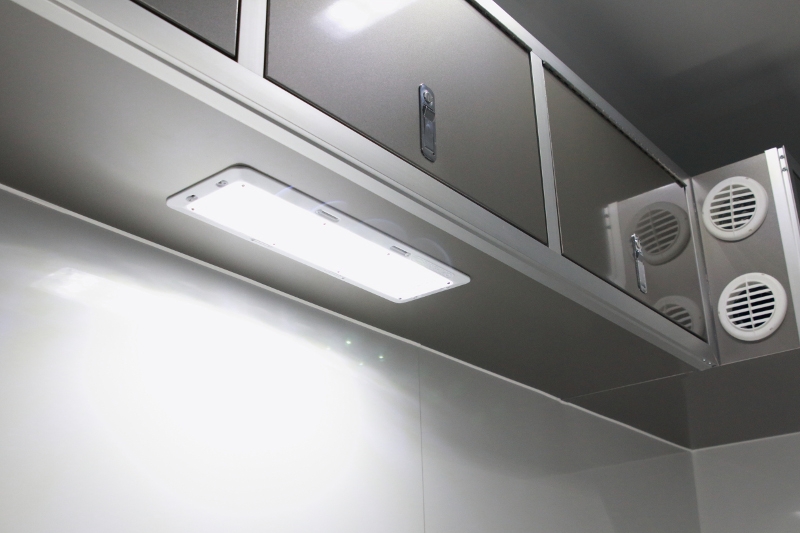

LED Light Under Upper Cabinet

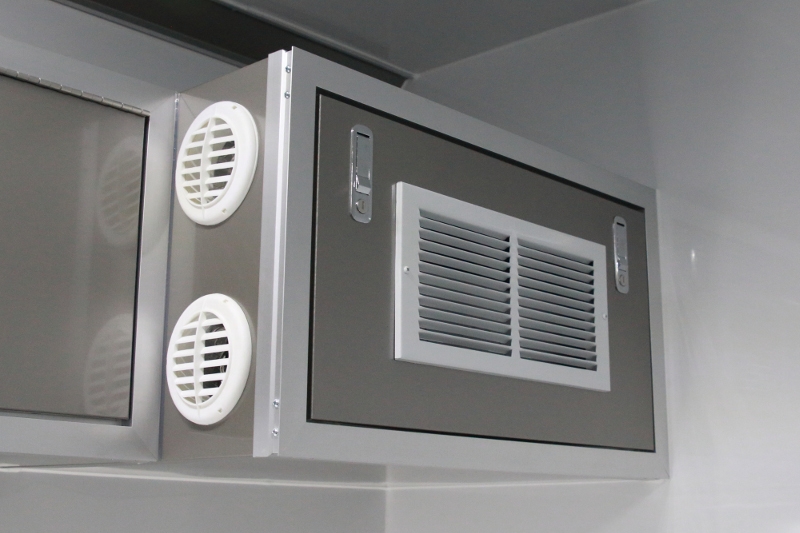

Gen Compartment in L Cabinet

More Selected Options:
Black PolyBead Flooring/Ramp
Downgrade to 36" 405 Series Entrance Door from 48”
Upgrade 4) 48" Fluorescent Light to 18" 12V LED Light
Upgrade to Heavy Duty Walk on Roof
12" Additional Height

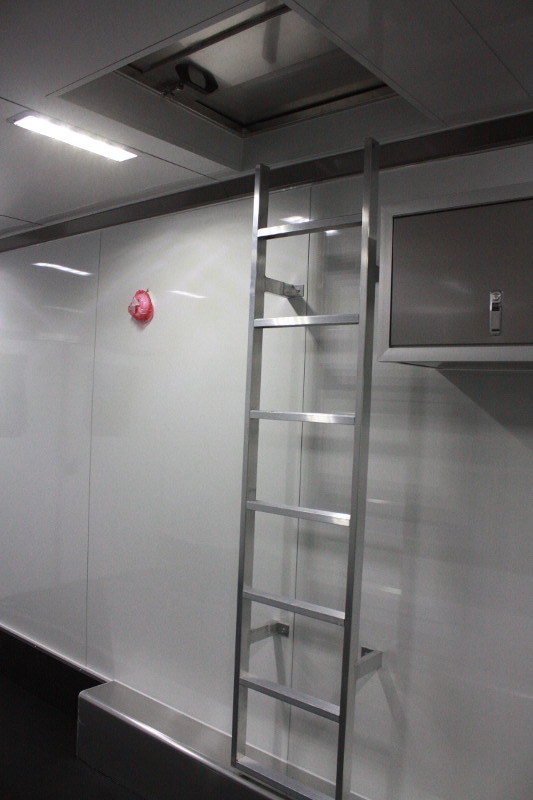

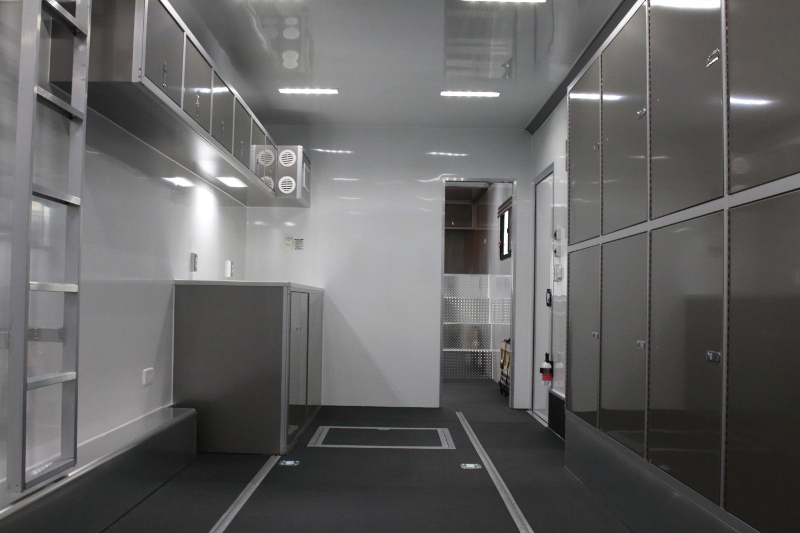

30" x 30" Roof Escape Hatch w/ Interior Ladder
Roof Mounted Viewing Rail
Rear Caster Wheels – Pair
Spare ST235/85R16 on Aluminum 16" Wheel
In Floor Spare Tire Compartment

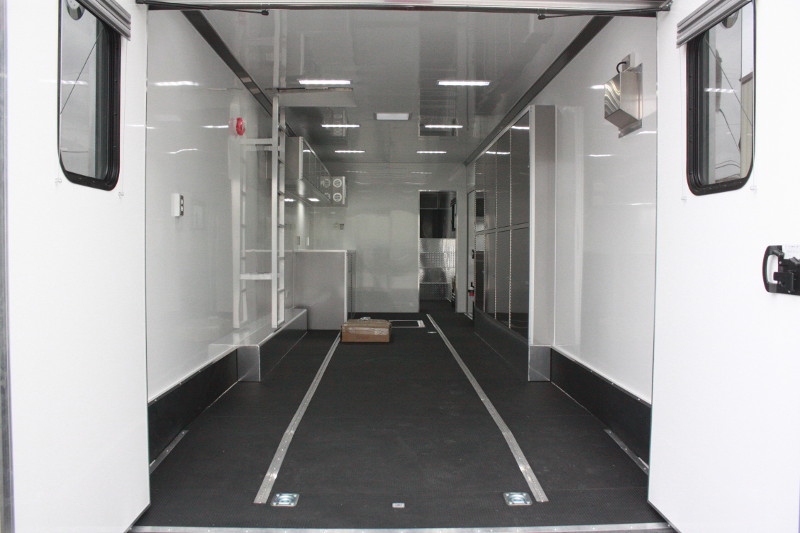

2) Windows for Rear Double Doors
30" x 20" Egress Vertical Slider Window w/ Screen
48" x 22" Egress Horizontal Slider Window w/ Screen
Add Day/Night Shade to All Windows
Generator Slides for Portable Gen w/ Gen Shelf
Add 12V Interstate Deep Cycle Battery w/ Vented Box and Disconnect Switch
7) additional 120V 15A Recept - GFI Protected Where Required
1) 120V 20A Recept - GFI Protected Where Required
12V LED Dome Light -  Gen Box
6) 12V 18" LED Interior Light
Upgrade 3) Standard LED Dome Light to 12V 18" LED Light
6) 12V Bullet Halogen Light - Dimmer Switch Included
14) Additional Panelite LED Clearance Light
Add Panelite Backup Lights – Pair
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
Add 12V LED Docking Back Up Flood Lights (Pair)
2) 12V MAX Loading /Tie Down LED 18" Light
Add 12" Polybead Kickpanel on Sidewall
2) Partition Wall - Welded Aluminum Tube w/ Sliding Pocket Door
2" Expansion Foam Insulation R14 Rated - Under Riser Floor
Insulated Partition Wall at Rear Double Doors
8' Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
2) Single Drawer to Standard Base Cabinet Above Door
8' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim

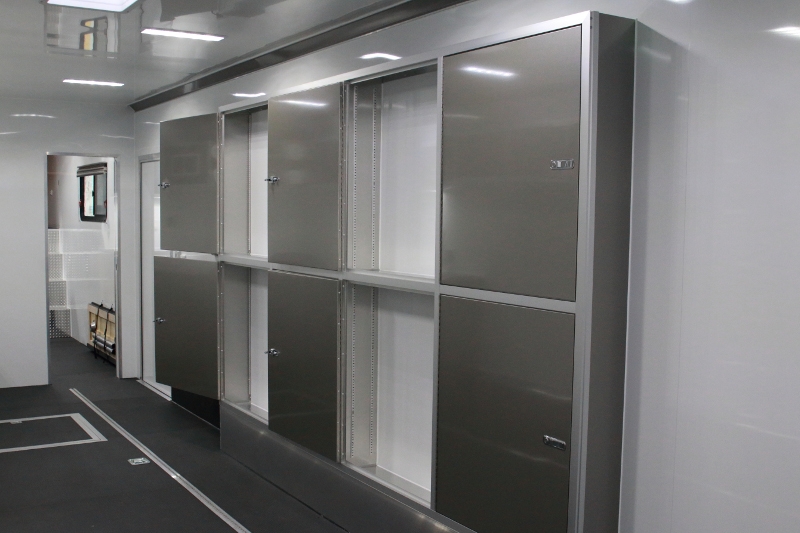

17’ Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
ATP Steps into Gooseneck Riser
Wheel Well Cabinet Triple Axle
Airline Track – Recessed

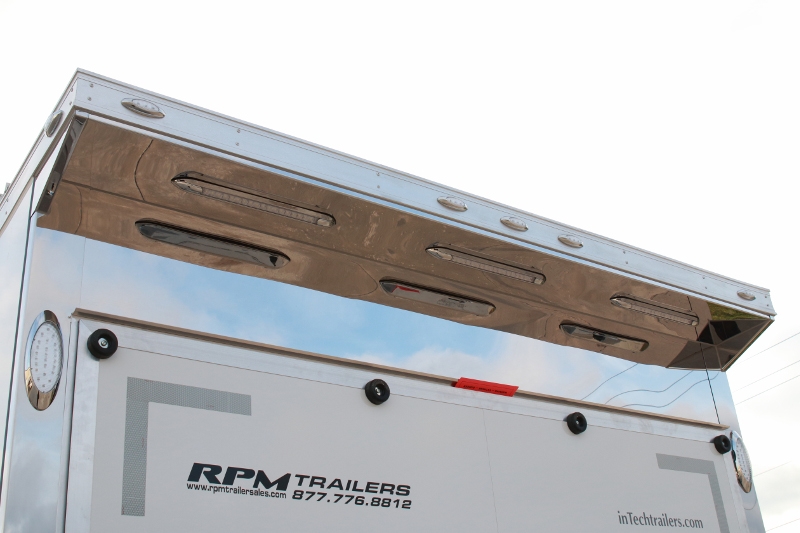

Color Matched Rear Spoiler
Add 35,000 BTU LP Furnace
2) 20# LP Tanks Included

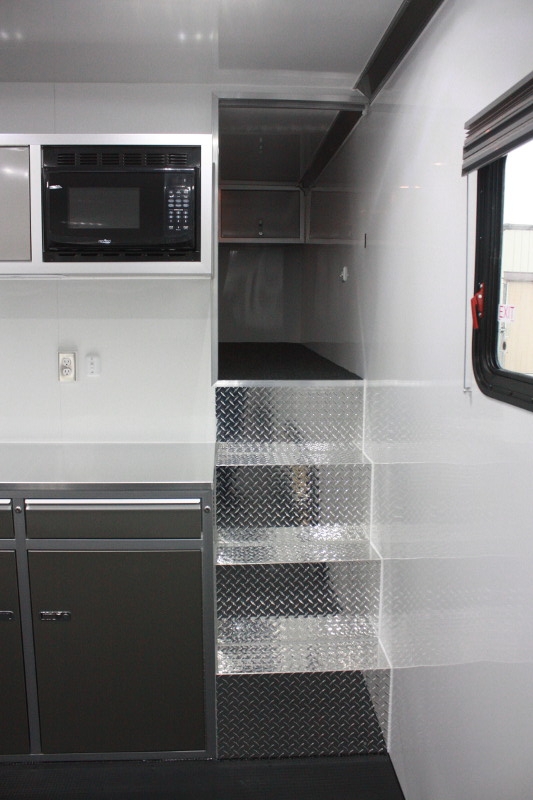

Microwave - 1.0 Cubic Ft. - Integrated into Cabinet w/ Faceplate
Safety Package

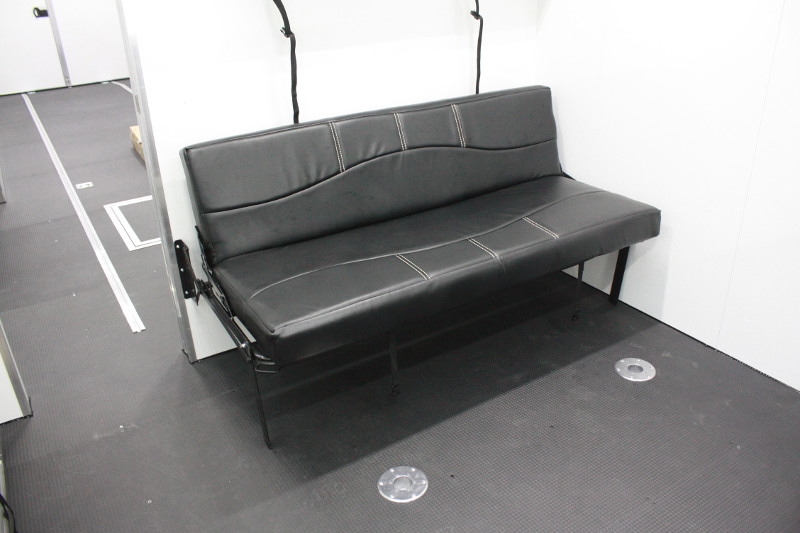

Rollover Sleeper Sofa - 84" Long
Removable Dinette Table

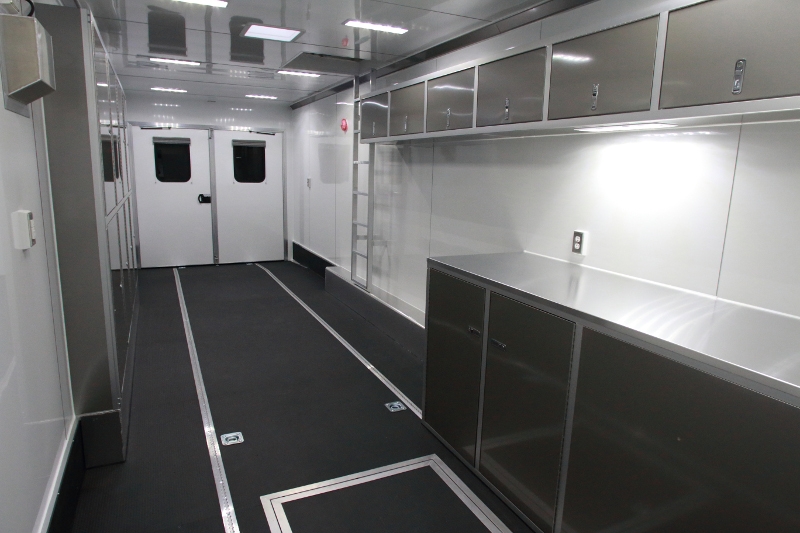

Partition Wall w/Double Rear Doors @ Rear Ramp Door
JM AP Foil-Faced Rigid Foam Insulation
Mill Finish under floor of riser
Upgrade (2) 20# LP Tanks to (2) 30# LP Tanks
