42' Custom Gooseneck Race Car Hauler

RPM Trailer Sales 42' All Aluminum Custom Dragster Race Trailer with custom features throughout.  This aluminum race trailer is a must see.

Product Specs

  • New
  • 12450
  • BGA8542TTA5
  • 8′ 6″ x 42′
Request More Info


42’ Custom All Aluminum Race Trailer

Design is an opportunity to continue telling the story.  RPM Trailer Sales is on the road to a new era.  Check out this amazing 42’ All Aluminum Gooseneck Race Car Hauler. When you're looking for the perfect, well-equipped, Custom Gooseneck Trailer, look no further than the awesome team of custom trailer designers at RPM Trailer Sales. We've taken our most popular options and included them into a bundle of custom options, chosen specifically by the customer, for one amazing Race Car Hauler and added one pretty amazing setup that includes many of our most popular options.

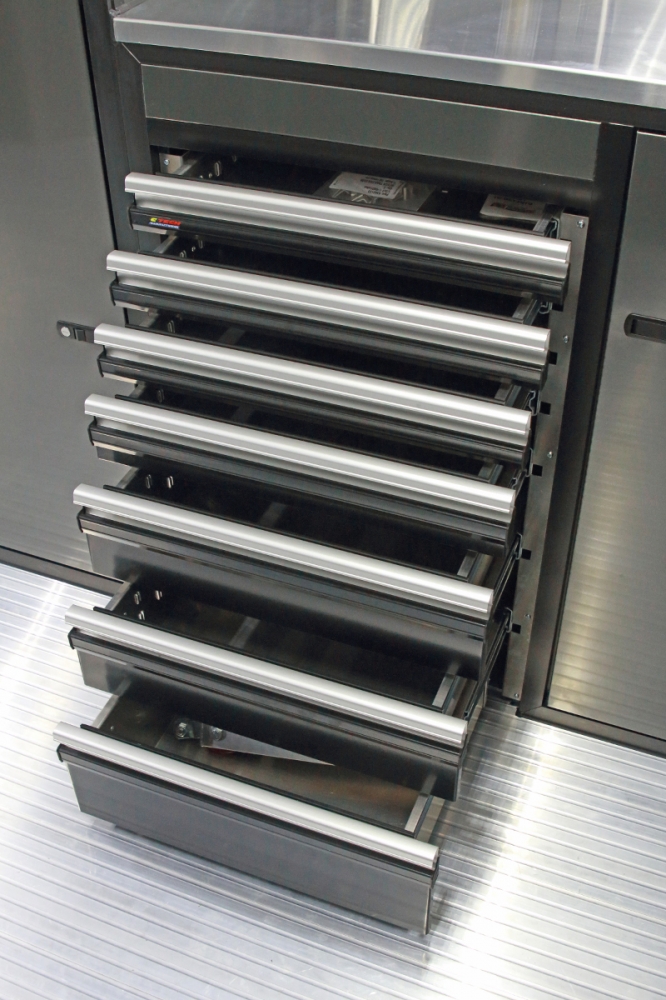

This 42’ inTech aluminum gooseneck trailer features a custom trailer design that boast a custom aluminum cabinet design, 7KW Onan Generator Package with 25 Gallon in Frame Fuel Tank.  It also includes sliding glass doors, drag slick mount, and our popular C-Tech Tool Chest. Performance, Dependability and Quality Construction are key elements of every trailer we design.  RPM Trailer Sales meets each owner’s unique requirements. Plus, we've got years of experience in designing work areas to match your work routine perfectly.
Whether it’s a basic single car gooseneck trailer or one of our custom Stacker Trailers with living quarters, we design each of our trailers paying close attention to the customer’s details. As a result, all of our trailers pull like a dream, work for your environment, and are built to last a lifetime. Why not give us a call today at 706-654-2882 for a quote on a trailer to fit YOUR operation?

“Often Imitated – Never Duplicated”

Check out all the specifications of this 42’ inTech Aluminum Trailer by RPM Trailer
GVWR: 16,000 lbs.
Shipping Weight: 9,425.00 lbs.
Height: 7.5’ Interior
Axles: Tandem 7,000 lb. Dexter Torsion Axles

Model: BGA8542TTA5
Product Number: 12450
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Adjustable GN Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels
One Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
3) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent
7' Standard Interior Height
4) 5000# Recessed D-Rings
4' Beavertail

.030 Aluminum Skin - Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
ATP Enclosed Riser w/ (2) Storage Doors
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door
Rear Skid Plates
Additional Added and Selected Options:
42' icon Package
Exterior Upgrades

Upgrade to 48" 405 Series Door
FMVSS Side Door Lock
Aluminum Slide Out Step
Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4" Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches
40" x 36" 405 Series Generator Door
Awning Rail

iCon Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25' Shore Cord
12V Battery & Box Wired
Battery Shelf in Riser Compartment
12V Fuse Panel
60 Amp Converter for 12V
3) 15 Amp Interior Recepts
1) 15 Amp Exterior Recept
5) 12V 18" LED Interior Lights
3 Way Light Switch for Interior LED Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights
iCon Interior Upgrades
Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC
Extruded Aluminum Floor
Gray Carpet in Riser Area
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

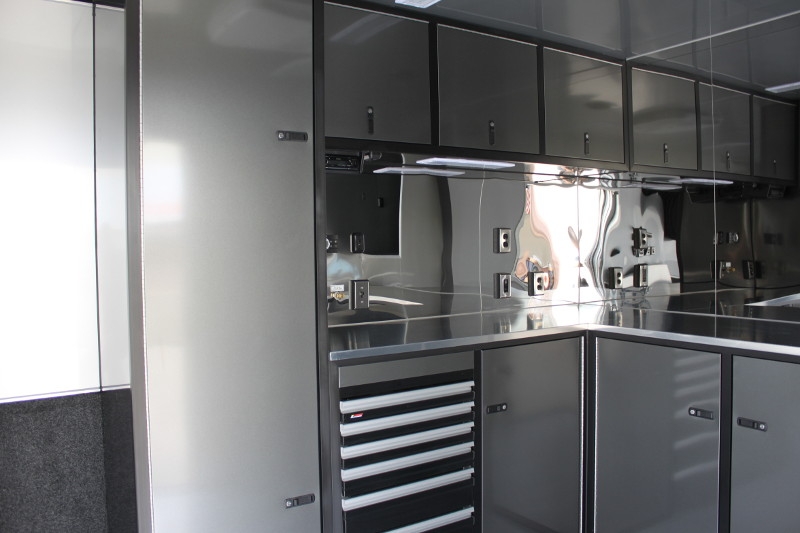

8' Premium Aluminum Upper Cabinet

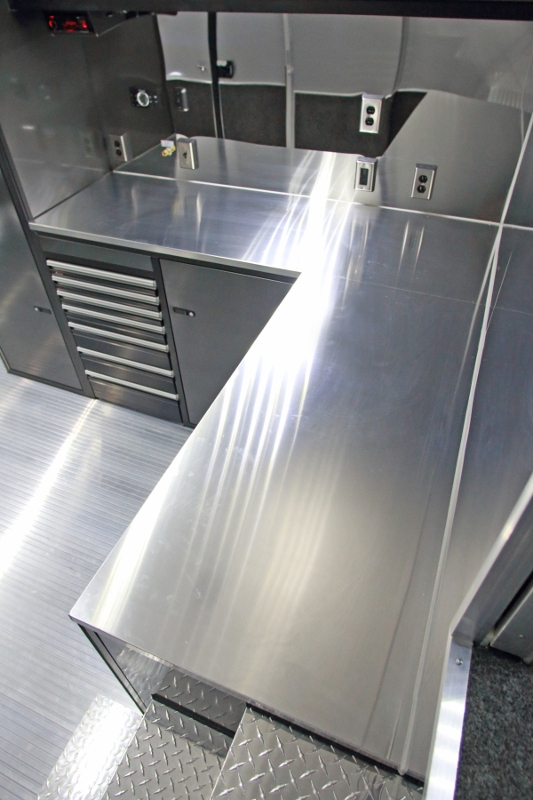

8' Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet

More Selected Features and Added Options:
Compressor Door - 40" x 33.5"
Upgrade iCon Gen Box Location to Stand Alone in Riser
Downgrades Base Cabinet to Straight Base - Use for compressor
Upgrade 2) 500W Quartz Recessed Light to Whelen 900 Series Super LED
Upgrade to Super Spread Tandem Axle w/ Skirt from Triple Axle
72" Spread from Center to Center of Axles
Full Perimeter Skirt Included  - Reverse Beavertail
6" Additional Height
Rear Caster Wheels – Pair
Upgrade to Single Post Hydraulic Jack
Spare ST235/85R16 on Aluminum Wheel

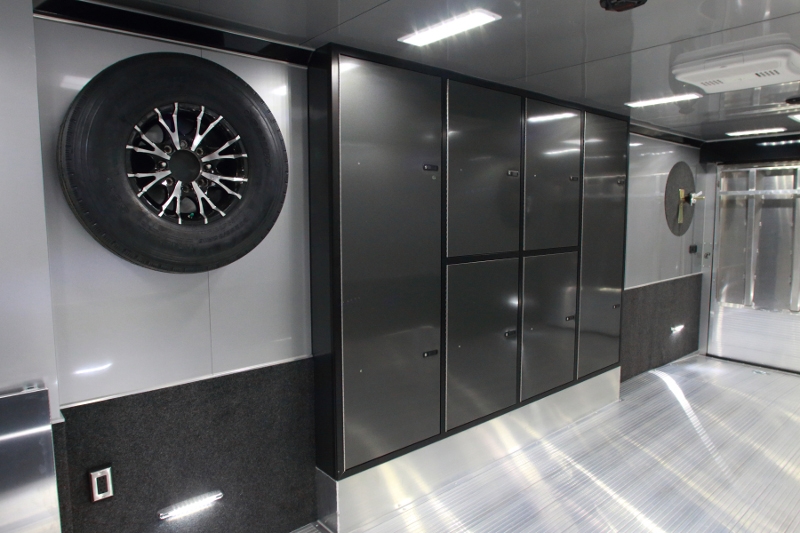

Spare Tire Wall Mount
Upgrade to 60" 405 Series Double Door
Add 5' Aluminum Ramp Extension - 84" Wide w/ 3" Bumpers
7.0KW Onan Generator Package (120V/240V) – Gasoline
In Frame Fuel Tank
Interior Insulated Generator Compartment
40" x 36" 405 Series Vented Gen Door
Automatic Transfer Switch
12V Marine Grade Battery in Vented Box
Remote Start, Fuel Gauge & Hour Meter
Add 12V Power Outlet w/ (2) USB Charging Ports
4) 120V 15A Recept
Add  3 Way Light Switches (Pair)
7) Additional 12V 18" LED Interior Light
14) Additional Panelite LED Clearance Light
Add Panelite Backup Lights – Pair
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
Add 12V LED Docking Back Up Flood Lights (Pair)
4) Additional 12V Loading /Tie Down LED 11" Light
34” High Carpet on Interior Walls
Add Partition Wall - Welded Aluminum Tube w/ Sliding Pocket Door for Riser
Insulated Walls & Ceiling - R4 Rated
Add 4' Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
Add Aluminum Dresser Closet to Lower Cabinet

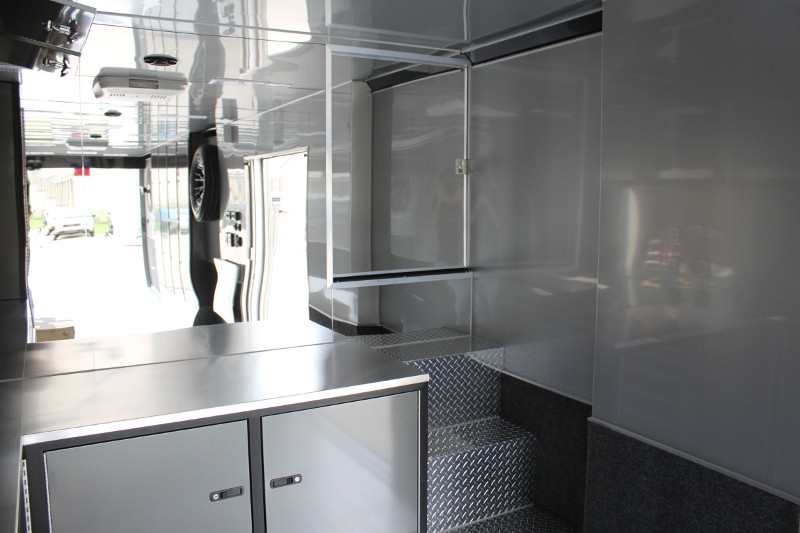

ATP Steps into Gooseneck Riser

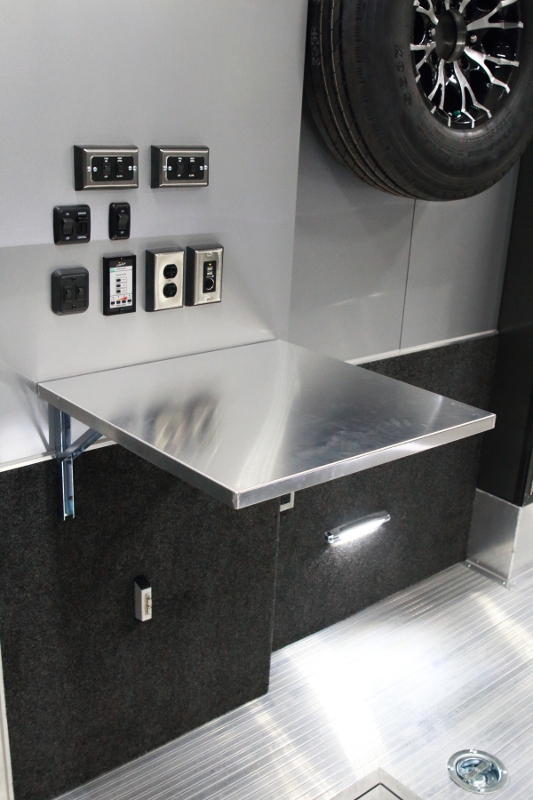

2’ x 24” Aluminum Countertop - Flip Up
Wheel Well Cabinet Triple Axle
Black Anodize Cabinet Trim
Upgrade to 6,000 lb.  Swivel D-Rings from Std. 5,000 lb.
2) Additional 6,000 lb. D-Ring - Swivel – Recessed
Color Matched Rear Spoiler
Black Anodized Exterior Package

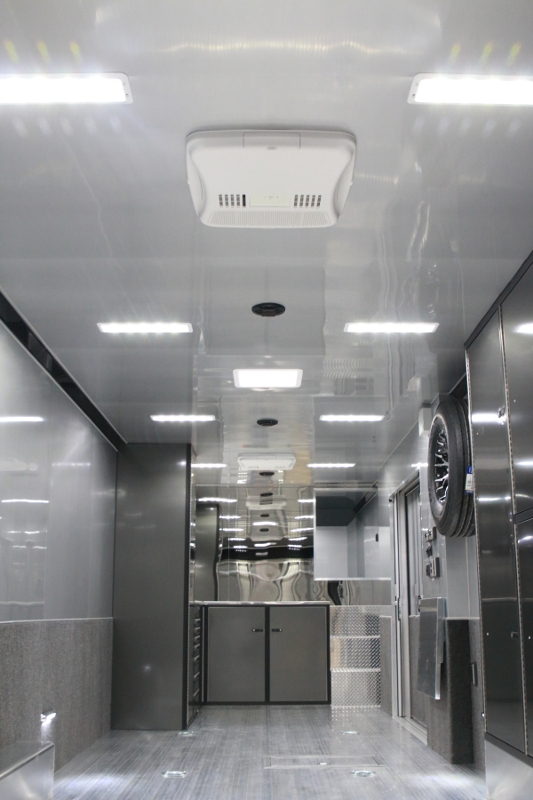

2) 15,000 BTU A/C w/ Heat Strips
Upgrade to Digital Wall Mount Thermostat for A/C

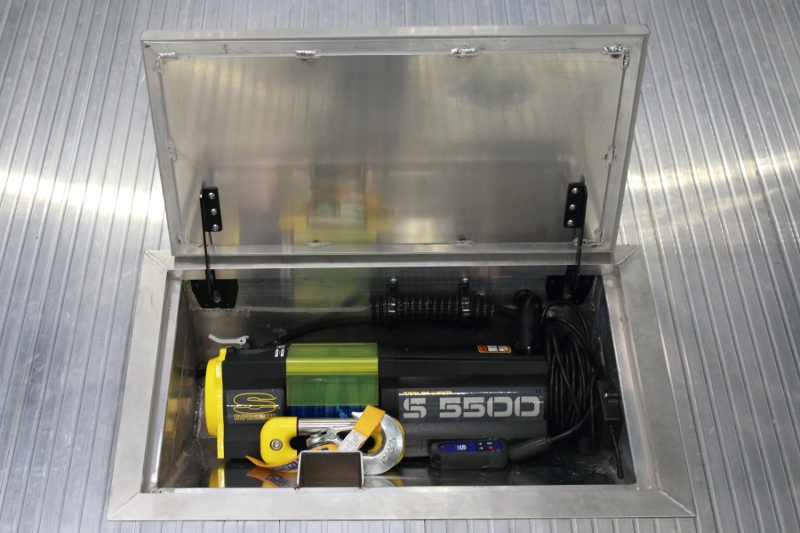

In Floor Winch Box w/ Pulley - Angled Mount
5,500 lb.  Winch w/ Wireless Remote Control & Synthetic Rope
Add Air Compressor w/ 3 Hardlined Outlets
Add Additional Airline Outlet to Prep Package
AM/FM/CD Bluetooth Stereo w/ Four Interior Speakers - Bluetooth Input Capable from iPhone or Android  - Front USB Input Port
Add (2) Exterior Speakers to Radio - Includes Amplifier
Install Customer Supplied Tool Chest
Install .125" Wall Backer Up to 4' For Customer Installed TV

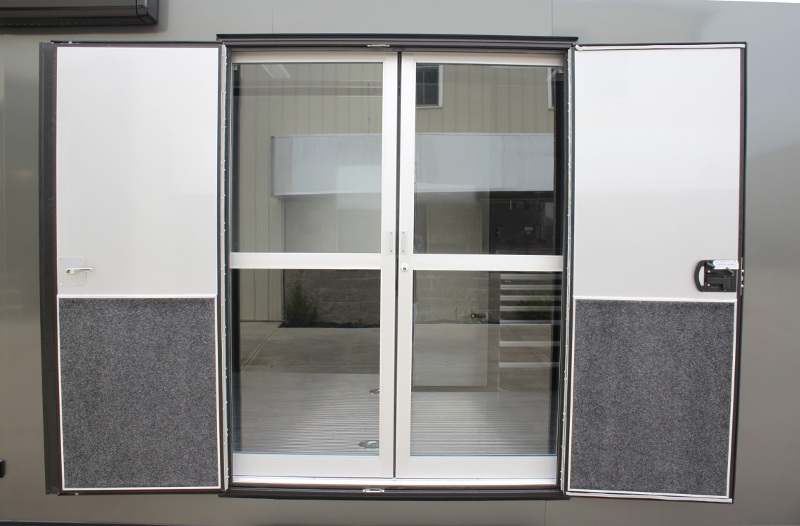

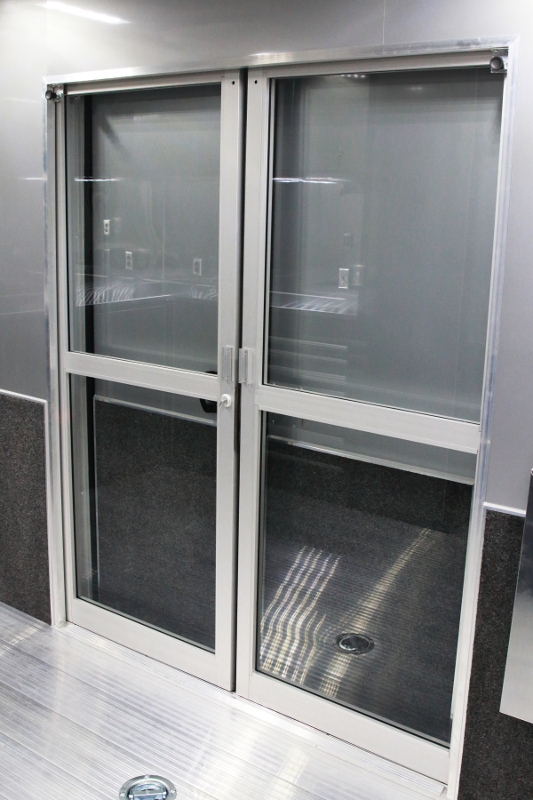

Add Double Sliding Glass Doors at Side Entry
Mirror Finish Polished Stainless Steel Backsplash
21' Carefree Mirage Lateral Arm Awning w/ LED Strip Lighting
Add Stainless Steel to Partition Wall
Add 120V 15 Amp Recept w/ 2 USB Plugs
2) Install Customer Supplied Tire Holder

Contact RPM Trailer Sales today for all your Custom Trailer Needs 706-654-2882!
