40' Custom Aluminum Race Car Trailer

Custom all-aluminum race car trailer with custom cabinets, sliding glass doors, 7KW Onan Generator package, 2) AC Units and so much more.

Product Specs

  • New
  • 12304
  • BTA8540TA5
  • 8′ 6″ x 40′
Request More Info

Details

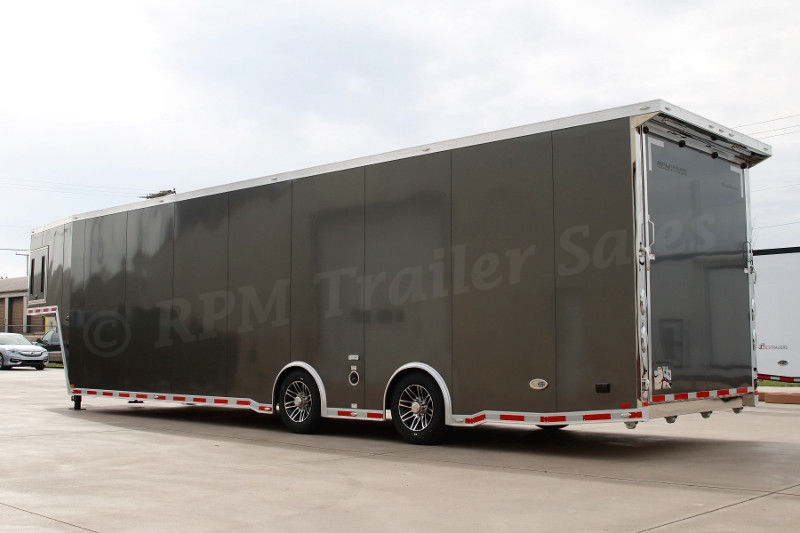

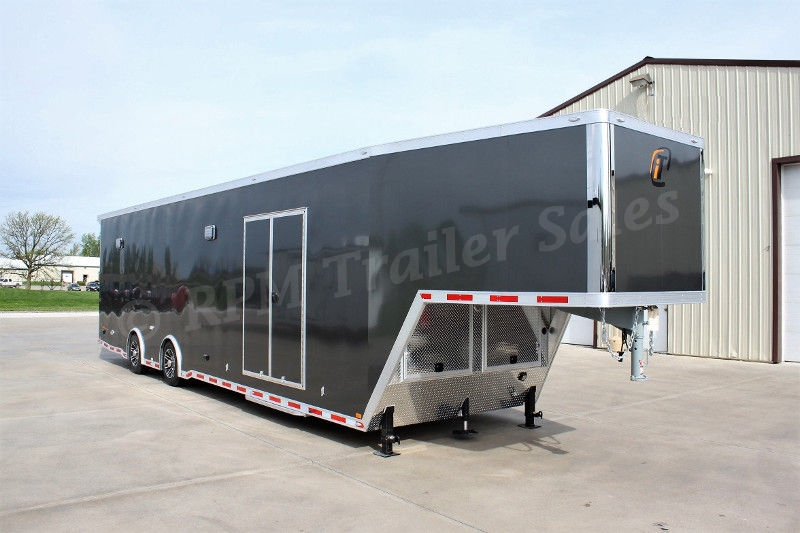

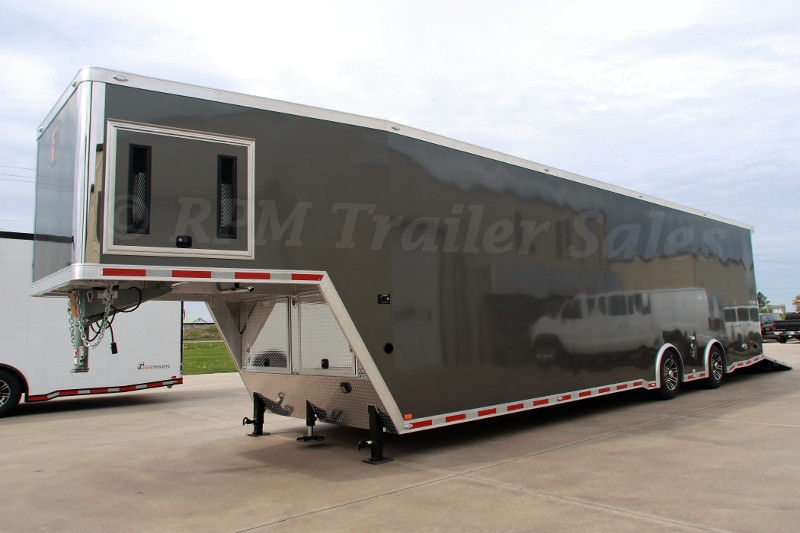

40' inTech Custom Aluminum Trailer

No matter where the road leads, a custom trailer designed by RPM Trailer Sales will not disappoint. This 40' all aluminum gooseneck car hauler is spectacular at every angle.  All RPM custom designs are a vision that start with you.  Designing trailers to meet your personal needs and exceed your expectations.  This 40’ custom inTech Aluminum Trailer is definitely loaded with some amazing features including a 7K Onan Generator Package, 2) AC’s, 8’ Fold up Tire Rack, Sliding Glass Doors and so much more!
Call us today for more details at 706-654-2882. Check out all the images of this awesome aluminum inTech gooseneck trailer and let us know what you think! A One- of-a Kind Original Design by RPM Trailer Sales.  When it comes to the ultimate car trailer every detail delivers when shopping at RPM Trailer Sales.
“Often Imitated – Never Duplicated”

Model: BGA8540TA5
Product Number: 12304
GVWR: 14,000 lbs.
Shipping Weight: 8,855 lbs.
Height: 8’ Interior
Axles: Tandem 7,000 lb. Dexter Torsion Axles

40’ Aluminum Gooseneck Race Trailer Specifications:
Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Adjustable GN Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels

Interior
One Piece Aluminum Subfloor Vapor Barrier - 3/4" Plywood Subfloor
3) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent
7' Standard Interior Height
4) 5000# Recessed D-Rings
4' Beavertail

Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
ATP Enclosed Riser w/ (2) Storage Doors
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door
Rear Skid Plates

Selected Options:
40' iCon Package
Exterior Upgrades

Upgrade to 48" 405 Series Door
FMVSS Side Door Lock
Aluminum Slide Out Step
Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4" Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches
40" x 36" 405 Series Generator Door
Awning Rail

Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25' Shore Cord
12V Battery & Box Wired
Battery Shelf in Riser Compartment
12V Fuse Panel
60 Amp Converter for 12V
3) 15 Amp Interior Recepts
1) 15 Amp Exterior Recept
5) 12V 18" LED Interior Lights - Replaces Domes
3 Way Light Switch for Interior LED Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights

Interior Upgrades

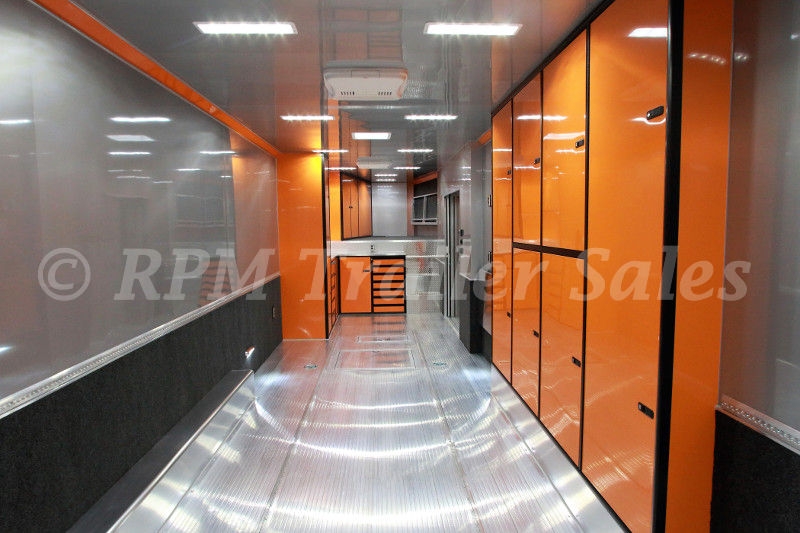

Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC

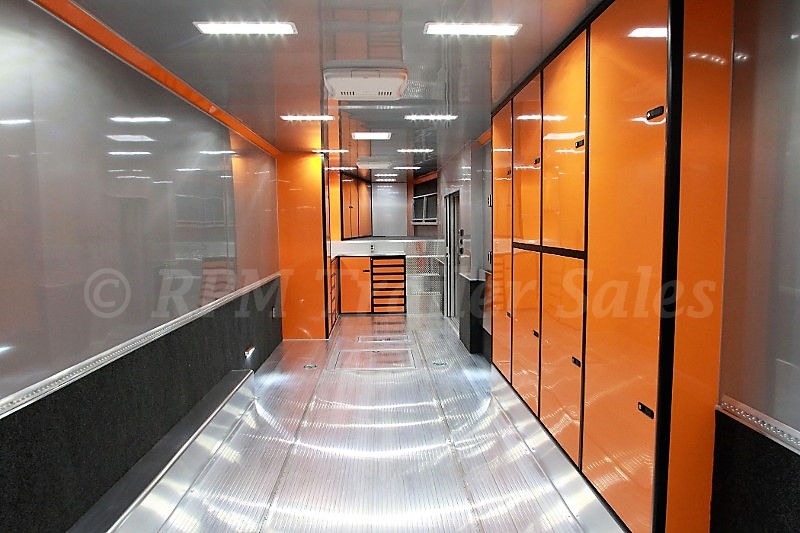

Extruded Aluminum Floor
Gray Carpet in Riser Area
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

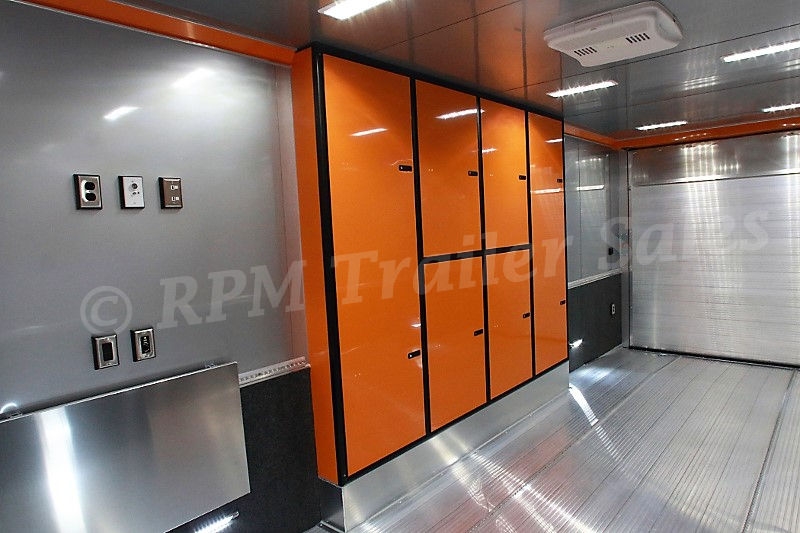

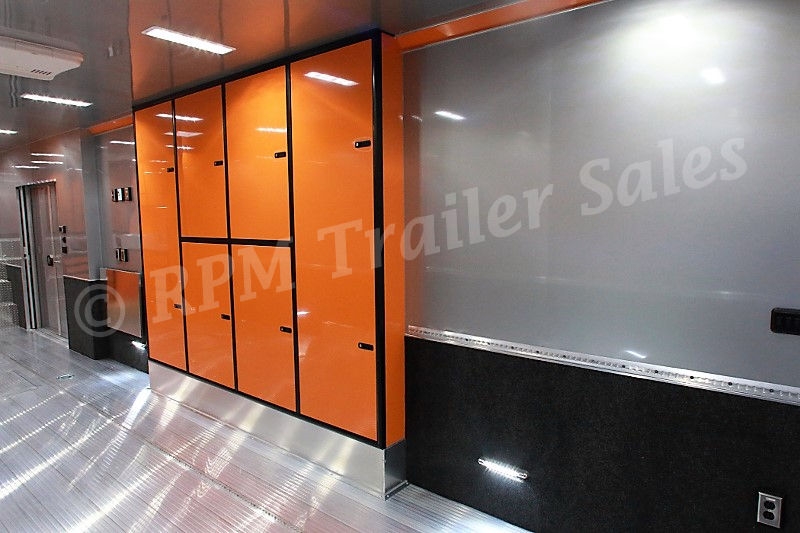

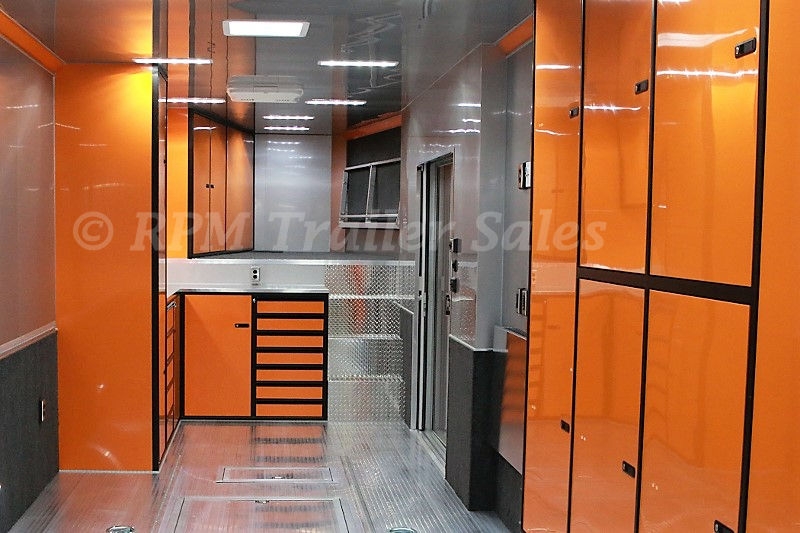

8' Premium Aluminum Upper Cabinet

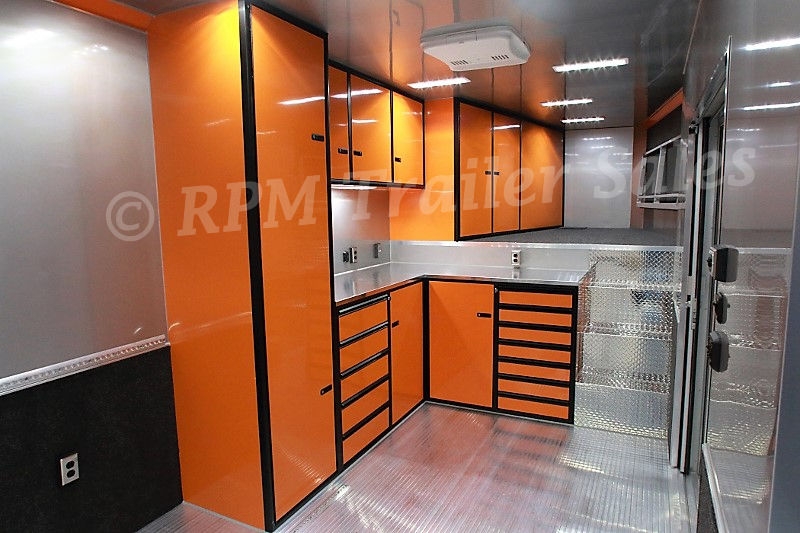

8' Premium Aluminum L Shaped Lower Cabinet

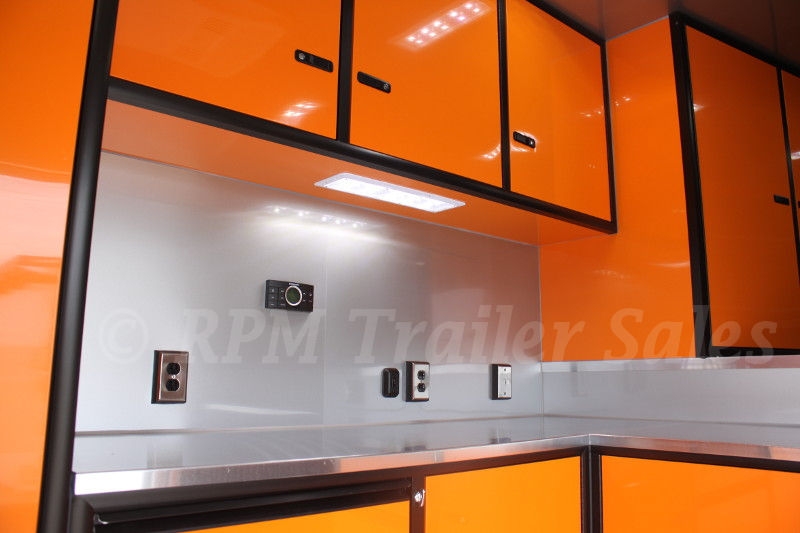

LED Light Under Upper Cabinet
Gen Compartment in L Cabinet
8' Interior Height Maximum w/ Package

Additonal Selected Options & Packages:
Downgrade to Straight Base Cabinet From L-Base
Upgrade 2) 500W Quartz Recessed Light to Whelen 900 Series Super LED - Dimmer Switch Included
Taper Nose for Gooseneck
Upgrade to Super Spread Tandem Axles w/ Skirt
12" Additional Height
2) Rear Caster Wheels – Pair
Upgrade to Single Post Hydraulic Jack
5) Upgrade to LT215/75R17.5 Tires from ST235/85R16
Spare Tire on Aluminum Wheel

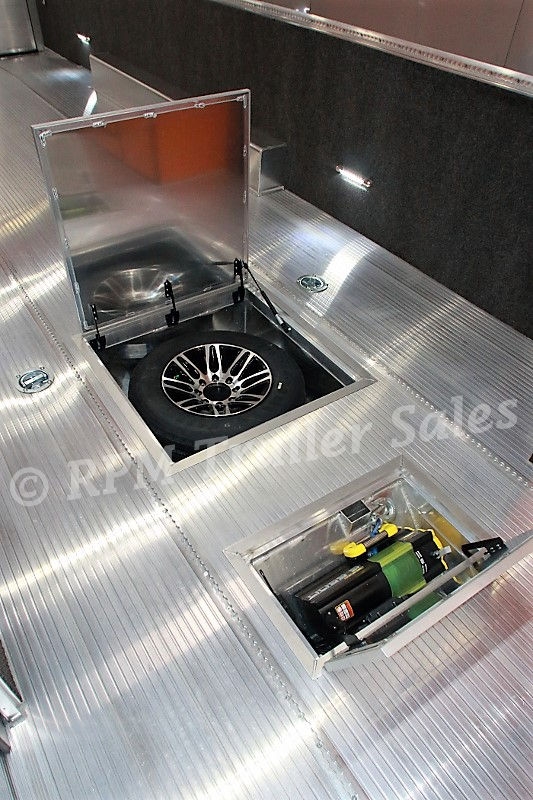

In Floor Spare Tire Compartment
Upgrade to 60" 405 Series Double Door

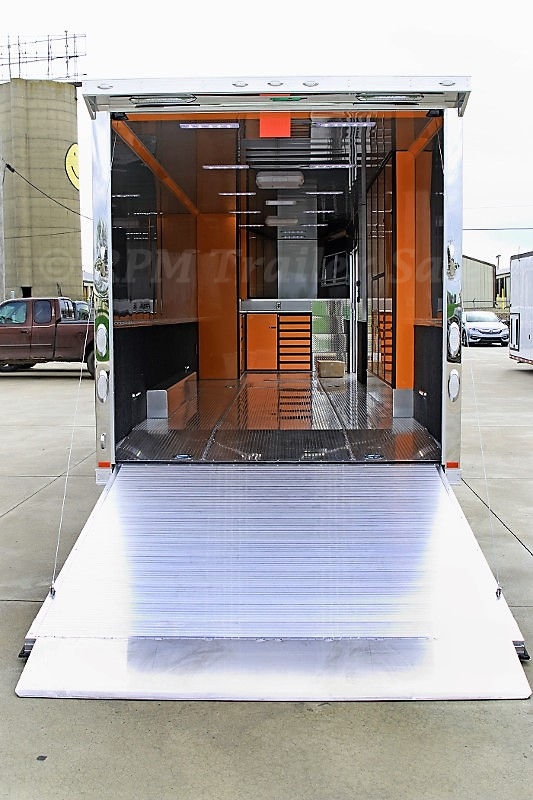

Upgrade to Heavy Duty Rear Ramp Door

7.0KW Onan Generator Package (120V/240V) – Gasoline
In Frame Fuel Tank
Interior Insulated Generator Compartment
40" x 36" 405 Series Vented Gen Door
Automatic Transfer Switch
12V Marine Grade Battery in Vented Box
Remote Start, Fuel Gauge & Hour Meter

12V Power Outlet w/ (2) USB Charging Ports
6) each 120V 15A Recept - GFI Protected Where Required
3 Way Light Switches – Pair
7) additional 12V 18" LED Interior Light
12) Additional Panelite LED Clearance Light
Side Mount LED Turn Signal/Clearance and Turn Combo – Pair
12V LED Docking Back Up Flood Lights – Pair
4) 12V Loading /Tie Down LED 11" Lights
2) HDMI Cable Run w/ (2) Finished Faceplates
34” High Carpet on Interior Walls
Insulated Walls & Ceiling - R4 Rated

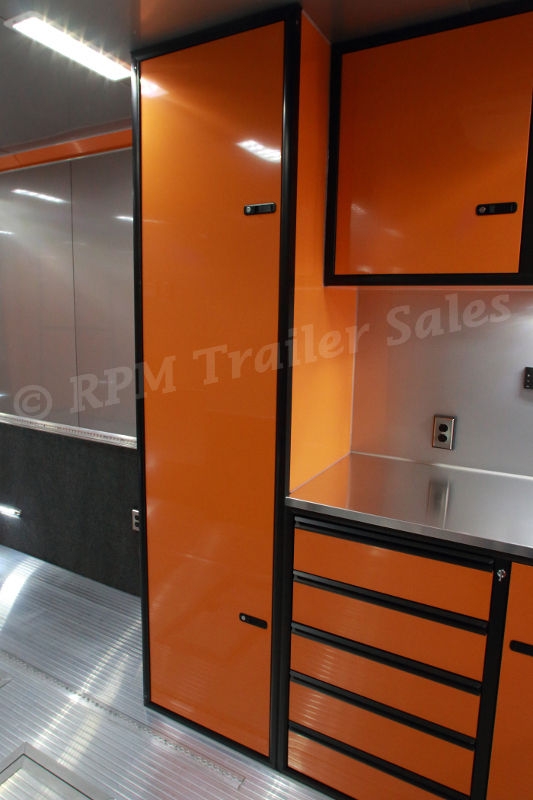

2) additional 4' Premium Lower Aluminum Cabinet w/ Clear Anodized Trim

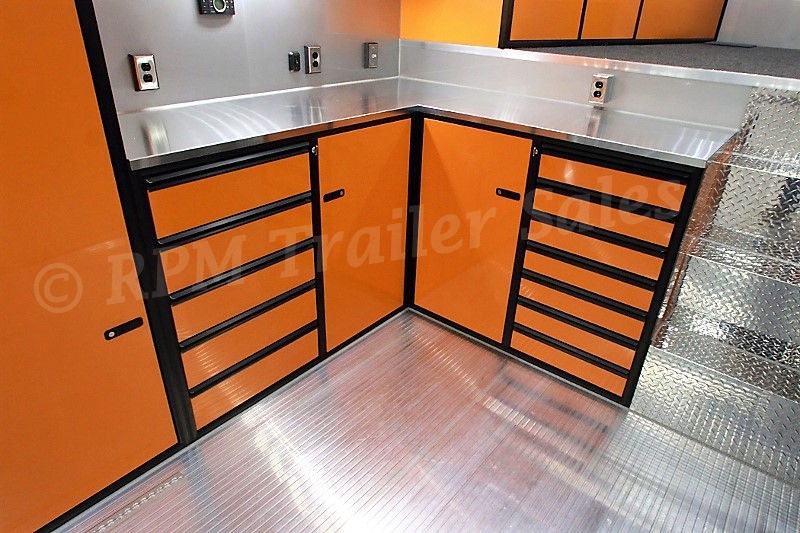

2) Tool Chest Banks to Lower Cabinet w/ Clear Anodized Trim
1) 5 Drawer
1) 7 Drawer
Aluminum Dresser Closet to Lower Cabinet
8’ Upgrade to Additional Height Upper Cabinets
8’ Upgrade to Additional Height Upper Cabinets w/ Fixed Shelf

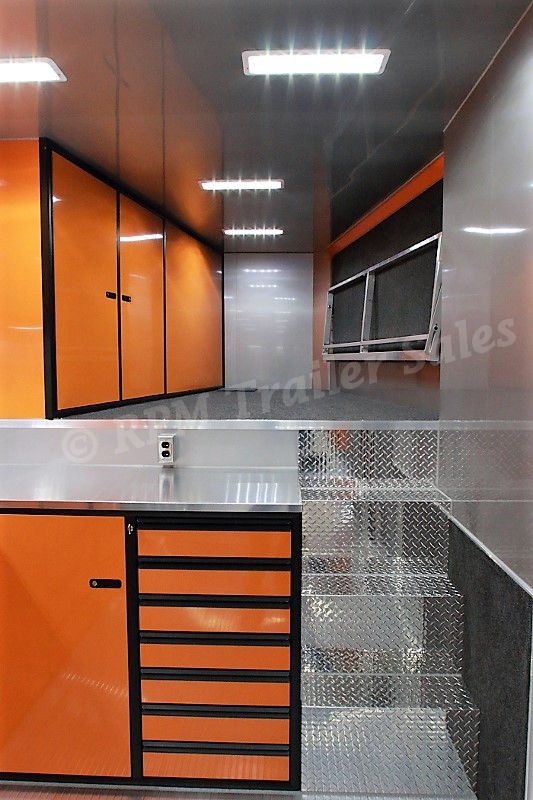

ATP Steps into Gooseneck Riser

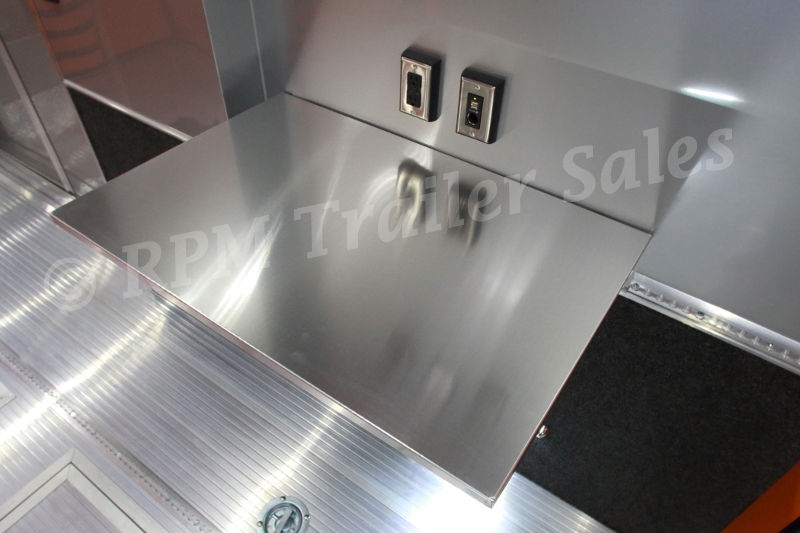

3’ x 24” Aluminum Countertop
Wheel Well Cabinet Triple Axle
Black Anodize Cabinet Trim
Upgrade to 6,000 lb. Swivel D-Rings from Std. 5,000 lb.
Airline Track - Surface Mounted Top of Carpet on walls
Airline Track – Recessed in Floor

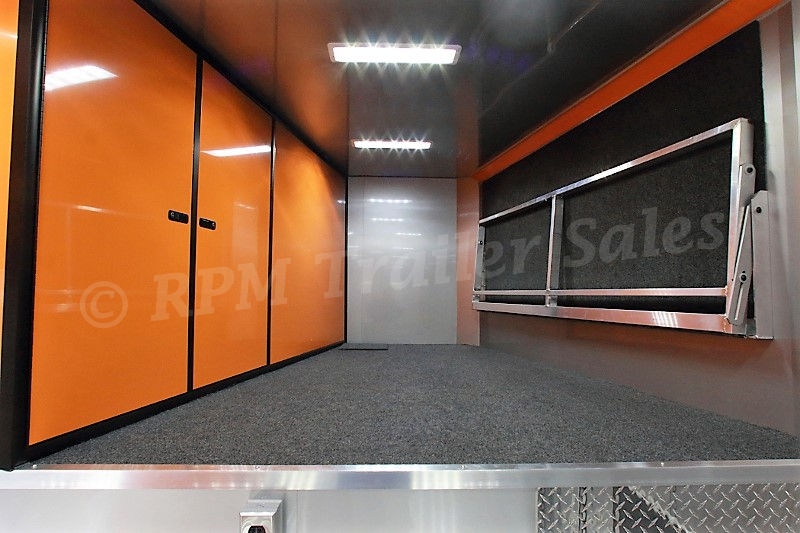

8’ Fold Up Tire Rack
Color Matched Rear Spoiler -
2) 13,500 BTU A/C’s with Heat Strips
Add Digital Wall Mount Thermostat for A/C

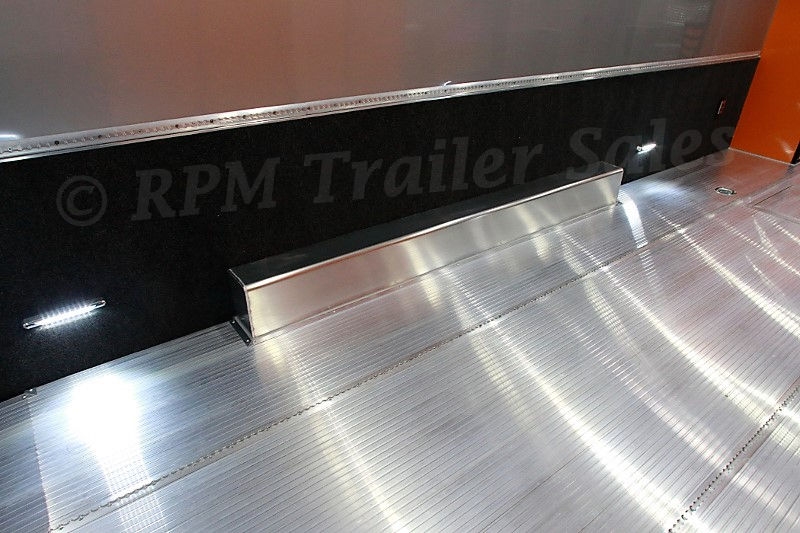

In Floor Winch Box w/ Pulley - Angled Mounted
5,500 lb. Winch w/ Wireless Remote Control & Synthetic Rope

TV Prep Package
Roof Mounted Antenna
Exterior Coax Cable Inlet
120V Interior Recept
Wall Backer for Future Mount Installation
12V Antenna/Cable Switch Controller
Front External Coax to Upper Cabinet
Coax from Antenna to TV

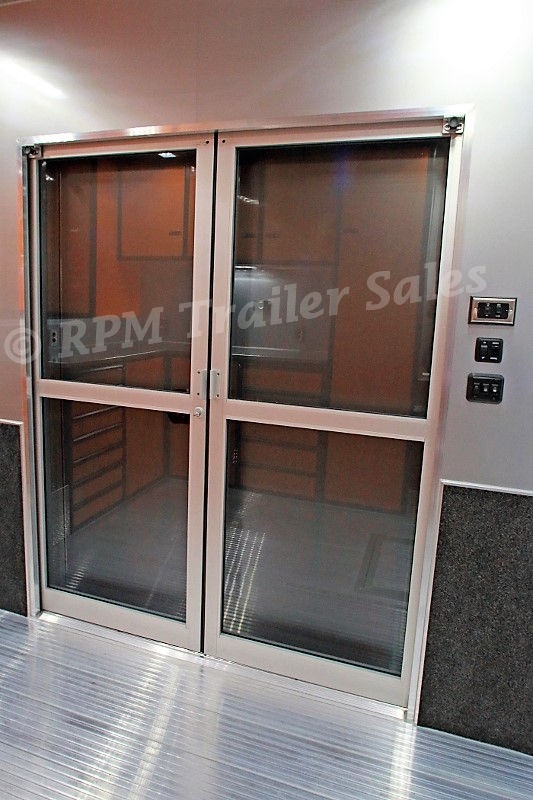

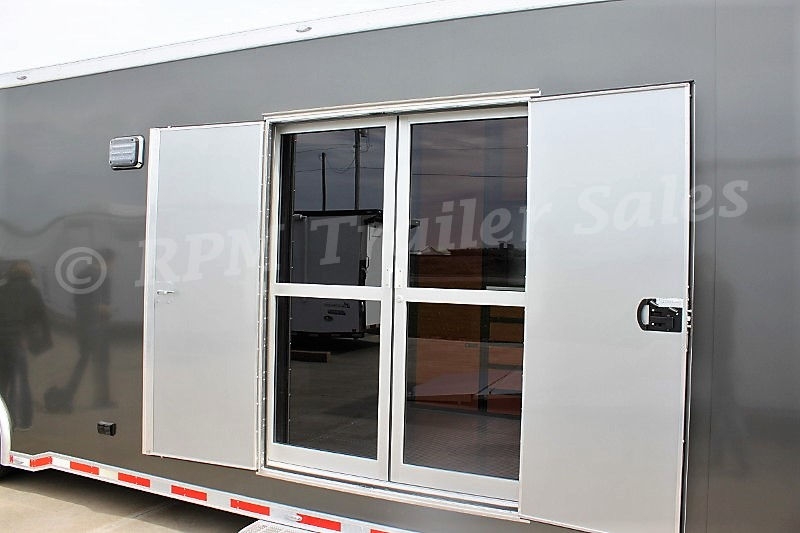

Double Sliding Glass Doors at Side Entry - Tinted Glass
Vent in Floor of Base Cabinet in Bunk
