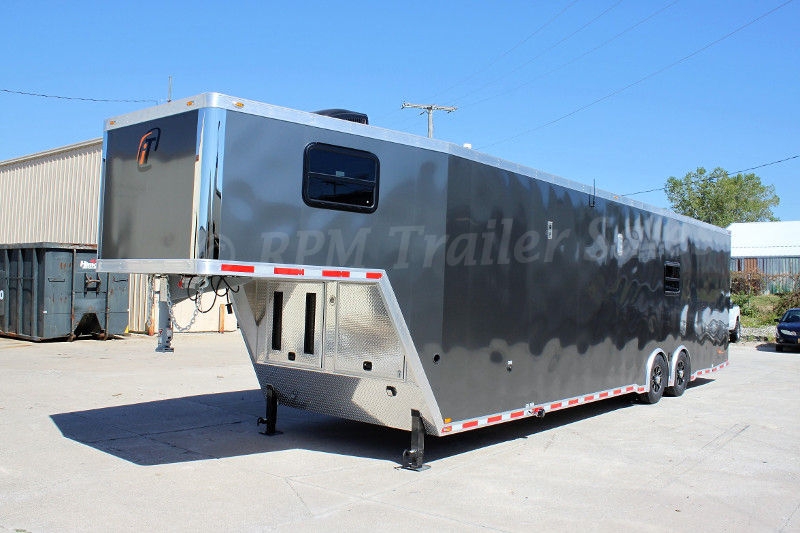

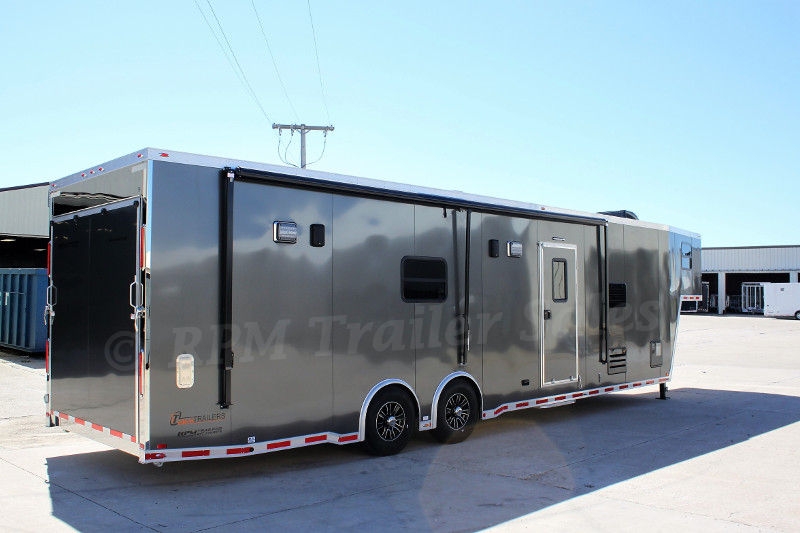

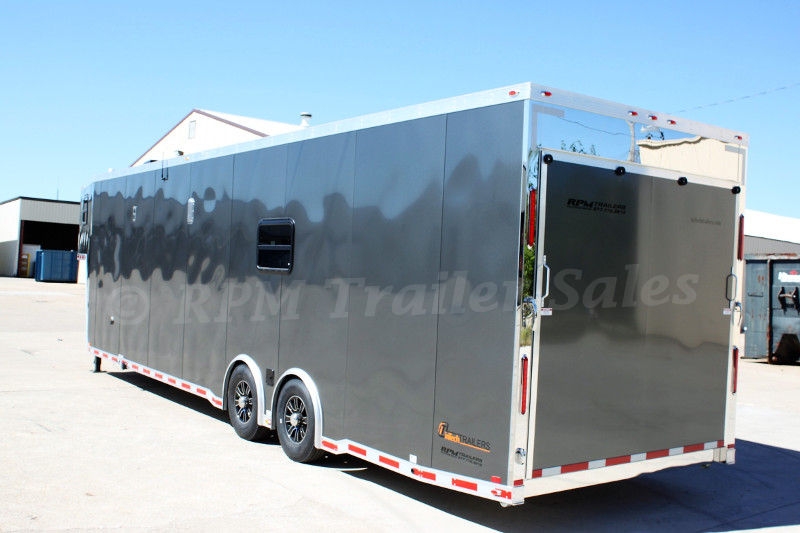

40' Aluminum Race Trailer with Bathroom Package

40' Custom inTech Aluminum Race Trailer with full bathroom pakage, custom cabinet design and options for a premier race trailer design to match your weekend race routine.

Product Specs

  • New
  • 12315
  • BGA8540TA5
  • 8′ 6″ x 40′
Request More Info


40' Custom Aluminum Race Trailer with Bathroom Package

RPM Trailer Sales is always perfecting perfection.  When you're looking for the perfect, well-equipped, Custom Gooseneck Trailer, look no further than the awesome team of custom trailer designers at RPM Trailer Sales. We've taken a 40’ aluminum gooseneck trailer, added our most popular options and included a full bathroom package for one extraordinary race trailer.  Options for this trailer was chosen specifically for the customer with his race weekends in mind. This amazing Race Car Hauler with the added living quarters is one pretty amazing setup to make all your friends envy at the track.
This 40’ inTech aluminum gooseneck trailer features a custom trailer design that boast a custom aluminum cabinet design, full walk through bathroom package, two-fold down sofa beds and so much more.  Performance, Dependability and Quality Construction are key elements of every trailer we design.  RPM Trailer Sales meets each owner’s unique requirements. Plus, we've got years of experience in designing work areas to match your work routine perfectly.
Whether it’s a basic single car gooseneck trailer or one of our custom Stacker Trailers with living quarters, we design each of our trailers paying close attention to the customer’s details. As a result, all of our trailers pull like a dream, work for your environment, and are built to last a lifetime. Why not give us a call today at 706-654-2882 for a quote on a trailer to fit your operation?
“Often Imitated – Never Duplicated”

GVWR: 16,000 lbs.
Shipping Weight: 9,050 lbs.
Height: 8’ Interior
Axles: Tandem 7,000 lb. Dexter Torsion Axles

Model Number: BGA8540TA5
Product Number: 12315

Check out all the standard features and the additional added options that made up this amazing 40’ Aluminum Gooseneck Trailer with Bathroom Package

Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Adjustable GN Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16" O/C Floor Crossmembers
16" O/C Wall Studs - 16" O/C Roof Studs
Smooth Aluminum Wheel Boxes - Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels

One Piece Aluminum Subfloor Vapor Barrier - 3/4" Plywood Subfloor
3) 12V LED Dome Lights w/ Switch - (1) 12V Power Roof Vent
7' Standard Interior Height - (4) 5000# Recessed D-Rings
4' Beavertail

.030 Aluminum Skin - Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights - ATP Enclosed Riser w/ (2) Storage Doors
36" 405 Series Entrance Door - FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks - Rear Ramp Door
Rear Skid Plates

Additional Added Selected Options and Packages:

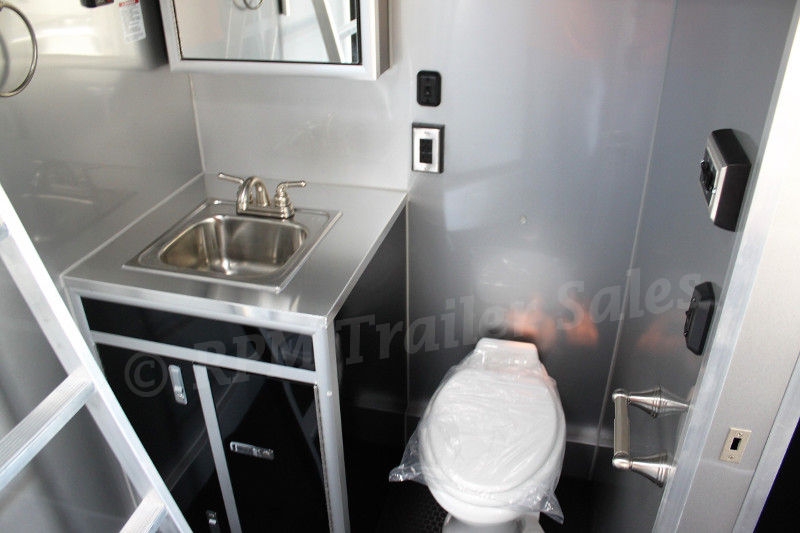

GN Walk-Through Bath Package
RV Style Plastic Toilet
Removable Aluminum Ladder into Riser

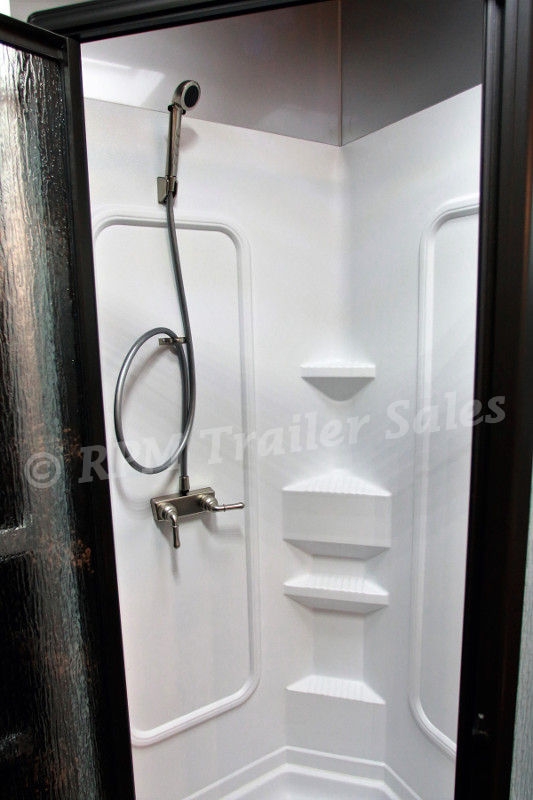

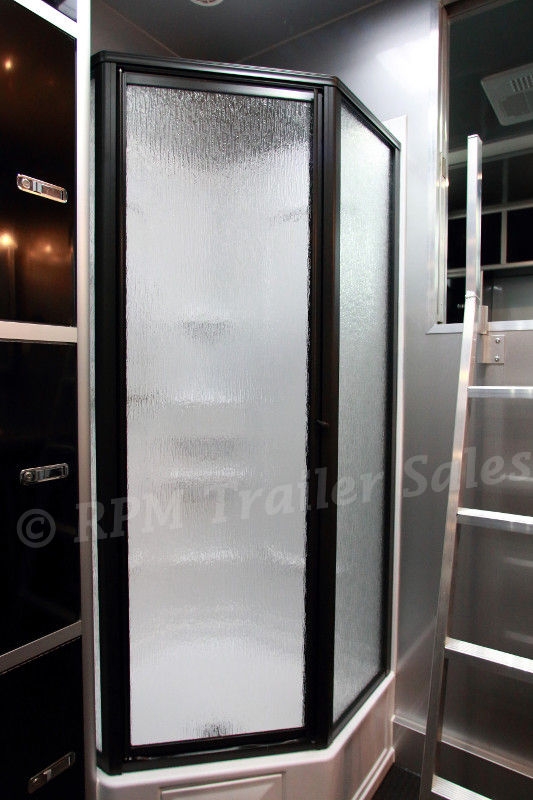

Neo-Angle Shower w/ Glass Door
Stainless Steel Single Bowl Sink Aluminum Base Cabinet for Sink w/ Toekick

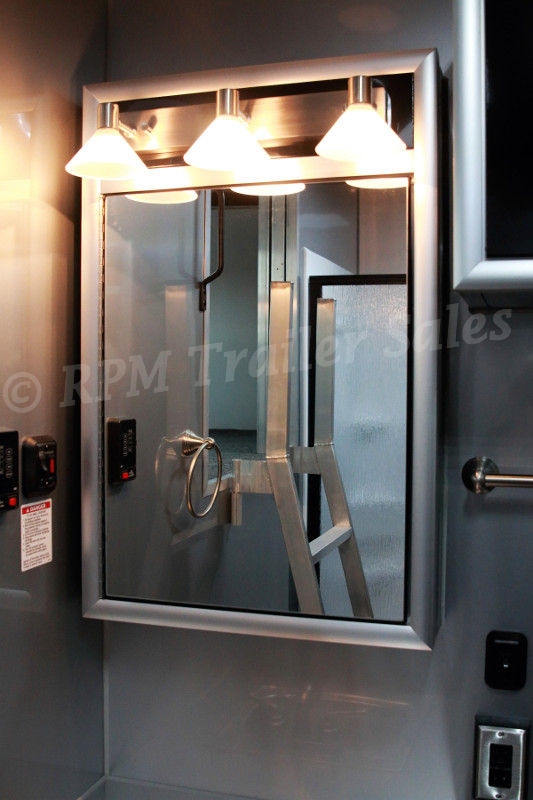

Mirror Above Sink
Aluminum Upper Cabinet Above Toilet
Minimum 7' Interior Height
Bunk Partial Partition Wall w/ Sliding Pocket Door

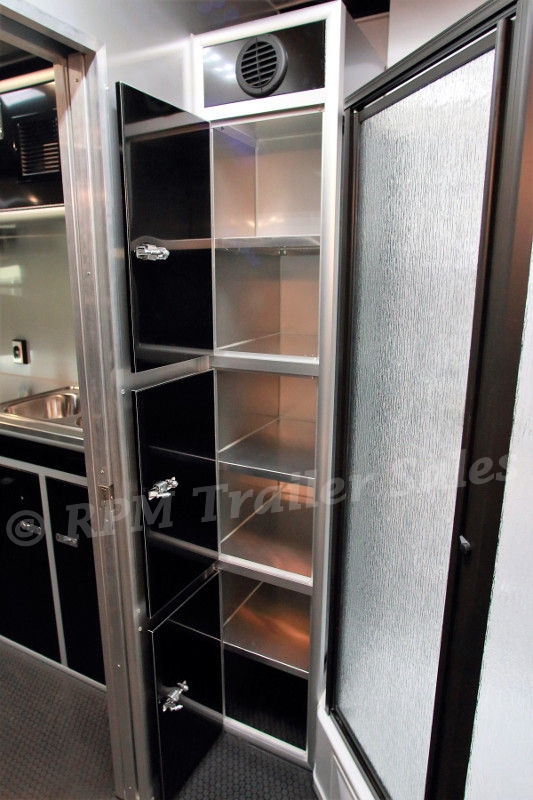

Aluminum Linen Closet

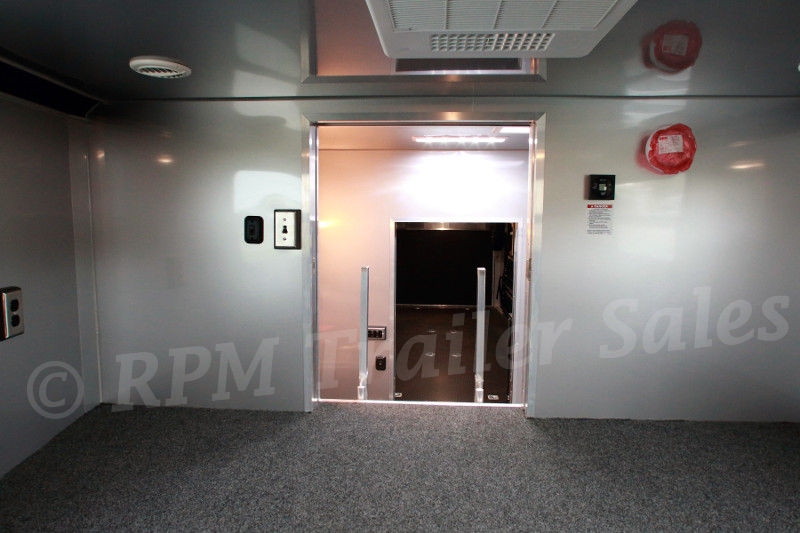

Partition Wall w/ 28" Man Door
2) Towel Holders - (1) TP Holder
Flooring & Wall Coverings As Optioned
12V Power Roof Vent
Plumbing & Power
Tank Monitor Panel
City Water Hookup
Gravity Water Fill
Under Trailer Dump Valves
10 Gallon 120V Hot Water Heater
12V Water Pump - 3.0 GPM
Fresh Water Tank
Gray Water Tank
Black Water Tank
1) 120V 15A Outlet
12V 18" LED Light
12V Sconce Light Above Mirror

More Additional Selected Options:
35,000 BTU LP Furnace- Ducted to Bunk, Bath, and Behind Bath
Upgrade Partition Wall Door to Pocket Door
Upgrade to 10 Gallon DSI LP/Electric Combo Water Heater from Electric
2) 20# LP Tanks - Includes LP Detector
Upgrade to Vanity Cabinet Above Sink
Taper Nose for Gooseneck
12" Additional Height / Ft
Rear Caster Wheels – Pair
Rear Stabilizer Jacks - Pair – 5,000 lb. Crank Down
Spare ST235/85R16 on Steel Wheel
Upgrade to Aluminum 16" Wheel From 16" Steel Wheel
Spare Tire Wall Mount

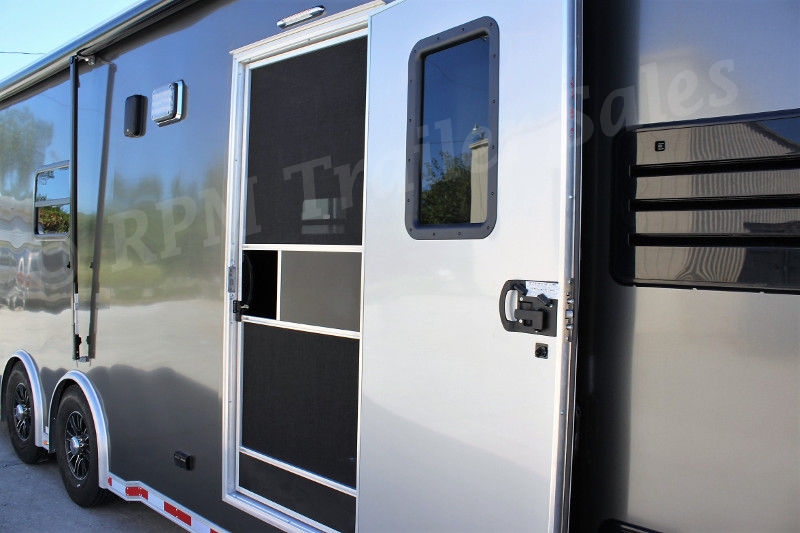

Upgrade to 455 Series RV Style Door w/ Window & Screen Door
Add Slideout Aluminum Step - Non-Slip
Upgrade to Stainless Steel Paddle Latches from Barlocks
2) 30" x 20" Vertical Slider Window w/ Screen
2) 30" x 20" Egress Vertical Slider Window w/ Screen
Add 14" Power Roof Vent
Salem Flow Through Vent System (Pair)
12V Interstate Deep Cycle Battery w/ Vented Box and Disconnect Switch

50 Amp Electrical Service Package
Breaker Box w/ 50 Amp Main
Motorbase Plug
25' Shore Cord
12V Fuse Panel
60 Amp 12V Converter / Battery Charger
Additional added electrical:
6) 120V 15A Recept - GFI Protected Where Required
3 Way Light Switches (Pair)
3) 12V LED Dome Light
6) 120V 48" Fluorescent Light
LED Slimline Brake Lights (Pair)
12V Loading /Tie Down LED 11" Light
Exterior Porch Light
2) Whelen 12V Exterior LED Scene Light - 900 Series

HDMI Cable Run w/ (2) Finished Faceplates
Upgrade to Black Coin Floor
Upgrade to Black Coin Rubber Ramp
8’ Grey Carpet for Bunk
Screwless Aluminum Walls & Ceiling
Insulated Walls & Ceiling - R4 Rated

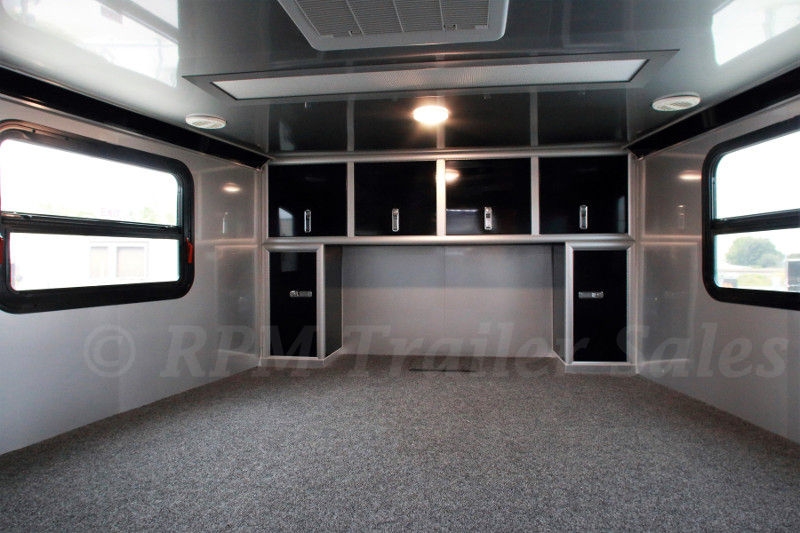

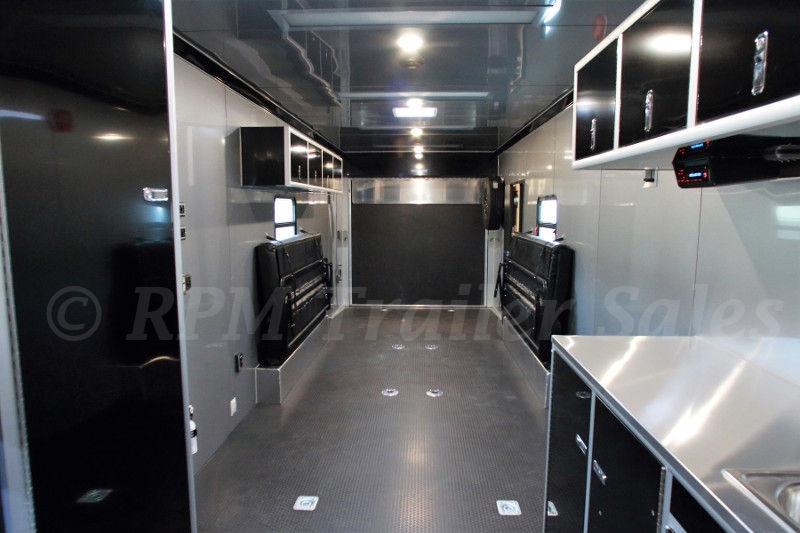

8' Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
2’ Premium Lower Aluminum Cabinet w/ Clear Anodized Trim

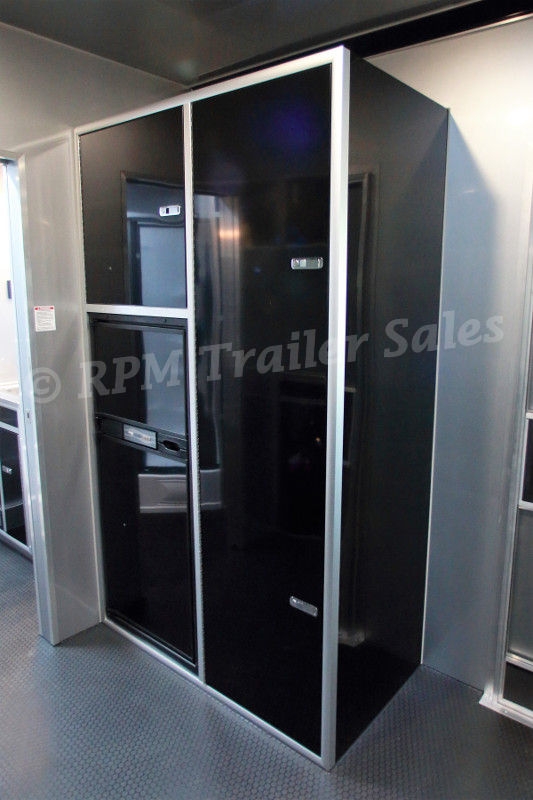

2) Premium Standalone Dresser Closet w/ Clear Anodized Trim
3) 8' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
Upgrade to 4" Upper & Lower Rubrail
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Lowered Skirt w/ Reverse Beavertail Design - Tandem Axle
Upgrade to Mirror Finish Stainless Steel Front Verticals
Upgrade to Mirror Finish Stainless Steel Rear Header & Posts
22' Dometic Awning w/ Weathershield - Manual Awning
15,000 BTU A/C with Digital Wall Mount Thermostat
Brace & Wire for Future additional A/C Installation
Upgrade to Ducted AC
TV Prep Package
AM/FM/CD Stereo with 2) Interior Speakers and 2) Exterior Speakers

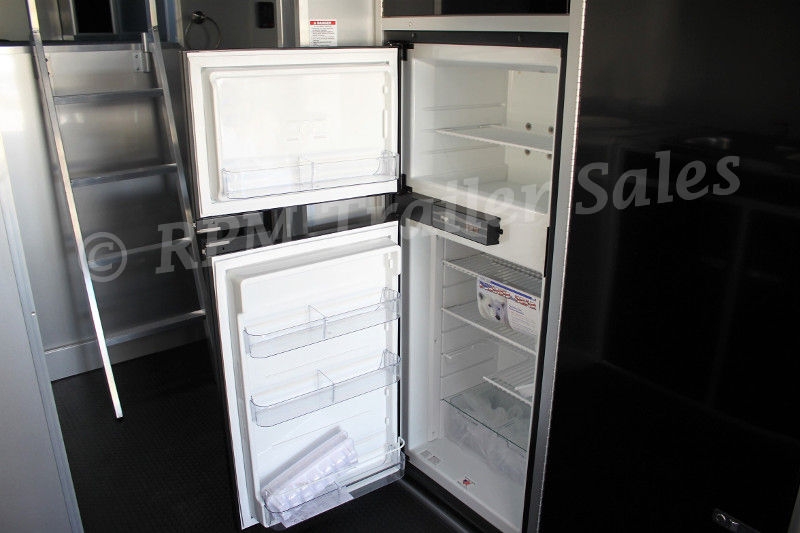

Refrigerator - 6.3 Cubic Ft - 3 Way (12V, 120V, LP)

Safety Package:
5-BC Fire Extinguisher w/ Wall Bracket
Smoke & Carbon Monoxide Combo Detector
LP Gas Detector

1) Additional Smoke & Carbon Monoxide Combo Detector

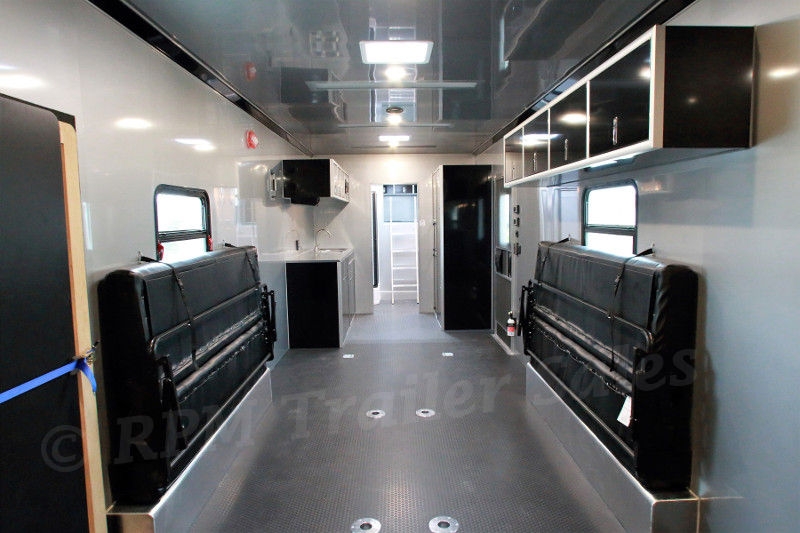

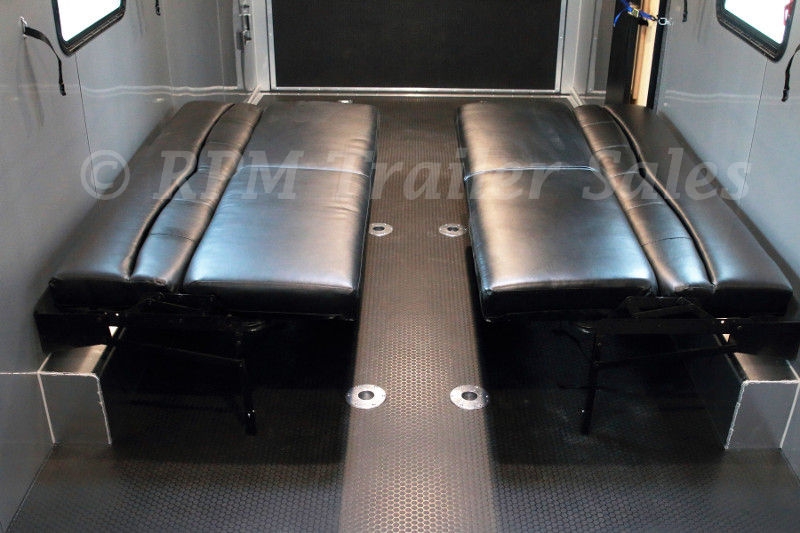

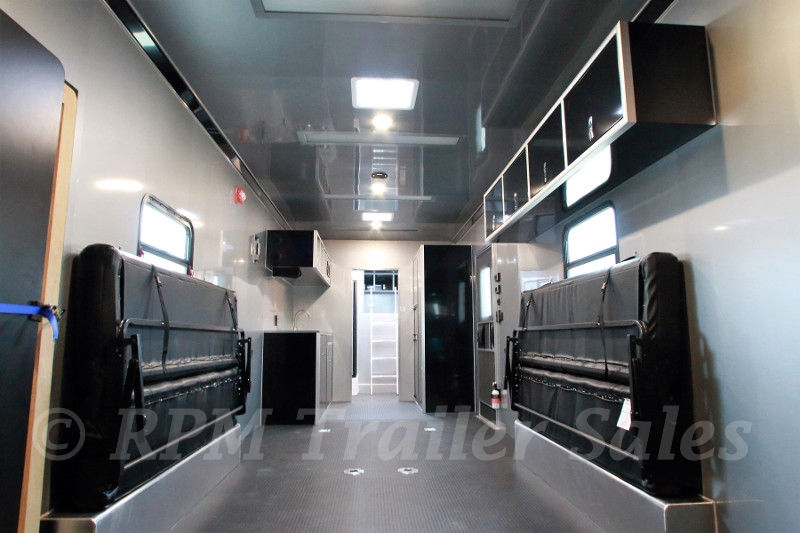

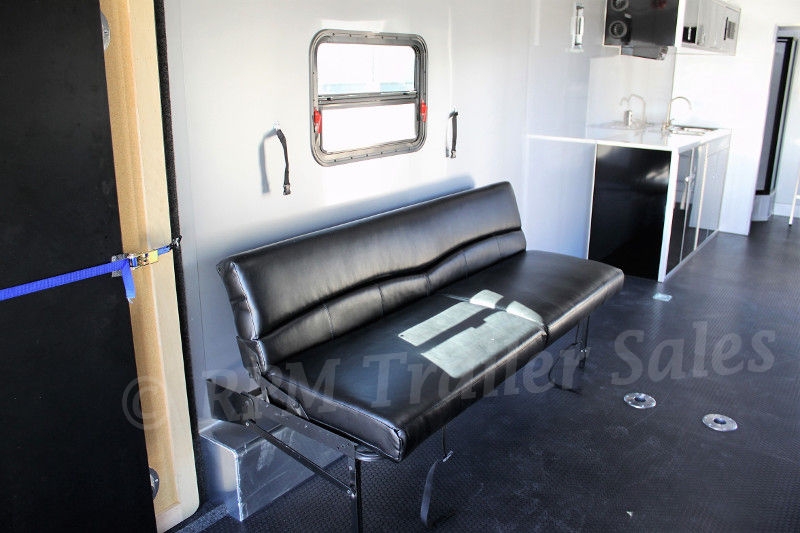

2) Rollover Sleeper Sofa - 76" Long
2) Removable Dinette Tables
Stainless Steel Double Bowl Sink & Faucet
Now that you’ve had a chance to see all the features in this amazing trailer, let us know what you think.  If this is not exactly what you are looking for, give RPM Trailer Sales a call at 706-654-2882 to let us quote you a trailer specifically for your needs.
“Often Imitated – Never Duplicated”
