34' Custom Aluminum Race Car Trailer

34' Custom Aluminum inTech Race Car Trailer Loaded with options including 7 KW Onan Generator, custom cabinet package, dual AC's, dual awnings and more.

Product Specs

  • New
  • 12020
  • BTA8534TTA4
  • 8′ 6″ x 34′
Request More Info

Details

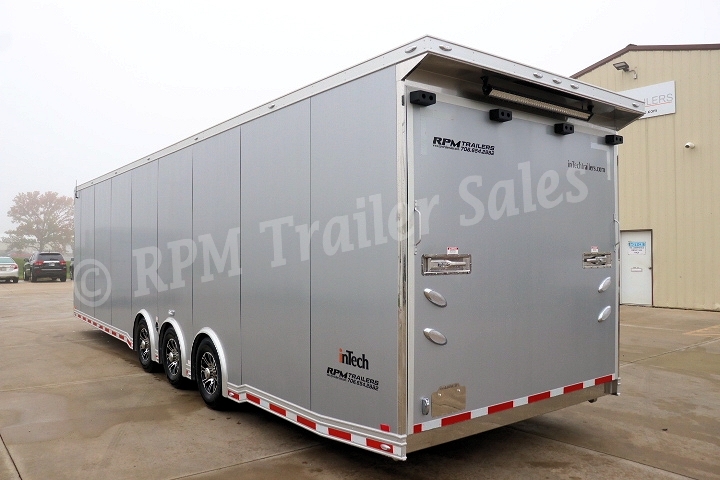

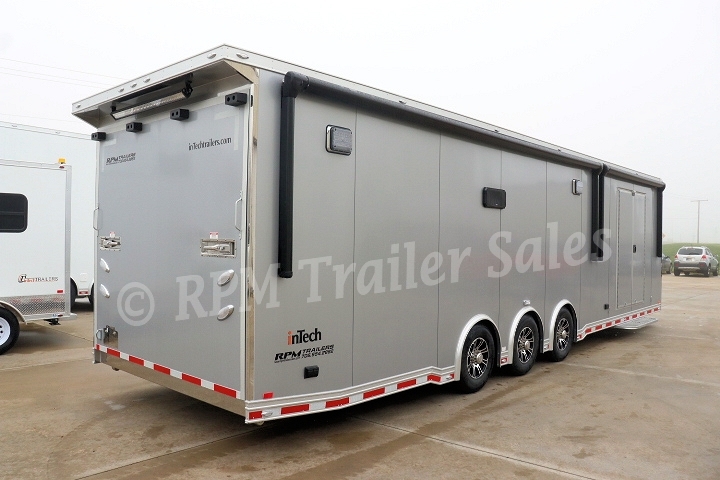

34' Custom Aluminum Race Car Trailer

Take a look at this gorgeous 34’ all-aluminum inTech Trailer loaded with options. RPM Trailer Sales goes above and beyond when designing trailers with great functionality. This trailer has it all!  We started this trailer out with our popular iCon Package.  Then we added the extra details that makes this another one-of-a-kind RPM Trailer Design.
When you lay open the rear ramp door on this on this amazing 34’ aluminum race car trailer, you will not be disappointed. This 34’ custom aluminum car trailer has our upgraded wide body that gives you 97.5” in side the rear door for loading those wide car bodies.  It includes 50 amp electrical, 7.0KW Onan Generator Package, Custom L Base Cabinets with additional wall cabinets, stainless steel backsplash and did we mention this inTech custom race trailer is insulated, has two AC’s, two awnings, stereo package and more.
RPM Trailer Sales is a long-established company dedicated to providing quality custom aluminum trailers, customized for your specific needs. The extensive offering of an excellent custom product at an affordable price has always been our number one goal. We are proud to say that RPM Trailer Sales is still the largest and most respected aluminum trailer dealers worldwide. RPM Trailer Sales always strives to find new ways to make our custom trailer designs and living quarters trailers exceed your expectations. We're certain you'll be impressed with our unmatched customer service, overall quality, fit, and finish of every detail! Check out all our inTech Trailers for Sale. Experience a custom trailer with RPM Trailer Sales “Often Imitated – Never Duplicated” Contact us today at 706-654-2882 for details and a custom quote.



GVWR: 18,000 lbs.
Shipping Weight: 7,510 lbs.
Width: 8.5
Length: 34’
Interior Height: 7.5’ Interior Height

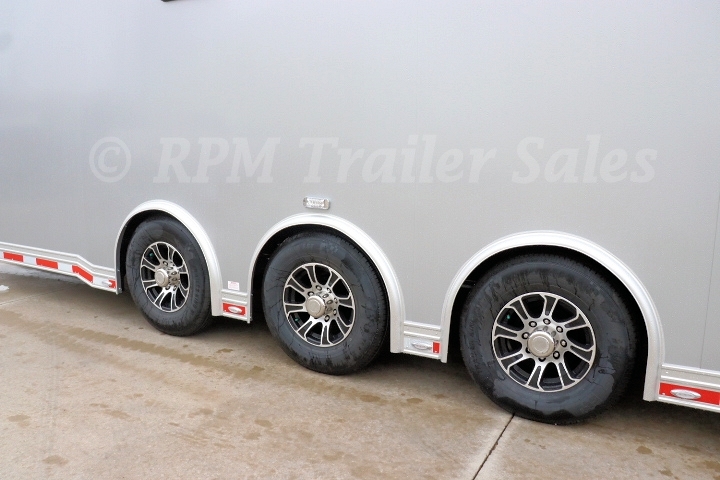

Axle Type: Triple 6,000 lbs. Dexter Torsion Axles

MODEL: BTA8534TTA4
Product Number: 12020

Standard Trailer Specifications start here:
Chassis
Full Perimeter Aluminum Frame
All-Tube Aluminum Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axle
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
5,000 lb. Manual Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/80R16 Nitro Filled Tires w/ Steel Wheels

Interior
One-Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
2) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent w/ Switch
6.5' Interior Height
4) 5,000 lb. Recessed D-Rings
4' Interior Beavertail

Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
24" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door
Rear Skid Plates

Added Packages, Selected Options & Upgrades:
34' iCon Package
Exterior Upgrades:
40" x 36" 405 Series Generator Door
Aluminum Slide Out Step
Awning Rail
Extended Tongue
FMVSS Side Door Lock
Stainless Steel Rear Header & Posts
Upgrade to .040 Exterior Aluminum Skin
Upgrade to 4" Upper & Lower Side Trim
Upgrade to 48" 405 Series Door
Upgrade to 7' Interior Height
Upgrade to Aluminum Wheels
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Upgrade to Stainless Steel Paddle Latches

Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25' Shore Cord
12V Battery & Box Wired
12V Fuse Panel
60 Amp Converter for 12V
4) 12V 18" LED Interior Lights
1) 15 Amp Exterior Recept
3) 15 Amp Interior Recepts
3 Way Light Switch for Interior LED Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights

Interior Upgrades

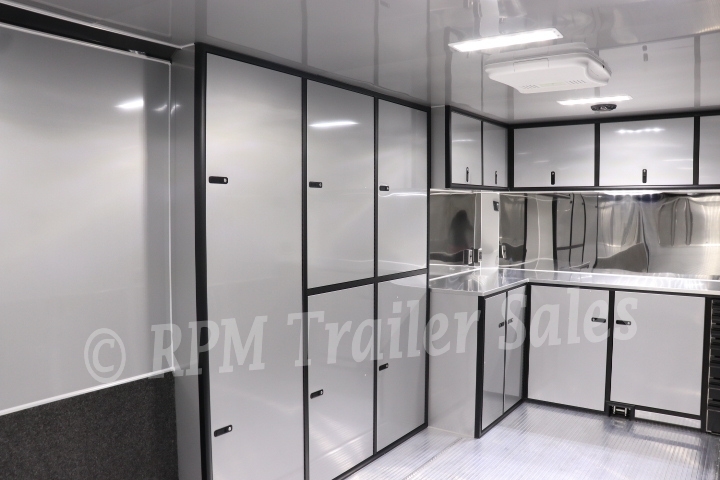

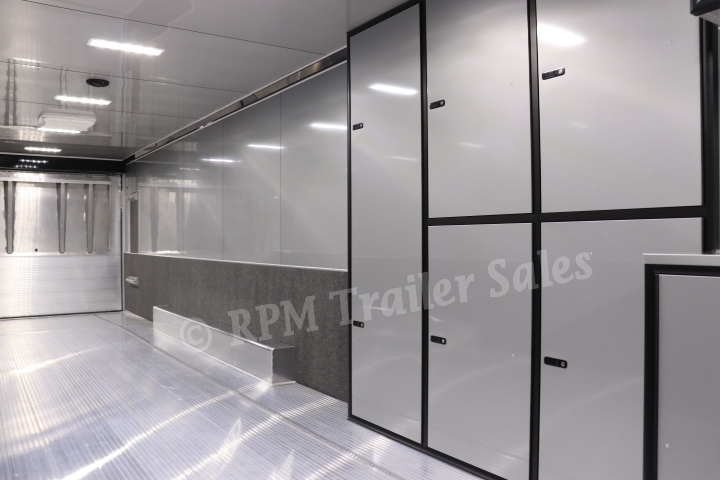

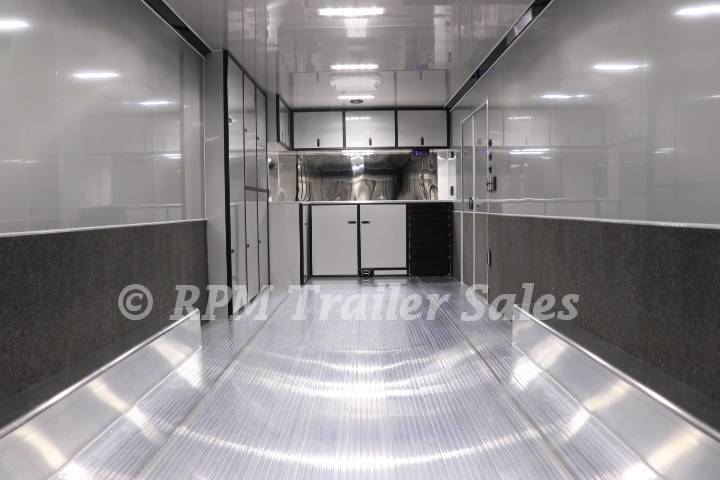

8' Premium Aluminum L Shaped Lower Cabinet
8' Premium Aluminum Upper Cabinet
Add Roof Vent w/ Wire for Future AC

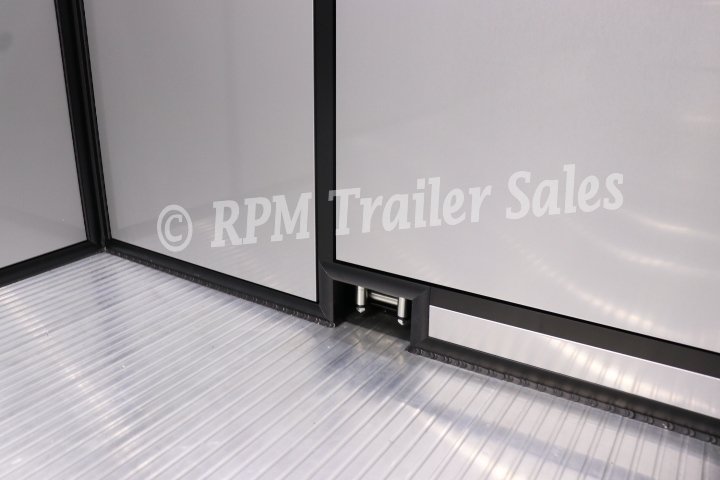

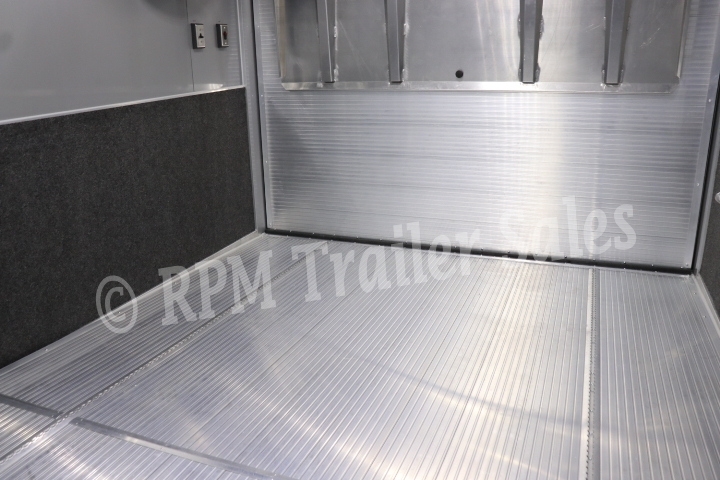

Extruded Aluminum Floor
Extruded Aluminum Ramp

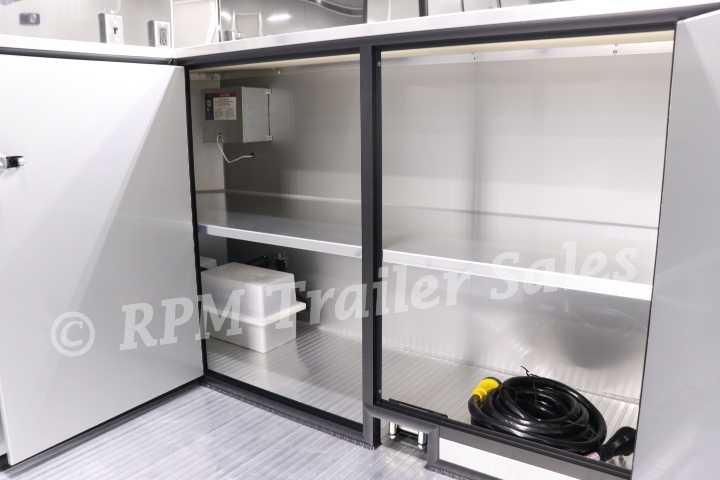

Gen Compartment in L Cabinet
LED Light Under Upper Cabinet
One Piece Aluminum Transition Flap
Screwless Aluminum Walls & Ceiling
8' Interior Height Maximum w/ Package

More Added Upgrades &  Selected Option:
2) Upgrade from Surface Mount LED Flood Light to Whelen 900 Series Super LED
Upgrade to Recessed Stainless Steel Latches into Ramp Door From Paddle Latches- Pair
Upgrade to Extended Beavertail
Upgrade to 97.5" Rear Ramp Door Opening - 102" Wide Body
6" Additional Height
Rear Caster Wheels – Pair
Upgrade to 4,500 lb.  Front Power Jack

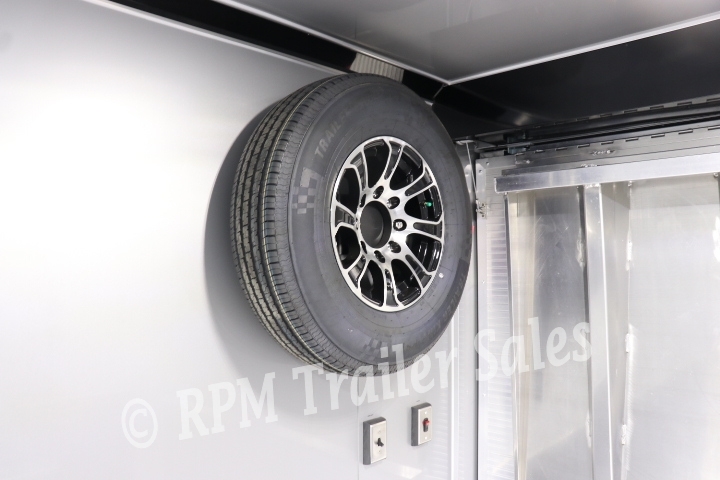

Spare ST235/80R16 on Upgraded Matching Aluminum Wheel
Spare Tire Wall Mount - Specify Location
Upgrade to 60" 405 Series Double Door
Upgrade to Full Width Ramp Extension Up to 48" Long w/ 3" Bumpers

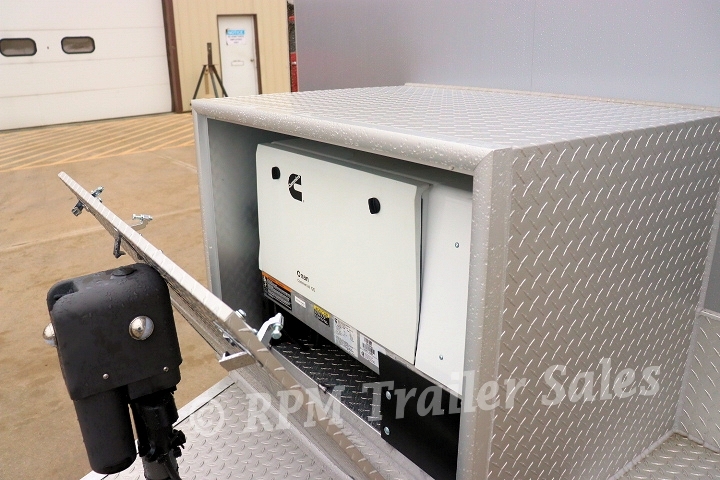

7.0KW Onan Generator Package (120V/240V) – Gasoline
In Frame Fuel Tank
Interior Insulated Generator Compartment
40" x 36" 405 Series Vented Gen Door
Automatic Transfer Switch
12V Marine Grade Battery in Vented Box
Remote Start, Fuel Gauge & Hour Meter
Requires 240V Panel Upgrade to Use 240V

Upgrade 12V Light Switches to 120V Style
120V 20A Recept - GFI Protected Where Required
2) 12V 18" LED Interior Light
14) Panelite LED Clearance Light
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
50" LED Light Bar Mounted on Spoiler

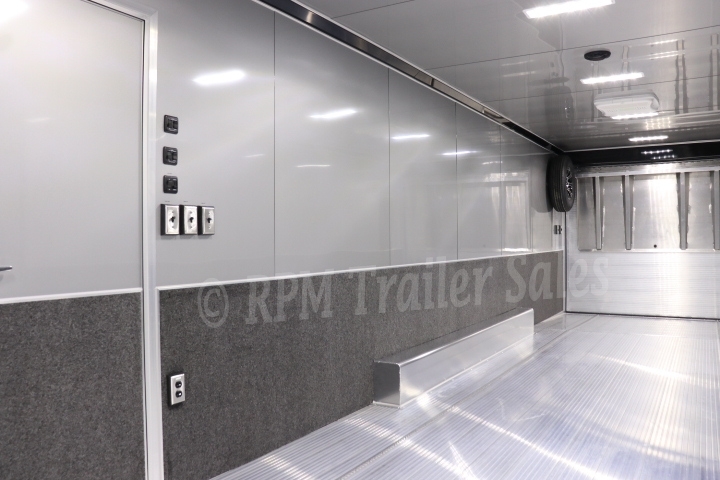

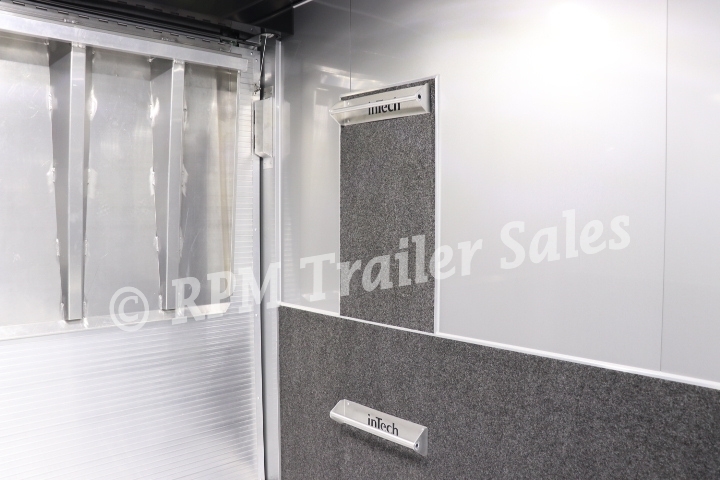

34” High Carpet on Interior Walls
Insulated Walls & Ceiling - R4 Rated

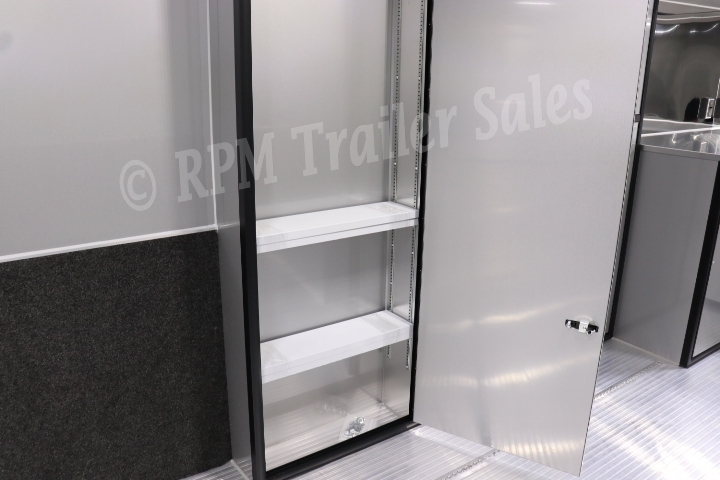

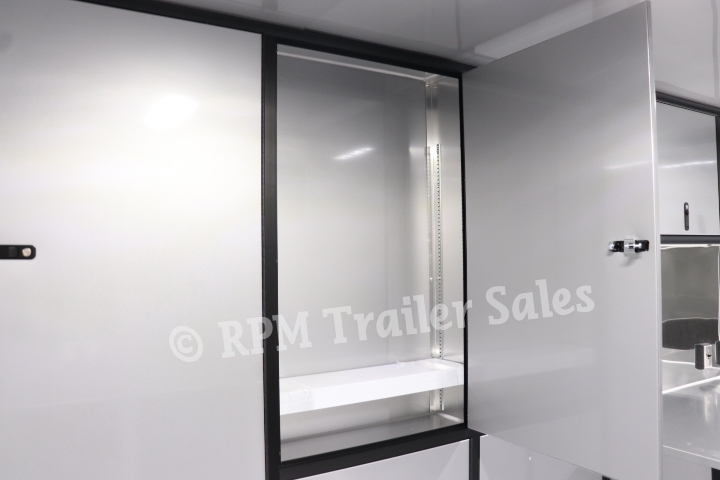

4' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim

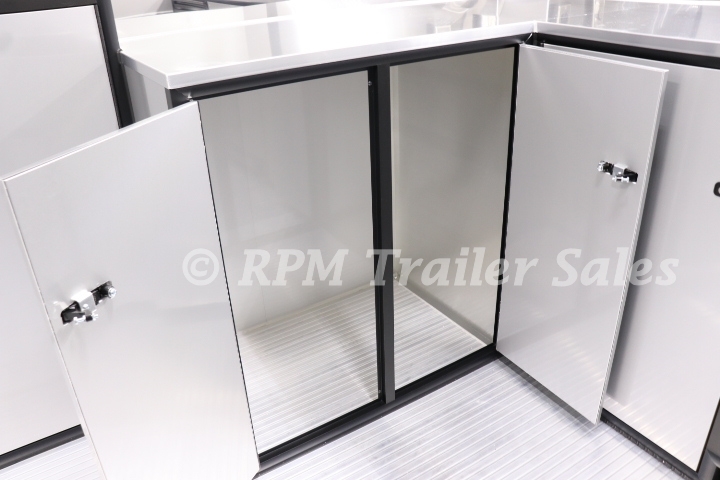

3’ Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
Wheel Well Cabinet Tandem Axle
Black Anodize Cabinet Trim

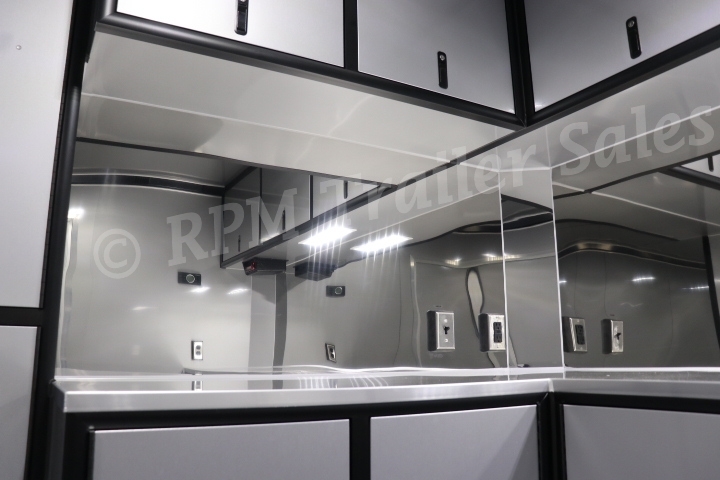

2) Mirror Finish Stainless Steel Backsplash
Airline Track – Recessed
18" Wide Tie Down Strap Hangers – Pair
Upgrade to Lowered Skirt w/ Reverse Beavertail Design
Color Matched Rear Spoiler
Includes (2) Integrated LED Loading Lights
Color Matched to Rear Header
11' Dometic 12V Power Awning w/ Weathershield
20' Dometic 12V Power Awning w/ Weathershield
2) 13,500 BTU A/C w/ Upgrade to Heat Strip for A/C
Upgrade to Digital Wall Mount Thermostat for A/C
Winch Plate in Floor for Future Winch Installation
Pass Through Hole for Winch to Lower Base Cabinet

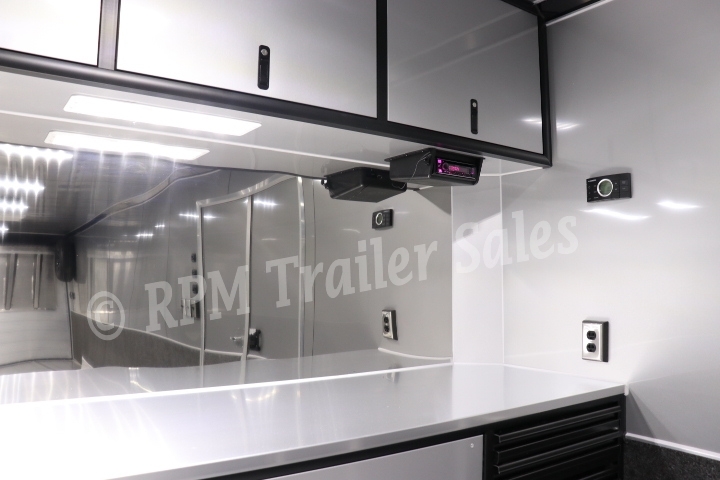

AM/FM/CD Sirius Ready Bluetooth Stereo w/ Four Interior Speakers
Upgrade (2) Interior Speakers to Premium Fusion Soundbar on Exterior
Custom RPM C-Tech Tool Chest
