34' Custom Aluminum Race Trailer

Custom 34' RPM Trailer Sales original race trailer design.  Loaded with custom features, RPM Trailer Sales hit this inTech Aluminum Trailer out of the park.  Take a look at this must see 34' custom race car hauler and all its amazing features.

Product Specs

  • New
  • 12010
  • BTA8534TTA4
  • 8′ 6″ x 34′
Request More Info

Details

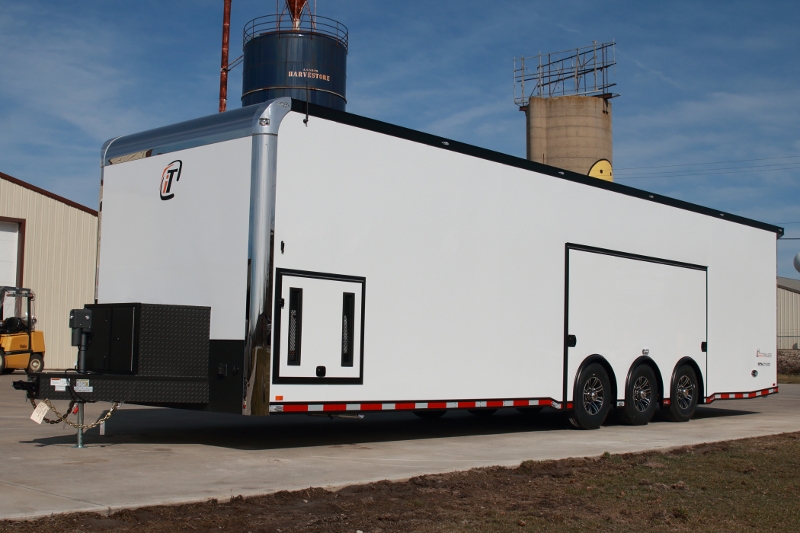

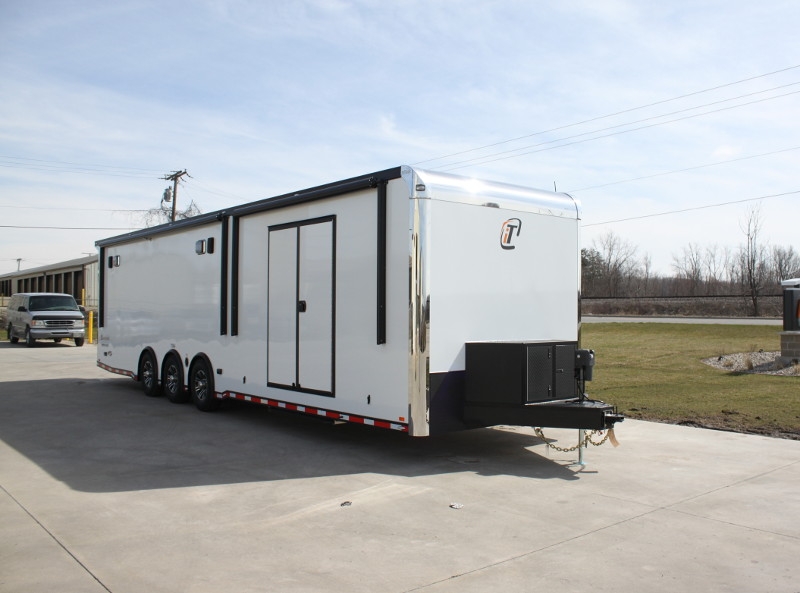

34' Custom Aluminum Race Trailer

Distinct customization for the ultimate 34’ aluminum race trailer.  This 34’ inTech race car hauler is set up to transport your car or toys in luxury style. The fully anodized exterior aluminum trim package not only accents the trailer beautifully, but also protects the aluminum for a lifetime against any kind of corrosion. The top and bottom trim feature a rivetless installation, with no exposed fasteners, giving this trailer an ultra-clean appearance.  The Black AC cover complements the anodized trim package, and our popular rear spoiler design makes this custom trailer the envy at any event.  Now if you thought the outside was amazing you have to check out the inside..
When you open the 60” Double side doors on this beast, you will not be disappointed.  This 34’ custom aluminum inTech car trailer is loaded with 50 amp electrical, 7KW Onan Generator Package, Custom Cabinets, and did we mention the dual power awnings, dual AC’s and so much more....
We design our aluminum trailers with an emphasis on the quality put into each custom trailer built.  RPM Trailer Sales custom aluminum race trailers, not only look good but tow and out preform all others in its class!   While designing, we strive to build the best, most versatile trailers available for your specific needs.  RPM Trailers has become and will continue to be an industry leader.  We are proud to say that RPM Trailer Sales has grown into one of the largest and most respected aluminum trailer dealers worldwide.  We are inTech Trailers oldest and largest dealer worldwide.  RPM Trailer Sales always strives to find new ways to make our custom trailer designs exceed your expectations.  We're certain you'll be impressed with our unmatched customer service, overall quality, fit, and finish and you will surely see and experience and be even more impressed by just how affordable an all-aluminum Trailer really is! Experience a custom trailer with RPM Trailer Sales “Often Imitated – Never Duplicated” Contact us today at 706-654-2882 for details and a custom quote.

Building awesomeness one trailer at a time….

Product Number: 12010
Model: BTA8534TTA4

GVWR: 18,000 lbs.
Shipping Weight: 8,385 lb.
Height: 7.5’ Interior Height
Width: 102” Wide Body Frame

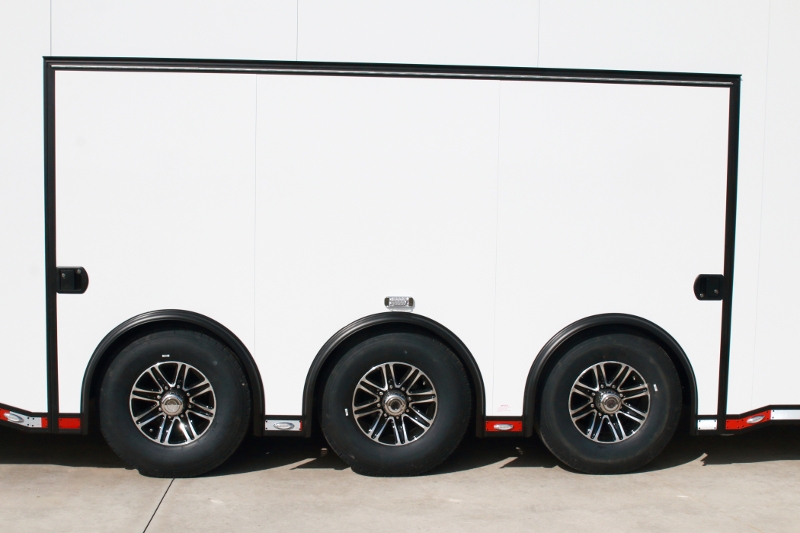

Axle Type: Triple 6,000 lb. Dexter Torsion Axles

Check out all the amazing features of this Custom 34’ inTech Aluminum Trailer
Chassis
Full Perimeter Aluminum Frame
All-Tube Aluminum Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
5,000 lb. Manual Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/80R16 Nitro Filled Tires w/ Steel Wheels

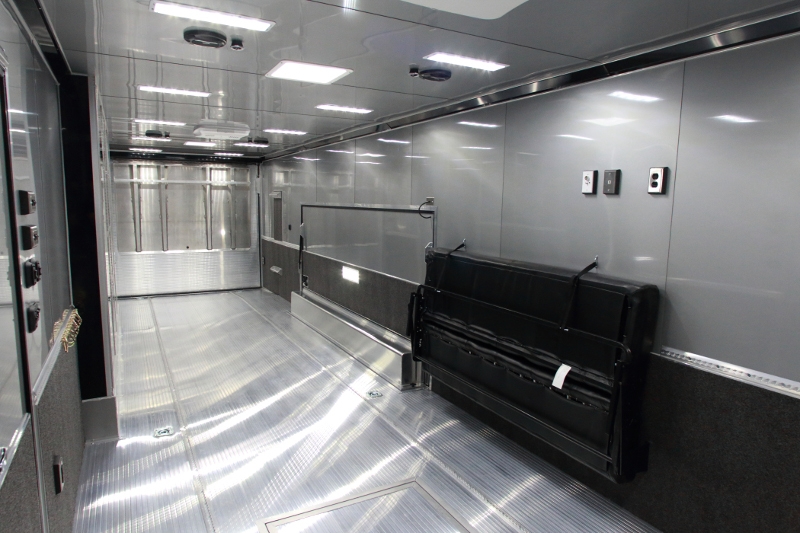

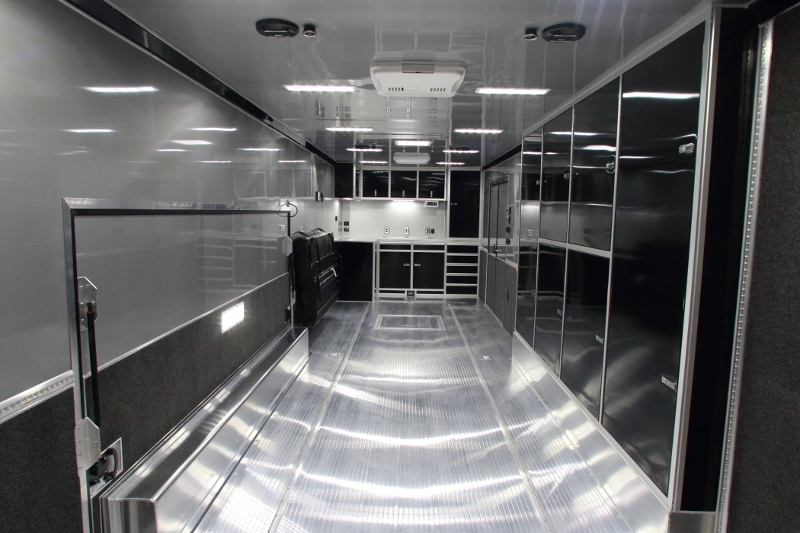

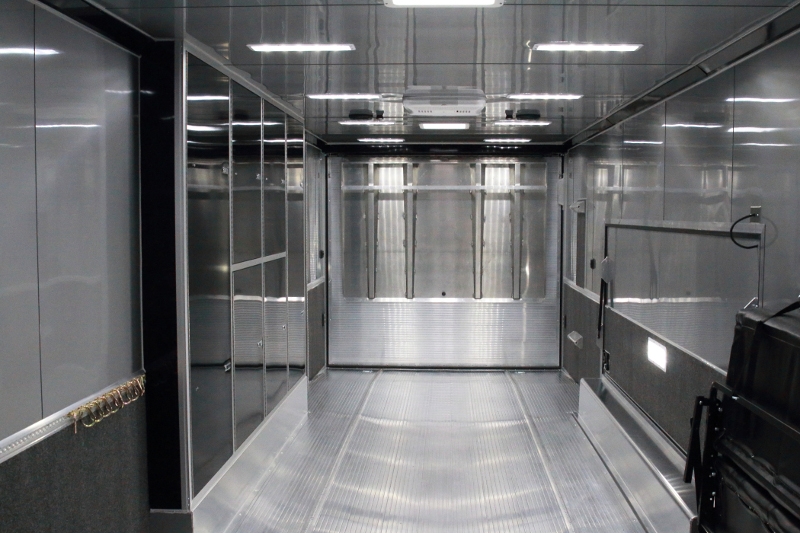

Interior
One-Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
2) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent w/ Switch
6.5' Interior Height
4) 5000# Recessed D-Rings
4' Interior Beavertail

Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
24" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door
Rear Skid Plates

Additional & Added Selected Options:
34' iCon Package
Exterior Upgrades

40" x 36" 405 Series Generator Door
Aluminum Slide Out Step
Awning Rail
Extended Tongue
FMVSS Side Door Lock
Stainless Steel Rear Header & Posts
Upgrade to .040 Exterior Aluminum Skin
Upgrade to 4" Upper & Lower Side Trim
Upgrade to 48" 405 Series Door
Upgrade to 7' Interior Height
Upgrade to Aluminum Wheels
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Upgrade to Stainless Steel Paddle Latches

Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25' Shore Cord
12V Battery & Box Wired
12V Fuse Panel
60 Amp Converter for 12V
3) 48" Fluorescent Lights – Recessed
1) 15 Amp Exterior Recept  - (3) 15 Amp Interior Recepts
3 Way Light Switch for Fluorescent Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights

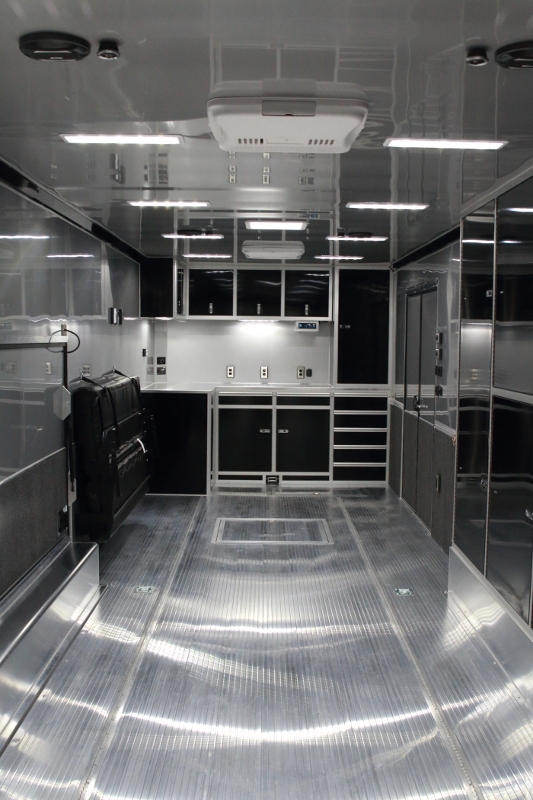

Interior Upgrades
8' Premium Aluminum L Shaped Lower Cabinet
8' Premium Aluminum Upper Cabinet
Add Roof Vent w/ Wire for Future AC
Extruded Aluminum Floor
Extruded Aluminum Ramp
Gen Compartment in L Cabinet
LED Light Under Upper Cabinet
One Piece Aluminum Transition Flap
Screwless Aluminum Walls & Ceiling

More Additional added and selected features:
Downgrade to Straight Base Cabinet From L-Base
Upgrade to .050 Exterior Aluminum Skin from .040
Upgrade 3) 48" Fluorescent Light to 18" 12V LED Lights
Upgrade 2) 500W Quartz Recessed Light to Whelen 900 Series Super LED
Upgrade to Recessed Stainless Steel Latches into Ramp Door From Paddle Latches- Pair
Upgrade to 97.5" Rear Ramp Door Opening - 102" Wide Body
6" Additional Height
Rear Caster Wheels – Pair
Upgrade to 4,500 lb. Front Power Jack
Install Jack Toward Rear of Tongue for Additional Clearance
Upgrade to ST235/85R16 Tires from ST235/80R16
Spare ST235/85R16 on Aluminum Wheel
In Floor Spare Tire Compartment

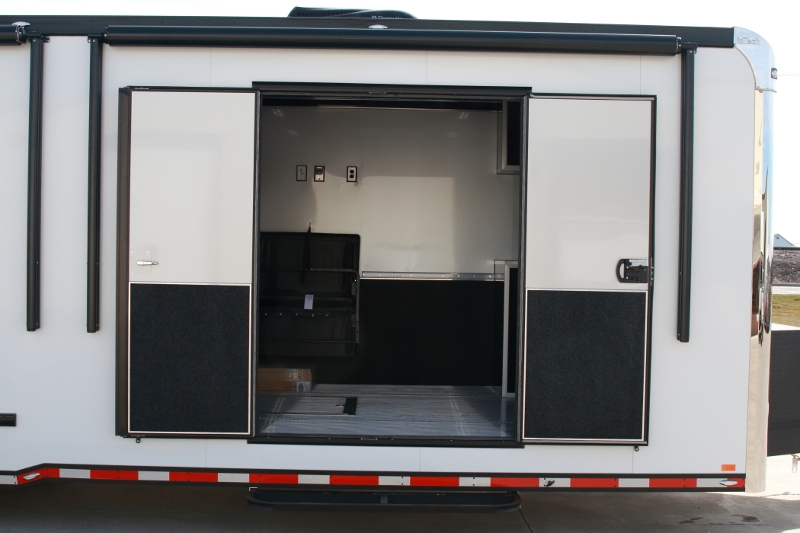

Upgrade to 60" 405 Series Double Door

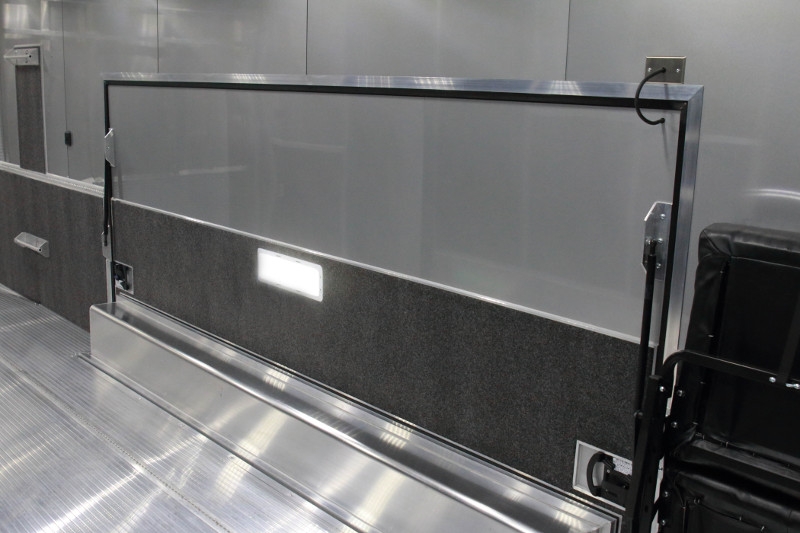

Add Full Access Escape Door - 5' Tall - Triple and Super Spread Tandem Axle
add 12V  18" LED Light Integrated into Escape Door
Cold Curtain for Entrance Door - Matches Width & Height
Add 5' Aluminum Ramp Extension - 84" Wide w/ 3" Bumpers

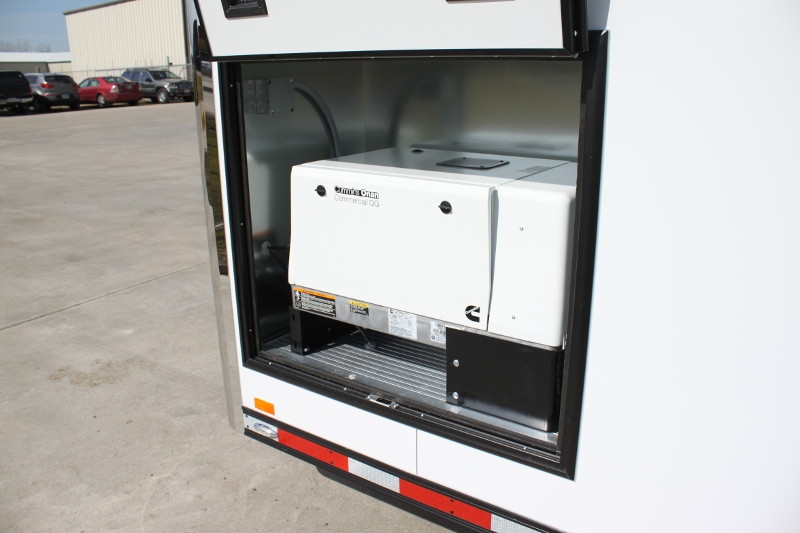

7.0KW Onan Generator Package – Gasoline
In Frame Fuel Tank
Automatic Transfer Switch
12V Marine Grade Battery in Vented Box
Remote Start, Fuel Gauge & Hour Meter
In Floor Battery Compartment
4) Additional 120V 15A Recept
Add  3 Way Light Switches (Pair)

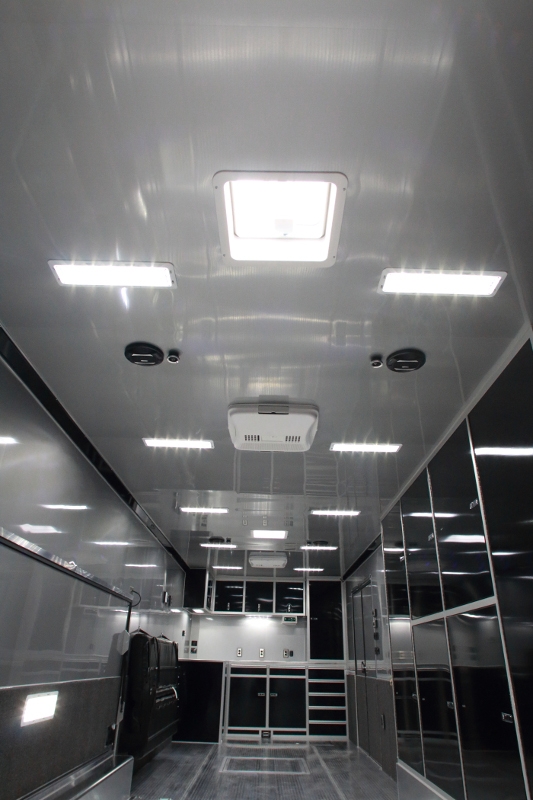

8) Additional 12V 18" LED Interior Light
Upgrade 2) Standard LED Dome Light to 12V 18" LED Light
10 Additional Panelite LED Clearance Lights
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
12V LED Docking Back Up Flood Lights (Pair)
HDMI Cable Run w/ 2) Finished Faceplates
34” High Carpet on Interior Walls
Insulated Walls & Ceiling - R4 Rated
Add 2) Single Drawer to Standard Base Cabinet Above Doors

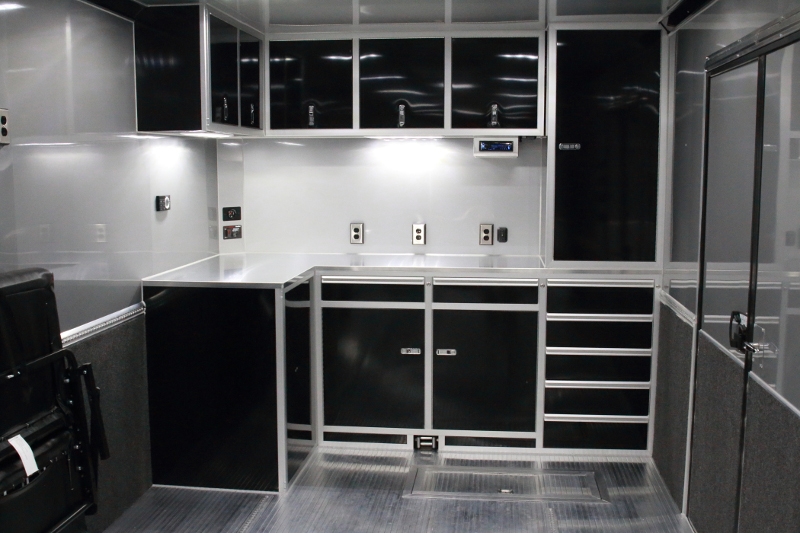

5 Drawer Tool Chest Bank added to Lower Cabinet w/ Clear Anodized Trim

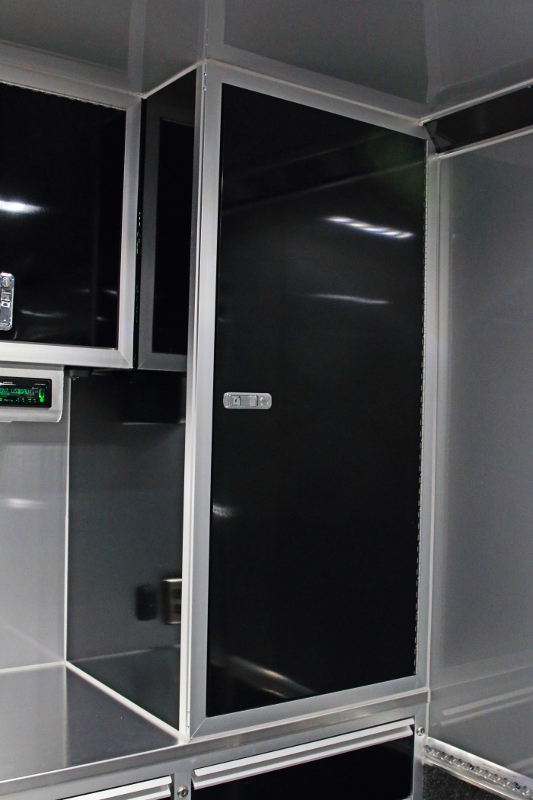

Add Aluminum Dresser Closet to Lower Cabinet

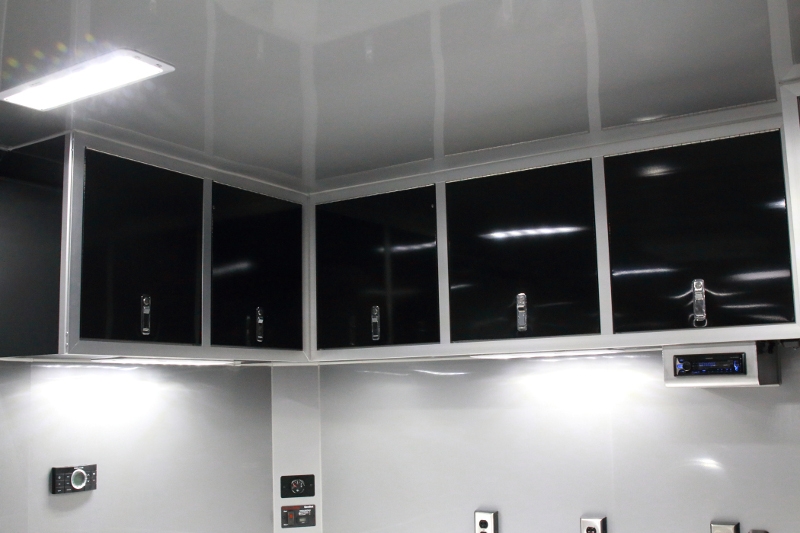

4' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
Wheel Well Cabinet Triple Axle
Airline Track - Surface Mounted
Airline Track – Recessed
10) Double Stud Airline Track Tie Down Ring
18" Wide Tie Down Strap Hangers – Pair
Upgrade to Lowered Skirt w/ Reverse Beavertail Design - Triple Axle
Color Matched Rear Spoiler
Black Anodized Exterior Package

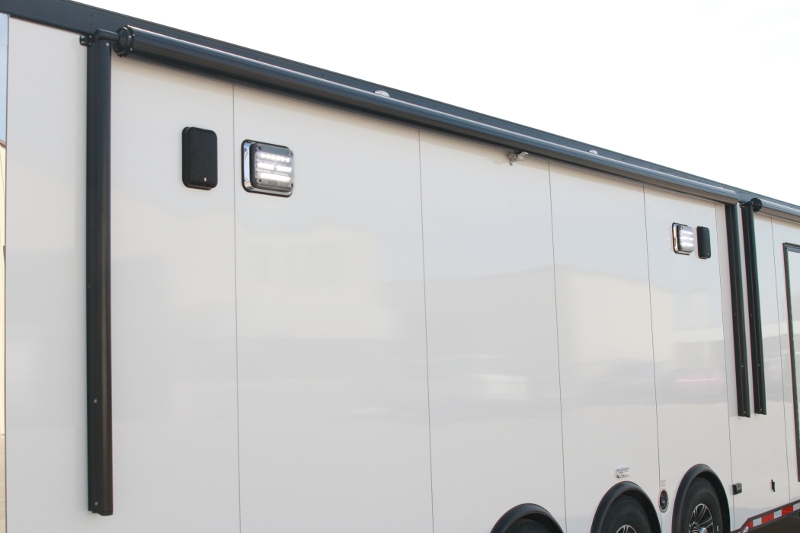

11' Dometic 12V Power Awning w/ Weathershield
19' Dometic 12V Power Awning  w/ Weathershield
2) 13,500 BTU A/C w/ Heat Strips  – Low Profile Designs
2)  Drip-Drain Kits for Air Conditioners
Upgrade to Digital Wall Mount Thermostat for A/C
Add Winch Plate in Floor for Future Winch Installation
Add Pass Through Hole for Winch to Lower Base Cabinet
Winch Wire Prep
TV Prep Package
AM/FM/CD Bluetooth Stereo w/ Four Interior Speakers
Add 2) Exterior Speakers to Radio - Includes Amplifier
Upgrade Interior Speakers to Component w/ Separate Tweeter

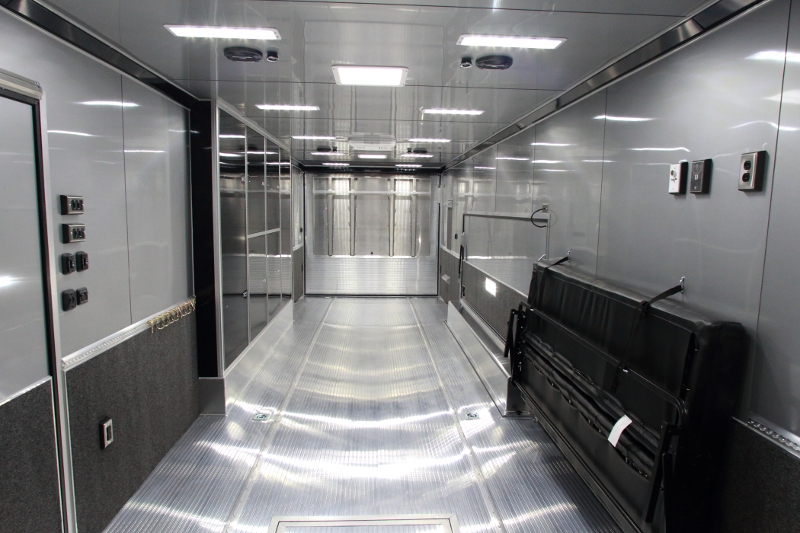

Rollover Sleeper Sofa - 76" Long

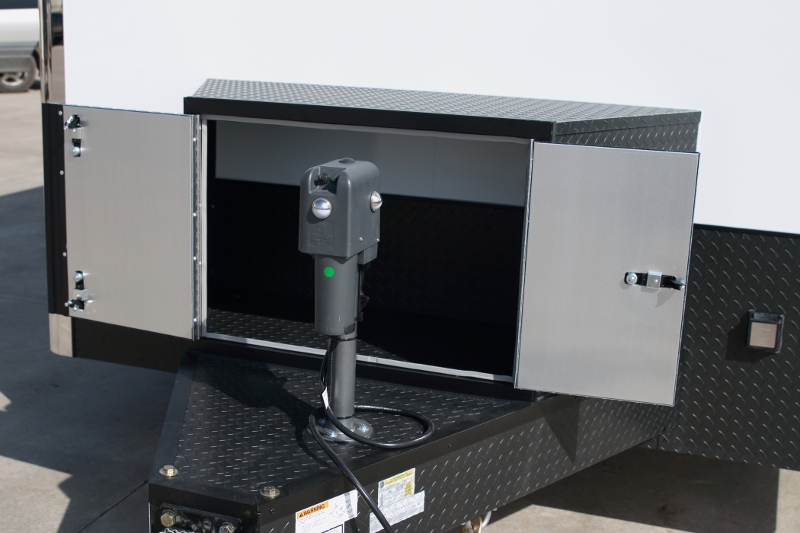

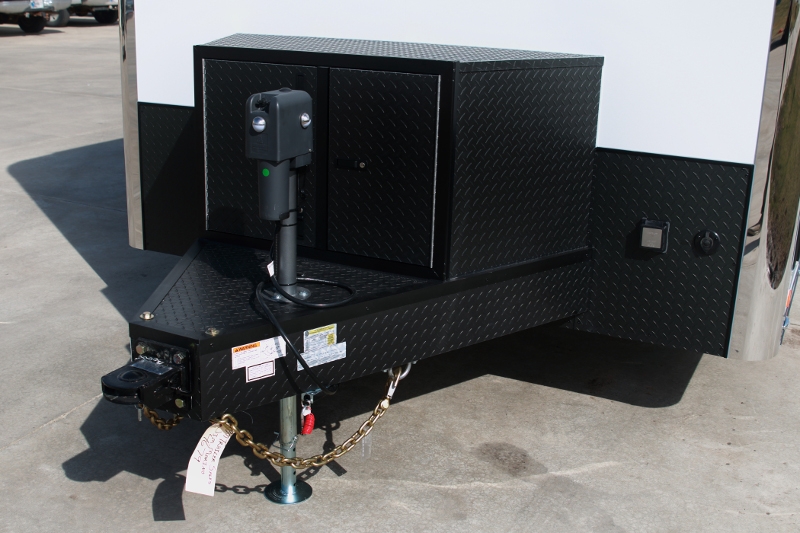

A-Frame Black Anodized A – Frame Tongue Box
