28' Custom Aluminum Stacker Trailer

Custom 28' inTech Aluminum Stacker Trailer with triple 7,000 lb STI Air Ride Axles, 17.5 Alcoa Aluminum Wheels, custom cabinet package, electrical package and more. Luxury stacker trailers designed specifically for you.

Product Specs

  • New
  • 11716
  • BSA8528TTA5
  • 8′ 6″ x 28′
Request More Info

Details

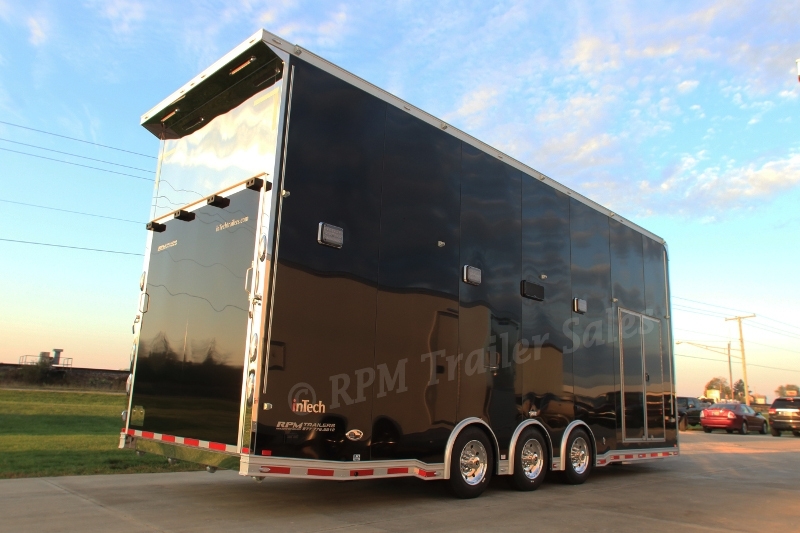

28' Custom inTech Aluminum Stacker Trailer

Step into the ultimate aluminum stacker trailer designed by RPM Trailer Sales.  This 28’ custom inTech stacker offers distinct customization for the luxury cars, intriguing toys, and the highly sought-after ease of use.  The upgraded .050 black exterior provides an amazing luxury bold classic style.  Let’s go beyond the beauty of the exterior and see all the interior greatness included with this amazing stacker race car trailer.  The 5’ aluminum ramp extension allows your low clearance cars ease of use that starts the minute you pull onto the ramp.    This inTech Aluminum Stacker Trailer includes 11’ 4” interior height, 9’ Light Duty Attic w/ Matching Flooring, 34” High Carpet on Interior Walls, custom cabinet design, air compressor, water package and so much more.  To see on this amazing RPM Stacker trailer design, is to believe it.  If you are in search of the perfect all aluminum custom stacker trailer, don’t wait check out all the specifications and details and let us know what you think.
We design our aluminum trailers for you.  RPM Trailer Sales custom aluminum stacker trailers, not only look good, but tow and out preform all others in its class!   While designing, we strive to build the best, most versatile trailers available for your specific needs even helping you with a custom painted stacker trailer to match your bus or tow-vehicles details.  RPM Trailers is the industry leader.  We are proud to say that RPM Trailer Sales the largest and most respected aluminum trailer dealers worldwide.  RPM Trailer Sales will always strive to find new ways to make our custom trailer designs exceed your expectations.  We're certain you'll be impressed with our unmatched customer service, overall quality, fit, and finish! Experience a custom stacker trailer with RPM Trailer Sales.
“Often Imitated – Never Duplicated” Contact us today at 706-654-2882 for details and a custom quote.
“Exceed All Expectations”

Model: BSA8528TTA5
Product Number: 11716
GVWR: 21,000 lbs.
Shipping Weight:  9,660 lbs.
Interior Height: 11.33’
Axle Type: Triple 7,000 lb. Dexter Torsion Axles

Review all the specification for 28’ Custom inTech Aluminum Stacker Trailer here.

Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
Hydraulic Front Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels

Interior
Extruded Aluminum Floor
Extruded Aluminum Ramp
16" Aluminum Transition Flap
6) 12V LED Dome Lights w/ Switch
.030 Screwless Aluminum Walls and Ceiling
10' Standard Interior Height
8) 5000# Recessed D-Rings
3' Interior Beavertail

Exterior
.040 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
4" Upper and 6" Lower Rub Rail
Clear Anodized Exterior Trim Package
LED Premium Clearance Lights
Dual LED Slimline Tail Lights
LED Slimline Backup Lights
36" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Front Verticals & Radius
Polished Cast Aluminum Corners

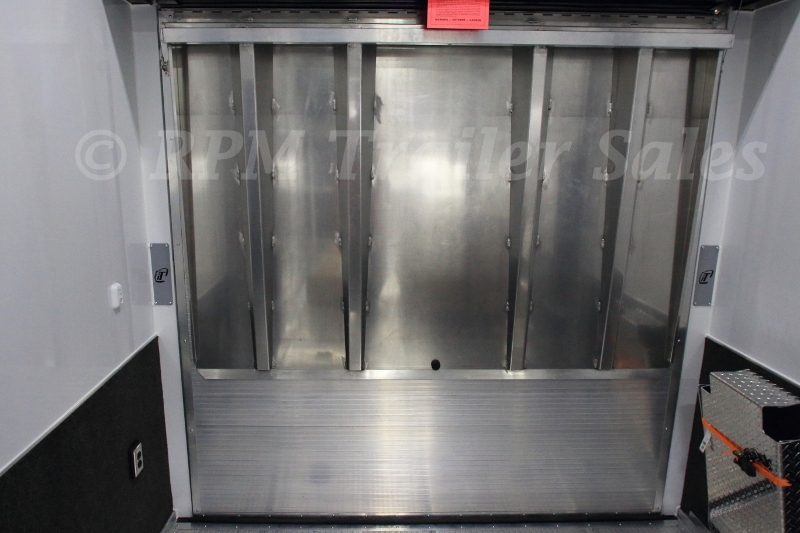

Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates

Stacker Features

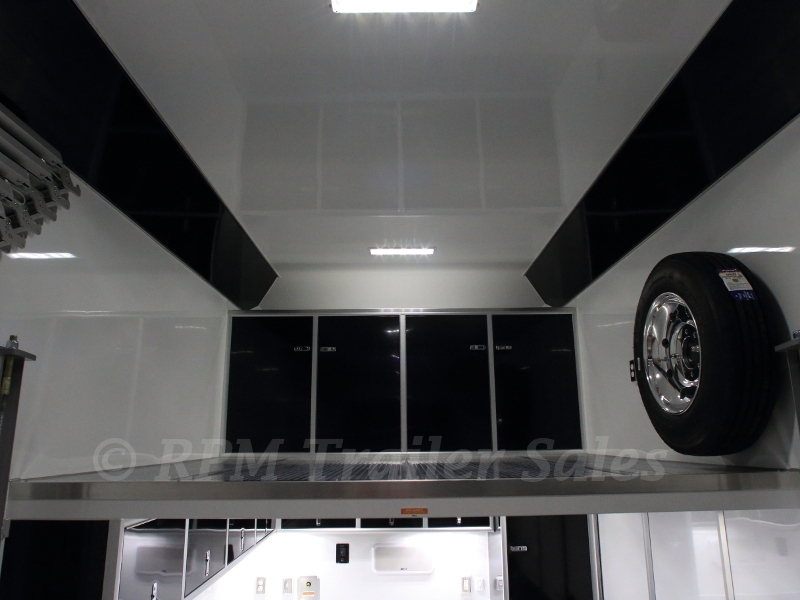

14' Aluminum Split Rail Lift (4,000 lb. Capacity)
ATP Finish on Lift Surface
In Floor Hydraulic Lift Pump
2) 12V Deep Cycle Batteries w/ Vented Boxes
In Floor Battery Compartment
15A Motorbase Plug
45 Amp Converter Battery Charger
Rear Manual Stabilizer Jacks
Tongue Weight Scale
Underside of Lift Finished w/ .030 Aluminum

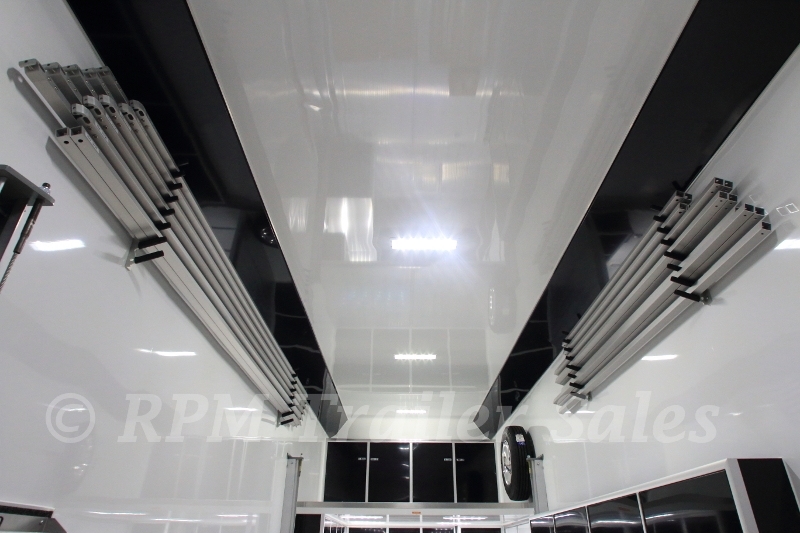

32" Removable Lift Ramps w/ Wall Storage

Upgrades and Additional Selected Options:
Upgrade to .050 Exterior Aluminum
Stainless Steel Rear Header & Posts  -  #8 High Polish
Upgrade to 11'4" Interior
Upgrade to Full Floor Aluminum Lift - ATP Floor
Upgrade Lift Floor for Use w/ Recessed Airline Track
18" LED Light Integrated into Bottom of Lift
12" Extended Tongue
9’ feet Light Duty Attic w/ Matching Flooring
Upgrade to STI Air Ride Axles - Triple 7k Axles
12V Onboard Air Compressor  - Air Tank Reservoir
Control Panel w/ Pressure Gauge
Dump Valve & Manual Fill Control

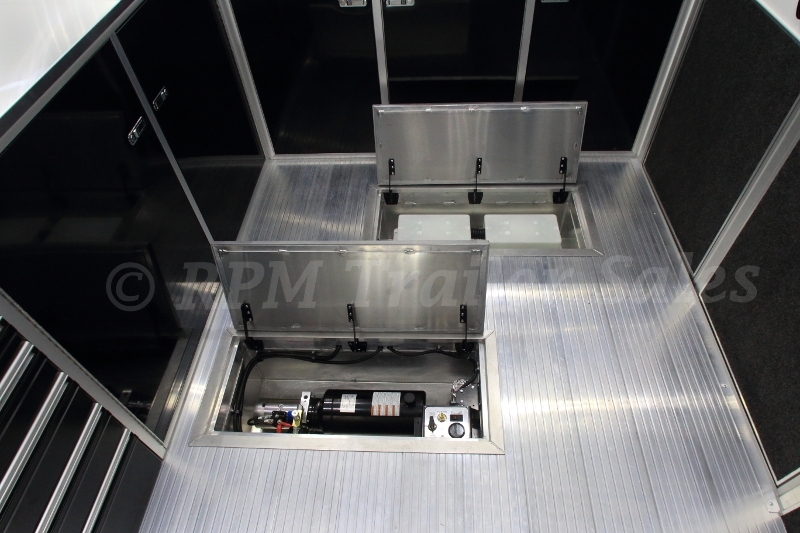

In Floor Compressor Box or Riser Compartment
2) Rear Caster Wheels – Pair
ATP Tongue Storage Box w/ Front Double Doors
Upgrade to LT215/75R17.5 Tires from ST235/85R16
Spare ST235/85R16

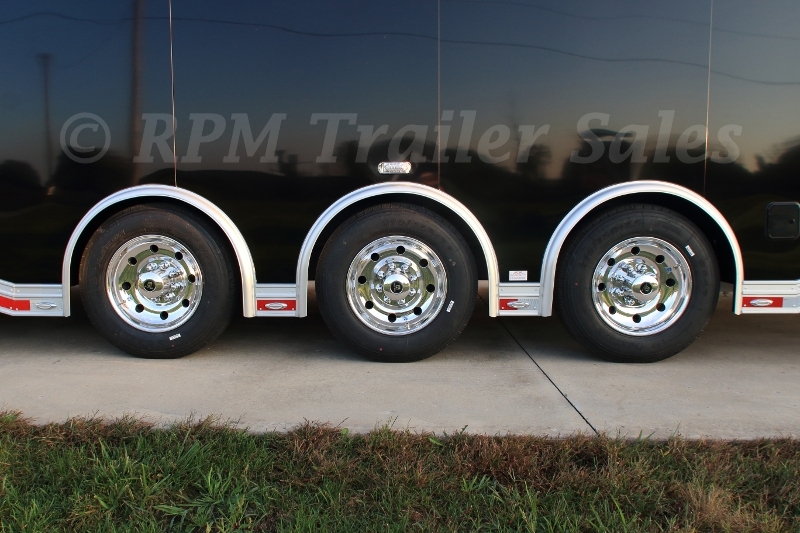

Upgrade to Aluminum Alcoa 17.5" Wheels

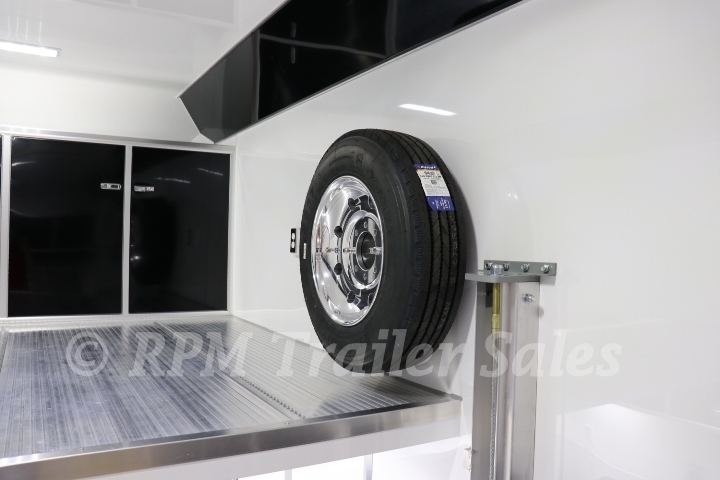

Spare Tire Wall Mount

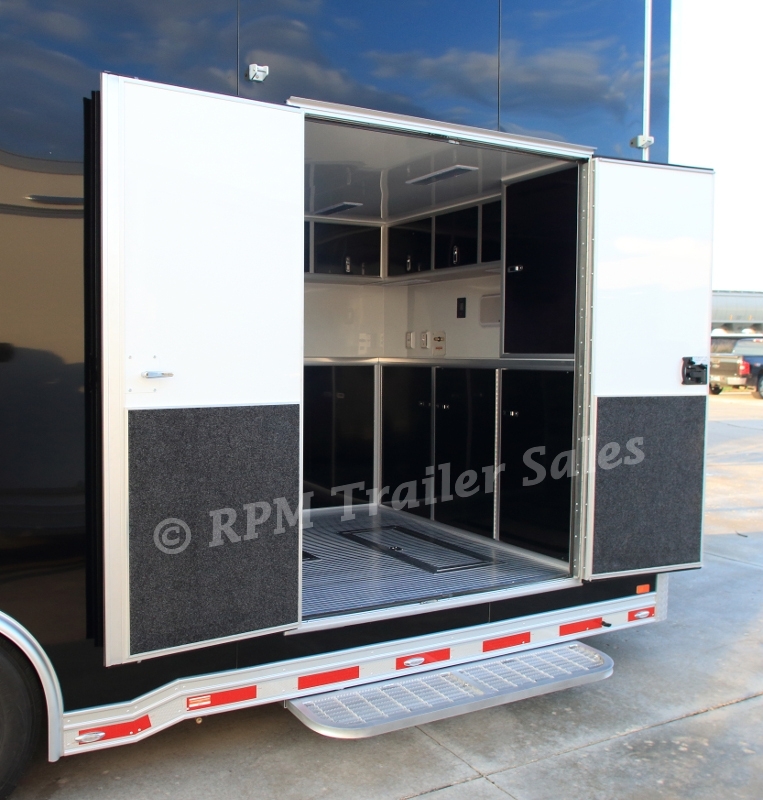

Upgrade to 60" 405 Series Double Door
5' Aluminum Ramp Extension - 84" Wide w/ 3" Bumpers
50 Amp Electrical Service Package
Breaker Box w/ 50 Amp Main
Motorbase Plug
25' Shore Cord
12V Fuse Panel
60 Amp 12V Converter / Battery Charger
12) 120V 20A Recept - GFI Protected Where Required
8) 12V 18" LED Interior Light
6) Upgrade Standard LED Dome Light to 12V 18" LED Light
Upgrade to Panelite Clearance & Tail Lights
14) Add Panelite LED Clearance Light
Side Mount LED Turn Signal/Clearance and Turn Combo – Pair
12V LED Docking Back Up Flood Lights – Pair
3) Whelen 12V Exterior LED Scene Light - 900 Series - Dimmer Switch Included
Add Interior CAT5 Data Outlet w/ (2) Finished Faceplates
Add HDMI Cable Run w/ (2) Finished Faceplates
34” High Carpet on Interior Walls

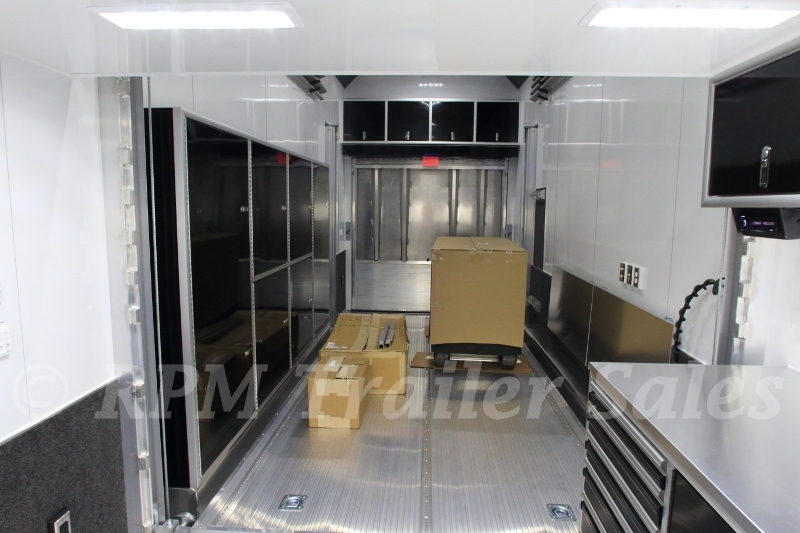

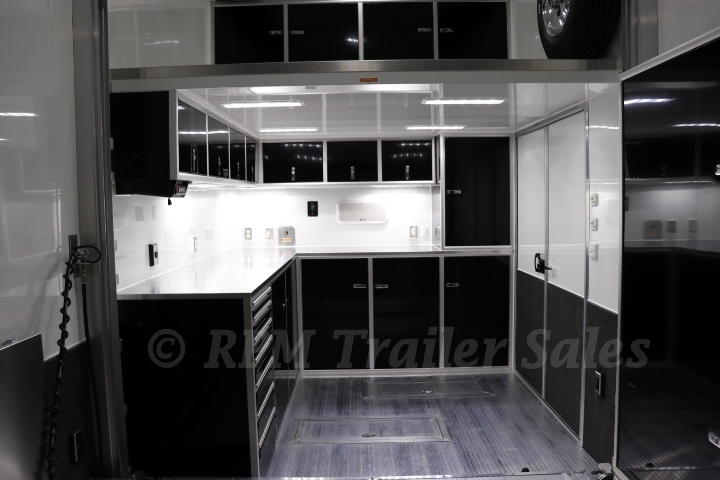

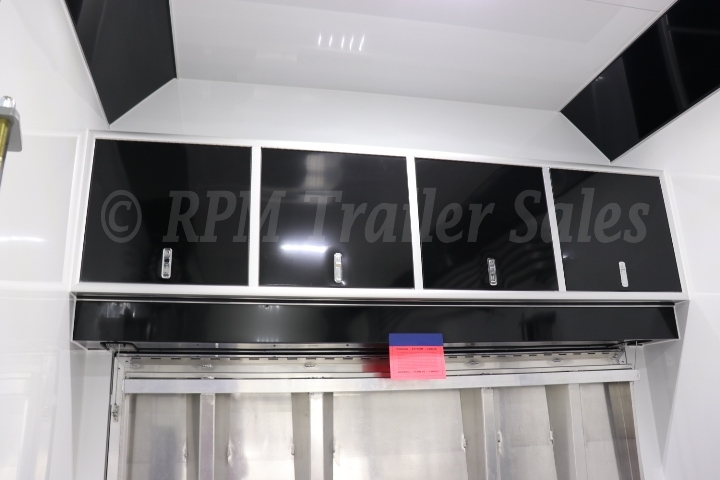

3) 8' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
Upgrade to Additional Height Upper Cabinets
3) 8' Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
Aluminum Dresser Closet to Lower Cabinet
Wheel Well Cabinet Triple Axle

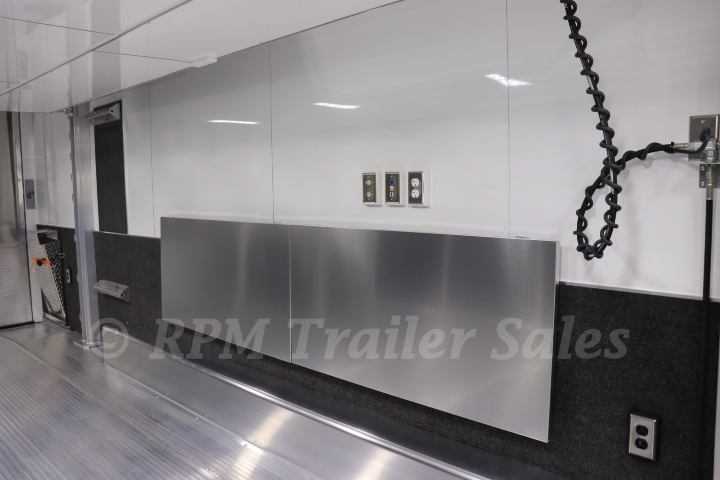

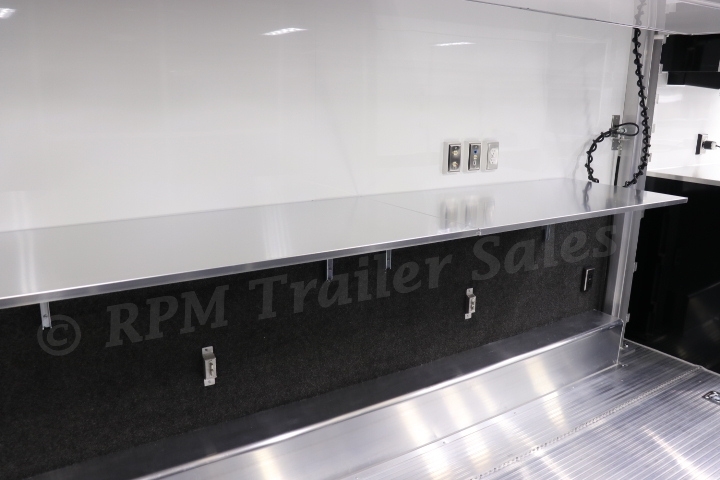

8’ Aluminum Countertop - 24" Flip Up
Airline Track – Recessed
18" Wide Tie Down Strap Hangers – Pair
Upgrade to Lowered Skirt w/ Reverse Beavertail Design - Triple Axle
Color Matched Rear Spoiler
Includes (2) Integrated LED Loading Lights
Arrow Awning Prep Package - Interior & Exterior Bracket Locations and Mounting
12V Water Pump - 3.0 GPM
Fresh Water Tank - Includes Monitor Panel & Plumbing
90 Gallon - Gravity Fill Only
Fresh Water Spigot Mounted on Exterior of Trailer
Air Compressor w/ 3 Hardlined Outlets
TV Prep Package
Roof Mounted Antenna
Exterior Coax Cable Inlet
120V Interior Recept
Wall Backer for Future Mount Installation
12V Antenna/Cable Switch Controller
AM/FM/CD Sirius Ready Bluetooth Stereo w/ 4) Interior Speakers to Premium Fusion Soundbar
Premium Fusion Soundbar on Exterior - Includes Amplifier
Upgrade Stereo for TV Audio to Use Stereo Speakers
Install RPM Custom C-Tech Tool Chest

If this 28’ Aluminum Stacker Trailer is not exactly what you are in search of, contact our office at 706-654-2882 for a custom trailer quote.
