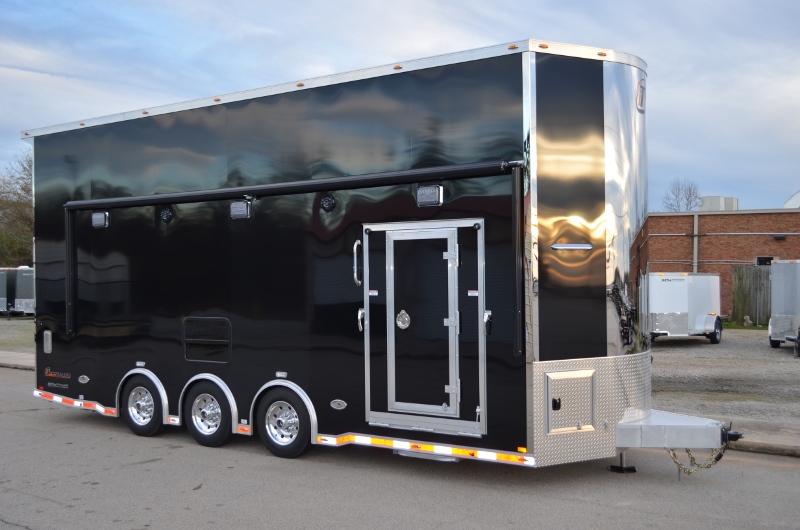

26' Custom Aluminum Stacker Trailer

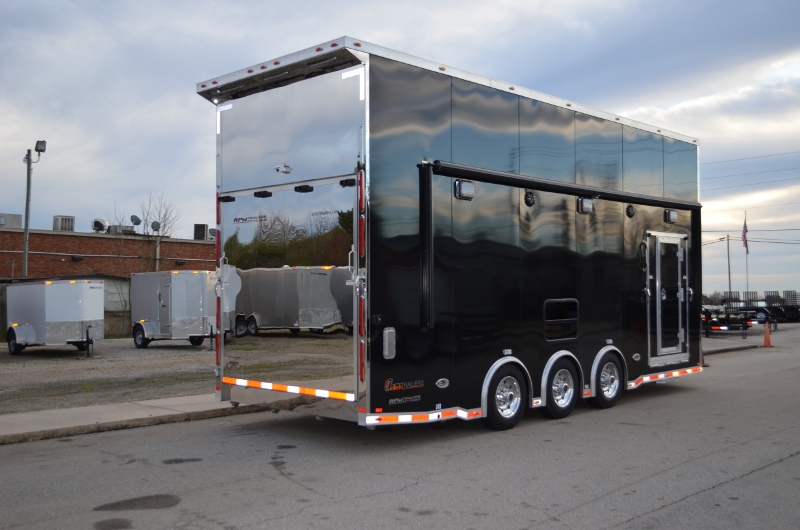

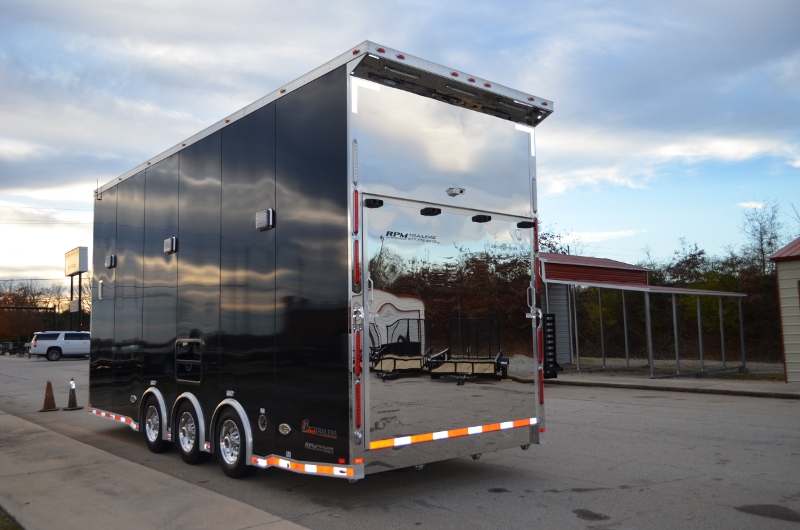

Beautifully judged curves bring the assertive character of this 26’ custom aluminum stacker trailer to life – even in the dark. The confident stainless-steel wedge nose is just the start of this perfectly proportioned stacker trailer designed by RPM Trailer Sales owner, Brad Sellers. When you are in search of your next 26’ double car stacker trailer then look no further than RPM Trailers Sales. Let’s go inside the luxury details of this amazing trailer and you will see exactly why most choose RPM Trailer Sales for their custom trailer designs.

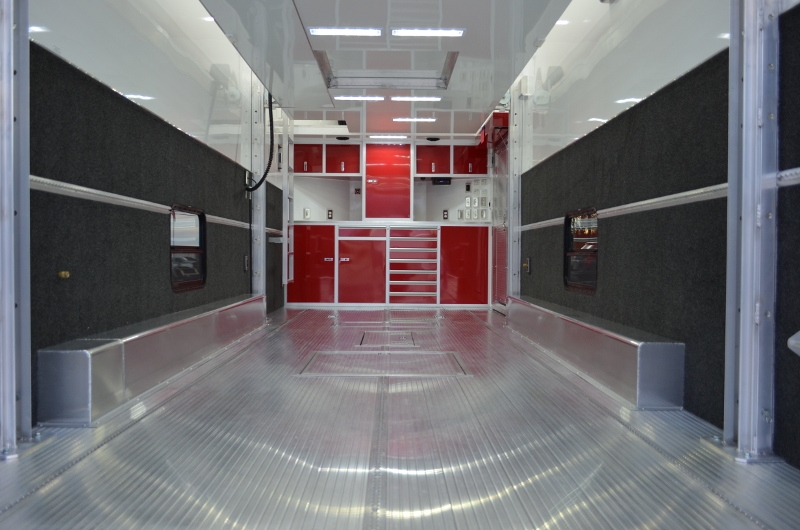

This inTech Stacker Trailer will make you all the envy upon first site of the enormous display of options including the full finished interior with the bold red custom aluminum cabinet design, an extruded aluminum full floor lift, and this bad boy offers a 40 gallon in floor fuel tank and an on board fuel filling station. Don’t stop here…. Take a look at the images of this aluminum stacker car hauler trailer and see for yourself why RPM Trailer Sales exceeds the expectations of its customers. Contact us today for details on this stacker car trailer or any of our other custom aluminum trailer designs at 706-654-2882.
Detailed options for this custom stacker trailer include:
GVWR: 21,000 lbs.
Shipping Weight: 9,040 lbs.
Width: 8.50
Height: 11’ Interior
Axle Type: Triple 7,000lb. Dexter Torsion Axles
Model: BSA8524TTA5
Product Number: 11675
Don’t stop there with so much more to offer… Take a look at all the incredible features, standard and additional added options below;
Stacker Trailer Standard Features:
Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
Hydraulic Front Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels
Interior
Extruded Aluminum Floor
Extruded Aluminum Ramp
16" Aluminum Transition Flap
6) Dome Lights
.030 Screwless Aluminum Walls and Ceiling
10' Standard Interior Height
8) 5000# Recessed D-Rings
3' Interior Beavertail
Exterior
.040 Aluminum Skin - Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
4" Upper and Lower Rub Rail
LED Premium Clearance Lights
Dual LED Slimline Tail Lights
LED Slimline Backup Lights
36" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Front Verticals & Radius
Polished Cast Aluminum Corners
Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates
Aluminum Stacker Trailer Features

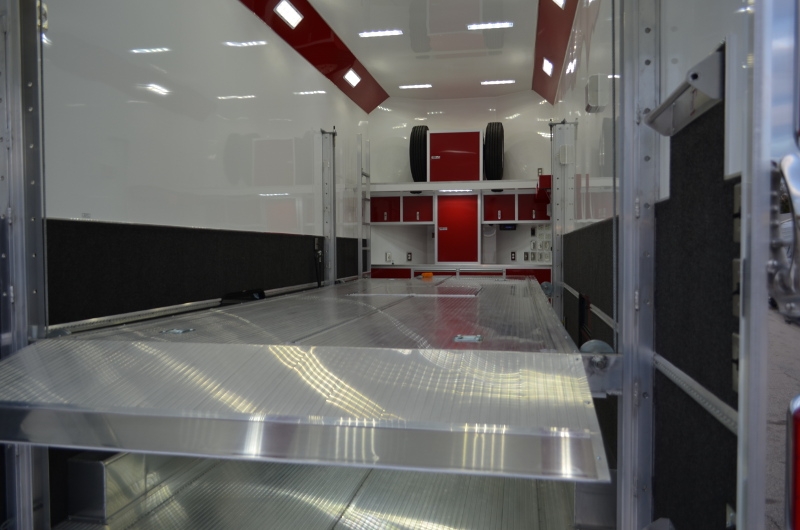

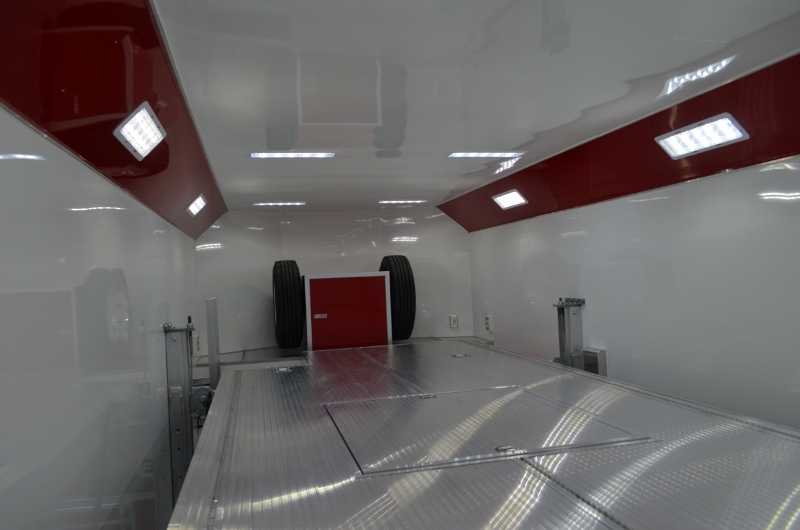

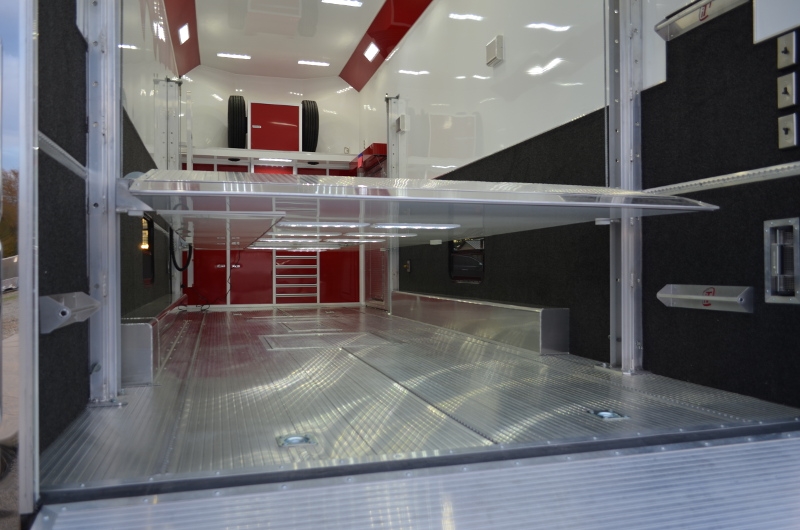

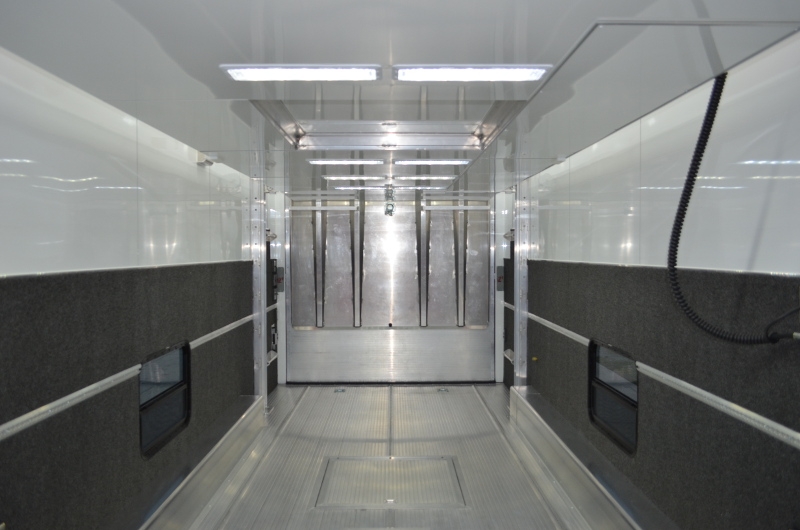

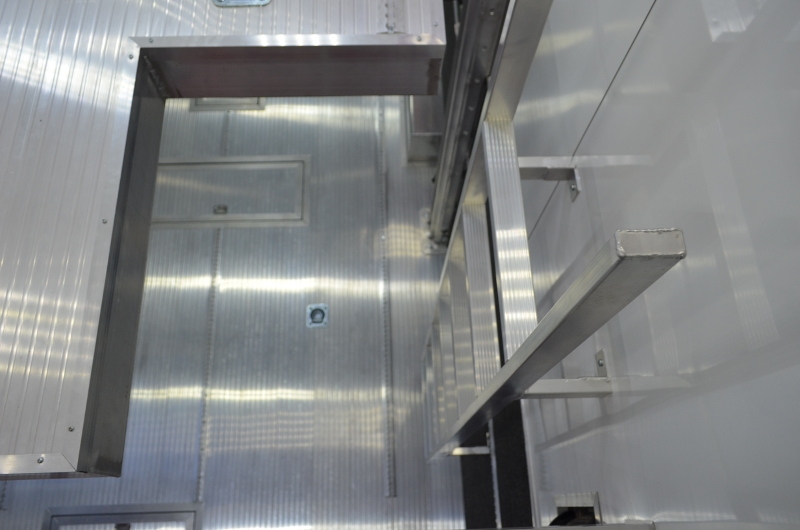

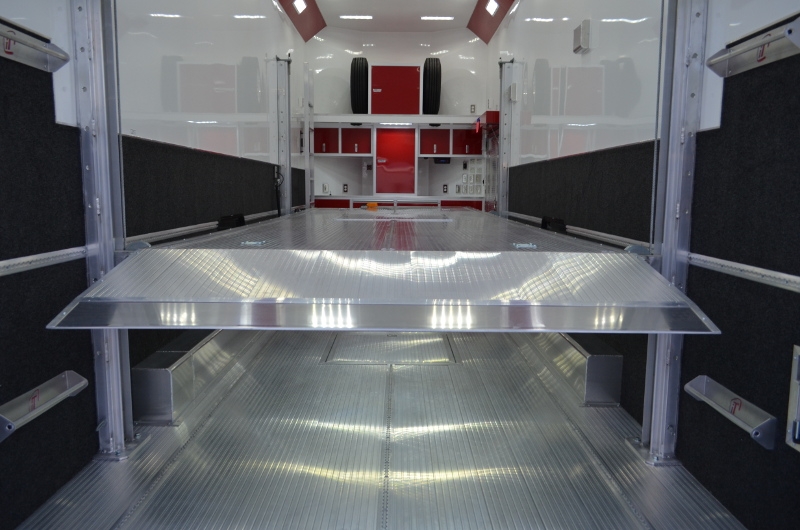

14' Aluminum Split Rail Lift (4,000 lb. Capacity)
In Floor Hydraulic Lift Pump
2) 12V Deep Cycle Batteries w/Vented Boxes
In Floor Battery Compartment
15A Motorbase Plug
45 Amp Converter Battery Charger
Rear Manual Stabilizer Jacks
Tongue Weight Scale

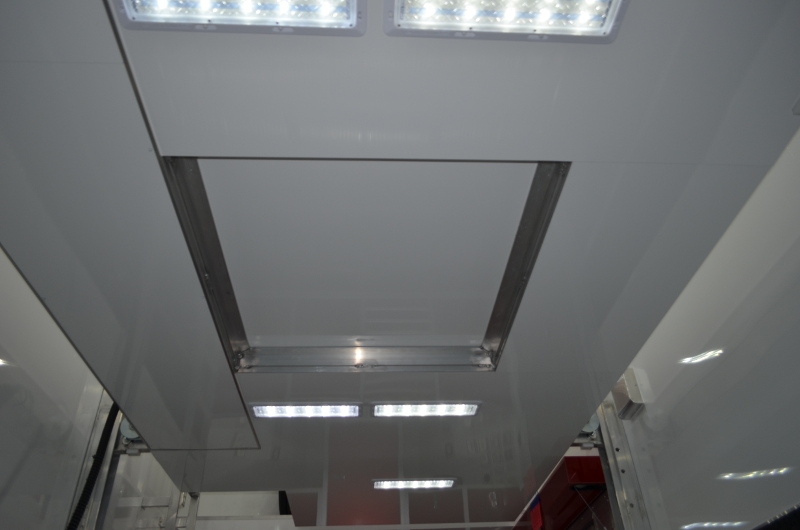

Underside of Lift Finished w/ .030 Aluminum
Additional Added & Selected Options:
Upgrade to .050 Exterior Aluminum
Stainless Steel Rear Header & Posts (Stacker) - #8 High Polish
Insulated Walls & Ceiling - R4 Rated
12" Additional Height
Add 18" LED Light Integrated into Bottom of Lift
Upgrade to Dragster Lift
Integrated Ramps on Rear of Lift
Additional Extension on Front of Lift - Pin Stops – Included
Upgrade to Extruded Aluminum Lift Floor for Use w/ Recessed Airline Track
Upgrade to 2' Wedge Nose - Stainless Steel Wedge Cover
Wedge Nose Upper Aluminum Cabinet Straight Across - Up to Full Depth
Wedge Nose Lower Aluminum Cabinet Straight Across - Up to Full Depth
Delete Beavertail
4’ Light Duty Attic w/ Matching Flooring - Rated at 40 Lbs./Sq. Ft Up to Maximum of 2,500 Lbs.
Fixed Mount Interior or Exterior Ladder
2) Rear Caster Wheels – Pair
Weight Distribution Prep - Blocks for Wedge
Upgrade to Goodyear Alcoa 17.5" ( LT215/75R17.5) Tires from ST235/85R16
2) Matching Spares
In Floor Spare Tire Compartment

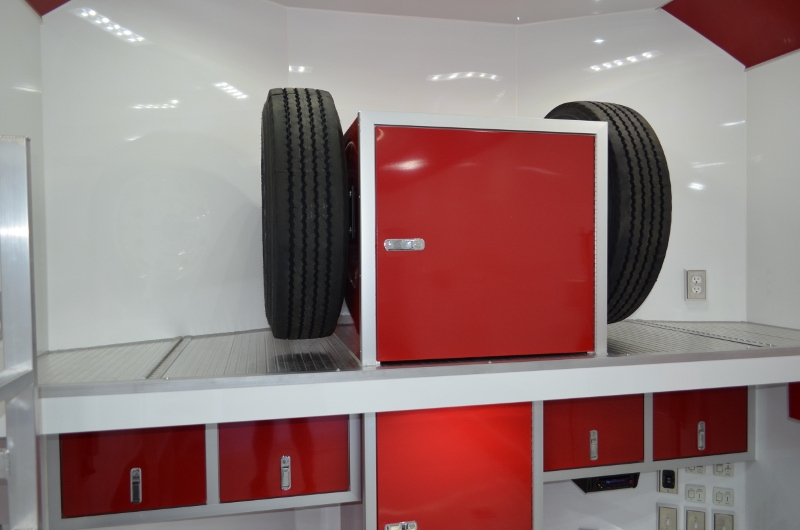

2) Spare Tire Wall Mount
Upgrade Standard Side Door to 51" Ramp - Matches Interior Floor
Add 28" Entrance Door to Side Ramp Door
Add Slideout Aluminum Step - Non-Slip
12V Lighted Grab Handle for Side Door
Upgrade to Stainless Steel Paddle Latches on Side Ramp Door
Add 5' Aluminum Ramp Extension - 84" Wide w/ 3" Bumpers
2) 30" x 20" Vertical Slider Window w/ Screen
Salem Flow Through Vent System (Pair)
We've designed this one with even more added features:

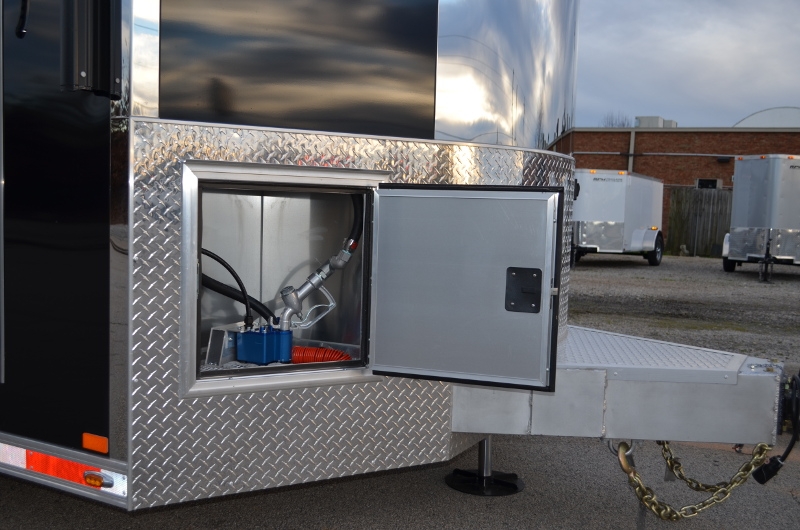

Fuel Filling Station - 40 Gallon in Frame Tank
Fuel Pump, Hose & Nozzle
20" x 20" Side Hinged Vented Fuel Door
Add Jumper Blocks for 12V System for Use When Battery is Dead
Add 30 Amp Electrical Service Package
Motorbase Plug
25' Shore Cord
12V Fuse Panel
60 Amp 12V Converter / Battery Charger
11) 120V 15A Recept - GFI Protected Where Required
4) 3 Way Light Switches (Pair)
17) Add 12V 18" LED Interior Light
6) Upgrade Standard LED Dome Light to 12V 18" LED Light
6) Upgrade Light Mounted at 45 Degrees on Cove
20) Additional LED Clearance Light
2) LED Slimline Brake Lights (Pair)
2) Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
2) 12V LED Docking Back Up Flood Lights (Pair)
3) 12V MAX Loading /Tie Down LED 18" Light
6) Whelen 12V Exterior LED Scene Light - 900 Series
54” High Carpet on Interior Walls
Single Drawer to Standard Base Cabinet Above Door

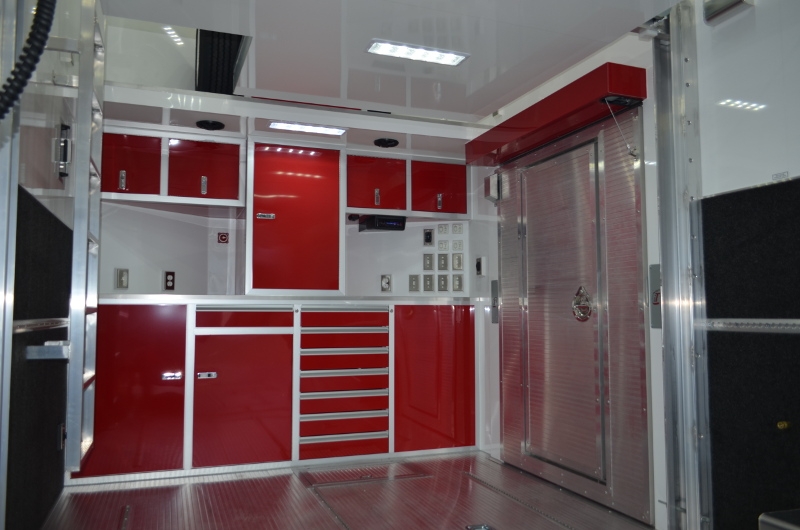

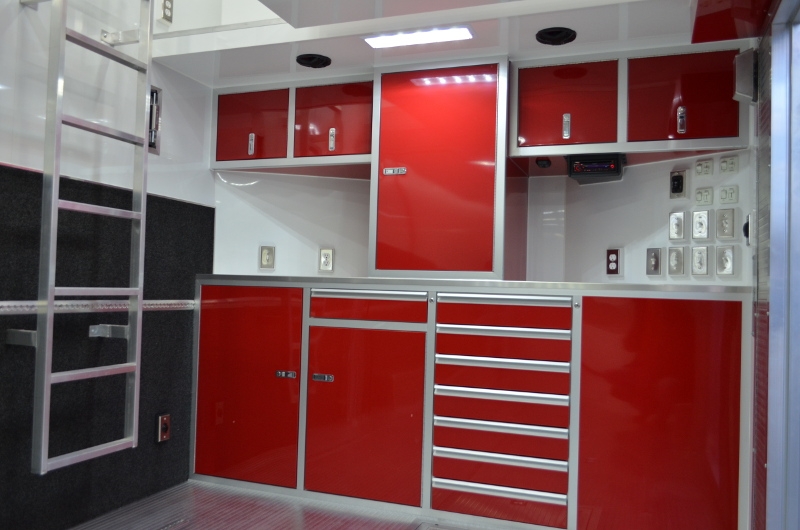

7 Drawer Tool Chest Bank to Lower Cabinet w/ Clear Anodized Trim
Aluminum Dresser Closet to Lower Cabinet
Airline Track - Surface Mounted
Airline Track – Recessed
2) 18" Wide Tie Down Strap Hangers – Pair
ATP Tongue Cover
Upgrade to Lowered Skirt w/ Reverse Beavertail Design - Triple Axle
Color Matched Rear Spoiler - Includes 2) Integrated LED Loading Lights
Upgrade to Mirror Finish Stainless Steel Rear Ramp Door
Mirror Finish Stainless Steel Front Verticals on Wedge/Taper Nose Breaks

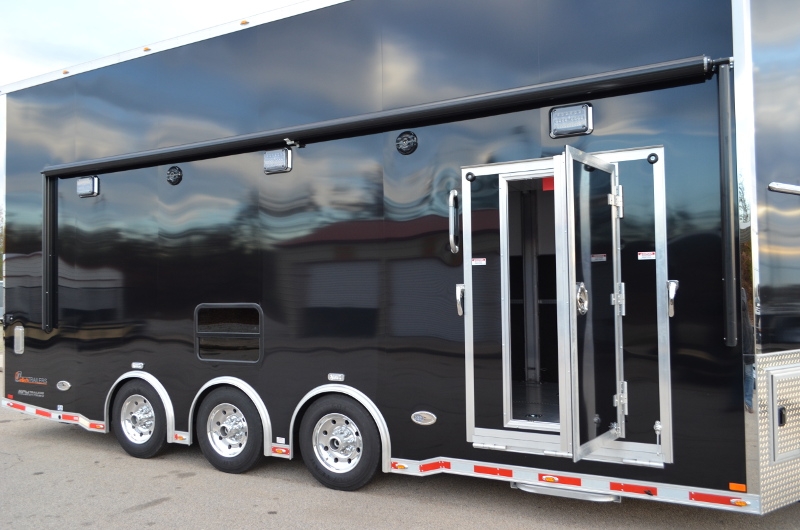

21' Dometic 12V Power Awning w/ Weathershield

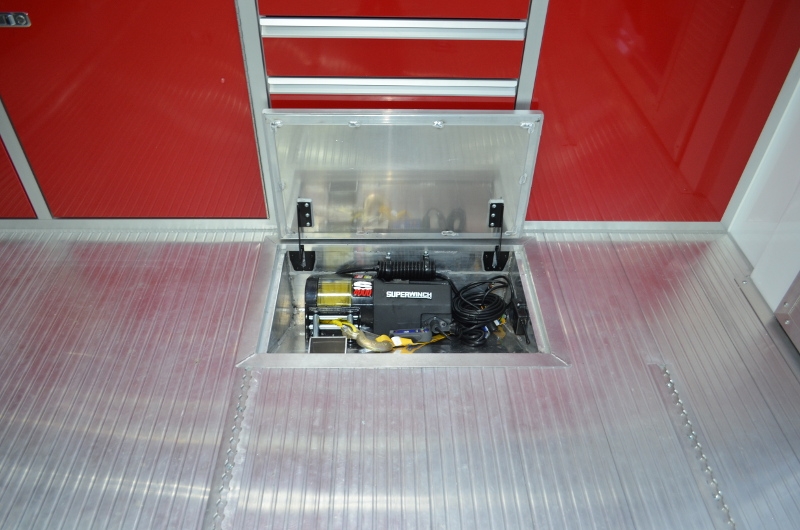

In Floor Winch Box w/ Pulley - Angled Mount
4,000 lb. Winch w/ Wireless Remote Control & Synthetic Rope
4,000 lb. Winch for Rear Ramp Door Operation

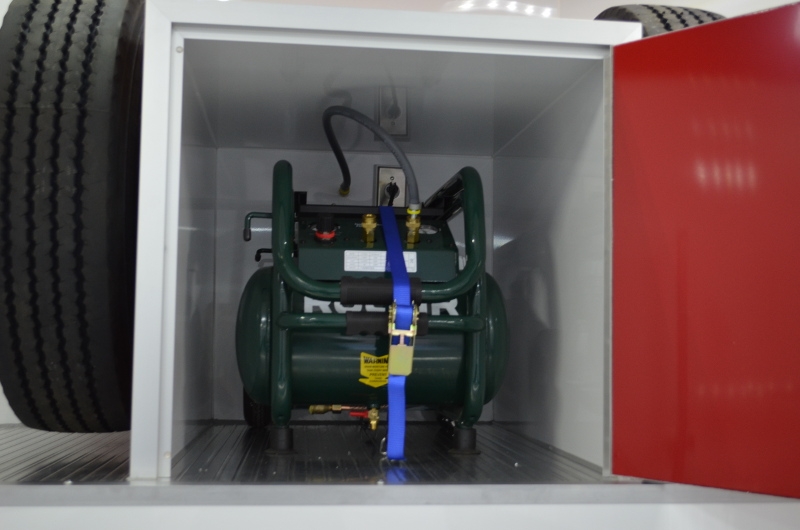

Air Compressor w/ 3 Hardlined Outlets - Outlet w/ Dedicated Switch
AM/FM/CD Stereo w/ Four Interior Speakers
Add (2) Exterior Speakers to Radio - Includes Amplifier
Pro-Tech Alarm Security System w/ Remote Cellular Pager
Alarm w/ Brake Lock - (3) Door/Window Sensors
2) Remotes - Remote Cellular Pager for Alarm System
Install Customer Provided Single Backup Camera
Add Removable Panel in Lift Floor for Access To Hydraulic Pump for Lift
Add Exterior 12V Switch For Front 18" Max Loading Lights
Custom Cabinet in Attic for Compressor
If this is not exactly the 2 car stacker trailer you are looking for, let us custom build a trailer that fits your specific needs. Contact us today at 706-654-2882 for a free custom stacker trailer quote.
