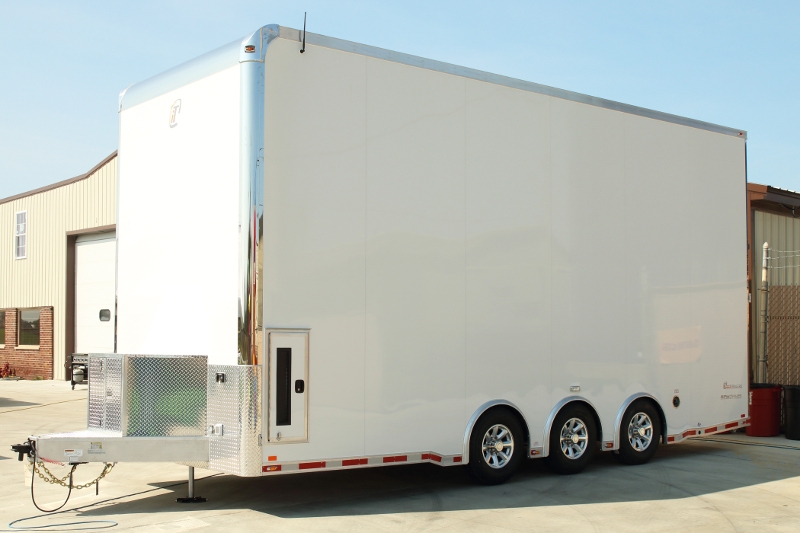

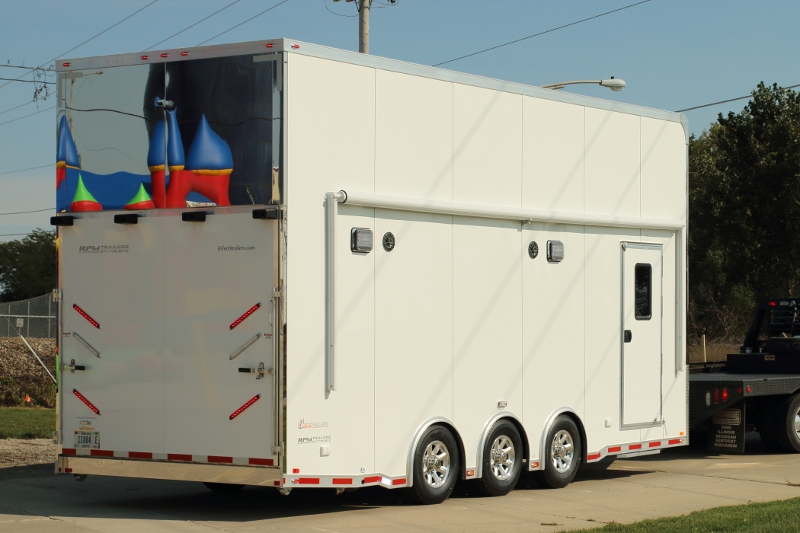

24' Custom Aluminum Stacker Trailer

24' Custom inTech aluminum stacker race car trailer loaded with custom features including 97.5" Rear Door opening with 82" wide lift and 85 1/2" between the wheel wells, fuel filling station, custom cabinets,  electrical package, tool chest and more.

Product Specs

  • New
  • 11556
  • BSA8524TTA4
  • 8′ 6″ x 24′
Request More Info

Details

24' All Aluminum Stacker Trailer

Take a look at this incredible 24’ Custom Aluminum Stacker Trailer... you are certain to be the envy at any event! RPM Trailer Sales Stacker Trailers are a great way to transport multiple cars and still leave plenty of room for a full workshop, and in this case added closets and tool chest makes for a spectacular work space.
A few of the amazing options included in this inTech stacker trailer includes: Fuel Filling Station with 40 Gallon in Frame Tank, 97.5” Rear Door opening with 82” wide lift and 85 ½” between the wheel wells.  This aluminum stacker trailer also includes plenty of LED 12V Lighting along with the 50 amp 120V.  Why settle for a stock trailer ever?

RPM Trailer Sales never gets tired of designing the absolute finest all-aluminum double car stacker trailers in the industry!  When you're ready to take the next step for a custom stacker trailer..... look no further than RPM Trailer Sales. We're certain you'll be impressed with our unmatched quality, fit, and finish and you will surely see and experience the attention to detail & tow ability...and even more impressed by just how affordable an all-aluminum stacker Trailer really is! Experience a custom stacker trailer with RPM Trailer Sales
Often Imitated – Never Duplicated” Contact us today at 706-654-2882 for details and a custom quote on your next aluminum stacker race car trailer.

Check out all the specifications on this 102" Wide Body - 24' All aluminum Stacker Race Car Hauler

Specification:
Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
Hydraulic Front Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/80R16 Nitro Filled Tires w/ Steel Wheels

Interior

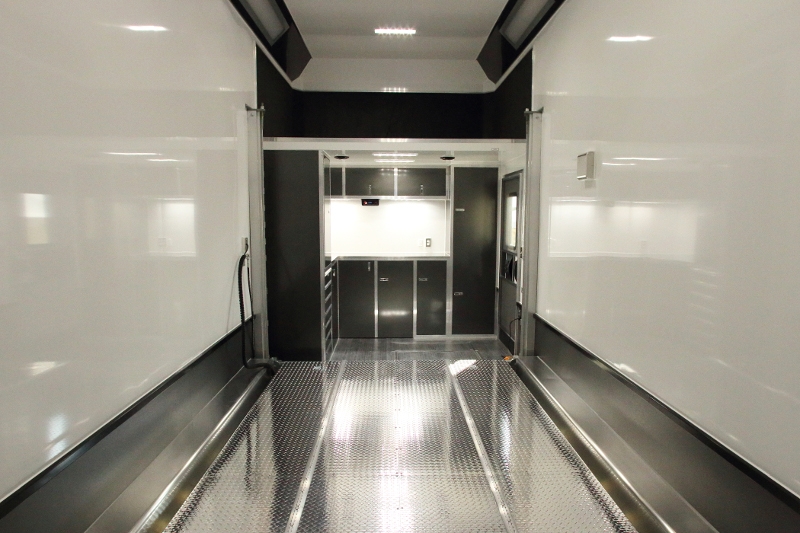

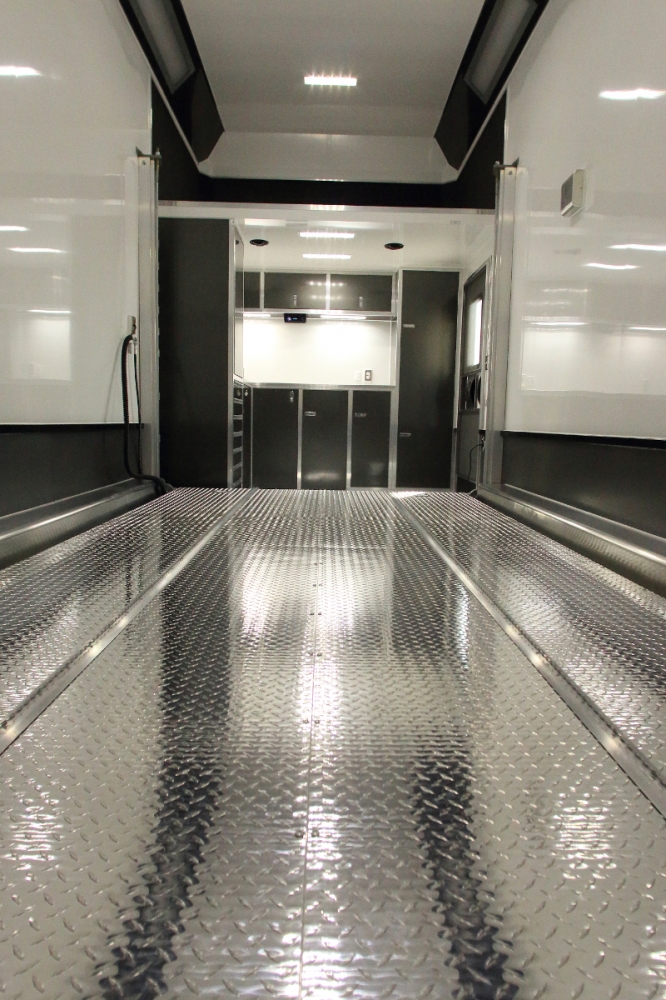

Extruded Aluminum Floor
Extruded Aluminum Ramp
16" Aluminum Transition Flap
6) Dome Lights
.030 Screwless Aluminum Walls and Ceiling
10' Standard Interior Height
8) 5000# Recessed D-Rings
3' Interior Beavertail

Exterior
.040 Screwless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
4" Upper and Lower Rub Rail
LED Premium Clearance Lights
Dual LED Slimline Tail Lights
LED Slimline Backup Lights
36" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Front Verticals & Radius
Polished Cast Aluminum Corners

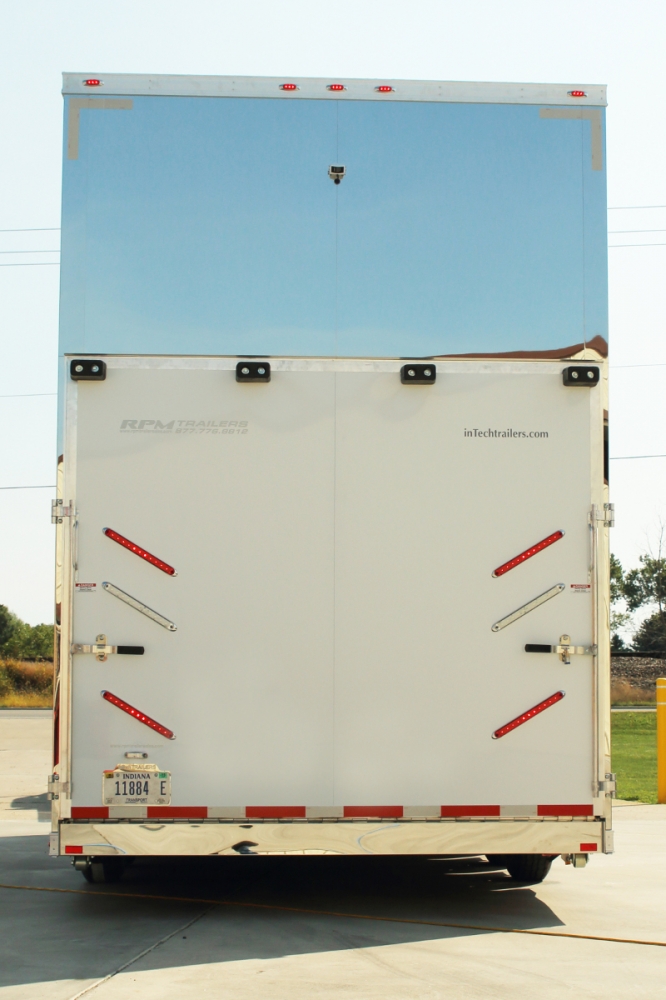

Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates

Stacker Features

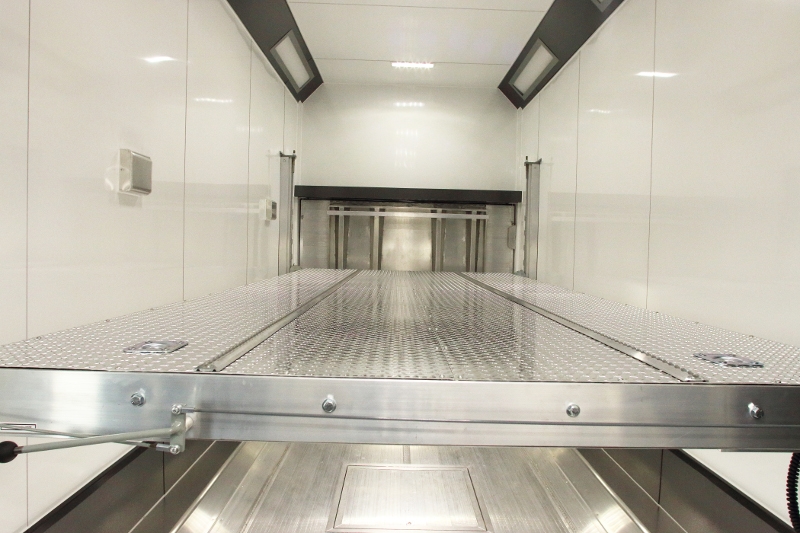

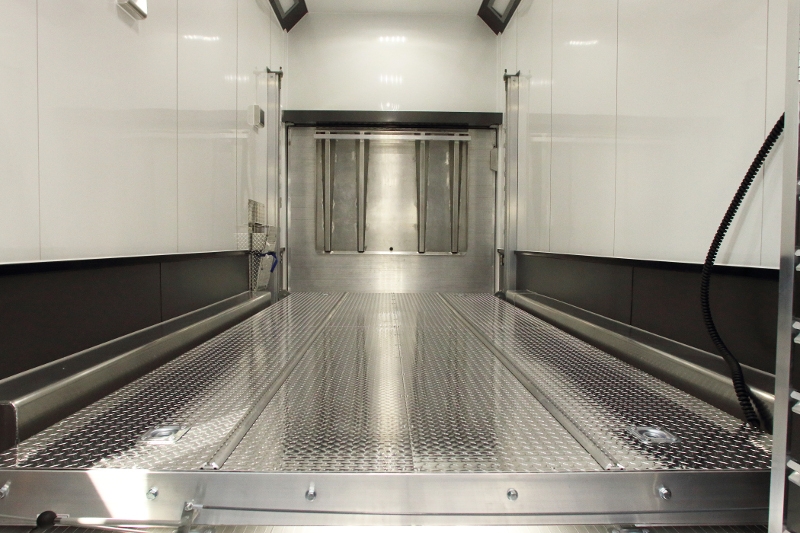

14' Aluminum Split Rail Lift (4000# Capacity)
In Floor Hydrualic Lift Pump
2) 12V Deep Cycle Batteries w/Vented Boxes
In Floor Battery Compartment
15A Motorbase Plug
45 Amp Converter Battery Charger
Rear Manual Stabilizer Jacks
Tongue Weight Scale

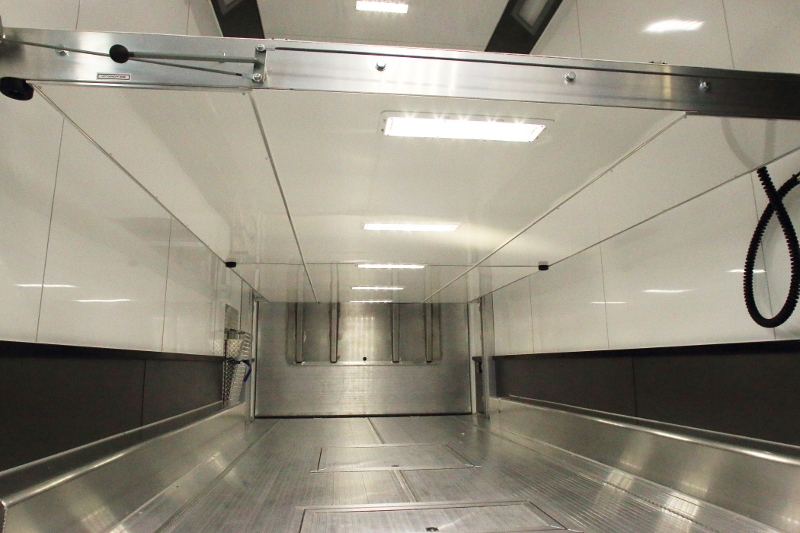

Underside of Lift Finished Aluminum Skin

Selected Options:
Upgrade to .050 Exterior Aluminum
Stainless Steel Rear Header - #8 High Polish Stainless
Insulated Walls & Ceiling - R4 Rated
Upgrade to 11'4" Interior (Max Height - No Roof Vent or AC)
1) 18" LED Light Integrated into Bottom of Lift – 5 total under lift
Upgrade to Full Floor Aluminum Lift - ATP Floor
12" Extended Tongue
6) Light Duty Attic w/ Matching Flooring
Upgrade to 97.5" Rear Ramp Door Opening - 102" Wide Body
104" Wide door will be 99.5" wide
Rear Caster Wheels – Pair
A-Frame ATP Tongue Box
Spare ST235/80R16 on Matching Aluminum Wheel
6) Upgrade to Aluminum 16" Wheel From 16" Steel Wheel

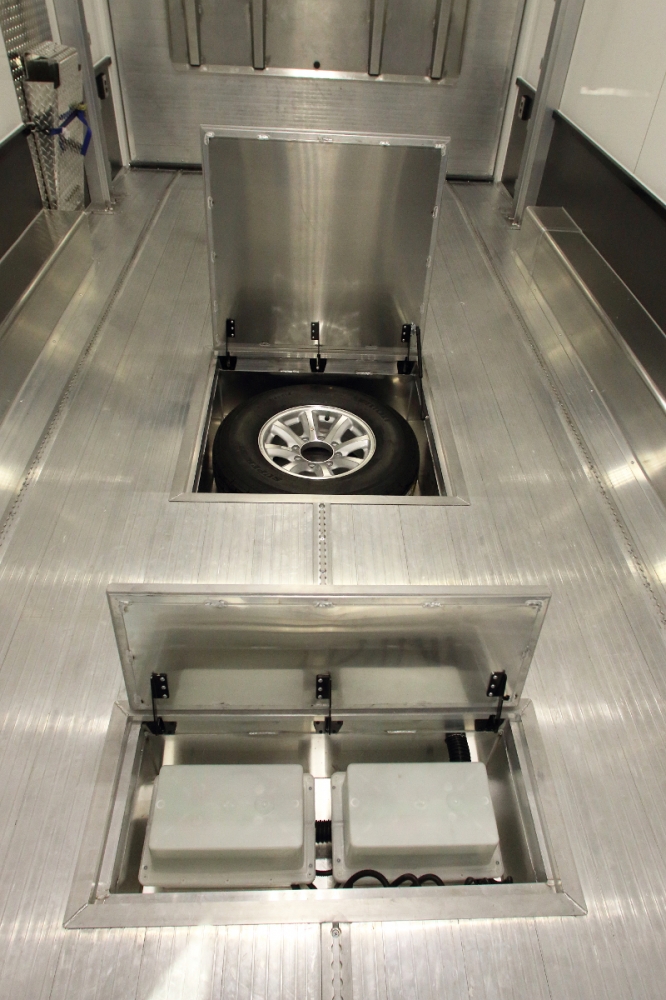

In Floor Spare Tire Compartment  - Uses Hidden Hinges & Gas Shocks
Upgrade to 455 Series RV Style Door w/ Window & Screen Door
Add Slideout Aluminum Step
Upgrade to Full Width Ramp Extension Up to 48" Long w/ 3" Bumpers

Fuel Filling Station:
40 Gallon in Frame Tank

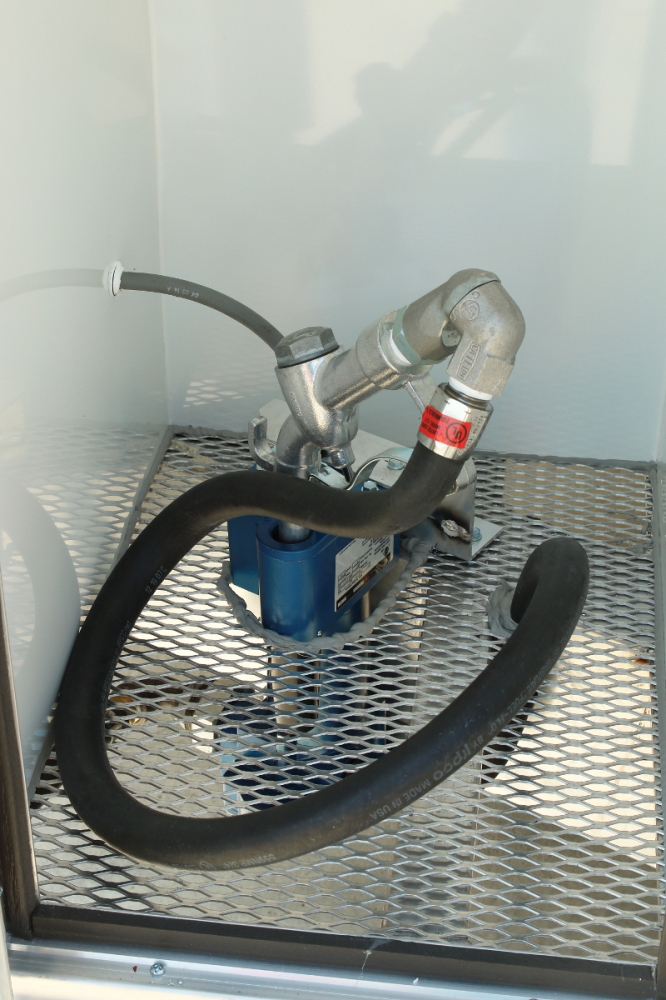

Fuel Pump, Hose & Nozzle

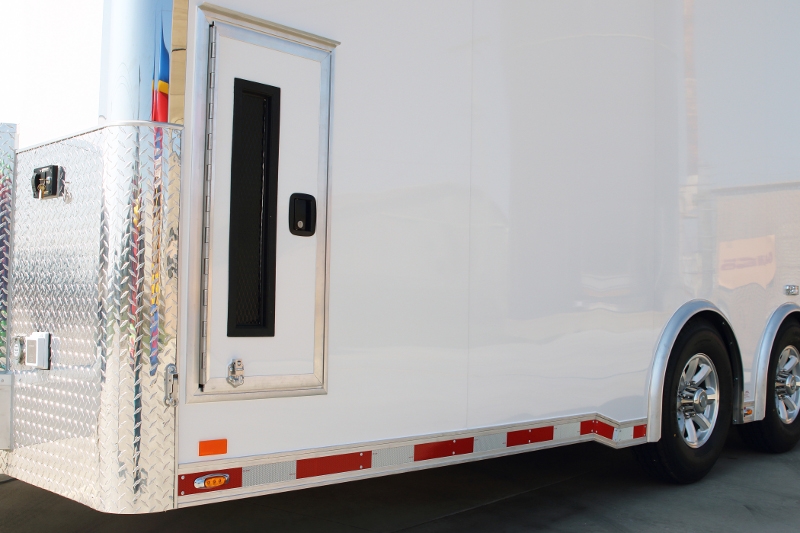

20" x 20" Side Hinged Vented Fuel Door
Gas or Diesel Available
Grounding Cable and Clamp
Add Jumper Blocks for 12V System for Use When Battery is Dead
Add 50 Amp Electrical Service Package:
Motorbase Plug
25' Shore Cord
12V Fuse Panel
60 Amp 12V Converter / Battery Charger
7) 120V 15A Recept - GFI Protected Where Required
1) 120V 20A Recept - GFI Protected Where Required
Upgrade to 3 Way Light Switches (Pair)
6) Add 12V 18" LED Interior Light - 13 Total
Upgrade 6) Standard Dome Light to 12V 18" LED Light
6) Add 120V 48" Fluorescent Light
6) Upgrade Lights Mounted at 45 Degrees on Cove
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)

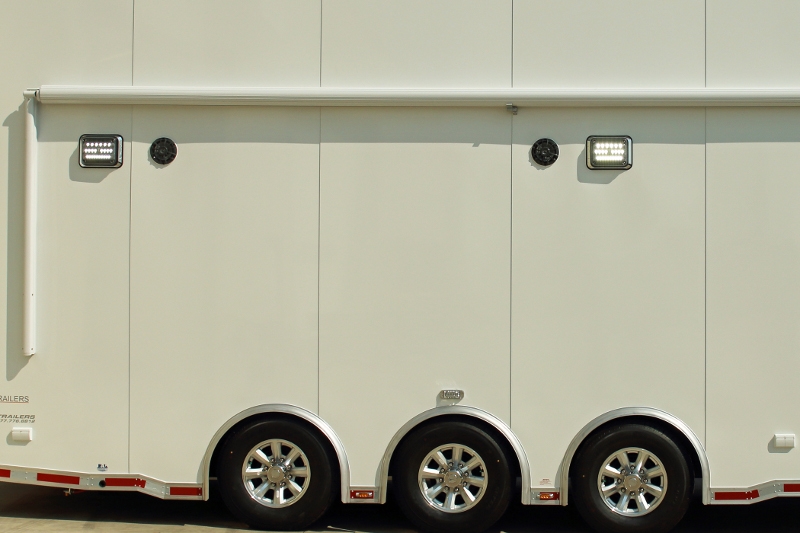

2) Whelen 12V Exterior LED Scene Light - 900 Series
10’  Carpet on Interior Walls - 34" High
Upgrade to Powder coated Kick Panel w/ Chair Rail  - Silver Vein/Charcoal

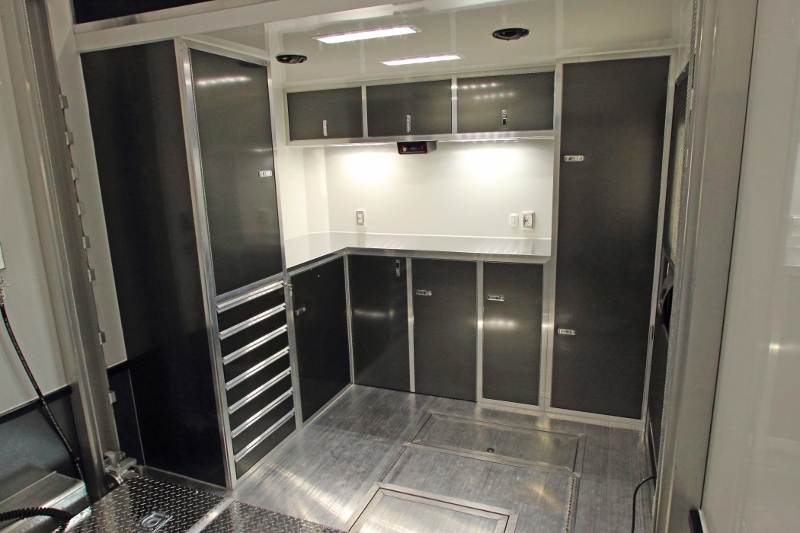

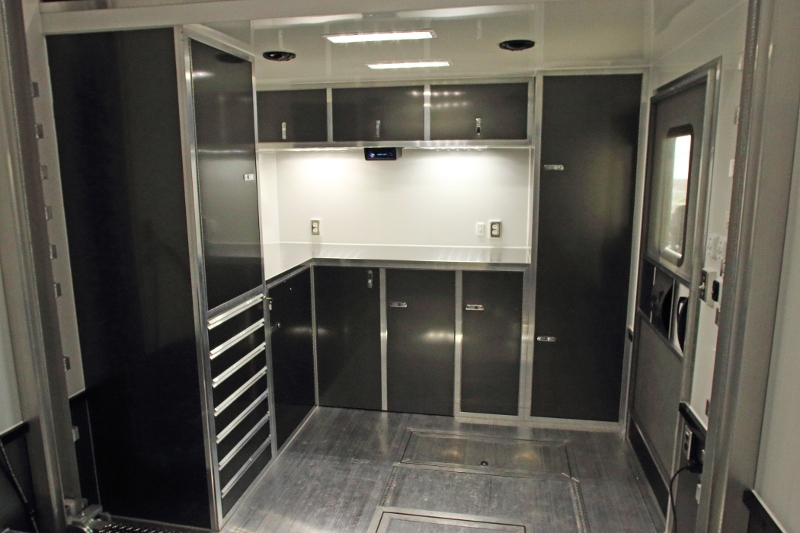

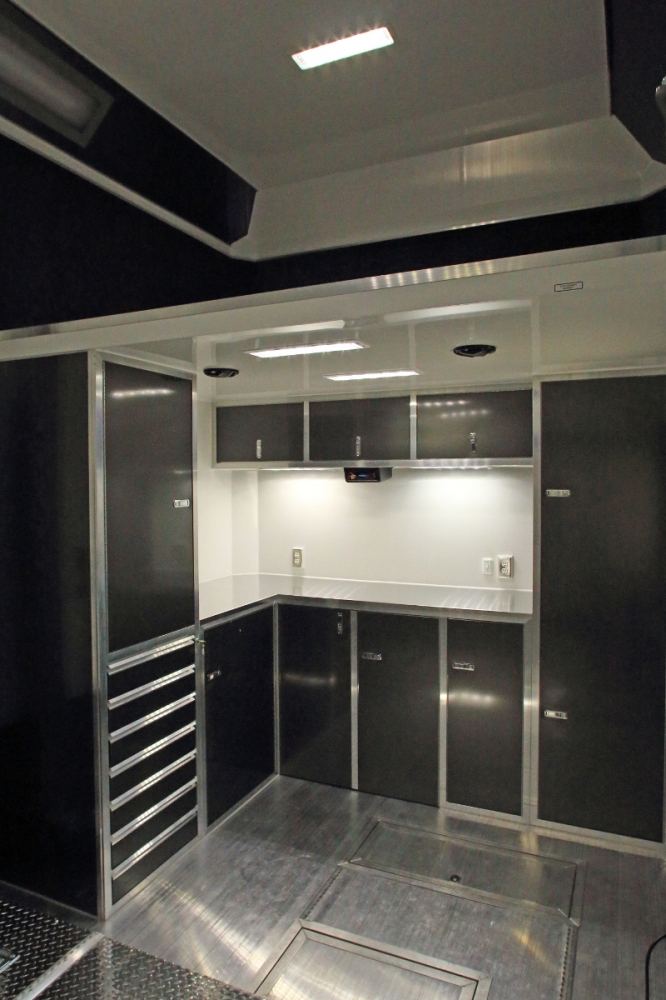

Add 8' Premium Lower Aluminum Cabinet
Add L-Kick to 8' Lower Cabinet - Used as Gen Compartment

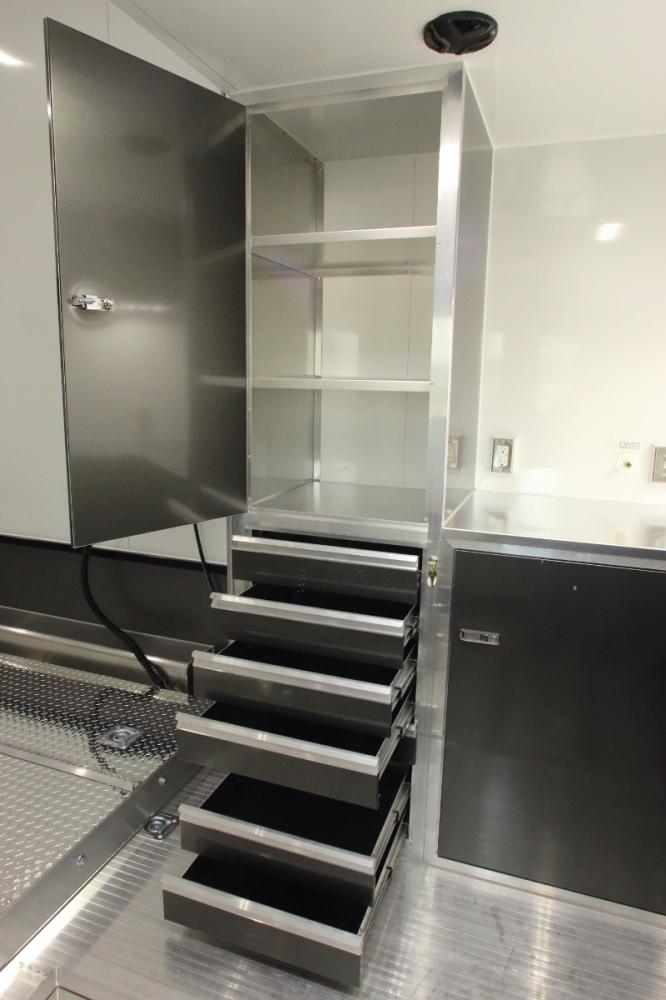

Add Tool Chest Bank to Lower Cabinet

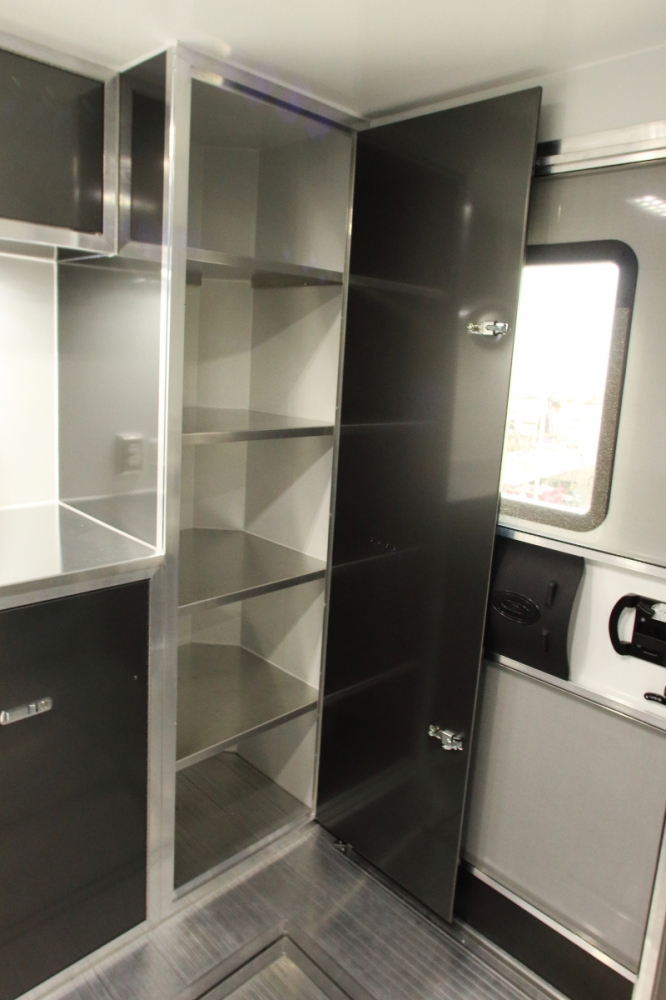

Add Aluminum Dresser Closet to Lower Cabinet
Add Standalone Dresser Closet
Add 8' Premium Upper Aluminum Cabinet
28’ Airline Track - Surface Mounted
81’ Airline Track – Recessed
Upgrade to 36" ATP Stoneguard
Add ATP Tongue Cover
Upgrade to Lowered Skirt w/ Reverse Beavertail Design

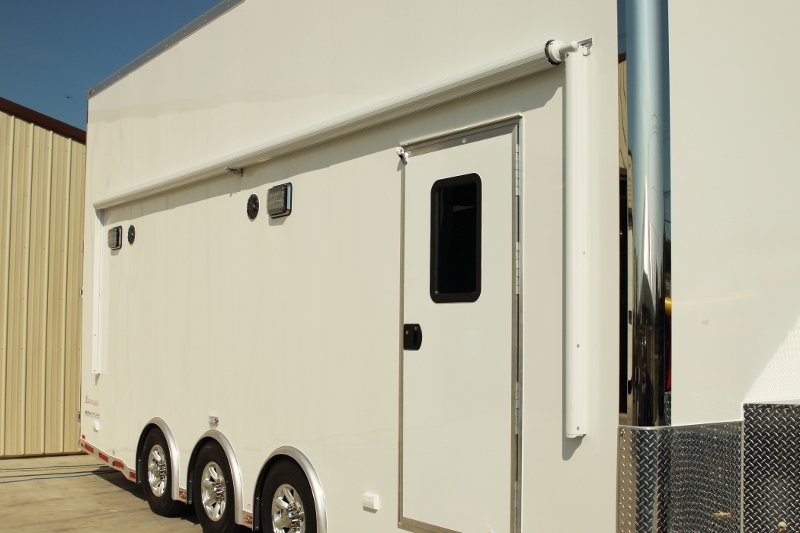

Awning - 21' Dometic w/ Weathershield - 12V Power Awning

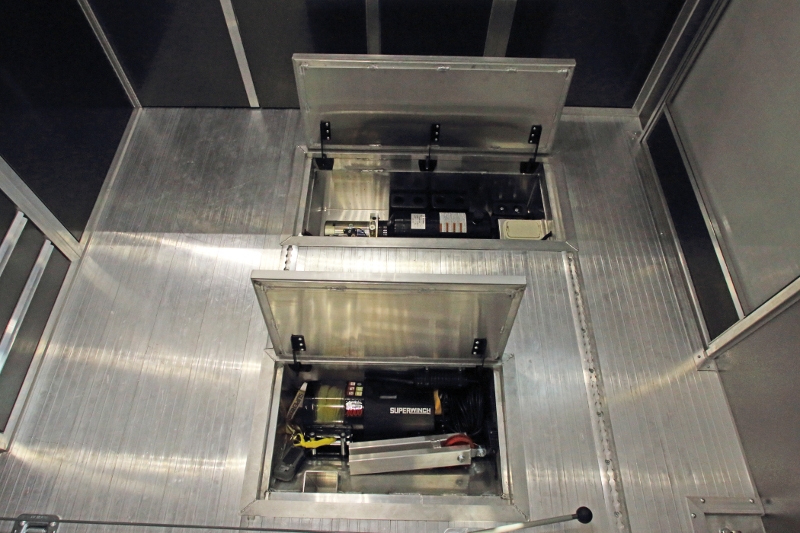

In Floor Winch Box w/ Pulley - Angled Mount
4000# Winch w/ Wireless Remote Control & Synthetic Rope
Airline Prep Package - 1 Inlet - 3 Outlets - Dedicated 20A Recept at Inlet
AM/FM/CD Stereo w/ Four Interior Speakers - iPod compatible
2) Interior Speakers to 2) Exterior Speakers
Install Customer Provided Single Backup Camera

Custom Aluminum Trailers are our Speciality!  If this inTech Aluminum Stacker Trailer is not exactly what you are in search of contact RPM Trailer Sales.  Reach out to us today for a custom quote on your next Custom Aluminum Stacker Trailer at 706-654-2882.
