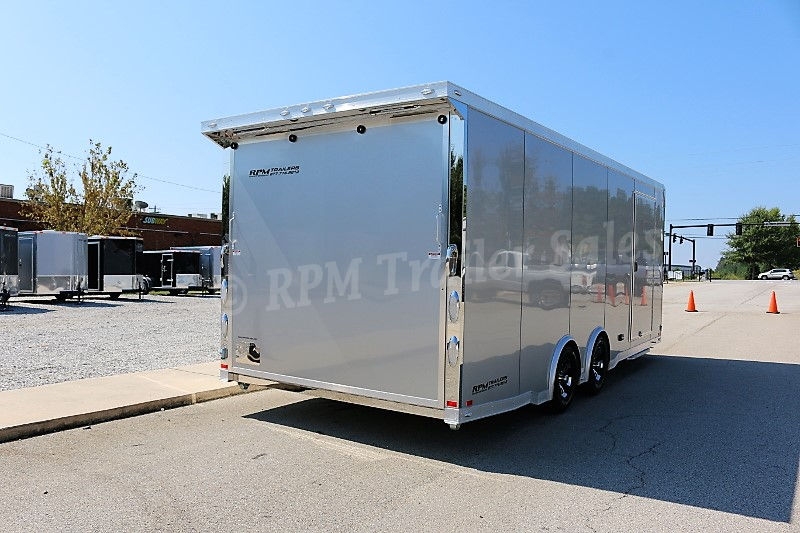

22' Custom Aluminum Car Hauler

Check out this amazing 22' inTech Aluminum Car Hauler with Full Access Escape Door!  This is the perfect aluminum trailer for your weekend adventures.

Product Specs

  • New
  • 11402
  • BTA8522TA3
  • 8′ 6″ x 22′
Request More Info

Details

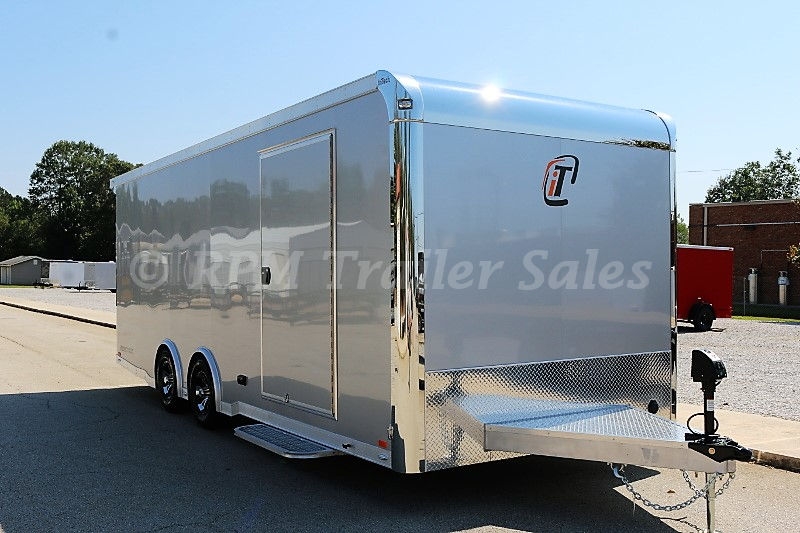

New 22' Custom inTech Aluminum Car Hauler Trailer

The greatest stories are told in the pursuit of perfection.  When it comes to the ultimate aluminum car hauler, every detail delivers when designed by RPM Trailer Sales.  When you open the 5’ x 10’ Full Access Escape Door, you will not be disappointed.  The ease of entering and exiting your show car has never felt so good.  This 22’ aluminum trailer is perfect for the weekend shows or touring the country side with all your favorite toys.  RPM Trailer Sales always strives to find new ways to make our custom trailer designs exceed your expectations. We never get tired of designing the absolute finest custom trailers in today’s market place! When you're ready to take the next step for a custom aluminum car hauler trailer..... look no further than RPM Trailer Sales. We're certain you'll be impressed with our unmatched customer service and experience.  Once we move to the next level, you will experience the quality, fit, and finish and the attention to detail & tow-ability like no other.   But most importantly, you will be amazed at just how affordable an all-aluminum car trailer can be! Take the next step and experience a custom aluminum inTech trailer design by RPM Trailer Sales.  Contact us today at 706-654-2882 for details.
“Often Imitated – Never Duplicated”

GVWR: 9,990 lbs.
Shipping Weight: 4,110 lbs.
Width: 8.5
Length: 22’
Interior Height: 7” Interior Height
Axle Type: Tandem 5,200 lbs. Dexter Torsion Axles

Model: BTA8522TA3
Product Number: 11402

Check out this amazing 22’ inTech Trailer by RPM Trailer Sales and all it’s specifications here.

Chassis
Full Perimeter Aluminum Frame
All-Tube Aluminum Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
5,000 lb. Manual Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST225/75R15 Nitro Filled Tires w/ Steel Wheels

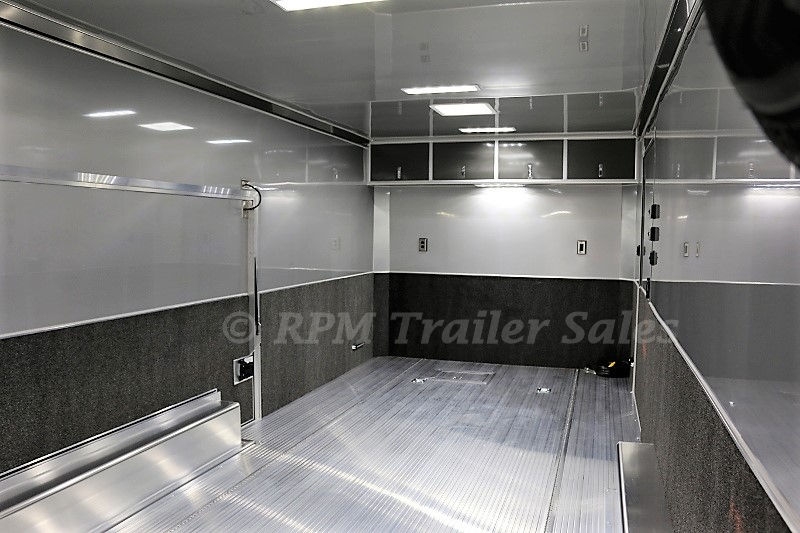

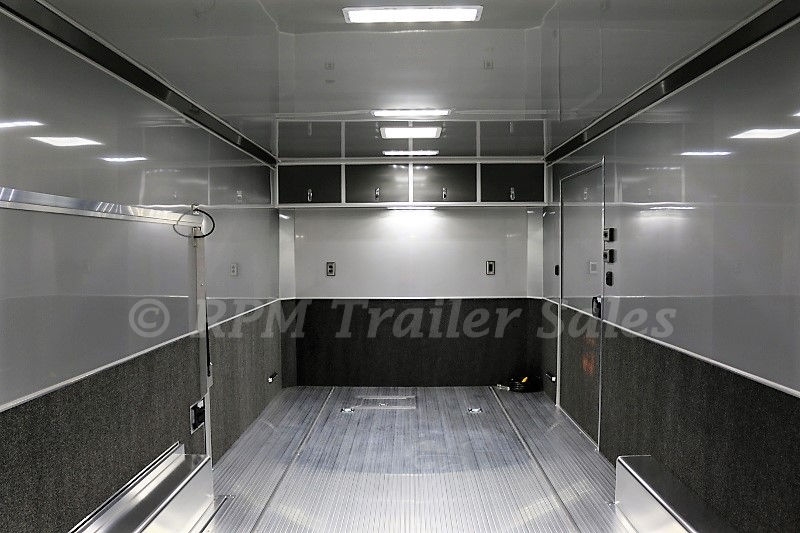

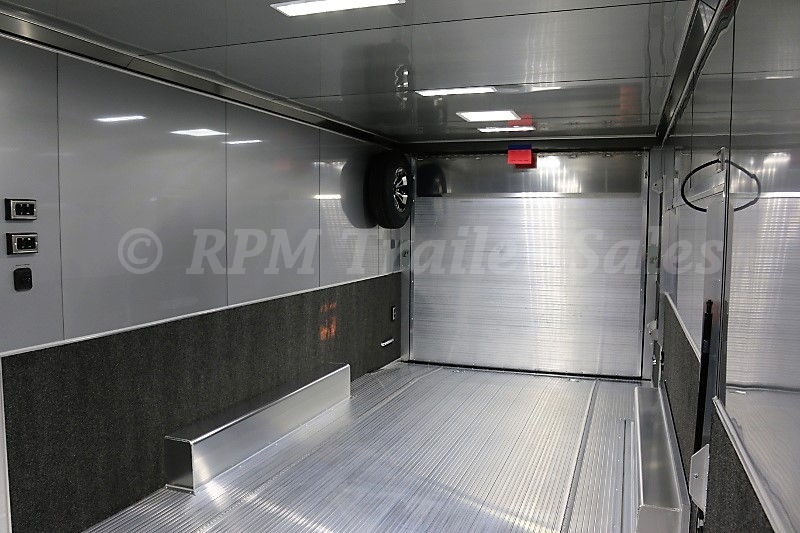

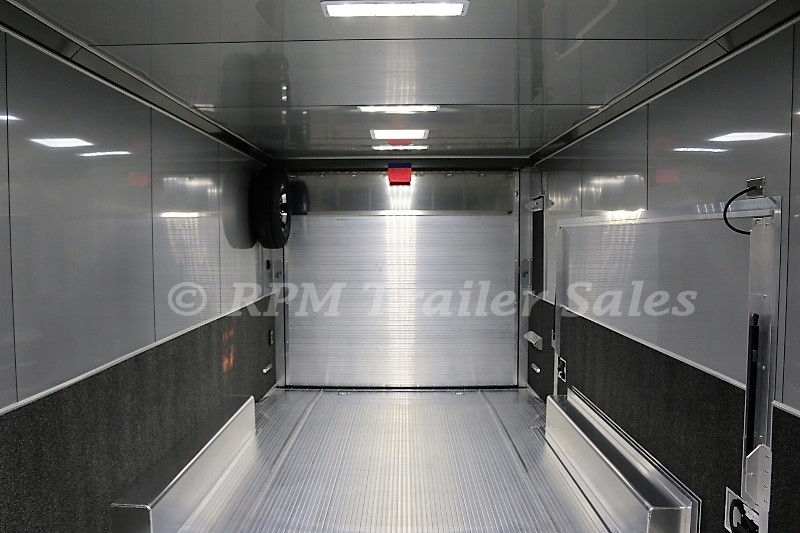

Interior
One-Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
2) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent w/ Switch
6.5' Interior Height
4) 5,000 lb.  Recessed D-Rings
4' Interior Beavertail

Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
24" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals

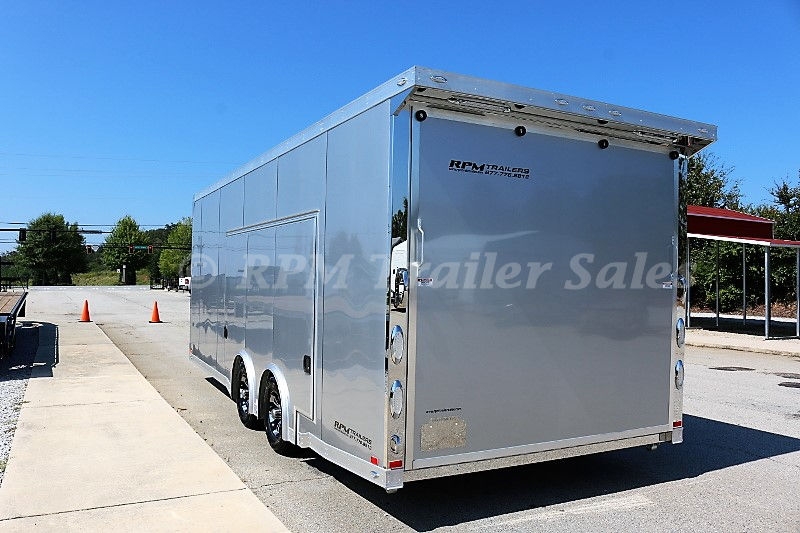

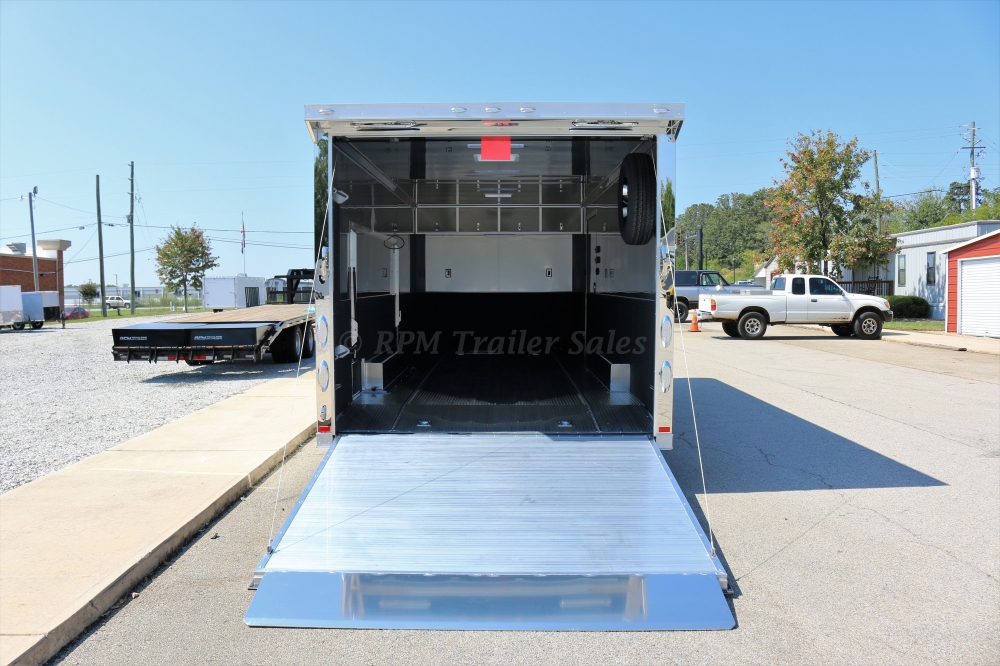

Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door - Rear Skid Plates

Selected Options:
22' iCon Package
Exterior Upgrades

Upgrade to 7' Interior Height
Extended Tongue
Upgrade to 48" 405 Series Door
FMVSS Side Door Lock
Aluminum Slide Out Step
Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4" Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches
40" x 36" 405 Series Generator Door
Awning Rail

Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25' Shore Cord
12V Battery & Box Wired
12V Fuse Panel
60 Amp Converter for 12V
3) 15 Amp Interior Recepts
1) 15 Amp Exterior Recept
4) 12V 18" LED Interior Lights
3 Way Light Switch for Interior LED Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights

Interior Upgrades
Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC
Extruded Aluminum Floor
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

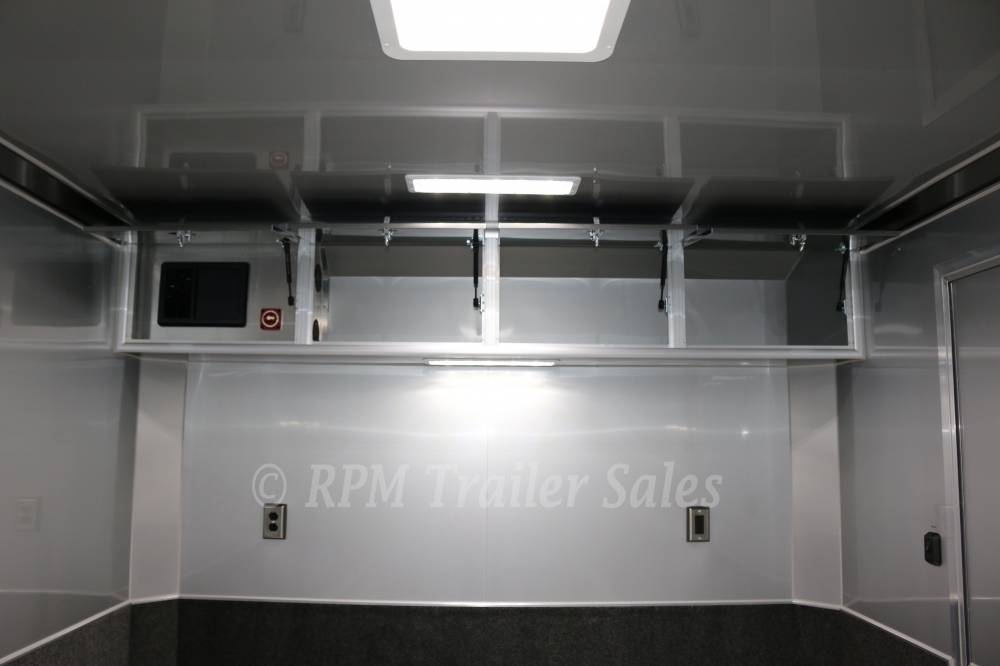

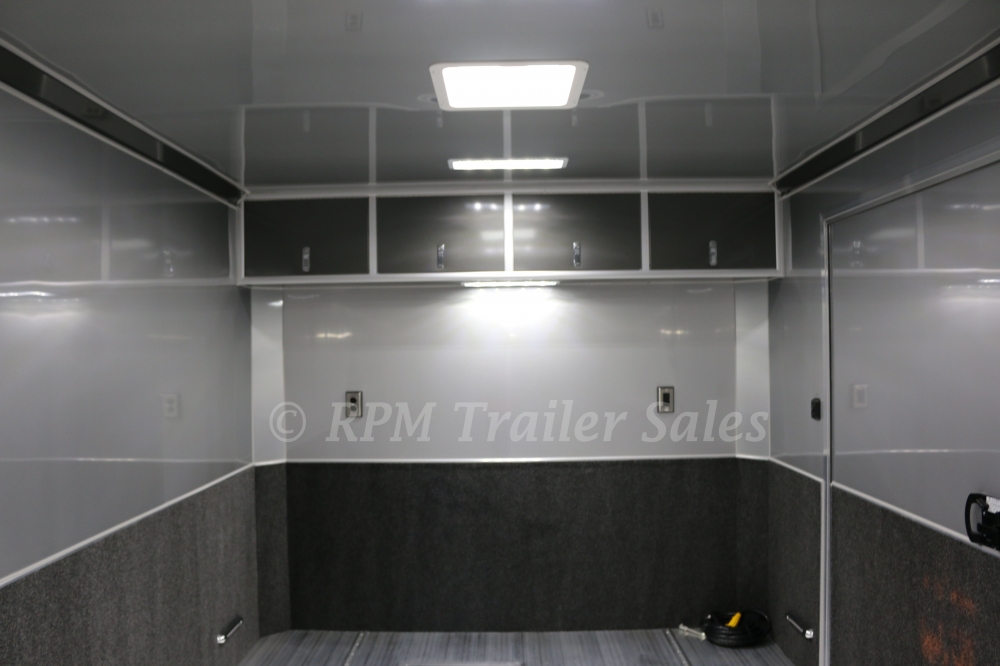

8' Premium Aluminum Upper Cabinet
8' Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet

Additonal Options & Features Added

Downgrade to 30 Amp Service from 50 Amp Service
Delete 2) 500W Quartz Light
Delete Full L-Base Lower Cabinet
Decrease Beavertail Size
Rear Caster Wheels – Pair

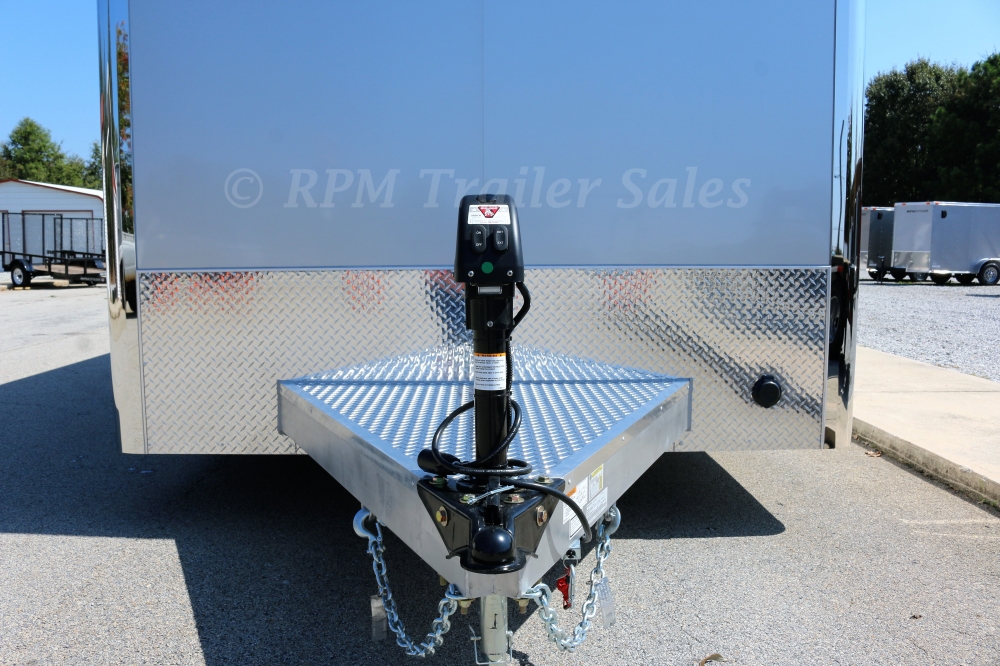

Upgrade to 3,500 lb. Front Power Jack - Battery Not Included

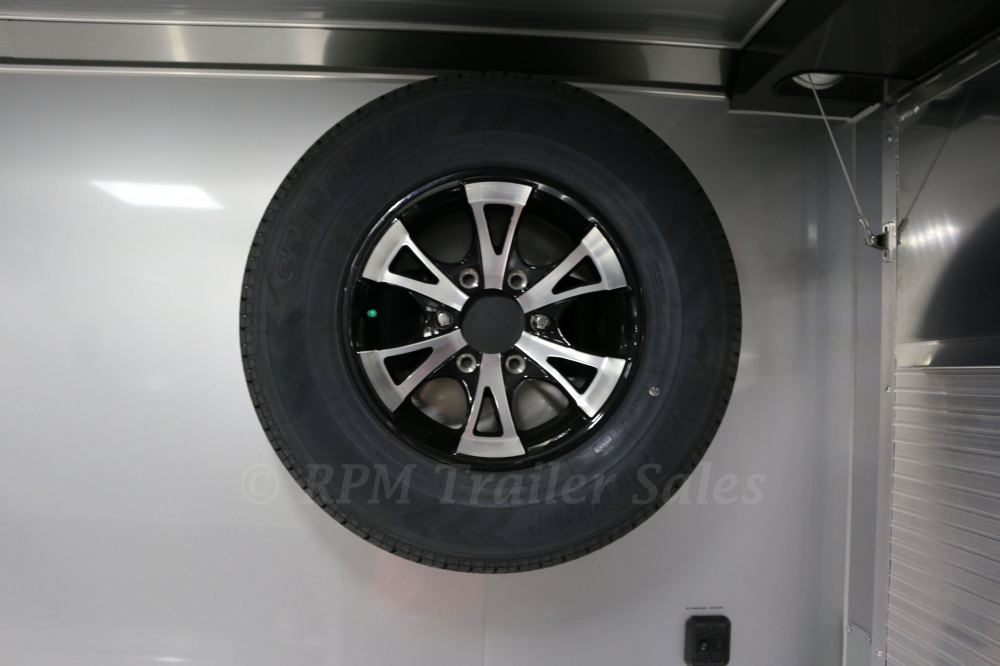

Spare Tire on Aluminum Wheels
Spare Tire Wall Mount

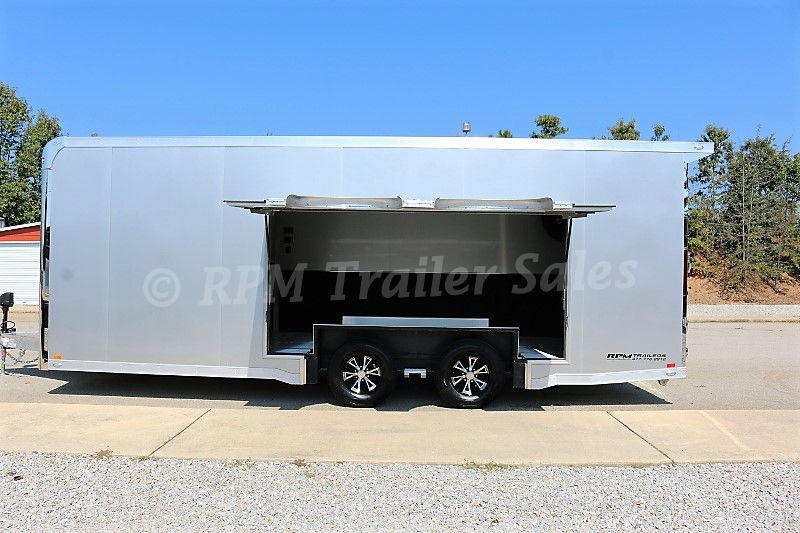

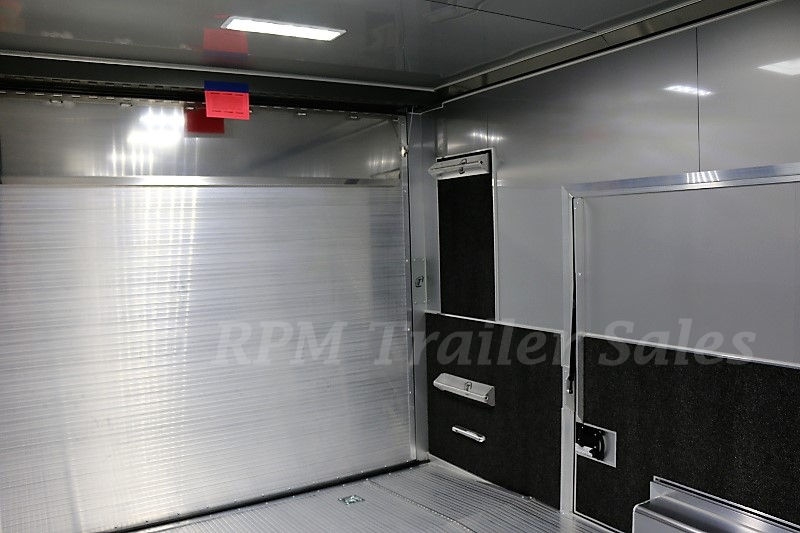

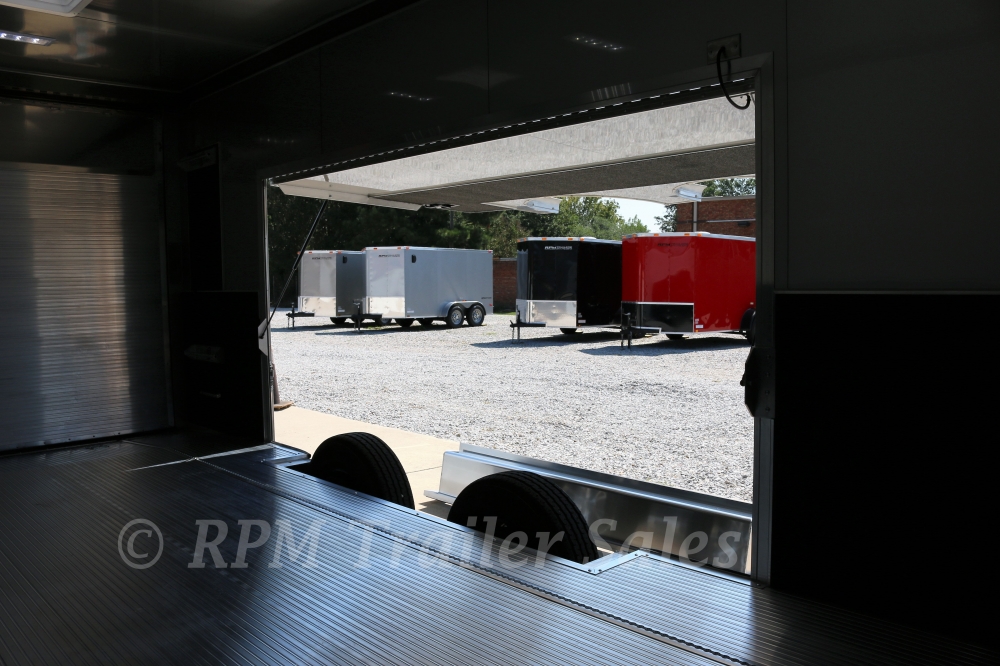

Full Access Escape Door

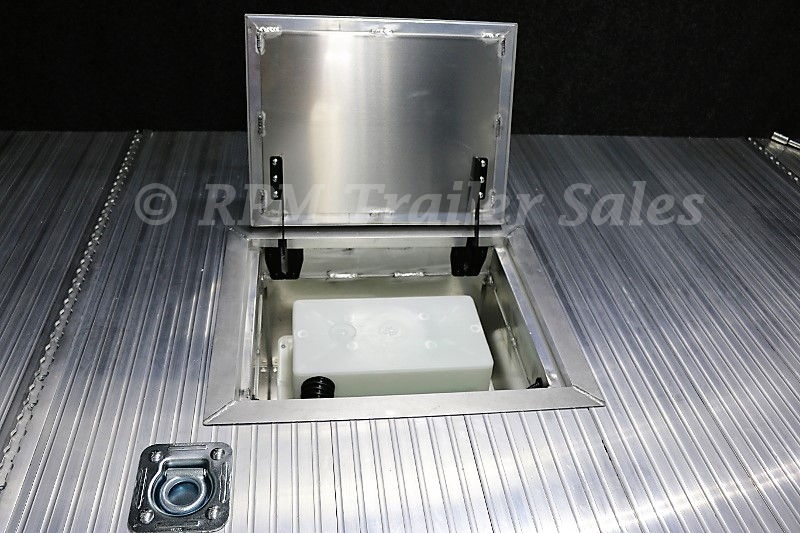

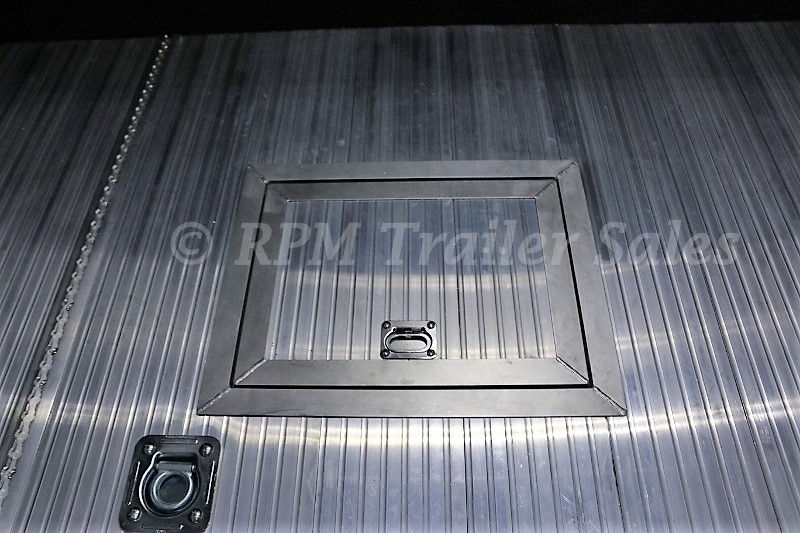

In Floor Battery Compartment
4) 12V Loading /Tie Down LED 11" Light
34” Carpet on Interior Walls
Airline Track – Recessed
18" Wide Tie Down Strap Hangers – Pair
ATP Tongue Cover
Upgrade to Lowered Skirt w/ Reverse Beavertail Design
Color Matched Rear Spoiler with 2) Integrated LED Loading Lights
If this 22’ Aluminum Car Hauler is not exactly what you are looking for contact us today at 706-654-2882 for a quote on one to fit your specifications.
