22' Custom Aluminum Stacker Trailer

22' Custom inTech Aluminum Stacker Trailer for Sale with all the bells and whistles you need to get you to and from the track.

Product Specs

  • New
  • 11455
  • BSA8522TTA4
  • 8′ 6″ x 22′
Request More Info

Details

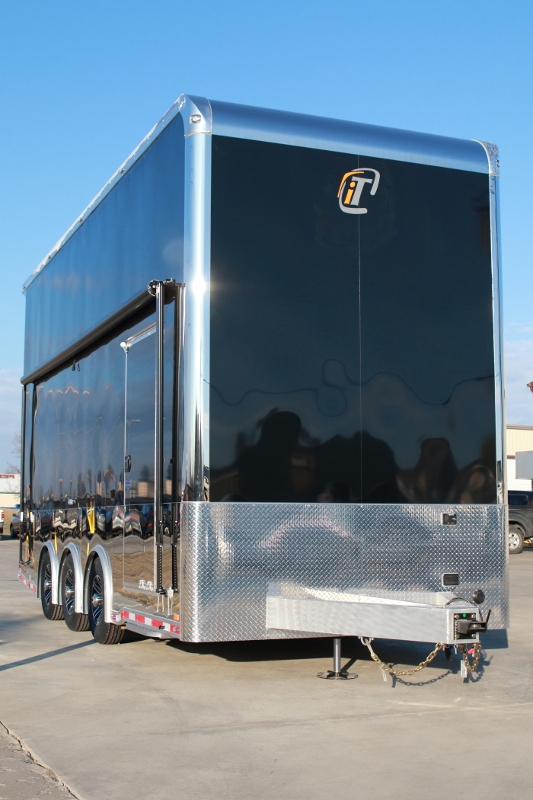

22’ Custom Aluminum Stacker Trailer

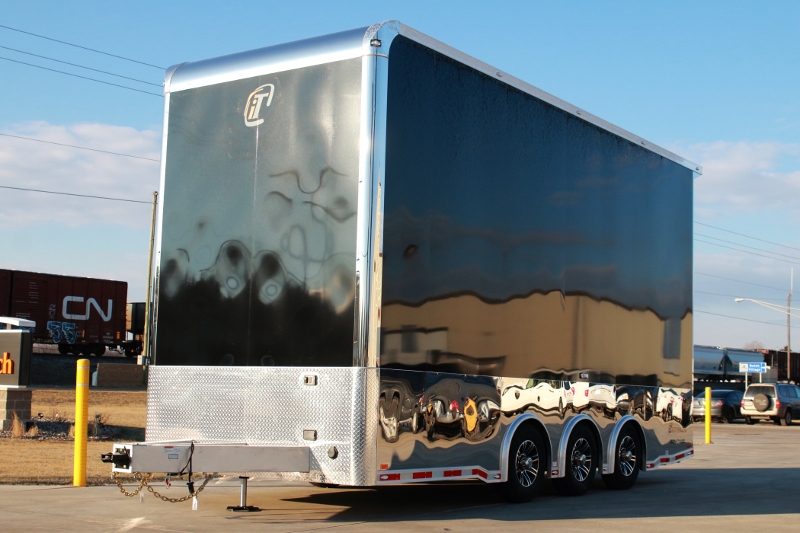

Sensational custom stacker trailer design.  When it comes to the ultimate stacker 2 car trailer every detail delivers when designed by RPM Trailer Sales.  When you are out on a weekend prowl, the sleek .050 Exterior Skin boast a classic luxury look with the added stainless steel side trim that was upgraded to match the height of the stone guard.  This black beauty has an overall exterior height of 13’ 2” and comes weighing in at only 7,400 lbs. No matter the strength of the headwinds an aluminum trailer design by RPM Trailer Sales will outperform the rest.
When you open the 90” heavy duty rear ramp door on this beast, you will not be disappointed. This 22’ stacker trailer is loaded with options including custom cabinets that include a 7 drawer tool chest, in floor winch, electrical package, airline package, and so much more.  RPM Trailer Sales always strives to find new ways to make our custom stacker trailer designs exceed your expectations. We never get tired of designing the absolute finest custom trailers in today’s market place! When you're ready to take the next step for a custom aluminum stacker trailer..... look no further than RPM Trailer Sales. We're certain you'll be impressed with our unmatched customer service and experience.  Once we move to the next level, you will experience the quality, fit, and finish and the attention to detail & tow-ability.   But most importantly, you will be amazed at just how affordable an all-aluminum Stacker Trailer can be! Take the next step and experience a custom stacker trailer design by RPM Trailer Sales.  Contact us today at 706-654-2882 for details.
“Often Imitated – Never Duplicated”

GVWR: 18,000 lbs.
Shipping Weight: 7,400 lbs.
Width: 8.5
Length: 22’
Interior Height: 11' 4” Interior Height
Axle Type: Triple 6,000 lbs. Dexter Torsion Axles

Model: BSA8522TTA4
Product Number: 11455

22’ Custom Aluminum Stacker Trailer Standard Features:
Chassis

Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
Hydraulic Front Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/80R16 Nitro Filled Tires w/ Steel Wheels

Interior
Extruded Aluminum Floor
Extruded Aluminum Ramp
16" Aluminum Transition Flap
6) 12V LED Dome Lights w/ Switch
.030 Screwless Aluminum Walls and Ceiling
10' Standard Interior Height
8) 5000# Recessed D-Rings
3' Interior Beavertail

Exterior
.040 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
4" Upper and Lower Rub Rail
LED Premium Clearance Lights
Dual LED Slimline Tail Lights
LED Slimline Backup Lights
36" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Front Verticals & Radius
Polished Cast Aluminum Corners
Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches - Rear Skid Plates

Stacker Features
14' Aluminum Split Rail Lift (4,000 lb. Capacity)
In Floor Hydrualic Lift Pump
2) 12V Deep Cycle Batteries w/Vented Boxes
In Floor Battery Compartment
15A Motorbase Plug
45 Amp Converter Battery Charger
Rear Manual Stabilizer Jacks
Tongue Weight Scale
Underside of Lift Finished w/ .030 Aluminum

Upgrades & Additional Selected Options:
Upgrade to .050 Exterior Aluminum
Stainless Steel Rear Header & Posts - #8 High Polish
Upgrade to 11'4" Interior (Max Height)
Add 18" LED Light Integrated into Bottom of Lift
Upgrade to Full Floor Aluminum Lift - ATP Floor
Upgrade Lift Floor for Use w/ Recessed Airline Track
Decrease Beavertail Size to 12” w/ 1” Drop
12" Extended Tongue

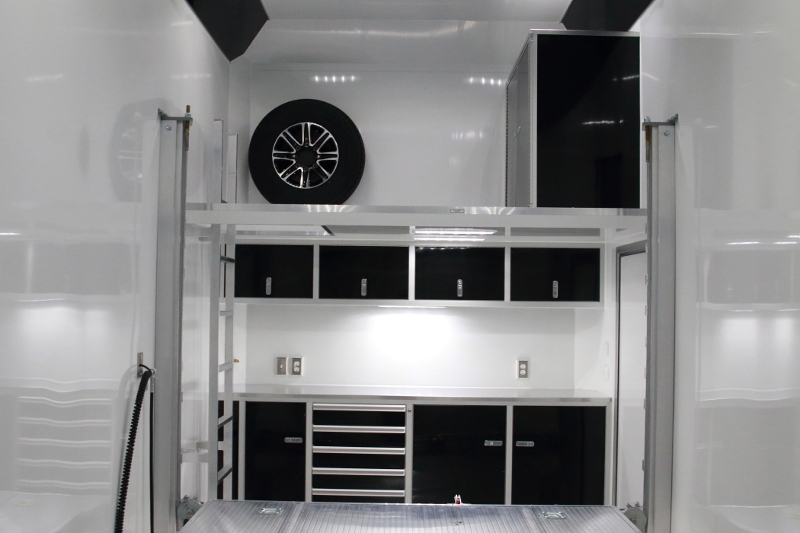

5’ Light Duty Attic w/ Matching Flooring  - Rated at 40 lbs./sq. ft. Up to Maximum of 2,500 lbs.

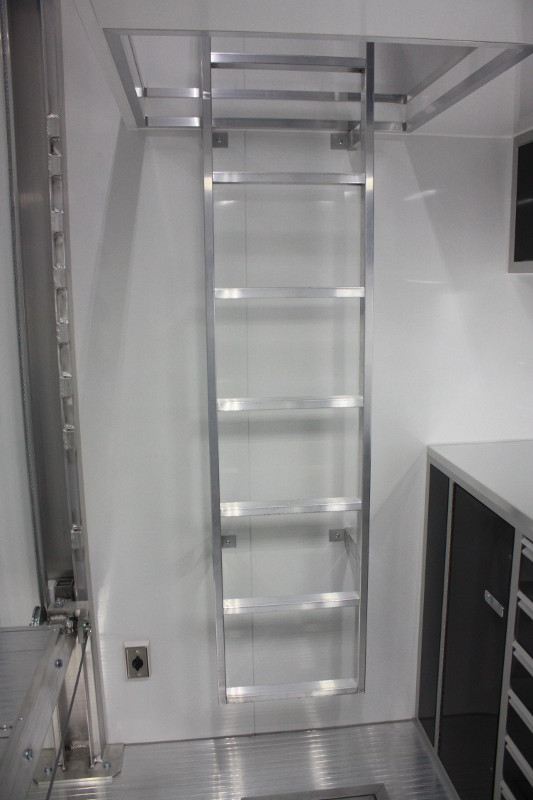

Fixed Mount Interior Ladder
2) Rear Caster Wheels – Pair
Spare ST235/80R16 on Steel Wheel

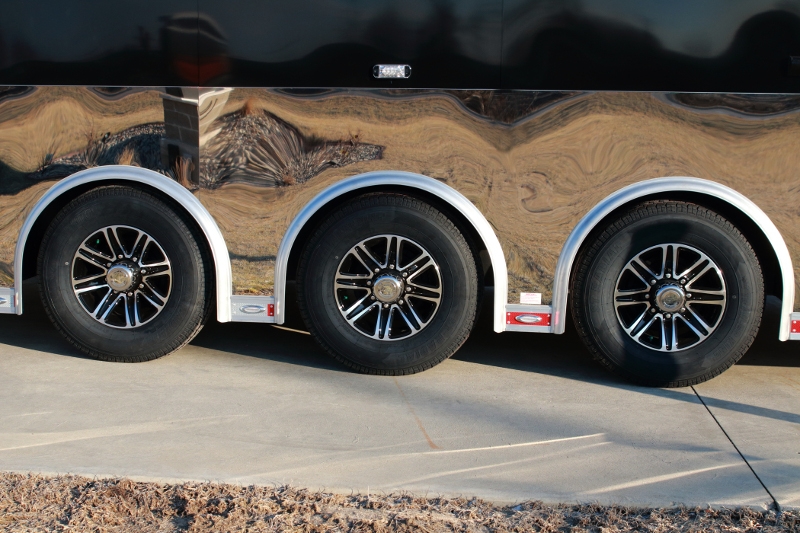

Upgrade all wheels to Aluminum including spare

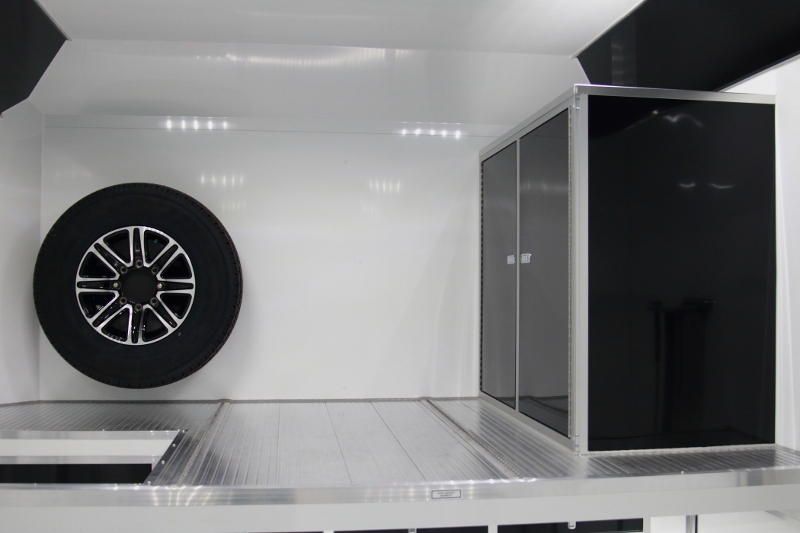

Spare Tire Wall Mount
Add Slideout Aluminum Step - Non-Slip
Upgrade to Heavy Duty Rear Ramp Door
Upgrade to Full Width Ramp Extension Up to 48" Long w/ 5" Bumpers
Jumper Blocks for 12V System for Use When Battery is Dead
Electrical Added Features:
30 Amp Electrical Service Package

Motorbase Plug
25' Shore Cord
12V Fuse Panel
60 Amp 12V Converter / Battery Charger
6) 120V 15A Recepts
1) 120V 20A Recept
3 Way Light Switches (Pair)
6) Additional 12V 18" LED Interior Light
Upgrade 6) Standard LED Dome Light to 12V 18" LED Light
Upgrade to Panelite Clearance & Tail Lights
10) Additional Panelite LED Clearance Light
2) Panelite Brake Lights – Pair
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
Add 4' Premium Lower Aluminum Cabinet w/ Clear Anodized Trim

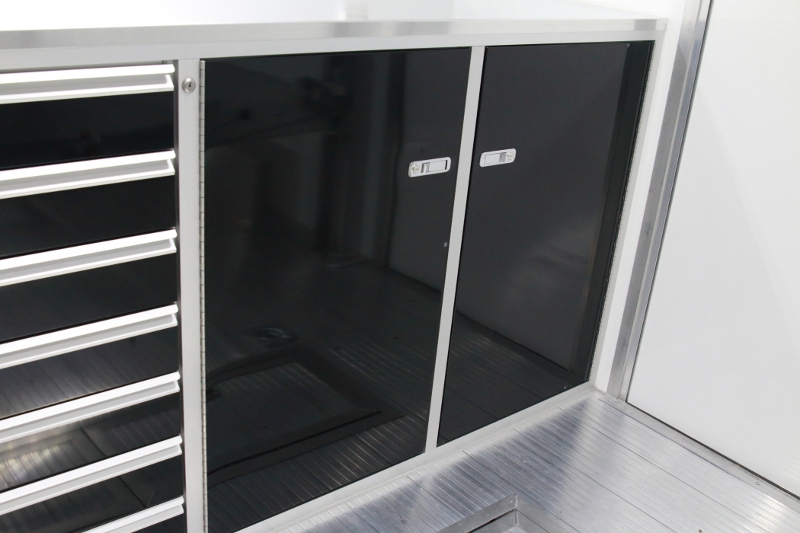

Add 8' Premium Lower Aluminum Cabinet w/ Clear Anodized Trim

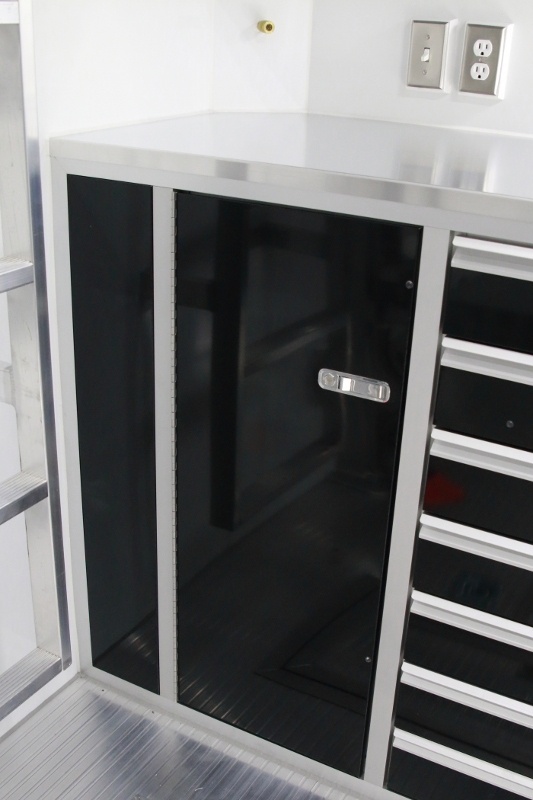

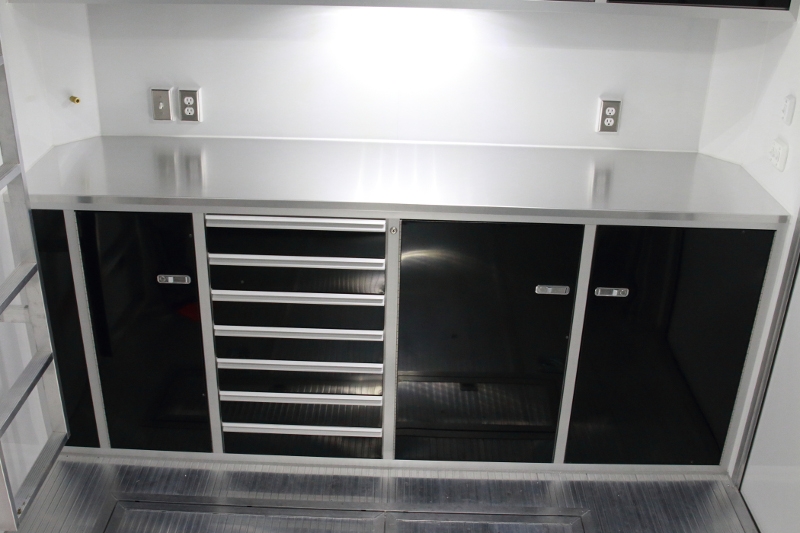

Add Tool Chest Bank to Lower Cabinet w/ Clear Anodized Trim

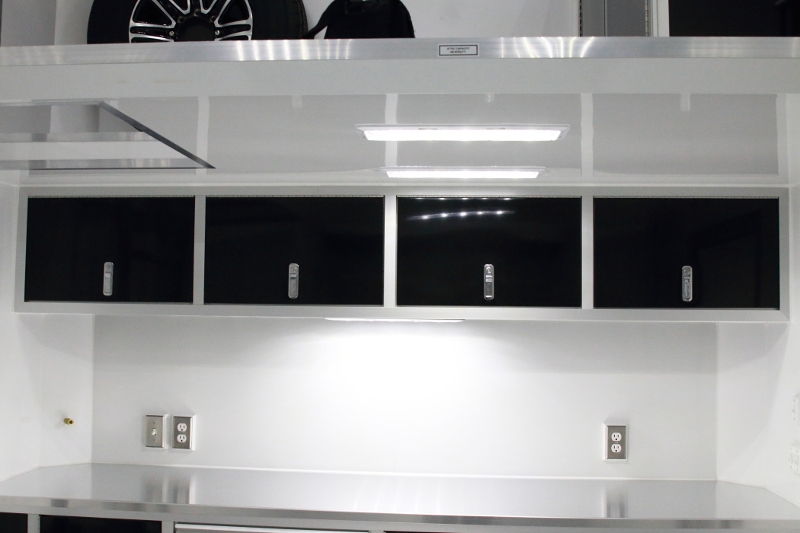

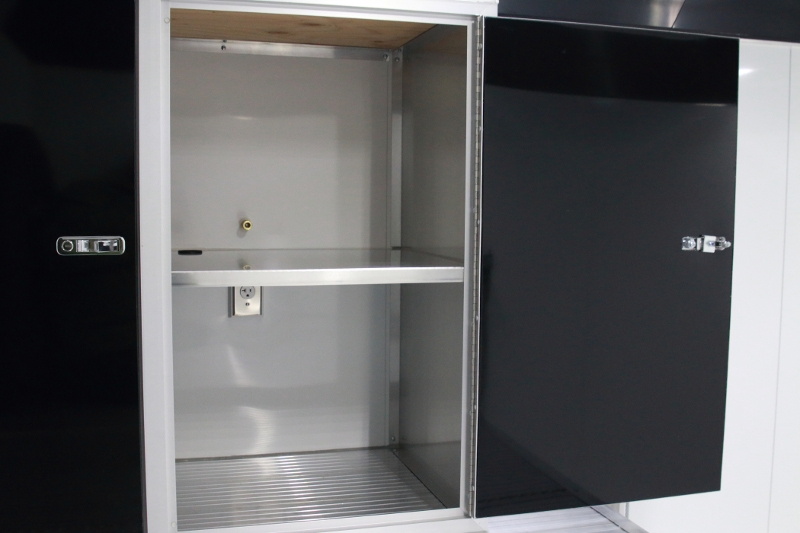

Add 8' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
78’ feet Add Airline Track – Recessed
Add Nitrogen Line Prep
2) Additional Nitrogen Line Outlets
18" Wide Tie Down Strap Hangers – Pair
Upgrade to Lowered Skirt w/ Reverse Beavertail Design - Triple Axle

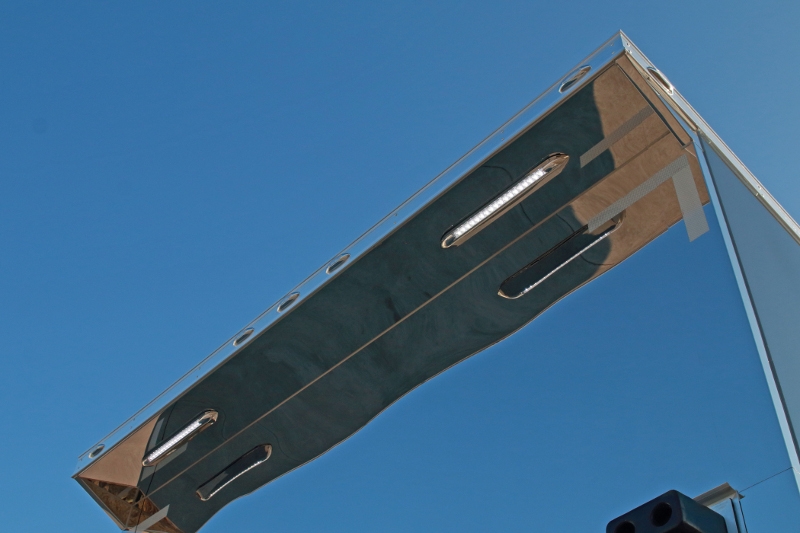

Color Matched Rear Spoiler
Mirror Finish Stainless Steel Side Trim – Extra Tall

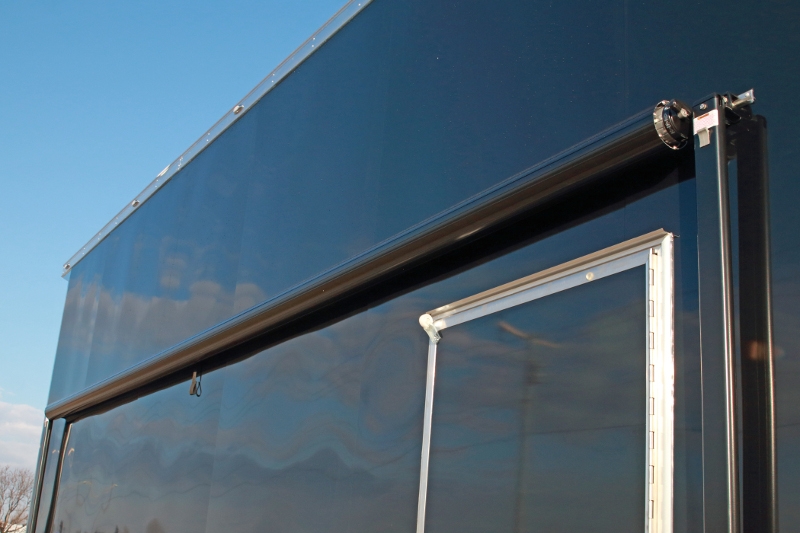

19' Dometic Awning w/ Weathershield

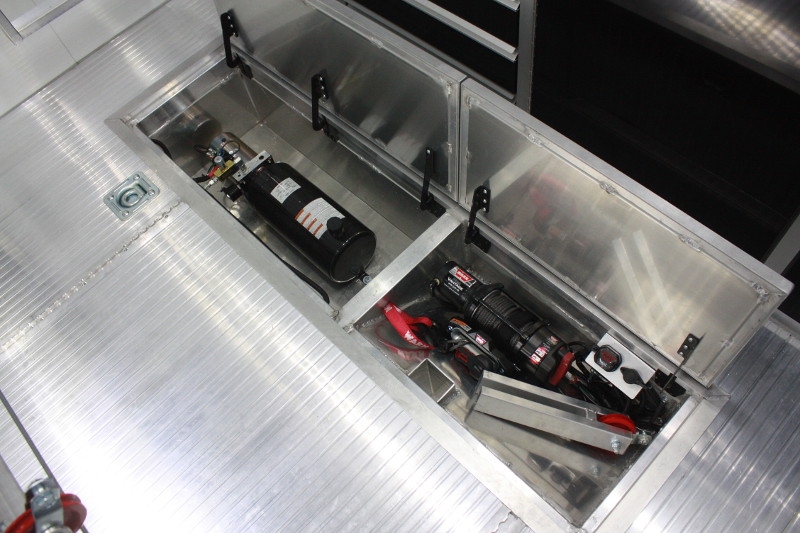

In Floor Winch Box w/ Pulley - Angled Mount

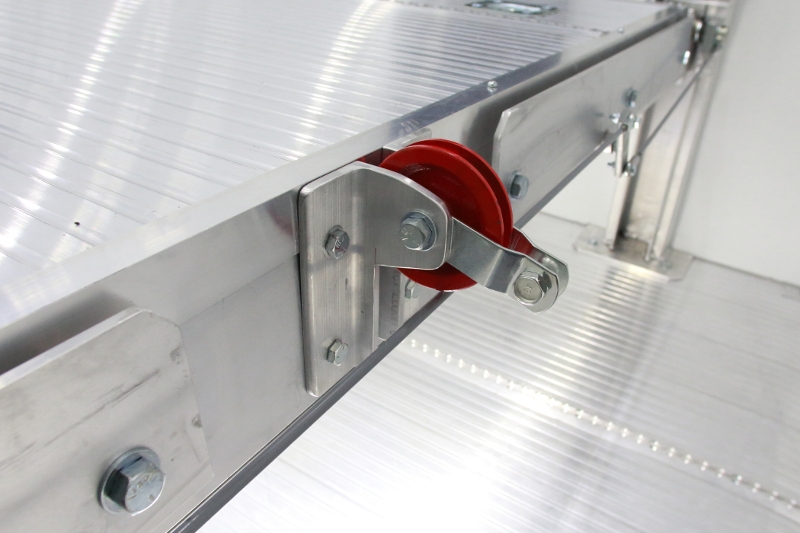

Install (2) Pulleys on Lift For Winch Operation
4,500 lb. Winch w/ Wireless Remote Control & Synthetic Rope
1) Additional 110V Switch
90" Rear Door

Contact RPM Trailer Sales today for your next aluminum stacker trailer
