30' Custom Clear Trailer

Special Order Custom Clear Side Display Trailers availble.  Take a look at this 30' Custom clear side trailer and let us know if you need a custom quote on your next display trailer.

Product Specs

  • New
  • 11899
  • BGA8530TA5
  • 8′ 6″ x 30′
Request More Info

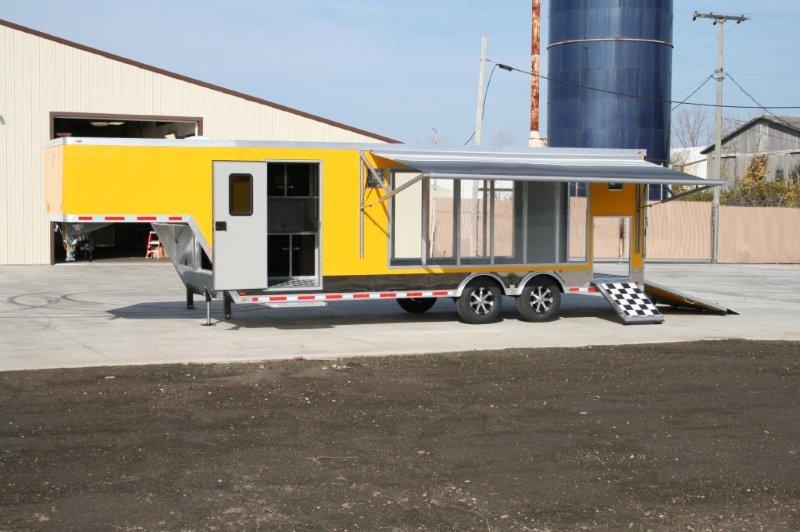

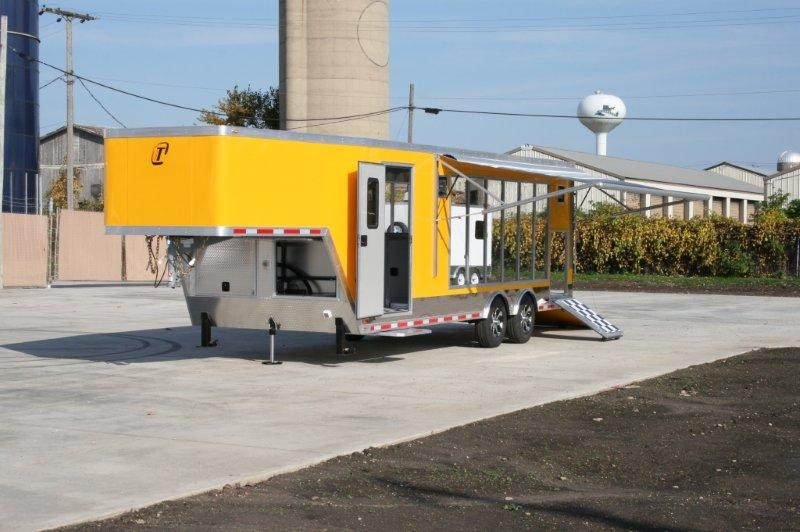

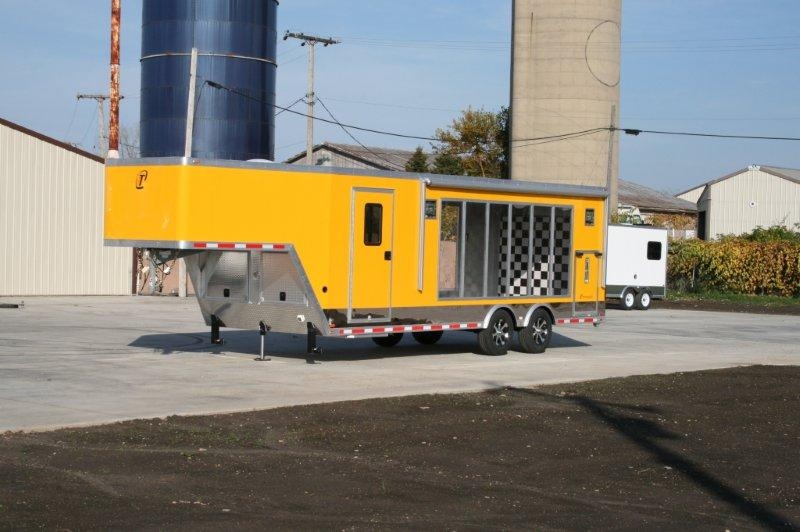

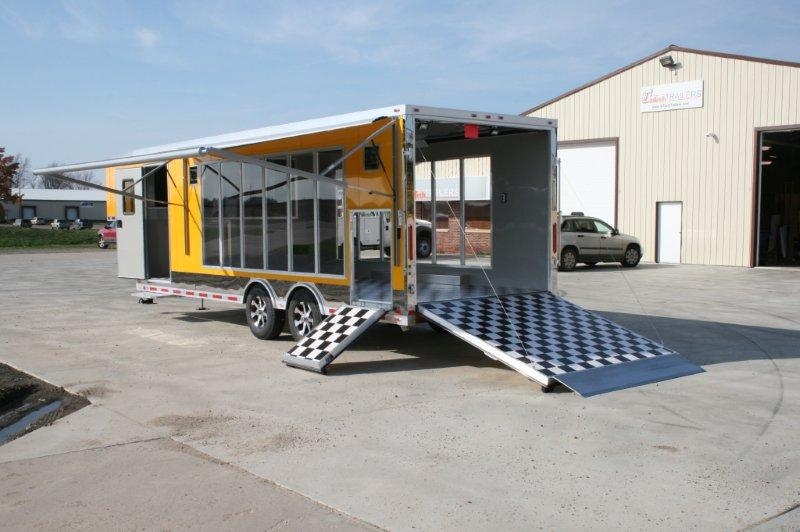

30’ Amazing Clear Trailer / See through Gooseneck Trailer

Custom Clear Trailers at RPM Trailer Sales.  We challenge you to find a better designed, better built clear trailer... RPM Trailer Sales will help you design the perfect see through clear display trailer for your specific needs.  Our Clear Trailers are engineered using the best quality material available, including exclusive and proprietary extrusions specifically designed to improve the quality, fit and finish of a clear trailer. Browse the images, and find out for yourself, exactly what you can achieve when you order a Clear Trailer from RPM Trailer Sales!
GVWR: 14,000 lbs.
Shipping Weight: 6,440 lbs.
Width: 8.50
Height: 7' Interior
Axle Type: Tandem 7,000 lb. Dexter Torsion Axles
Model: BGA8530TA5
Product Number: 11899

8.5 x 30 Custom Aluminum Clear Display Trailer built specifically for this customers business needs.  Take a look at the specifications and let RPM Trailer Sales know if you are intereted in a custom display trailer.

Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Adjustable GN Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
LT235 85 R 16 Nitro Filled Tires w/ Steel Wheels

3/4" Plywood Subfloor
One Piece Aluminum Subfloor Vapor Barrier
3) Dome Lights
1) 12V Power Roof Vent
7' Standard Interior Height
4) 5000# Recessed D-Rings
4' Beavertail

.030 Aluminum Skin
Screwless Aluminum Exterior
One Piece Aluminum Roof
Arched Walk on Trussed Roof System
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
ATP Enclosed Riser w/ (2) Storage Doors
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals

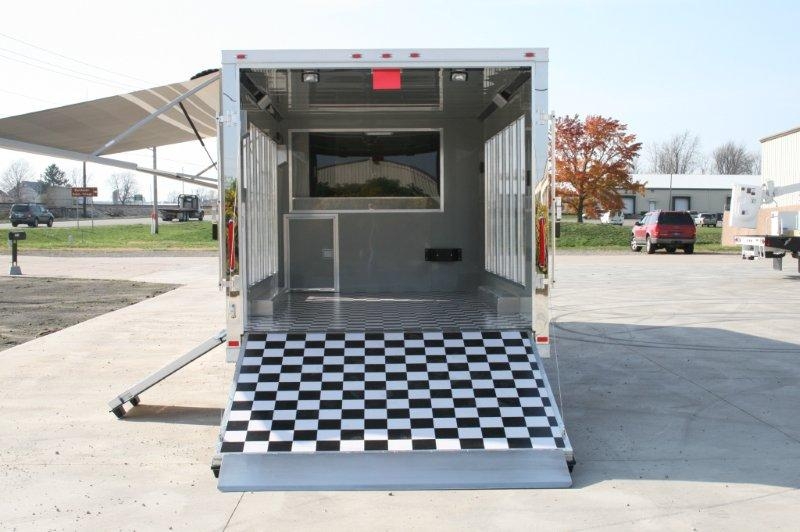

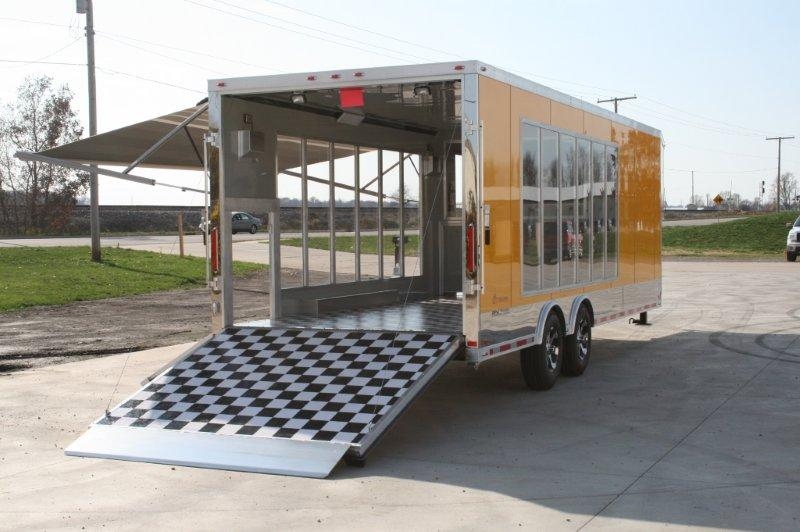

Rear Ramp Door w/ Gapless Hinge
Aluminum Bar Locks

Additional Selected Options:

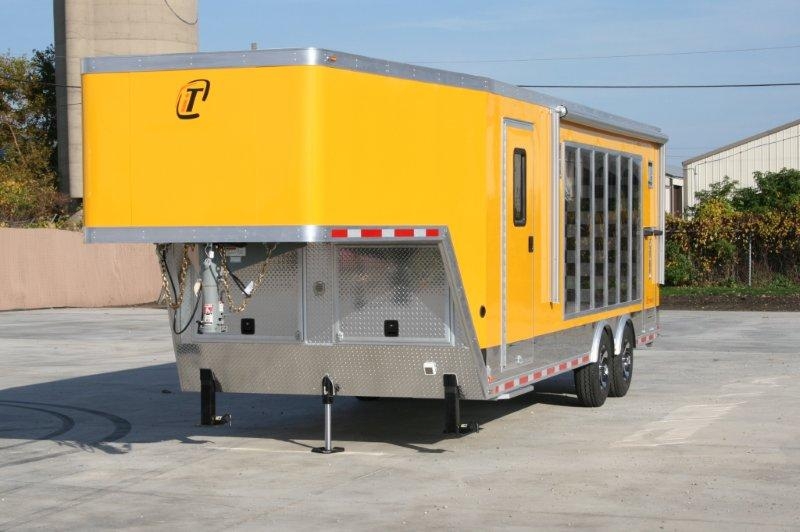

Taper Nose for Gooseneck
Slide In – Slide Out Aluminum Step
Upgrade to Aluminum Wheels
Spare Tire

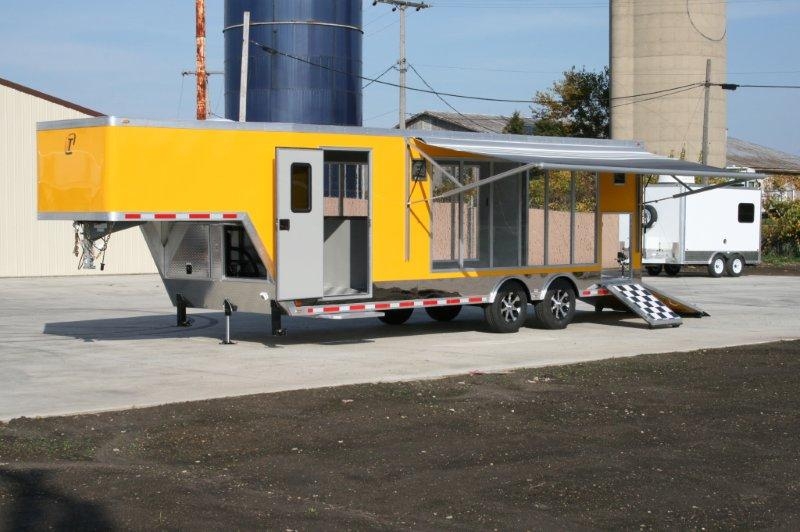

17’ Dometic 12v Power Awning
Rear Caster Wheels
2) 120V 500w Quartz Halogen Lights

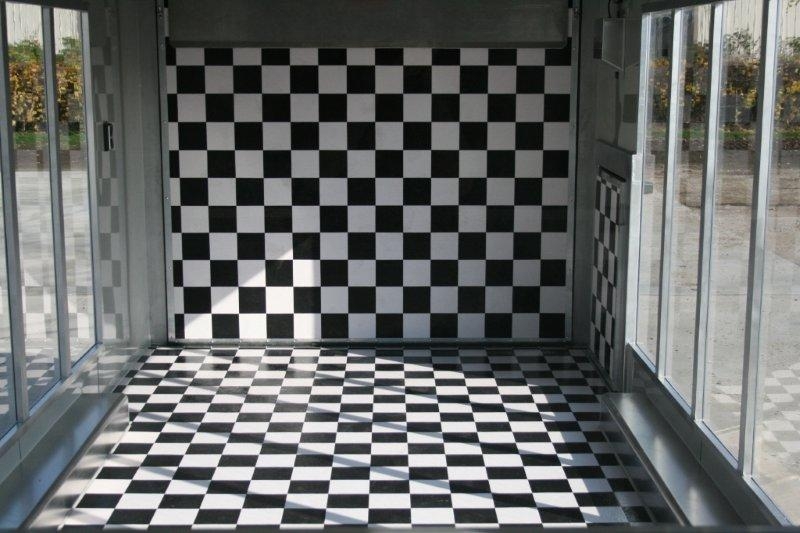

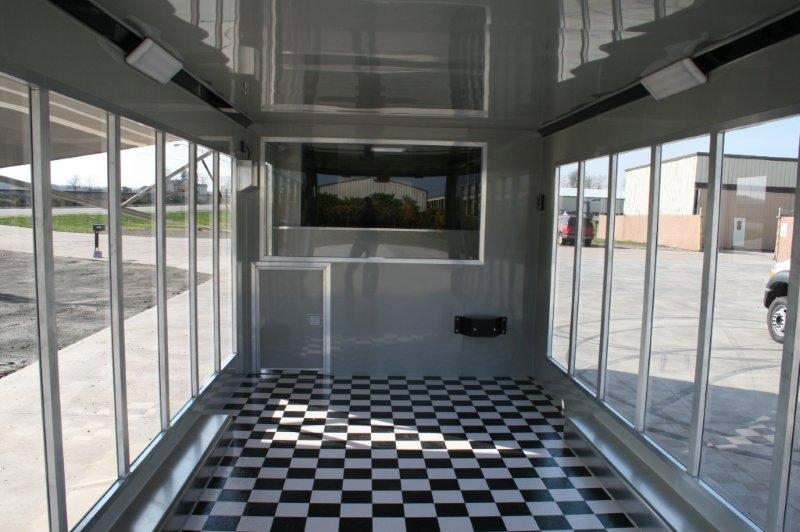

Black Marble Vinyl Floor
Gray Carpet in Riser
White Vinyl Walls & Ceiling

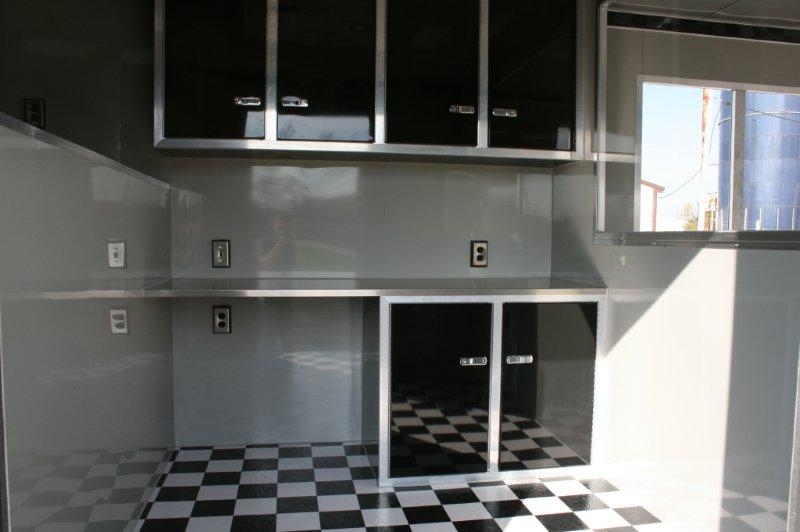

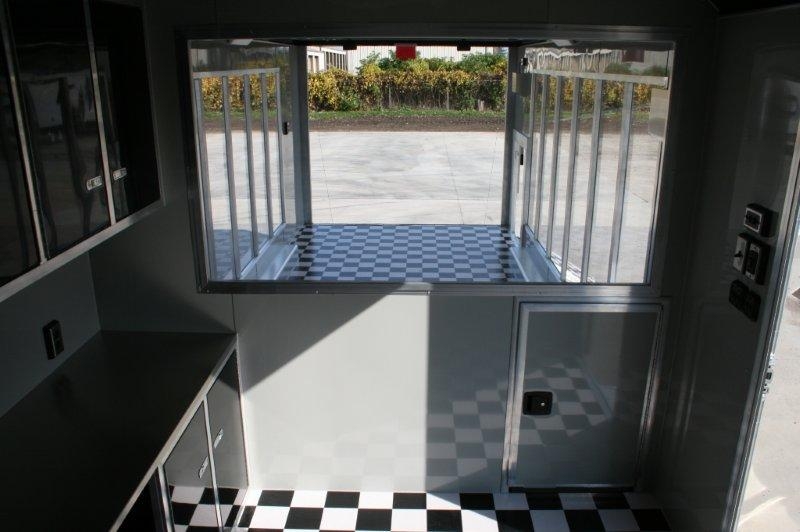

3’ x 24” Aluminum Counter Top
6’ Premium Upper Aluminum Cabinets
30 amp Electrical Service
6) 120v 15amp Recepts
4) 12v 24” Fluorescent Lights
Brace & Wire for AC
3’ Premium Lower Aluminum Cabinet
2) Halogen Loading Lights

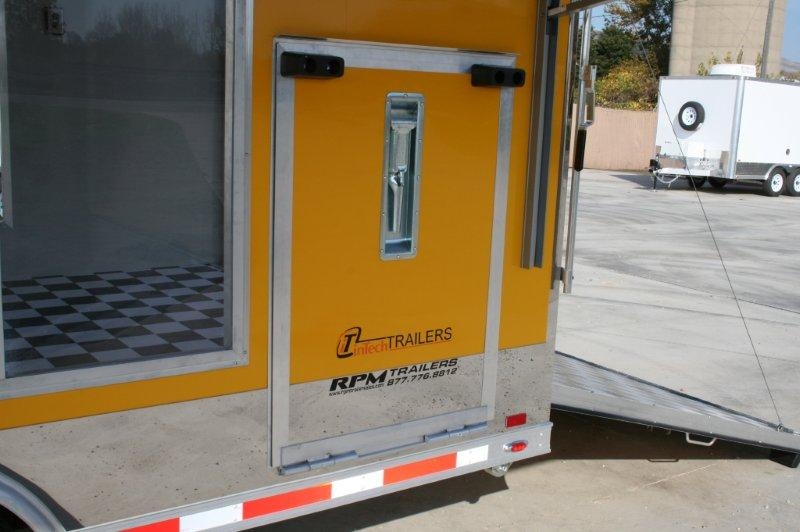

Mirror Finish Stainless Steel Side Trim
Add Window to Side Door
Insulated Walls & Ceiling

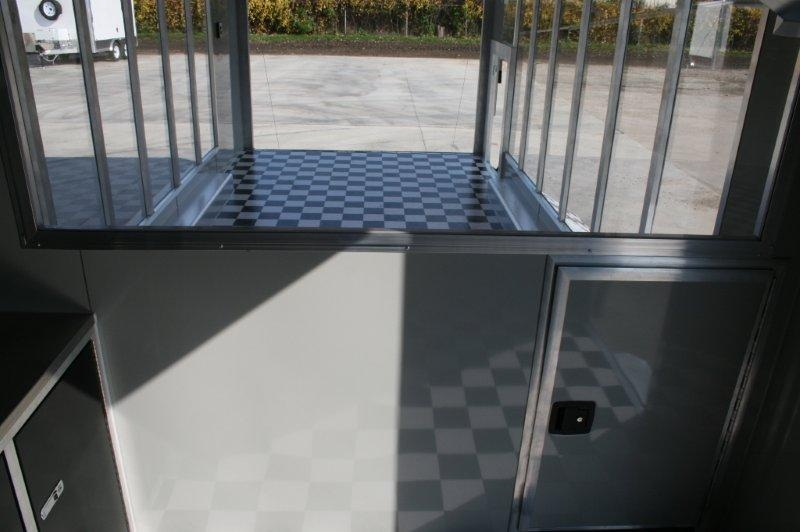

Partition Wall
Single Post Hydraulic Jack
Upgrade to .040 Exterior Aluminum Skin
12v Dome Light
Upgrade to 4” Rub Rail
12v Battery w/ Vented Box and Disconnect Switch

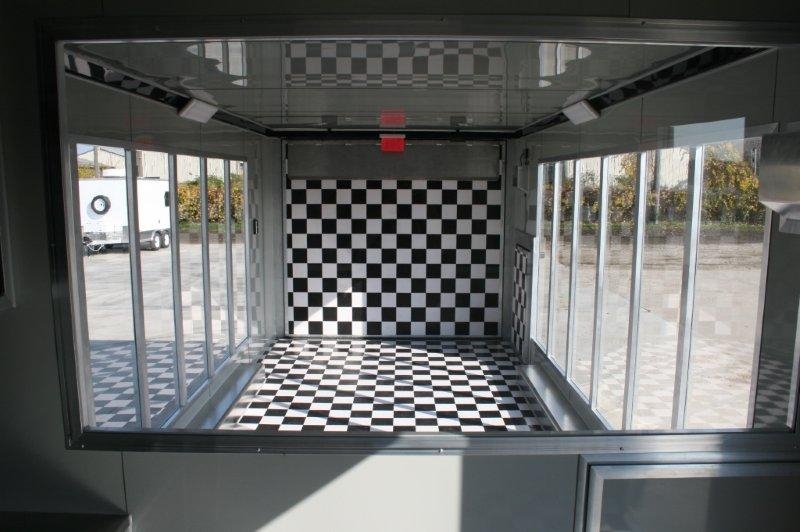

12’ Side Wall & Half Partition Wall done with Margard MR10 grade Lexan
