26' Custom Aluminum Stacker Trailer w/ Bathroom Package

Product Specs

  • New
  • 11602
  • BSA8526TTA5
  • 8′ 6″ x 26′
Request More Info

Details

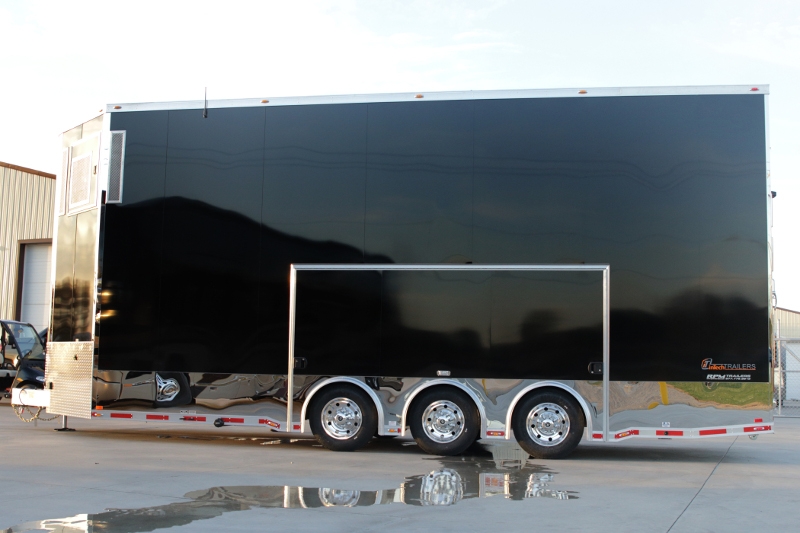

26' Custom Aluminum Stacker Trailer w/ Bathroom Package

Arrive in style with an all-aluminum stacker trailer built by RPM Trailer Sales.  Specializing in custom trailer designs to fit your specific needs.  The extensive offering of an excellent custom product at an affordable price has always been our number one goal.  The structure of every trailer is unique and of the highest value that money can buy. Everyone’s taste is different and expected to be diverse, therefore we provide detailed quotes and options that will work specifically for you.

Take a look at this beautiful 26’ Stacker Trailer and its many custom options.    This one was even designed with our full V –Nose Bathroom Package.   This is personalization at its finest.  Contact RPM Trailer Sales for your next inTech custom stacker trailer 706-654-2882.  RPM Trailer Sales is designing only the finest aluminum trailers in the industry!  The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest aluminum trailer dealer in the country!
“Often Imitated – Never Duplicated”

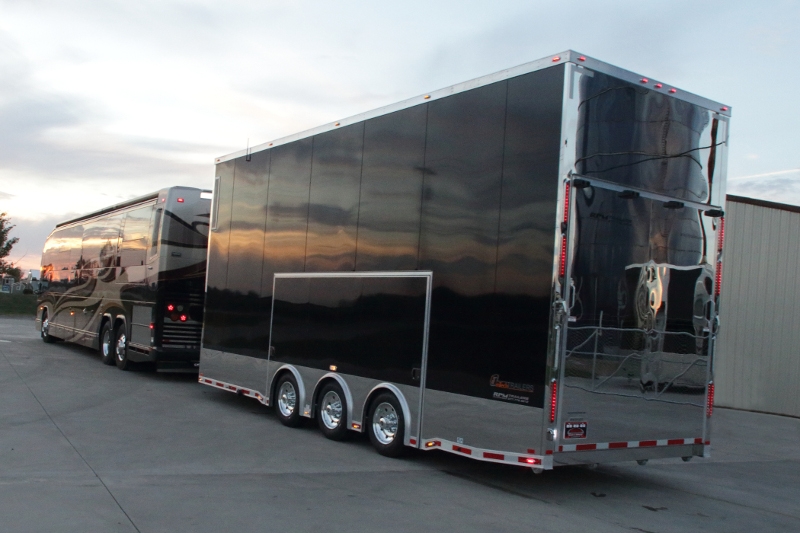

26’ Custom inTech Aluminum Stacker Trailer Specifications

GVWR: 21,000 lbs.
Shipping Weight: 9,570 lbs.
Width: 8.5
Length: 26’ + 4’ Wedge
Height: 11' 4” Interior Height
Axles Type: Triple 7,000 lbs. Dexter Torsion Axles

MODEL: BSA8526TTA5
Product Number: 11602

Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
Hydraulic Front Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels

Interior
Extruded Aluminum Floor
Extruded Aluminum Ramp
16" Aluminum Transition Flap
6) 12V LED Dome Lights w/ Switch
.030 Screwless Aluminum Walls and Ceiling
10' Standard Interior Height
8) 5000# Recessed D-Rings
3' Interior Beavertail

Exterior
.040 Aluminum Skin - Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
4" Upper and Lower Rub Rail
LED Premium Clearance Lights
Dual LED Slimline Tail Lights
LED Slimline Backup Lights
36" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Front Verticals & Radius
Polished Cast Aluminum Corners
Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates

Stacker Features

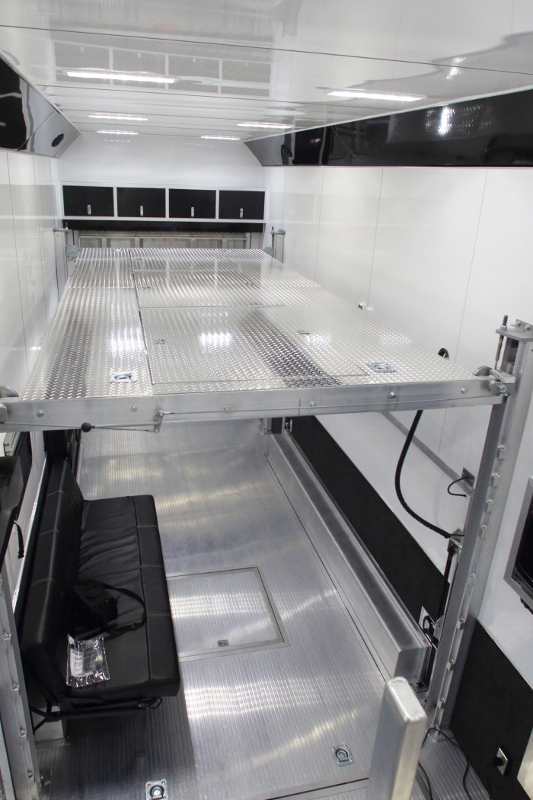

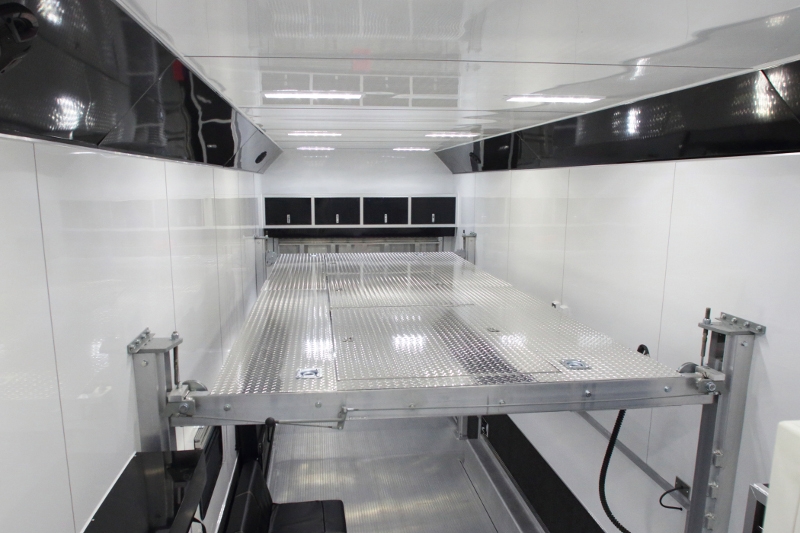

14' Aluminum Split Rail Lift (4,000 lb. Capacity)
In Floor Hydraulic Lift Pump
2) 12V Deep Cycle Batteries w/ Vented Boxes
In Floor Battery Compartment
15A Motorbase Plug
45 Amp Converter Battery Charger
Rear Manual Stabilizer Jacks
Tongue Weight Scale
Underside of Lift Finished w/ .030 Aluminum

Upgrades & Additional Options Added:
Upgrade to .050 Exterior Aluminum
#8 High Polish Stainless Steel Rear Header & Posts
Insulated Walls & Ceiling - R4 Rated
Upgrade to 11'4" Interior
Add 18" LED Light Integrated into Bottom of Lift
Upgrade to Removable Center Lift Panels From Split Rail
3) Lift Out Removable Center Panels

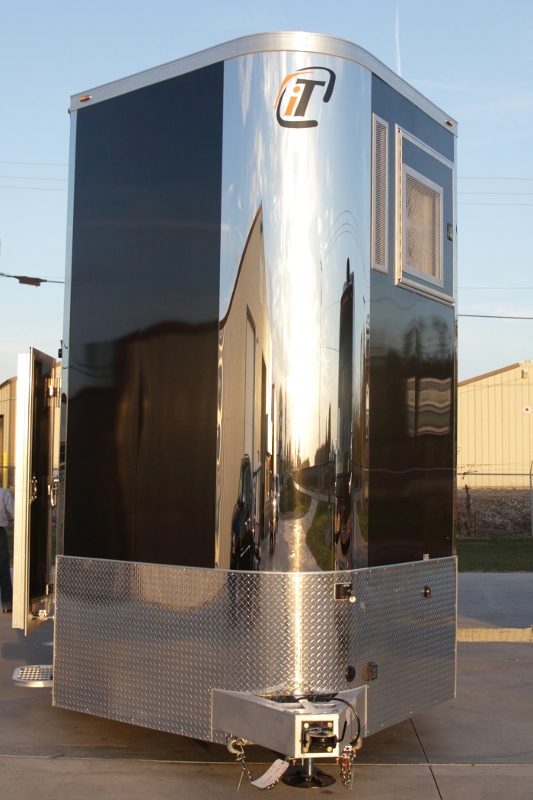

Upgrade to 4' Wedge
Delete 1' of Length from Trailer
5’ Light Duty Attic w/ Matching Flooring

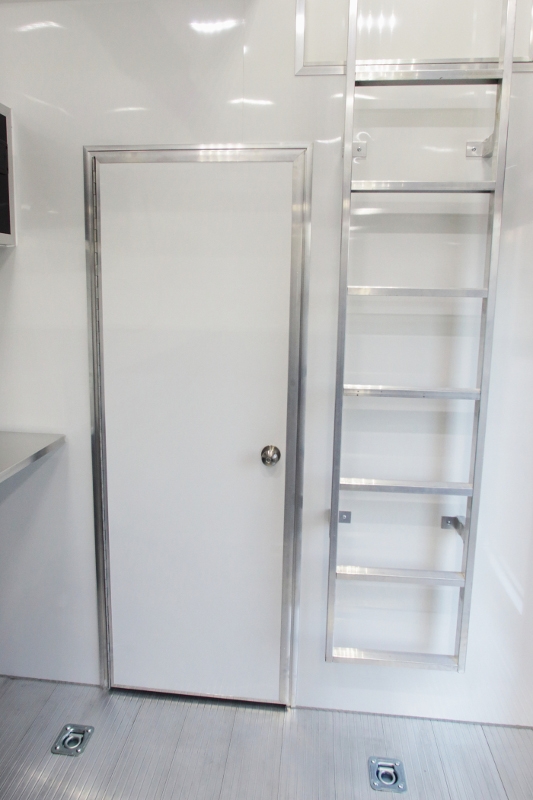

Fixed Mount Interior Ladder
2) Rear Caster Wheels – Pair

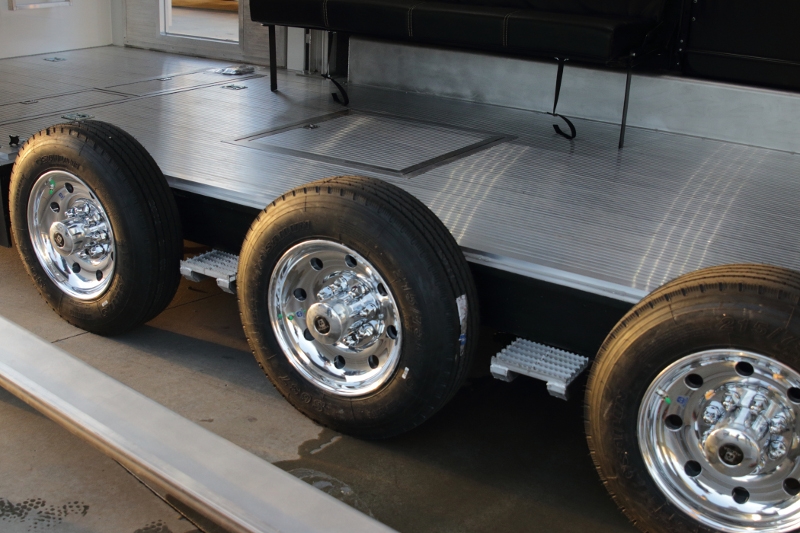

Upgrade to LT215/75R17.5 Tires from ST235/85R16
Spare ST235/85R16 on Steel Wheel
Upgrade to Alcoa 17.5" Wheel From 17.5" Steel Wheel
In Floor Spare Tire Compartment

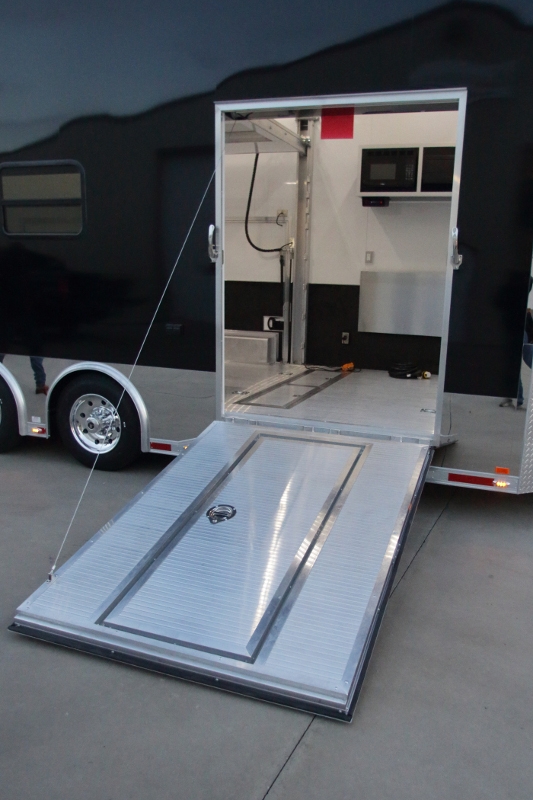

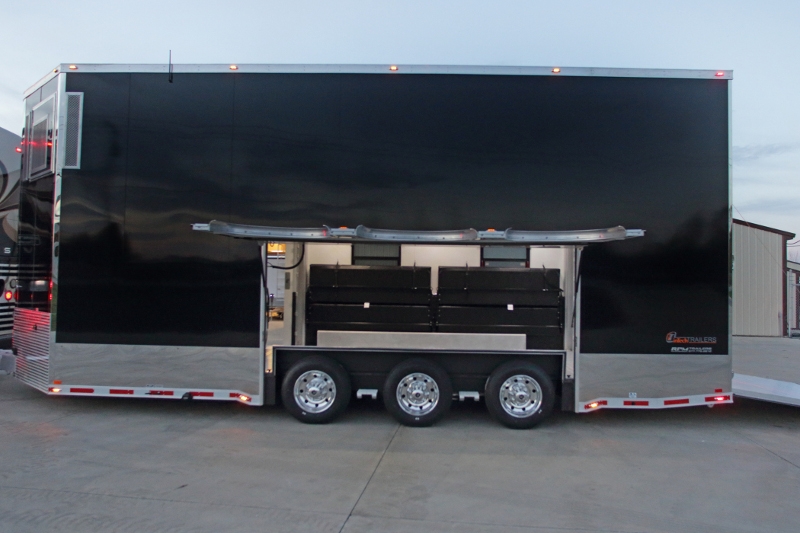

Upgrade Standard Side Door to 58" Ramp -  Matches Interior Floor
28" Entrance Door to Side Ramp Door
Add 36" x 36" 405 Series Side Hinged Baggage Door

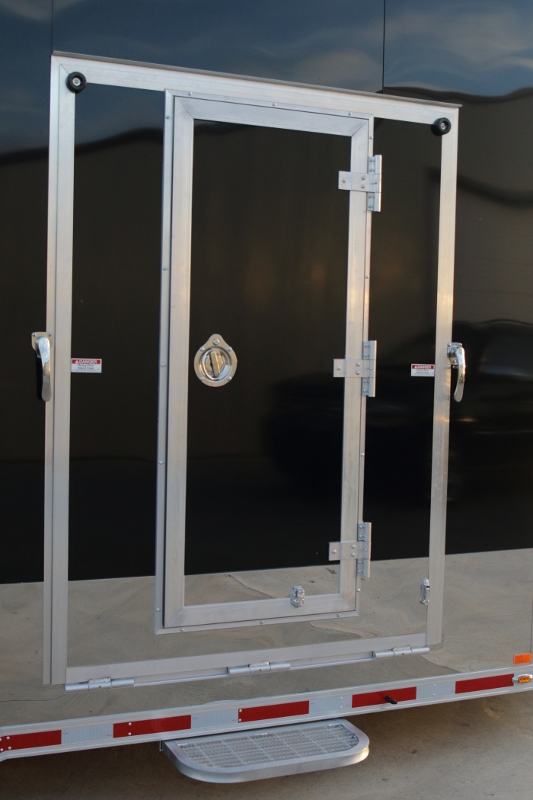

Add Full Access Escape Door - 5' Tall- Quick-Remove Interior Wheelbox  - w / 2) Gas Shocks
Wheel Well Step Included
Add Slideout Aluminum Step
Upgrade to Stainless Steel Paddle Latches from Barlocks

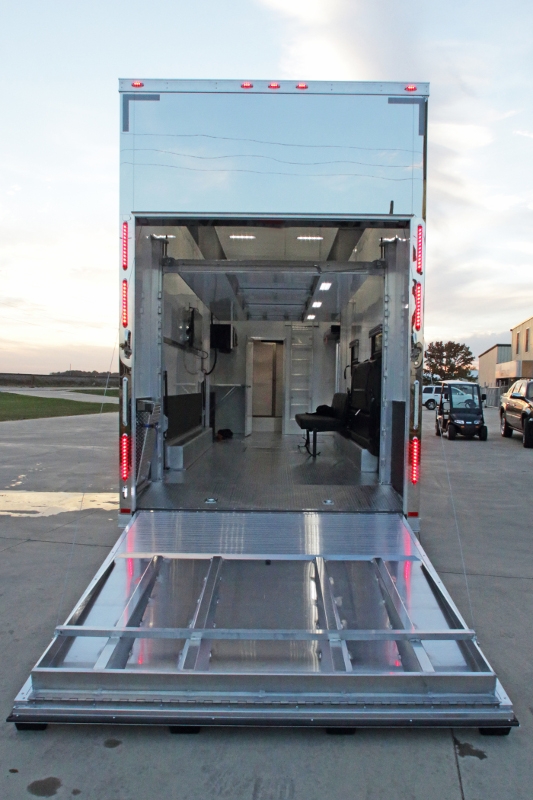

Upgrade to Heavy Duty Rear Ramp Door
Add 5' Aluminum Ramp Extension - 84" Wide w/ 3" Bumpers
30" x 20" Vertical Slider Window w/ Screen
30" x 20" Egress Vertical Slider Window w/ Screen
2) Day/Night Shade to Window

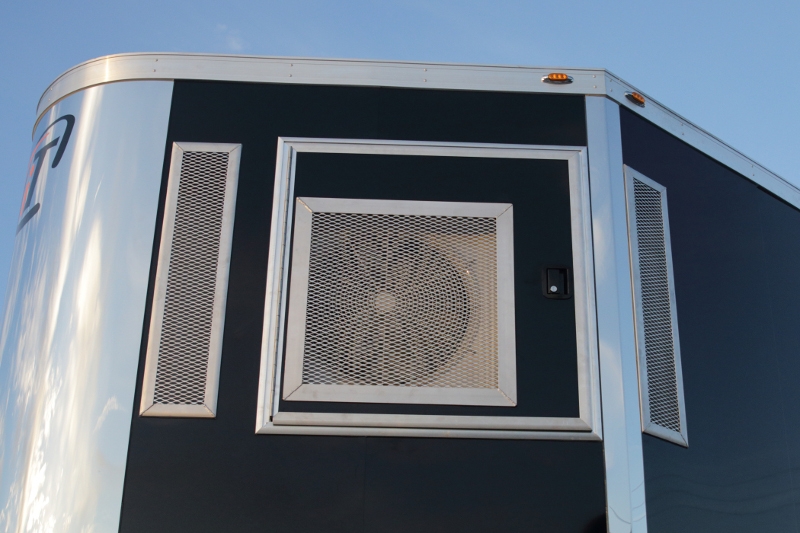

Insulated Generator Compartment
Add 50 Amp Electrical Service Package
Motorbase Plug
25' Shore Cord
12V Fuse Panel
60 Amp 12V Converter / Battery Charger
6) 120V 15A Recept - GFI Protected Where Required
Upgrade 50 Amp Panel to 240V Output Capable
5) 12V 18" LED Interior Light
6)Upgrade Standard LED Dome Light to 12V 18" LED Light
10) Additional LED Clearance Lights
Add LED Slimline Brake Lights (Pair)
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
34” High Carpet on Interior Walls
Partition Wall - Welded Aluminum Tube w/ Sliding Pocket Door- Over Bathroom to close off attic

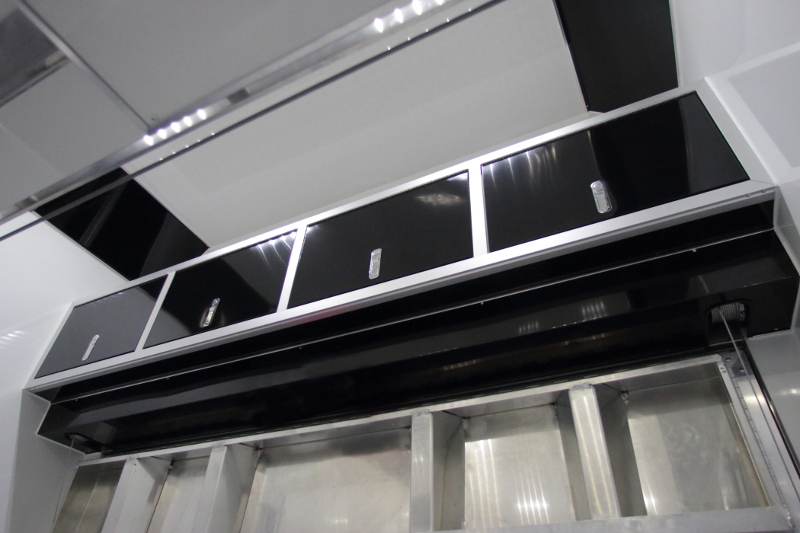

Add 4' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
Add 8' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
4 feet Aluminum Countertop - 24" Flip Up
2) additional 5,000# D-Ring – Recessed
Upgrade to Lowered Skirt w/ Reverse Beavertail Design - Triple Axle
Mirror Finish Stainless Steel Side Trim
Upgrade to Mirror Finish Stainless Steel Rear Ramp Door
TV Prep Package

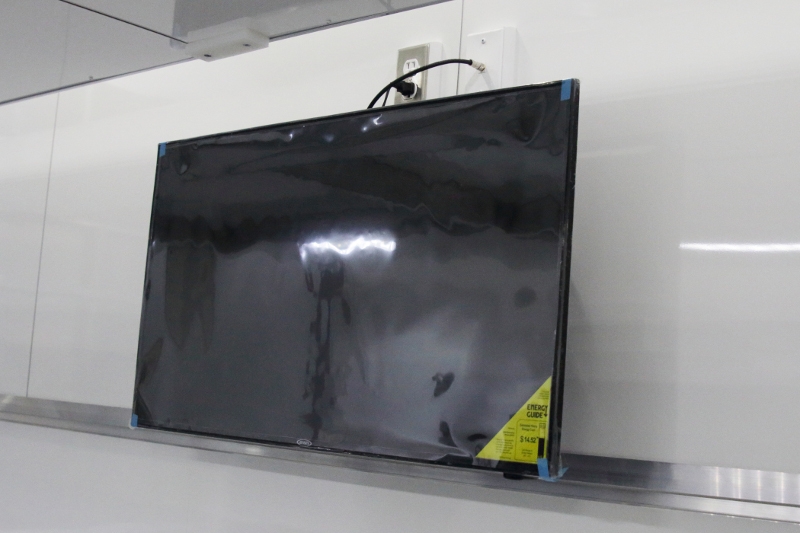

40" 1080P HD LCD TV - Wall Mounted
Add AM/FM/CD Stereo w/ Four Interior Speakers
Mount under the 4' upper cabinets

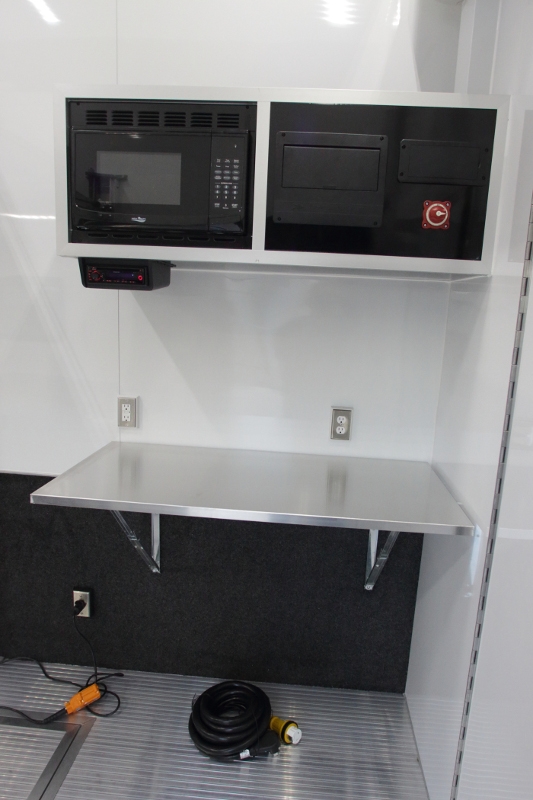

Add Microwave - 1.0 Cubic Ft. - Integrated into Cabinet w/ Faceplate

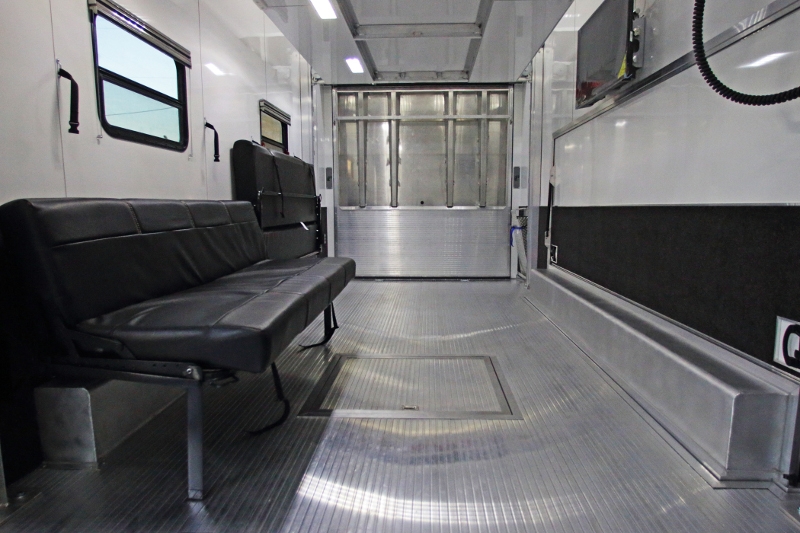

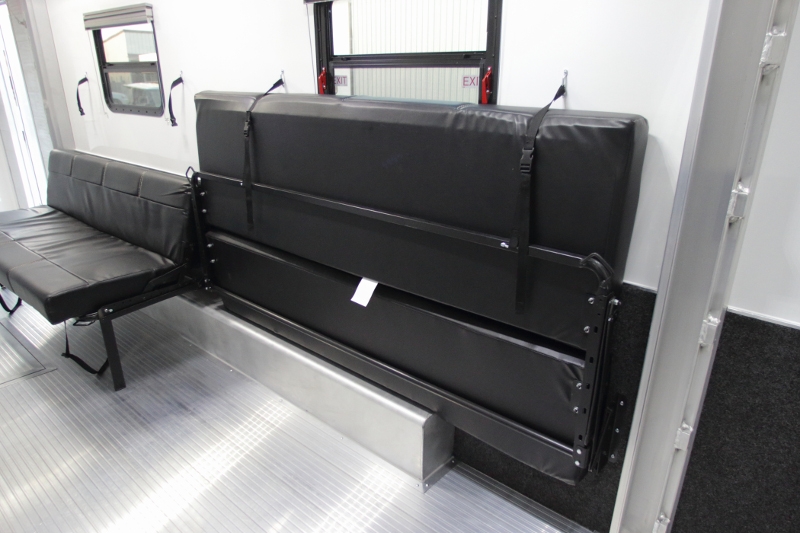

2) Rollover Sleeper Sofa - 84" Long
Full V-Nose Bath Module
Plumbing Fixtures
2) Towel Holders
1) TP Holder
Aluminum Base Cabinet For Sink
Aluminum Linen Closet
Flooring & Walls as Optioned Separately
Minimum 7' Interior Height
Mirror Above Sink
Partition Wall w/ 28" Man Door

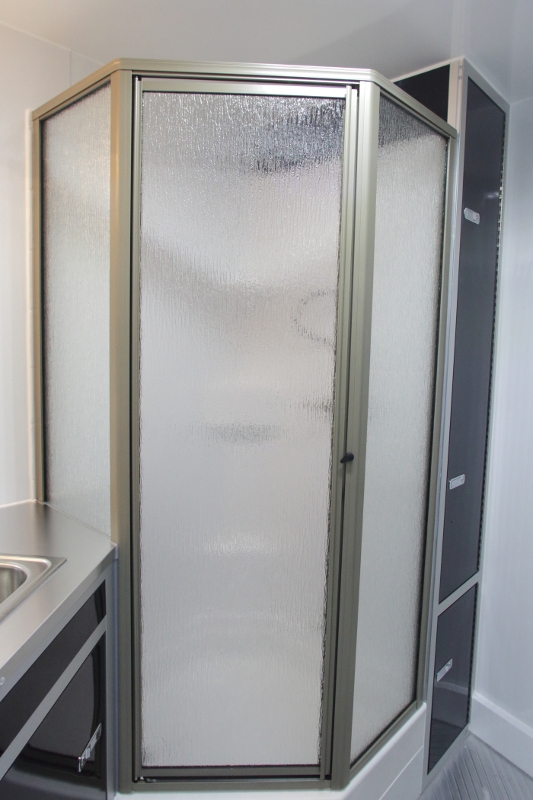

27" x 27" Neo-Angle Shower w/ Glass Door

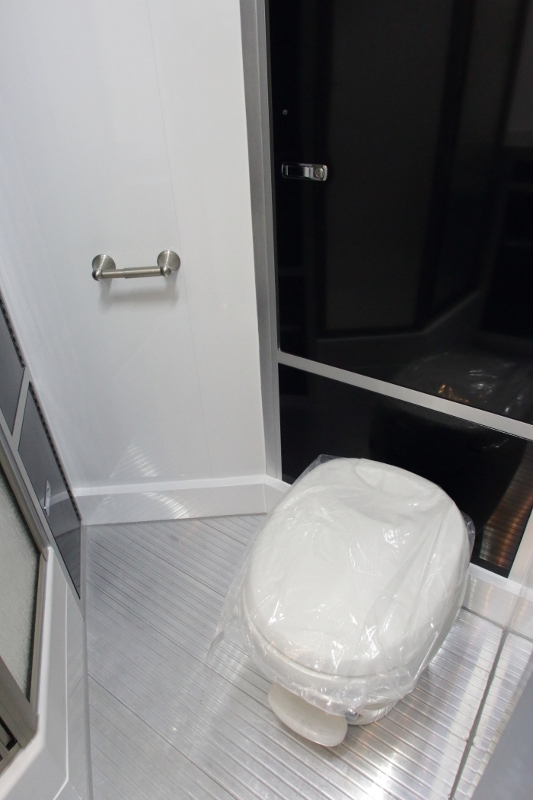

RV Style Toilet
Stainless Steel Single Bowl Sink
Plumbing & Power
1) 120V 15A Outlet
10 Gallon 120V Water Heater
12V 18" LED Light
12V Sconce Light Above Mirror
12V Water Pump - 3.0 GPM
Black Water Tank
City Water Hookup
Does Not Include 12V or 120V Power
Fresh Water Tank
Gravity Water Fill
Gray Water Tank
Tank Monitor Panel
Under Trailer Dump Valves
24,000 BTU Ductless Mini Split A/C & Heat Pump
Drain System for A/C Base Unit in Attic


If this Custom Stacker Trailer is not exactly what you are looking for, give us a call at 706-654-2882.  We would be happy to quote you your next custom stacker trailer. inTech Trailers by RPM Trailer Sales
"Often Imitated - Never Duplicated"
