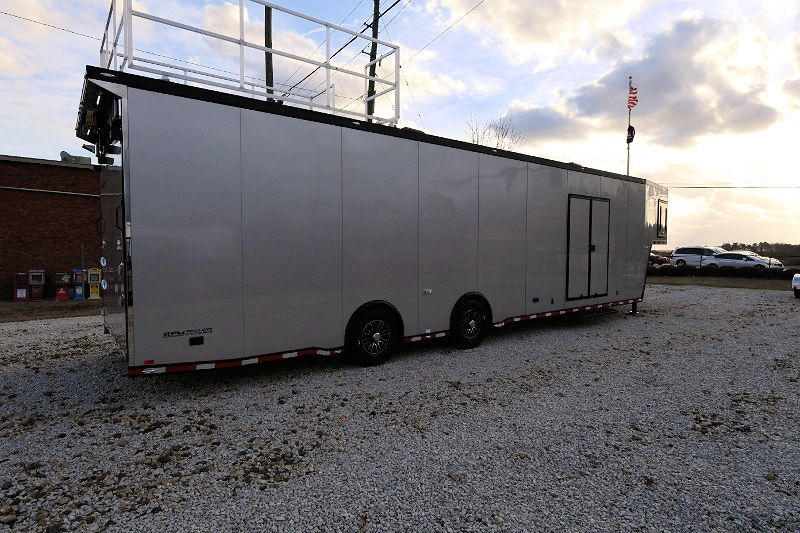

42' Custom Aluminum Gooseneck Trailer

Custom 42' inTech Aluminum Gooseneck Trailer design loaded with custom options and ready to impress!  Check out the custom cabinet design, rear glass door, and so much more this amazing trailer has to offer.

Product Specs

  • New
  • 12499
  • BGA8542TTA5
  • 8′ 6″ x 42′
Request More Info

Details

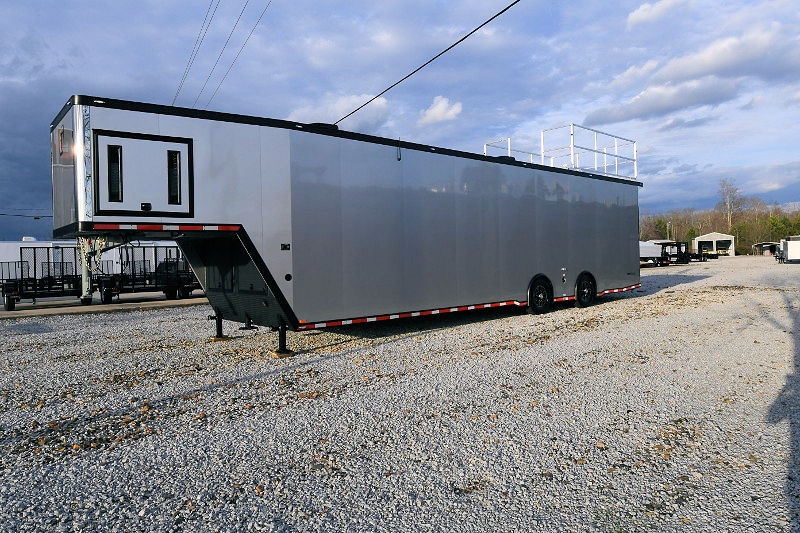

42' Custom Aluminum Gooseneck Race Trailer

Make every journey a personal one with a custom race car trailer by RPM Trailer Sales.  Check out this amazing 42’ All Aluminum Gooseneck Race Car Hauler. When you're looking for the perfect, well-equipped, Custom Gooseneck Trailer, look no further than the awesome team of custom trailer designers at RPM Trailer Sales. We've taken our most popular options and included them into a bundle of custom options, chosen specifically by the customer, for one amazing Race Car Hauler and added one pretty amazing setup that includes many of our most popular options.   This 42’ inTech aluminum gooseneck trailer features a custom trailer design that boast a custom aluminum cabinet design, 7KW Onan Generator Package with 25 Gallon in Frame Fuel Tank.  It also includes sliding glass doors, 8’ wall mounted -fold up tire rack, full walk on party roof with observation deck, and our popular C-Tech Tool Chest and so much more. Performance, Dependability and Quality Construction are key elements of every trailer we design.  RPM Trailer Sales meets each owner’s unique requirements. Plus, we've got years of experience in designing work areas to match your work routine perfectly.
Brad Sellers, owner and our custom trailer designer, designs each of our custom motorsports trailers with your needs in mind. Call RPM Trailer Sales for your next aluminum race car trailer at 706-654-2882.  RPM Trailer Sales is determined to design the best aluminum trailers in the industry!  The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest aluminum trailer dealer nationwide.  “Often Imitated – Never Duplicated”

Check out all the specifications and let us take you to the next level!
GVWR: 16,000 lbs.
Shipping Weight: 9,690.00 lbs.
Height: 8’ Interior
Width: 102” Wide Body Frame
Axles: Tandem 7,000 lb. Dexter Torsion Axles

Product Number: 12499
Model: BGA8542TTA5

Details for this custom inTech Trailer includes:
Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Adjustable GN Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels


Interior
One Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
3) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent
7' Standard Interior Height
4) 5,000 lb. Recessed D-Rings
4' Beavertail

Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights - ATP Enclosed Riser w/ 2) Storage Doors
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door
Rear Skid Plates

Additional & Selected Options:
42' icon Package
Exterior Upgrades

Upgrade to 48" 405 Series Door
FMVSS Side Door Lock
Aluminum Slide Out Step
Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4" Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches
40" x 36" 405 Series Generator Door
Awning Rail

Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25' Shore Cord
12V Battery & Box Wired
Battery Shelf in Riser Compartment
12V Fuse Panel
60 Amp Converter for 12V
3) 15 Amp Interior Recepts
1) 15 Amp Exterior Recept
5) 12V 18" LED Interior Lights - Replaces Domes
3 Way Light Switch for Interior LED Lights
2) 120V 500 Watt Quartz Halogen Lights  - 12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights

Interior Upgrades

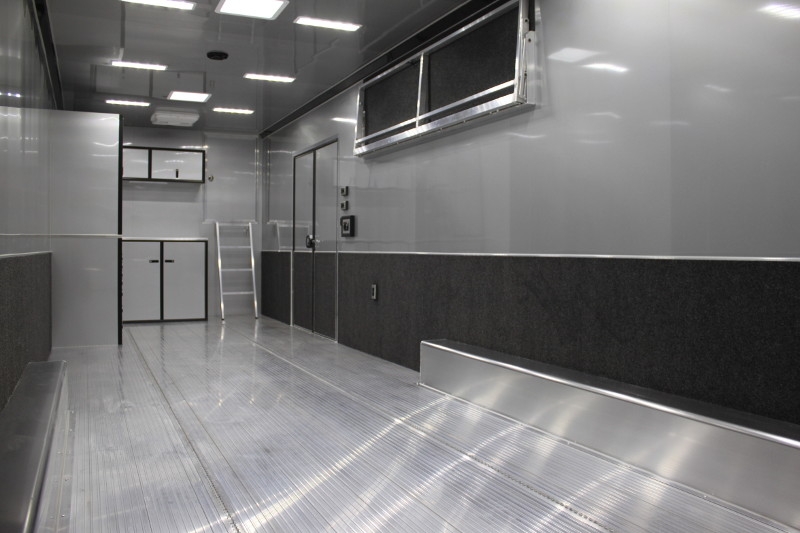

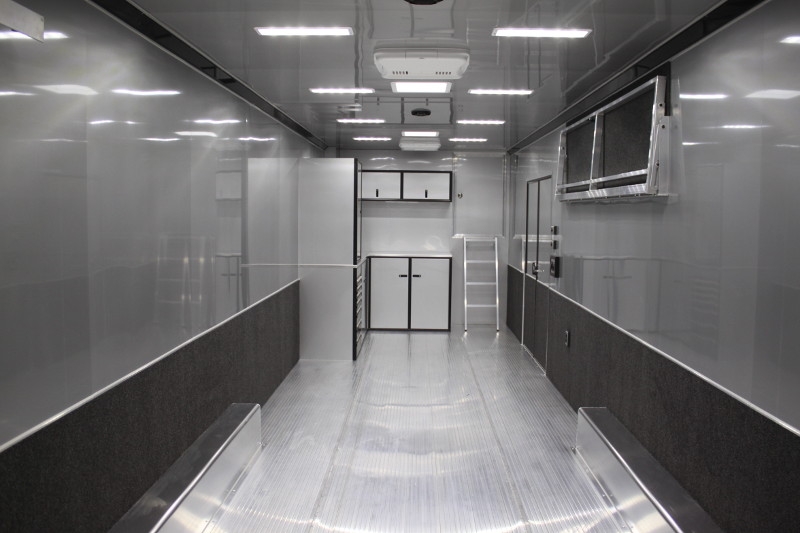

Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC

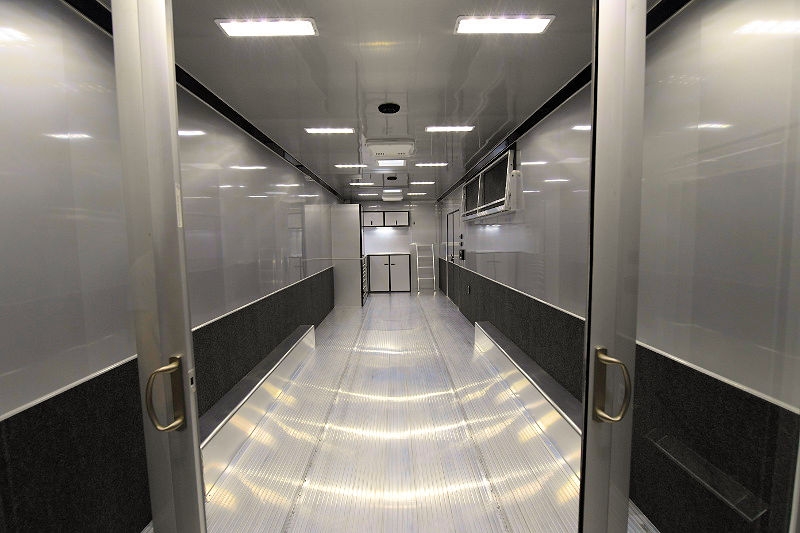

Extruded Aluminum Floor
Gray Carpet in Riser Area
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

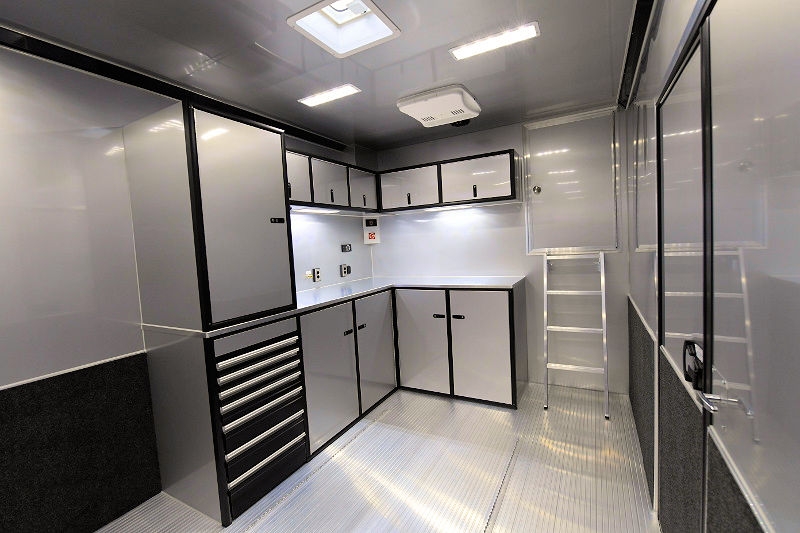

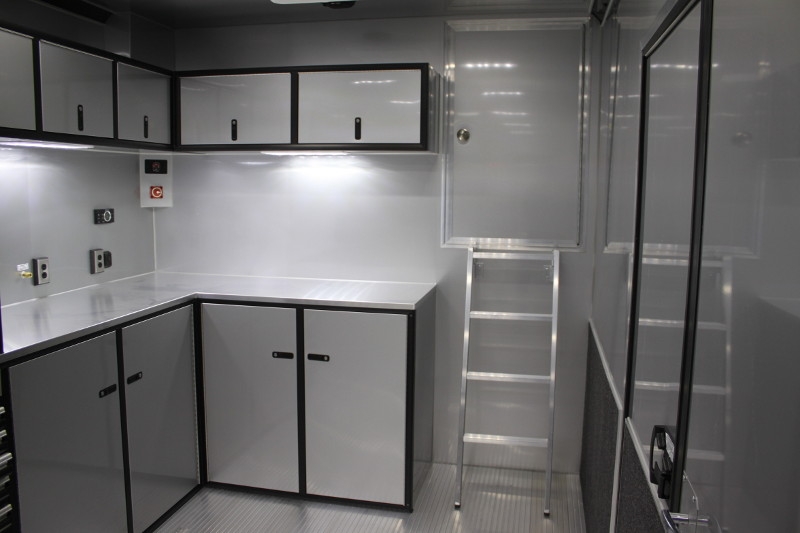

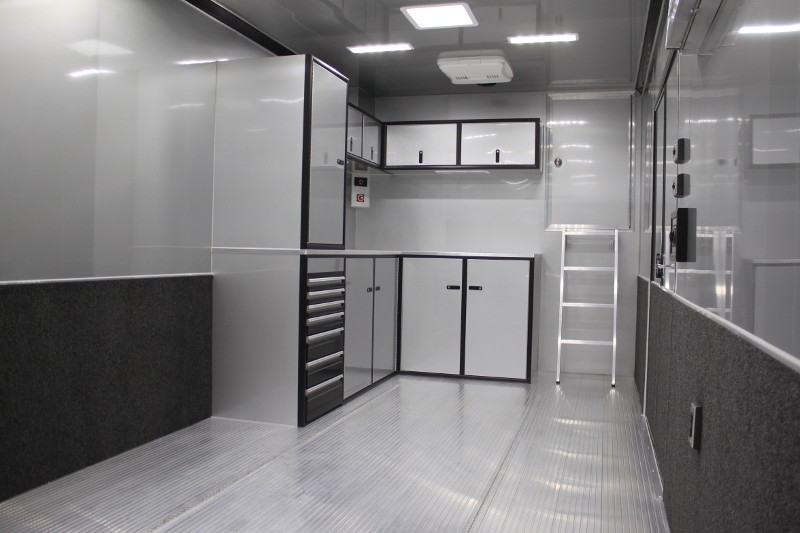

8' Premium Aluminum Upper Cabinet
8' Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet


More Additional Selected Options and Features
Upgrade iCon Gen Box Location to Stand Alone in Riser
Downgrades Base Cabinet to Straight Base
Use for Air Compressor Prep - Door to be 40" x 36"
Upgrade 2) 500W Quartz Recessed Light to Whelen 900 Series Super LED
Upgrade to Recessed Stainless Steel Latches into Ramp Door From Paddle Latches- Pair
Taper Nose for Gooseneck
Upgrade to 97.5" Rear Ramp Door Opening - 102" Wide Body
Upgrade to Heavy Duty Walk on Roof
Upgrade to Super Spread Tandem Axle w/ Skirt from Triple Axle
72" Spread from Center to Center of Axles
Full Perimeter Skirt Included  - Reverse Beavertail
12" Additional Height
Removable Ladder for Access to Bunk

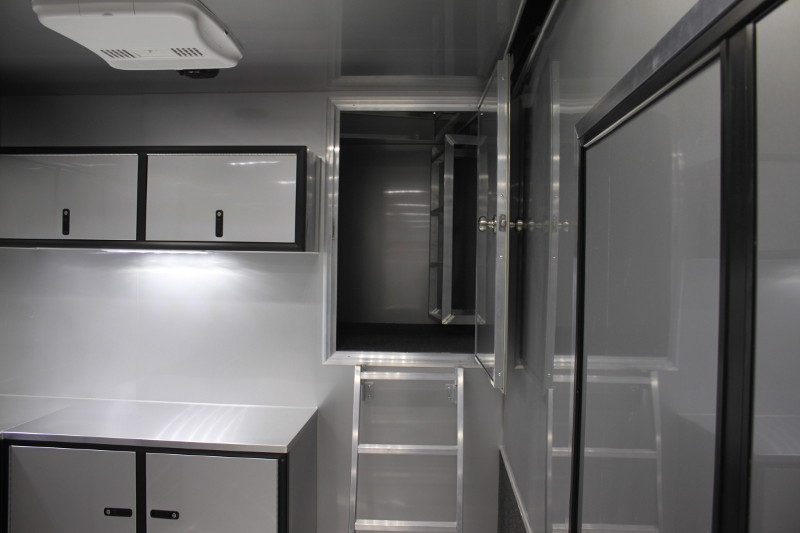

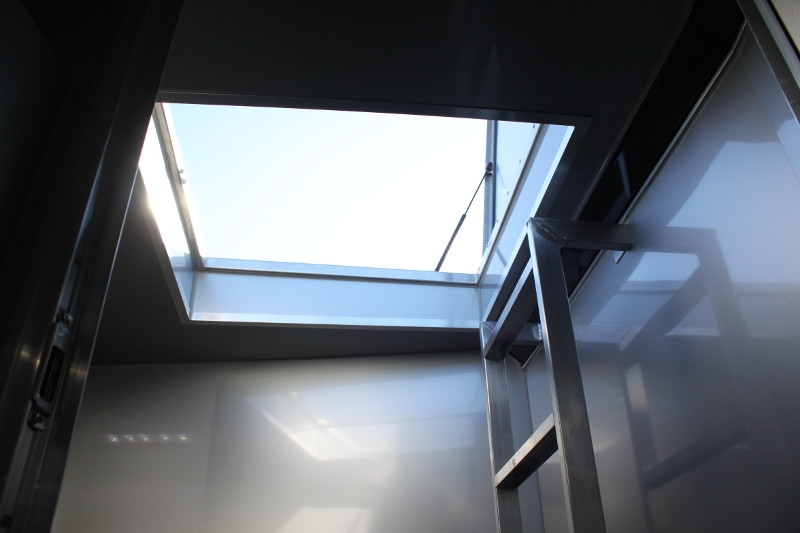

30" x 30" Roof Escape Hatch w/ Interior Ladder

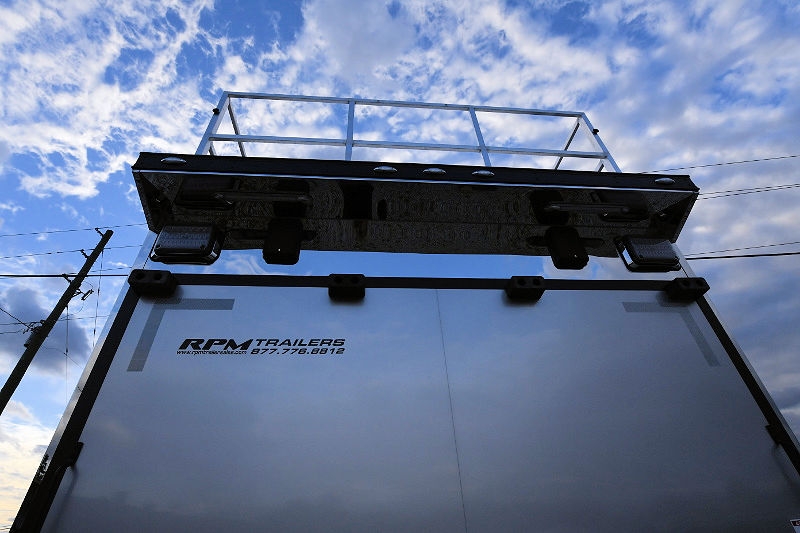

36’ Roof Mounted Viewing Rail - Open Rails
Rear Caster Wheels – Pair
Upgrade to Single Post Hydraulic Jack
Spare ST235/85R16 on Steel Wheel
Upgrade to Aluminum 16" Wheel From 16" Steel Wheel - Per Wheel
Spare Tire Wall Mount
Upgrade to 60" 405 Series Double Door
Add 5' Aluminum Ramp Extension - 84" Wide w/ 3" Bumpers

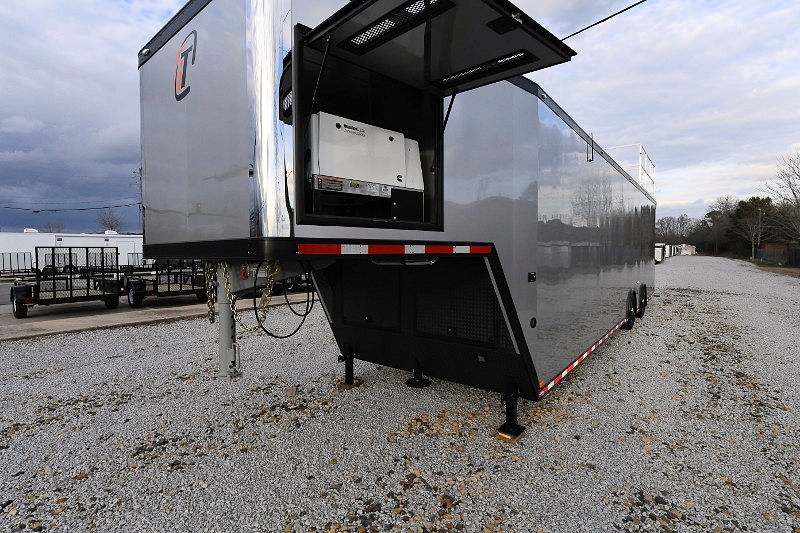

7.0KW Onan Generator Package (120V/240V) – Gasoline
In Frame Fuel Tank
Interior Insulated Generator Compartment
40" x 36" 405 Series Vented Gen Door
Automatic Transfer Switch
12V Marine Grade Battery in Vented Box
Remote Start, Fuel Gauge & Hour Meter
4) additional 120V 15A Recepts
3 Way Light Switches (Pair)
9 additional 12V 18" LED Interior Light
10 additional Panelite LED Clearance Light
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
34” High Carpet on Interior Walls
Add Partition Wall - Welded Aluminum Tube w/ 28" Swinging Door
Insulated Walls & Ceiling - R4 Rated
4' Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
Aluminum Dresser Closet to Lower Cabinet
4' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
Black Anodize Cabinet Trim
60’ Airline Track – Recessed

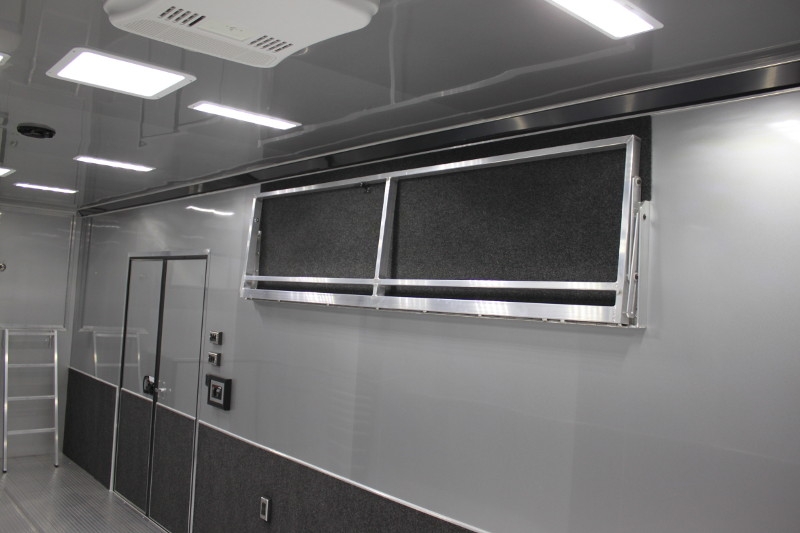

Tire Rack - 8' Fold Up Wall Mounted
18" Wide Tie Down Strap Hangers – Pair

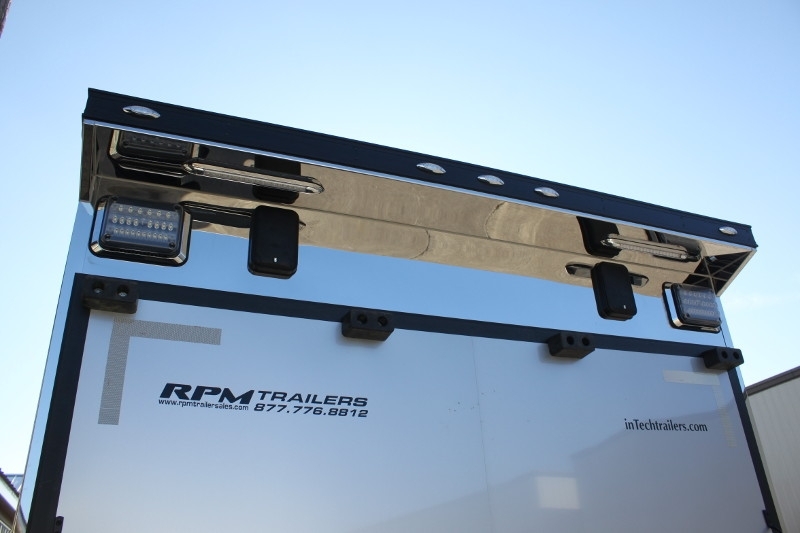

Color Matched Rear Spoiler w/ 2) Integrated LED Loading Lights
Black Anodized Exterior Package
2) 15,000 BTU A/C w/ Heat Strips
Upgrade to Digital Wall Mount Thermostat for A/C
Airline Prep Package - 1 Inlet - 3 Outlets - Dedicated 20A Recept at Inlet
AM/FM/CD Bluetooth Stereo w/ Four Interior Speakers
Add (2) Exterior Speakers to Radio - Includes Amplifier

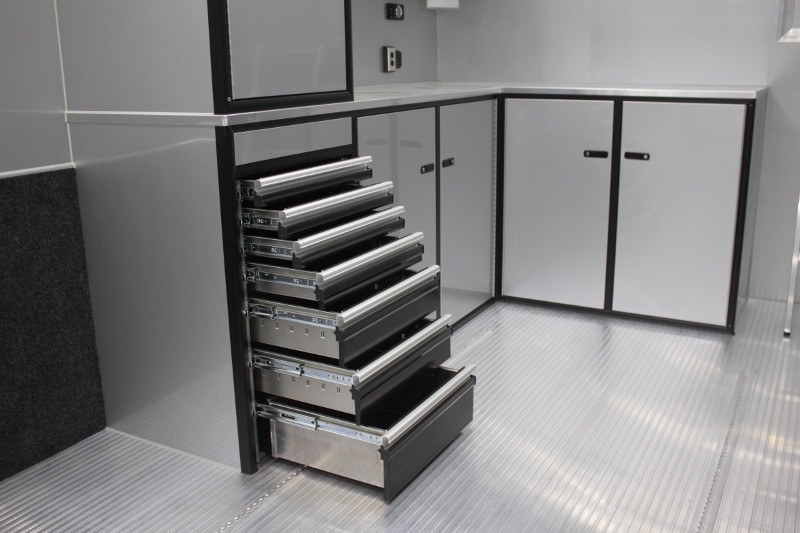

Custom C-Tech Tool Chest

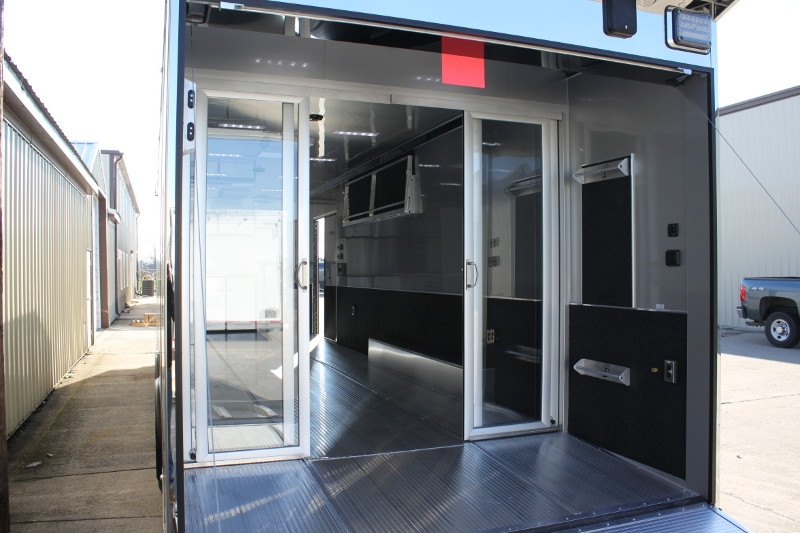

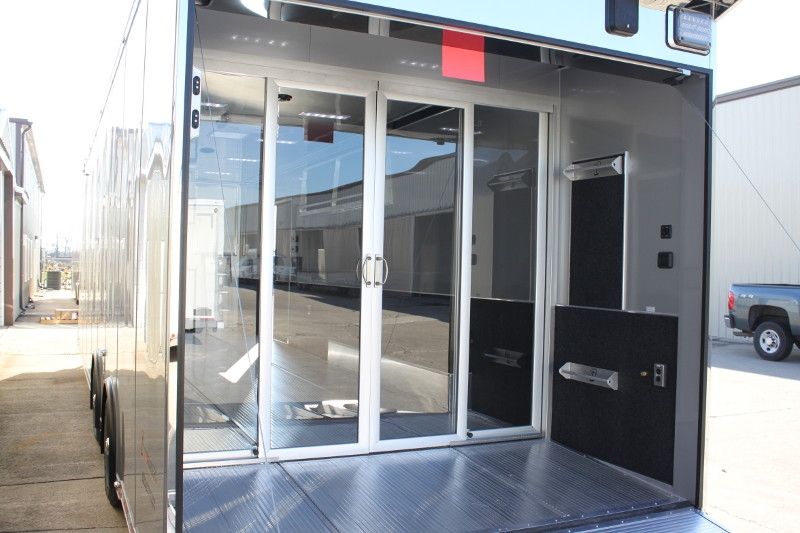

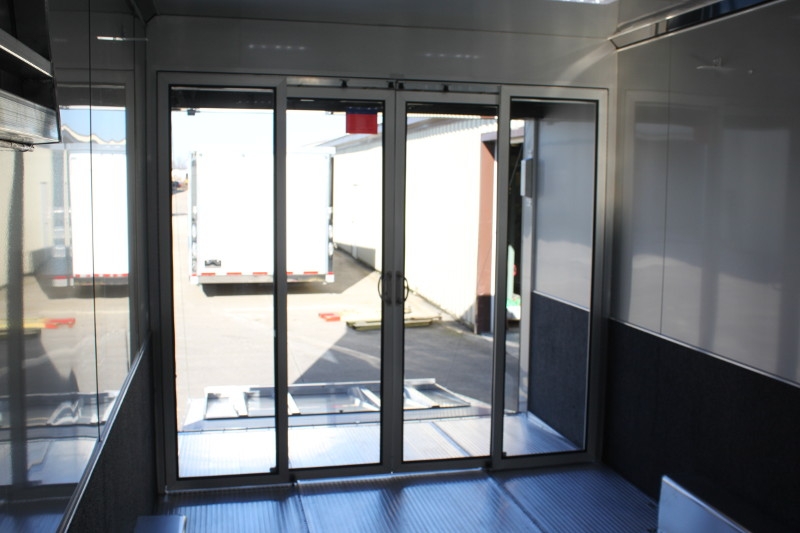

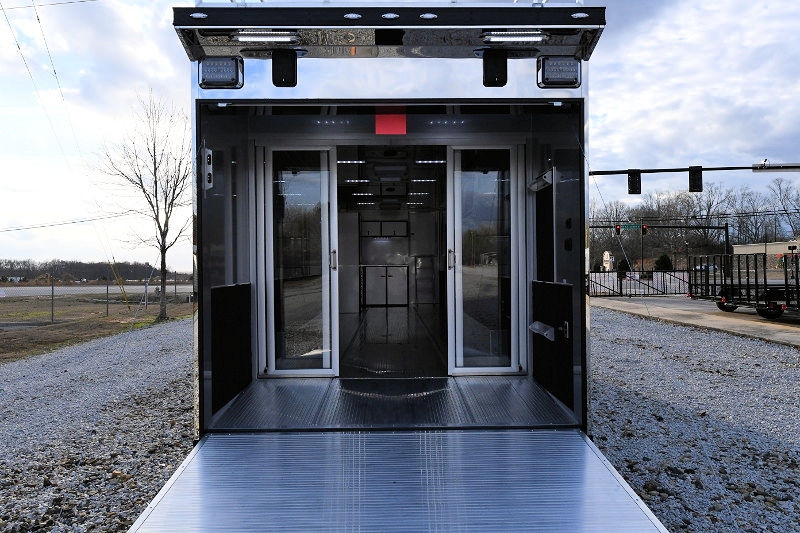

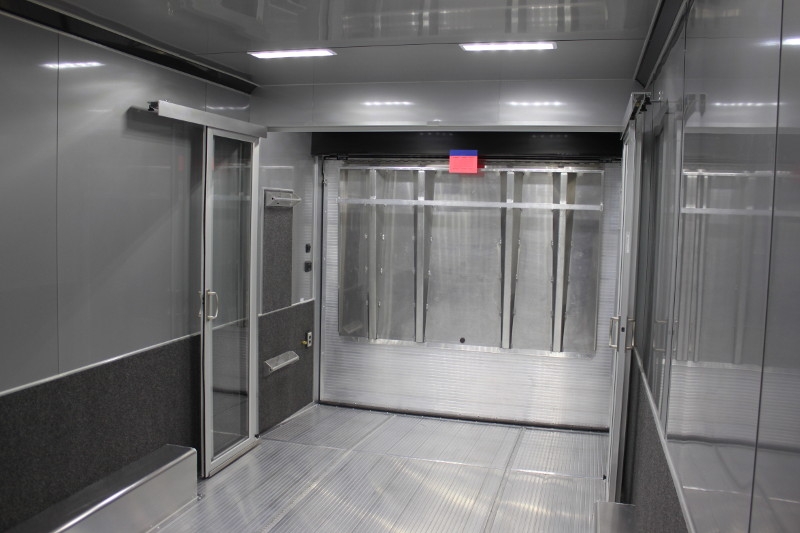

Rear Sliding/Fold Away Glass Double Doors
