40' Custom Dirt Late Model Trailer

Product Specs

  • New
  • 12309
  • BTA8540TA5
  • 8′ 6″ x 40′
Request More Info

Details

40’ Dirt Late Model Aluminum Gooseneck Trailer

When you're looking for the perfect, well-equipped, Dirt Late Model Trailer, look no further than the super stars of custom trailers, RPM Trailer Sales. We've taken our most popular options and included them into a bundle of custom options, chosen specifically by the customer, for one amazing Custom Dirt Late Model Hauler.
This trailer features a  97.5 Rear Ramp Door Opening, custom ramp overs, Onan generator package, 34” high carpet on the walls,  fold up wall mount tire racks, heavy duty walk on roof & more!
Performance, Dependability and Quality Construction are key elements of every trailer we design.  RPM Trailer Sales meets each owner’s unique requirements. Plus, we've got years of experience in designing work areas to match your work routine perfectly.
Whether it’s a basic single car Gooseneck trailer or one of our custom Stacker Trailers with living quarters, we design each of our trailers paying close attention to strict quality control requirements. As a result, all of our trailers pull like a dream and are built to last a lifetime. Why not give us a call today at 706-654-2882 for a quote on a trailer to fit YOUR operation?

40’ Custom inTech Aluminum Gooseneck Trailer Specifications:
GVWR: 14,000 lbs.
Shipping Weight: 9,390 lbs.
Width: 8.50
Height: 7.5’ Interior

Axle Type: Tandem 7,000lb. Torsion Axles

Model: BGA8540TA5
Product Number: 12309

Custom Dirt Late Model Trailer Standard Specification:

Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Adjustable GN Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels

Interior
One Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
3) Dome Lights
1) 12V Power Roof Vent
7' Standard Interior Height
4) 5000# Recessed D-Rings
4' Beavertail

Exterior
 .030 Aluminum Skin
Screwless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
ATP Enclosed Riser w 2) Storage Doors
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks - Rear Ramp Door
Rear Skid Plates

Selected Options:
40' iCon Package
Exterior Upgrades

Upgrade to 48" 405 Series Door
FMVSS Side Door Lock
Aluminum Slide-Out Step
Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4" Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches
40" x 36" 405 Series Generator Door
Awning Rail

Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25' Shore Cord
12V Battery & Box Wired
Battery Shelf in Riser Compartment
12V Fuse Panel
60 Amp Converter for 12V
3) 15 Amp Interior Recepts
1) 15 Amp Exterior Recept
4) 48" Fluourescent Lights – Recessed
3 Way Light Switch for Fluourescent Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights

Interior Upgrades
Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC
Extruded Aluminum Floor
Gray Carpet in Riser Area
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

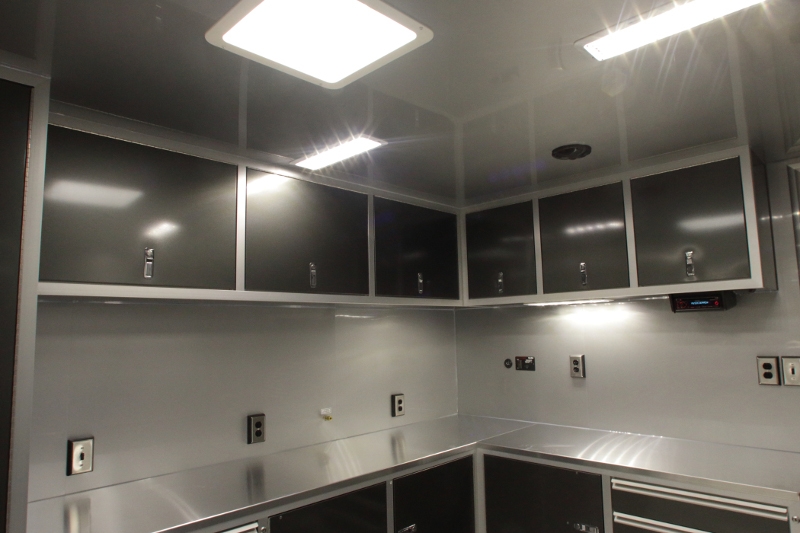

8' Premium Aluminum Upper Cabinet
8' Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet

Additional Selected Options:
Upgrade 48" Fluorescent Lights to 18" 12V LED Lights
Upgrade 500W Quartz Recessed Light to Whelen 900 Series Super LED
Upgrade to Recessed Stainless Steel Latches into Ramp Door From Paddle Latches
Taper Nose for Gooseneck
Upgrade to 97.5" Rear Ramp Door Opening - 102" Wide Body
Upgrade to Heavy Duty Walk on Roof
Upgrade to Super Spread Tandem Axles w/ Skirt
6" Additional Height
Removable Exterior Ladder w/ Interior Hangers
Rear Caster Wheels – Pair

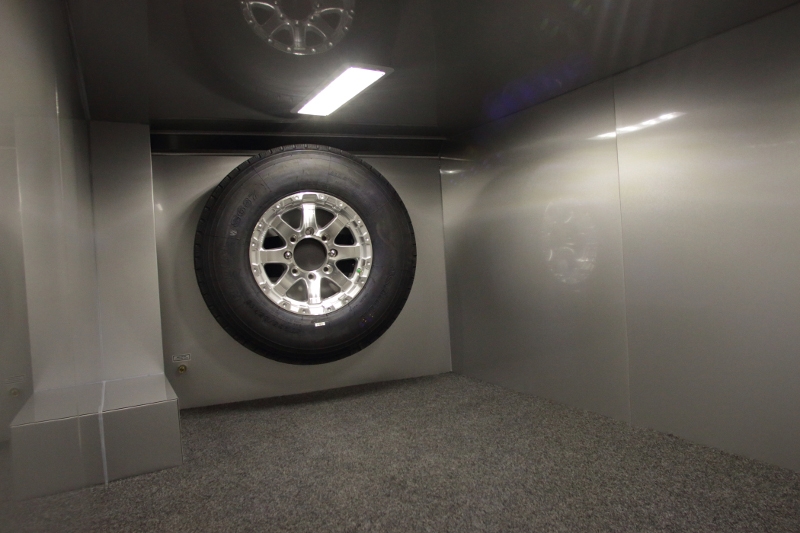

Spare ST235/85R16 on Aluminum Wheel
Spare Tire Wall Mount
Upgrade to 60" 405 Series Double Door
37" x 36" 405 Series Side Hinged Baggage Door For Air Compressor Compartment
Upgrade to Full Width Ramp Extension 36” Long w/ 3" Bumpers
5.5KW Onan Generator Package (120V/240V) – Gasoline
In Frame Fuel Tank
40" x 36" 405 Series Vented Gen Door
Automatic Transfer Switch
12V Marine Grade Battery in Vented Box
Remote Start, Fuel Gauge & Hour Meter
7) additional 120V 15A Recepts
5) additional 12V 18" LED Interior Light
Upgrade 3) Standard Dome Light to 12V 18" LED Light
10) Additional Panelite LED Clearance Lights
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
2) Additional Whelen 12V Exterior LED Scene Light - 900 Series
34” High Carpet on Interior Walls
Partition Wall - Welded Aluminum Tube w/ Swinging Door
Insulated Walls & Ceiling - R4 Rated
Premium Standalone Dresser Closet w/ Clear Anodized Trim
8' Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
2) Tool Chest Bank to Lower Cabinet w/ Clear Anodized Trim
4' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
ATP Steps into Gooseneck Riser
1) 6000# D-Ring - Swivel – Recessed
Airline Track - Surface Mounted
Airline Track – Recessed

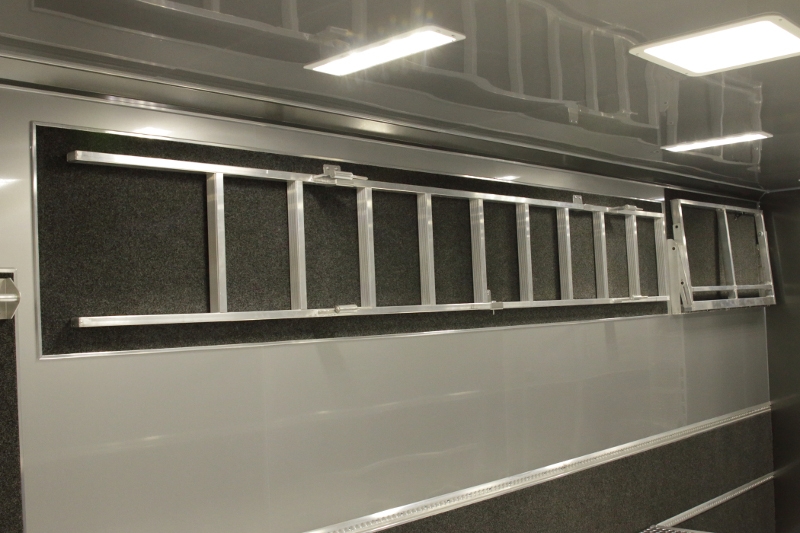

2) 4' Fold Up Wall Mounted Tire Racks
1) 18" Wide Tie Down Strap Hangers – Pair
Fuel Jug Rack on Wheelbox - Full Length
4,000# Winch w/ Wireless Remote Control & Synthetic Rope

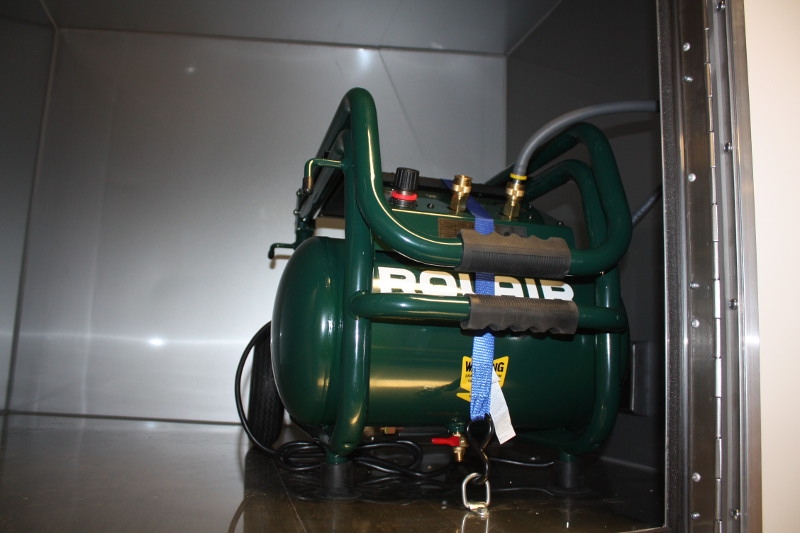

Air Compressor w/ 3 Hardlined Outlets
2) Additional Airline Outlet to Prep Package
AM/FM/CD Stereo w/ 2) Interior Speakers to 2) Exterior Speakers
Electrical Reel
Custom Removable Rampovers
Airline Hose Reel
