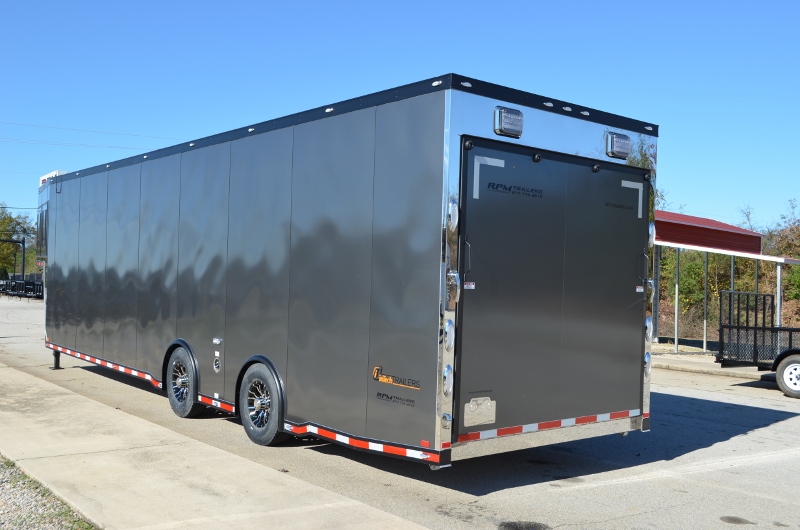

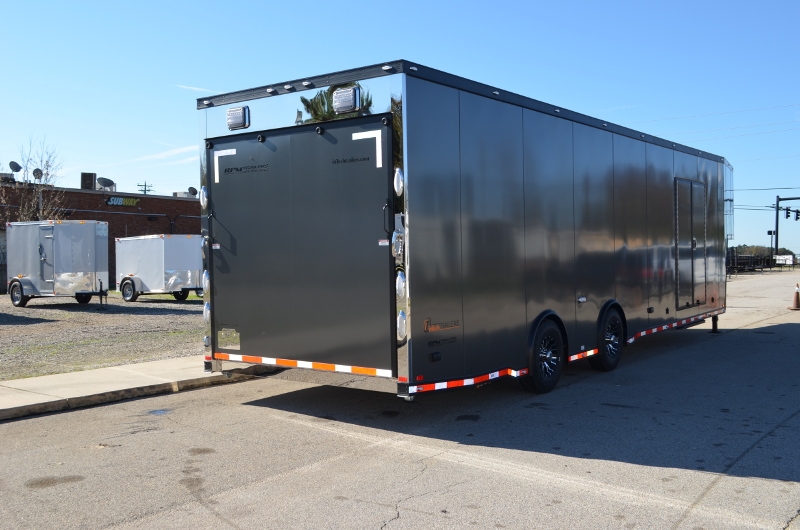

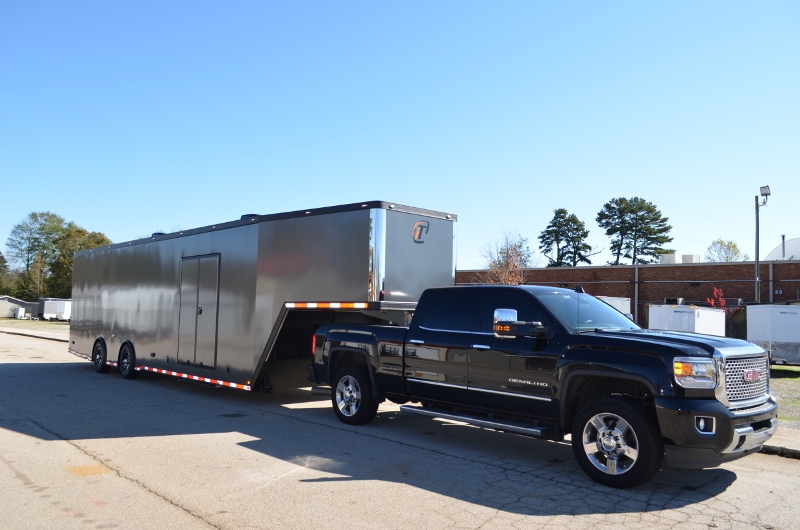

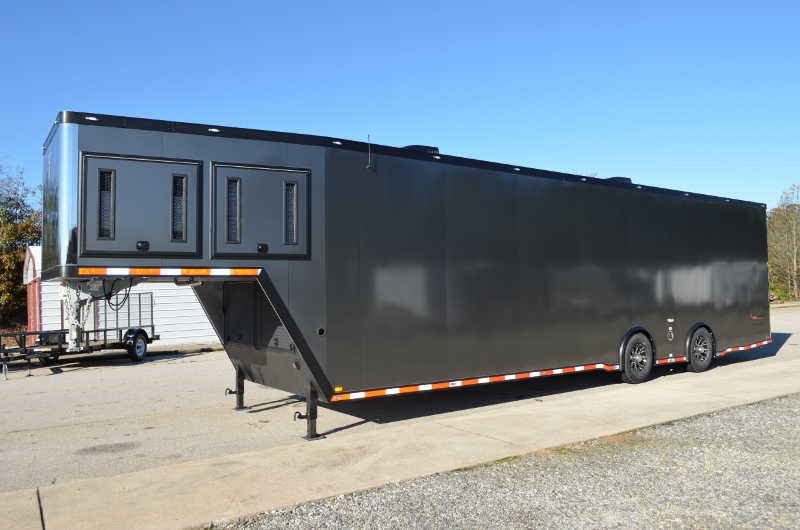

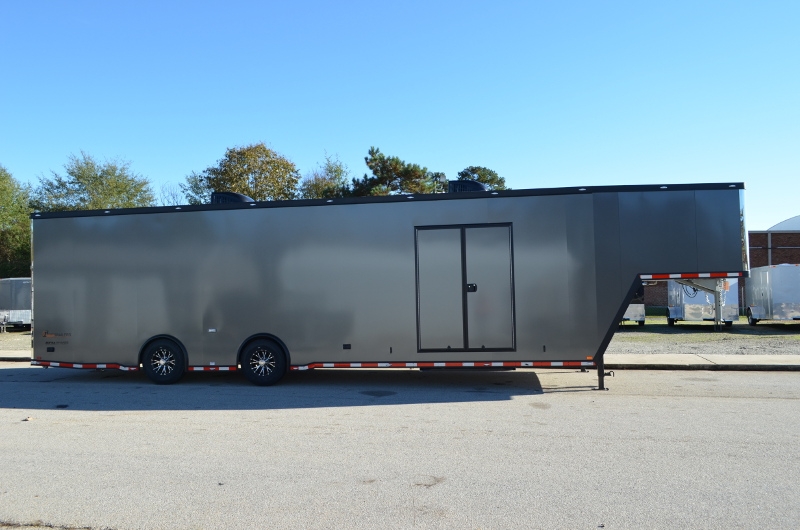

40’ Custom Aluminum Gooseneck Race Car Trailer
Check out our premium custom aluminum gooseneck race car trailers. Trailers built and specifically designed for you by RPM Trailer Sales
This 40' aluminum gooseneck inTech Trailer that was designed with a racers heart in mind. With 8’ interior height and option on top of options, you can’t go wrong with this trailer. RPM Trailer Sales redefines what a luxury trailer should be built like. The charcoal aluminum skin with fully anodized black exterior and interior aluminum package not only accents the trailer beautifully, but also protects the aluminum for a lifetime against any kind of corrosion for maximum strength and a rich luxury look. Once you go inside you have all the top quality custom craftsmanship one could ask for. This all aluminum trailer includes insulated walls & ceilings, base and upper premium aluminum cabinets, wheel well cabinets, 5.5K Onan Generator Package and so much more. Take a glance at all the options and see for yourself why so many trust RPM trailer Sales. We guarantee our aluminum trailers are the best in design and we offer the BEST customer service. "Often Imitated - Never Duplicated" Contact us at 706-654-2882.
GVWR: 14,000 lbs.
Shipping Weight: 8,010 lb.
Height: 8’ Interior Height
Axle Type: Tandem 7,000 lb. Dexter Torsion Axles
Model: BGA8540TA5
Product Number: 12355
40’ Custom Aluminum Gooseneck Race Car Trailer Details & Specifications:
Chassis
Full Perimeter Aluminum Frame
All-Tube Aluminum Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
5,000lb. Manual Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/80R16 Nitro Filled Tires w/ Steel Wheels
Interior
One-Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
2) 12V Dome Lights w/ Switch
1) 12V Power Roof Vent w/ Switch
6.5' Interior Height
4) 5000# Recessed D-Rings
4' Interior Beavertail
Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
24" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door
Rear Skid Plates
Additional Selected Options:
28' iCon Package
Exterior Upgrades
Upgrade to 7' Interior Height
Extended Tongue

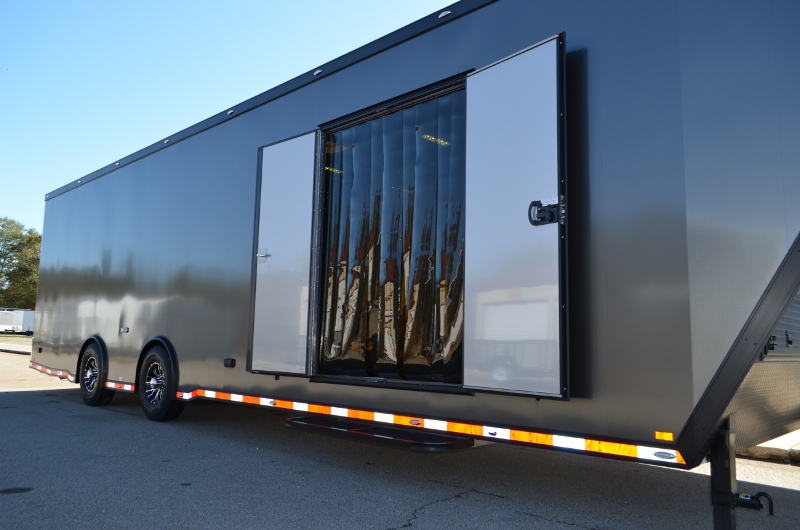

Upgrade to 48" 405 Series Door
FMVSS Side Door Lock

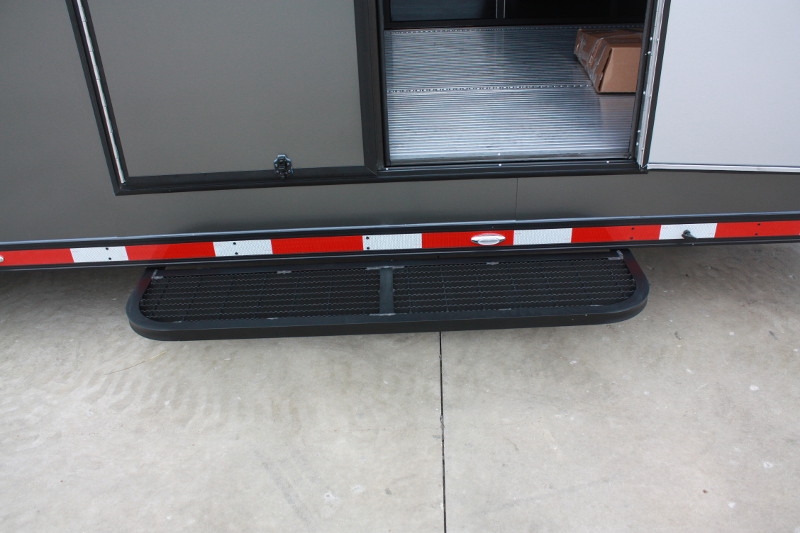

Aluminum Slide Out Step

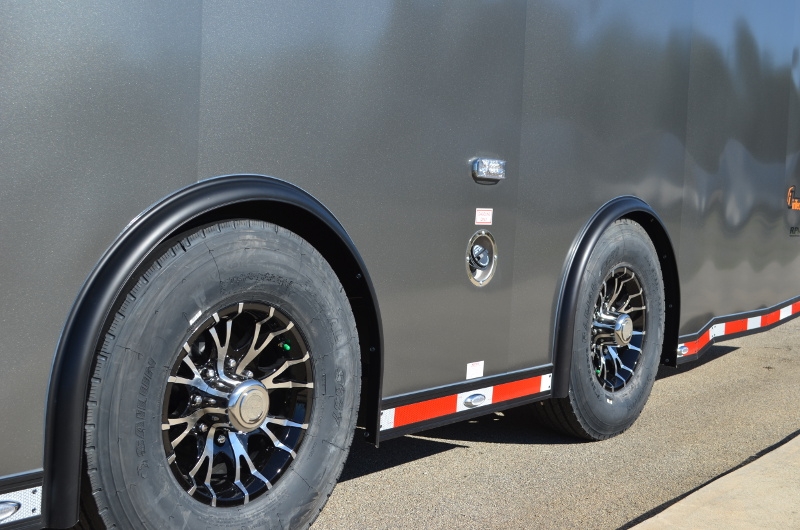

Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4" Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches - 40" x 36" 405 Series Generator Door
Awning Rail
Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25' Shore Cord
12V Battery & Box Wired
12V Fuse Panel
60 Amp Converter for 12V
3) 15 Amp Interior Recepts
1) 15 Amp Exterior Recept

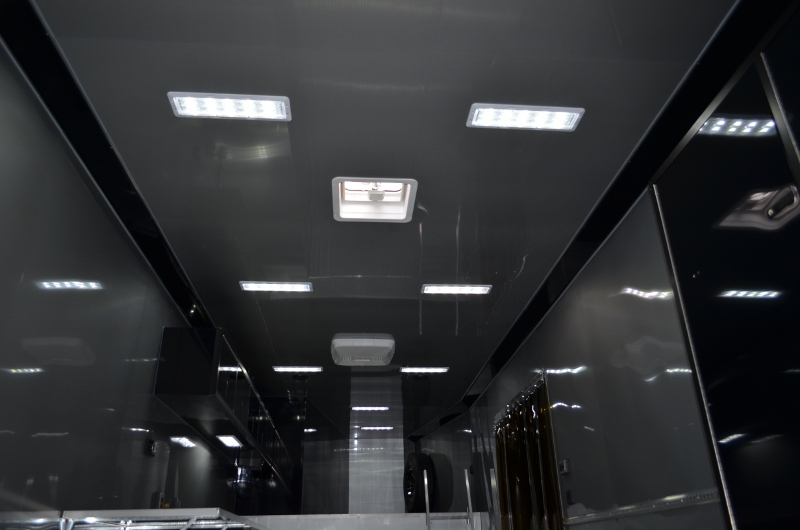

3) 48" Fluorescent Lights – Recessed
3 Way Light Switch for Fluorescent Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch

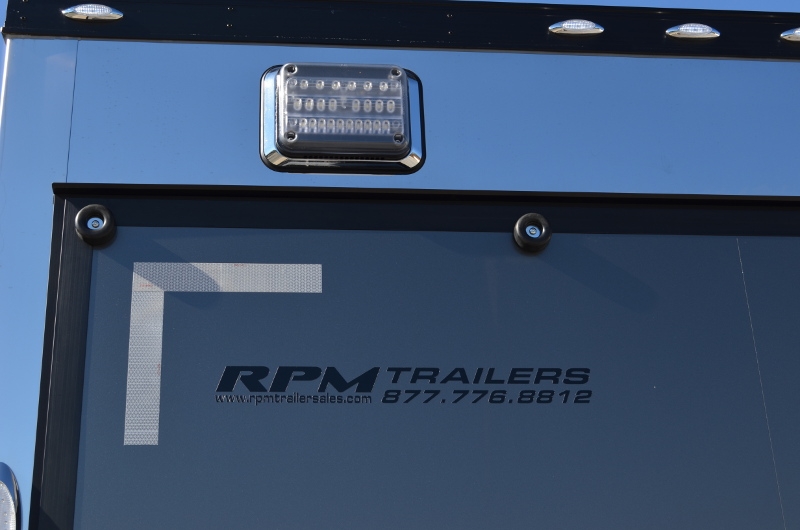

Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights
Interior Upgrades

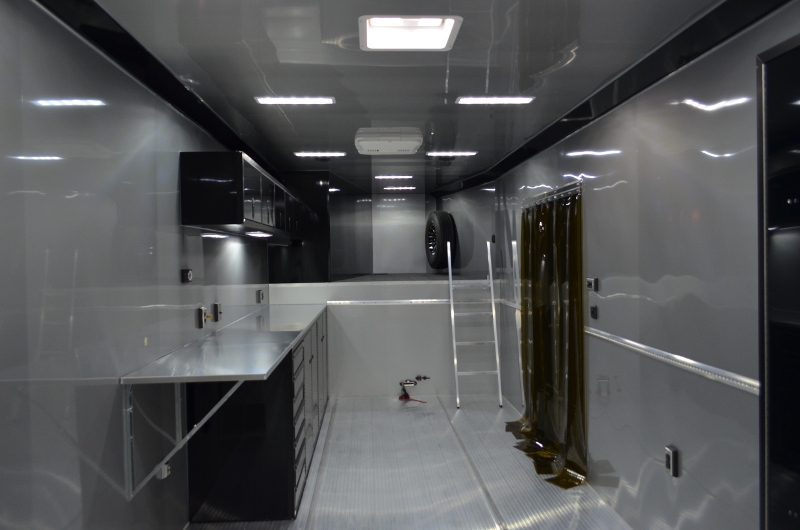

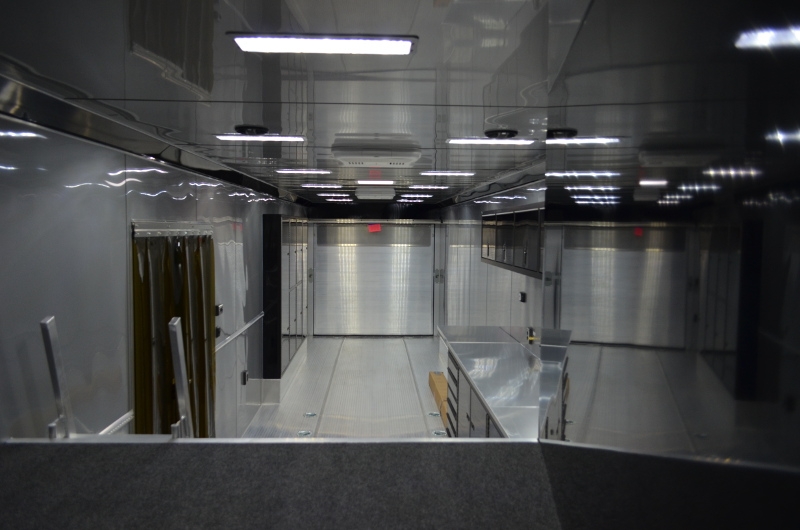

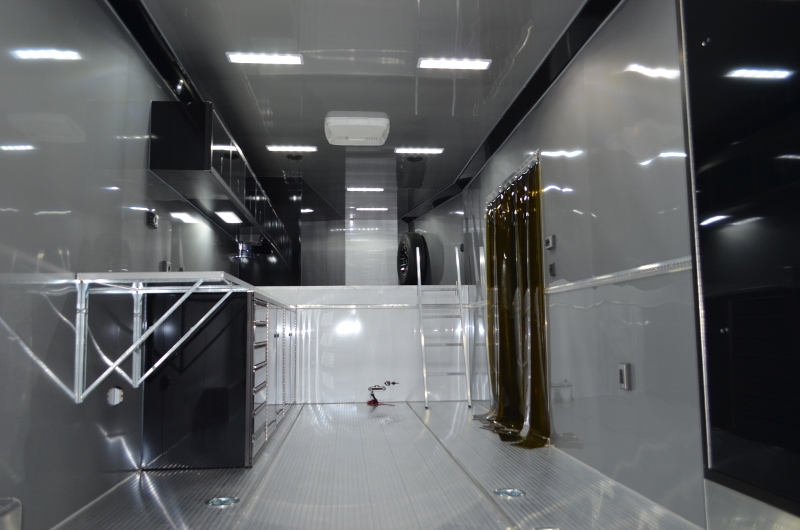

Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC
Extruded Aluminum Floor
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

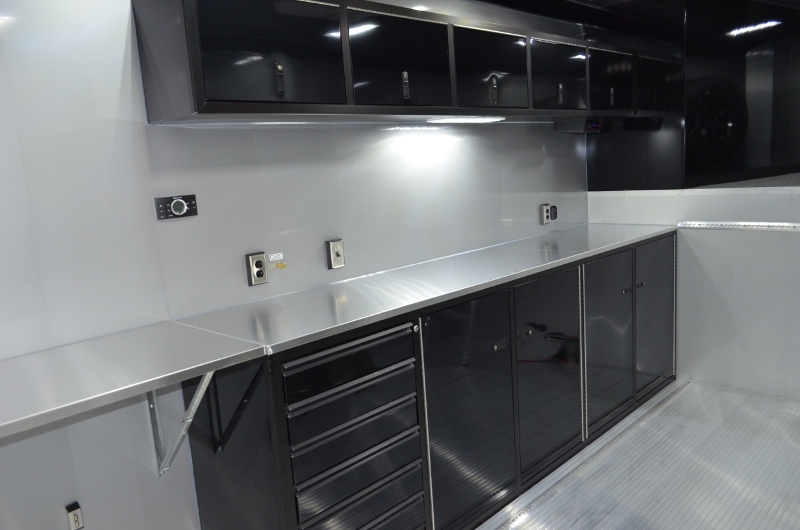

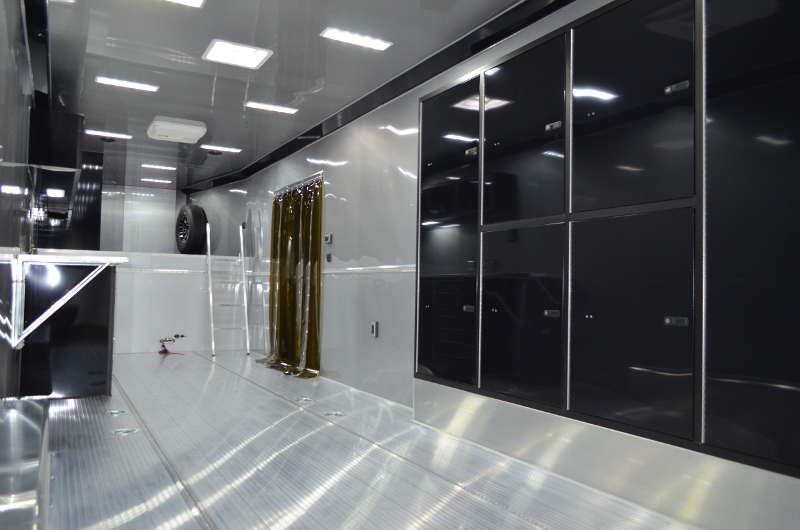

8' Premium Aluminum Upper Cabinet
8' Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet
8' Interior Height Maximum w/ Package
More additional added options:
Install Quartz Halogen Lights over Rear Ramp Door
Downgrade to Straight Base Cabinet From L-Base
12" Additional Height
Rear Caster Wheels
Spare ST235/80R16 on Aluminum Wheel
Spare Tire Wall Mount

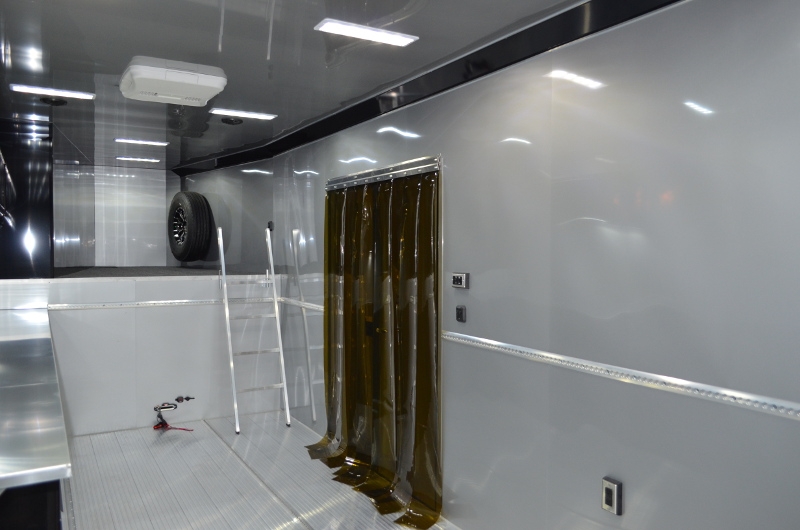

Cold Curtain for Rear Ramp Door

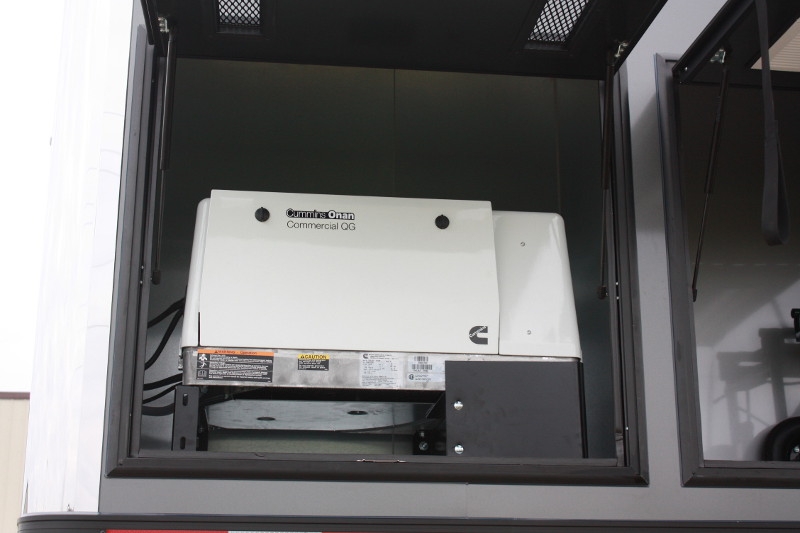

5.5KW Onan Generator Package (120V/240V) – Gasoline
In Frame Fuel Tank

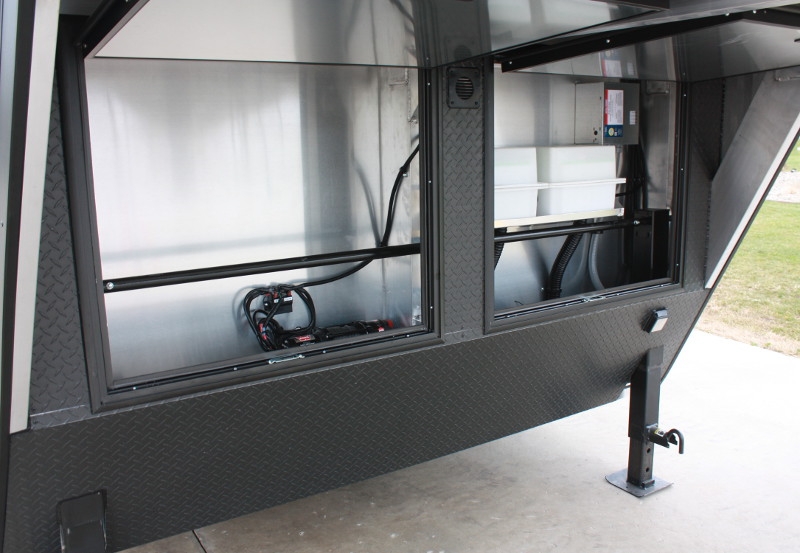

Interior Insulated Generator Compartment
40" x 36" 405 Series Vented Gen Door
Automatic Transfer Switch
12V Marine Grade Battery in Vented Box
Remote Start, Fuel Gauge & Hour Meter
additional 120V 48" Fluorescent Light
Additional Panelite Backup Lights – Pair
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
Insulated Walls & Ceiling - R4 Rated
Upgrade to Lowered Skirt w/ Reverse Beavertail Design
Black Anodized Exterior Package
15,000 BTU A/C
Upgrade to Digital Wall Mount Thermostat for AC
In Floor Winch Box w/ Pulley - Angled Mount

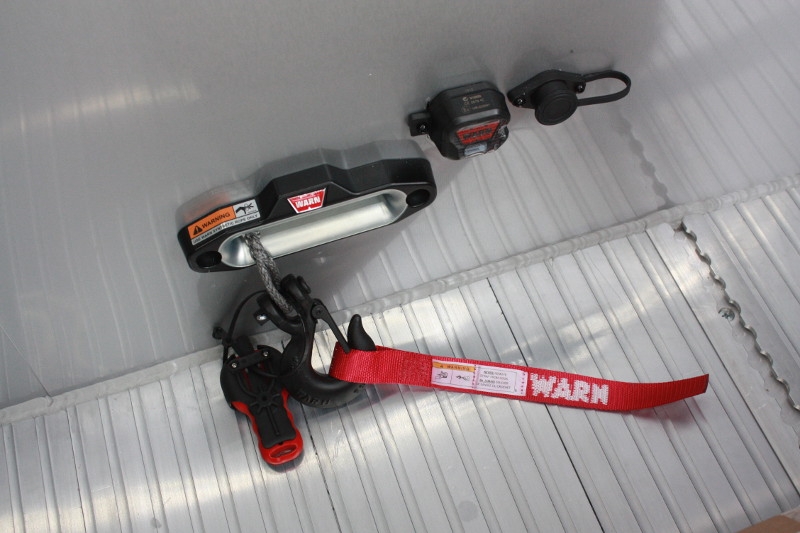

4,000 lb. Winch w/ Wireless Remote Control & Synthetic Rope
AM/FM/CD Stereo w/ Four Interior Speakers
