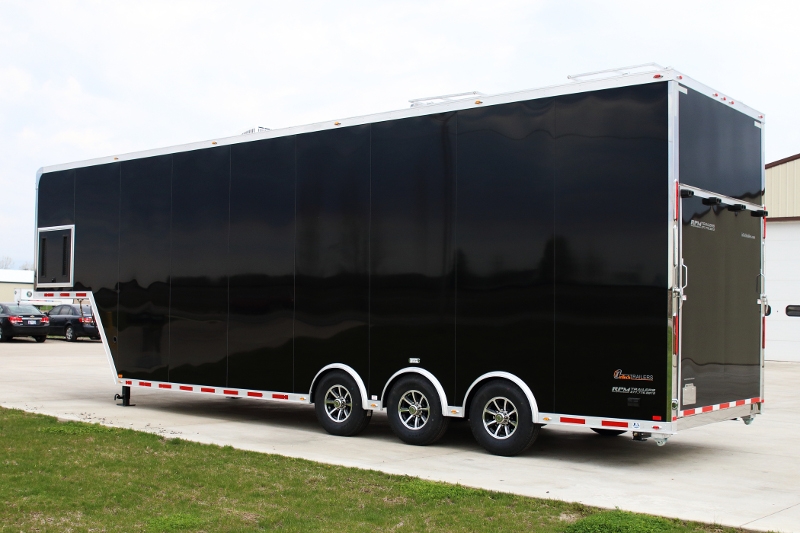

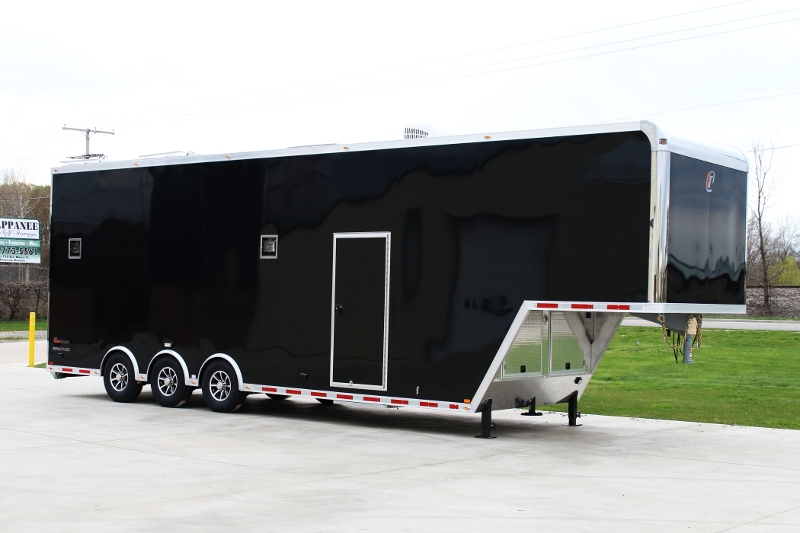

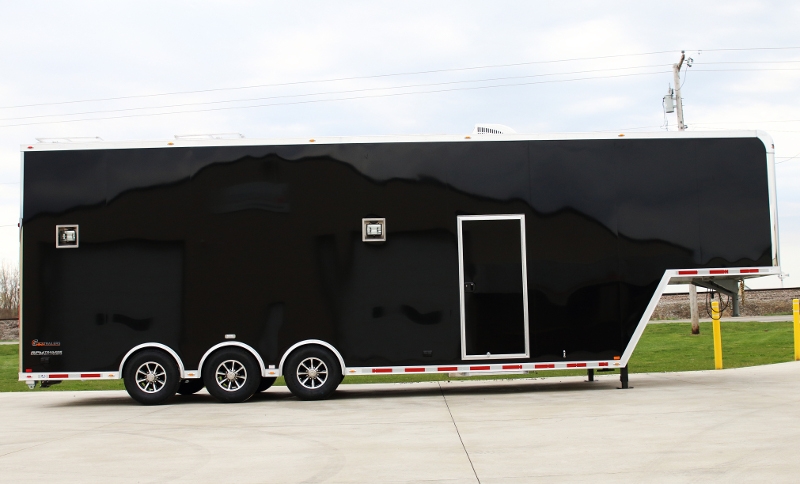

36' Custom Gooseneck Stacker Trailer

This 36' inTech Aluminum Gooseneck Stacker Trailer will not disappoint.  Loaded with custom features, RPM Trailer Sales knocked this Aluminum Stacker Trailer out of the park.  Take a look at this must see 36' custom stacker race car hauler and all its amazing features.

Product Specs

  • New
  • 12126
  • BGA8536TTA5
  • 8′ 6″ x 36′
Request More Info

Details

36’ Custom Aluminum Gooseneck Stacker Trailer

Custom Stacker Trailers are our specialty! RPM is committed to satisfying the unique needs of each of our customers by providing a premium quality custom product at an affordable price. We take pride in the fact that we design the best custom aluminum stacker trailers money can buy. Making sure that each part of the trailer, no matter how insignificant, is of the highest quality possible.  We design and custom build Tag and Gooseneck Stacker Trailers to exceed the expectations of our customers.
Brad Sellers, our custom Stacker specialist designs each of our customers stacker trailer with your needs in mind.
This 36' custom stacker trailer is a beats and a must see.  Call RPM Trailer Sales for your next custom aluminum stacker trailer at 706-654-2882.  RPM Trailer Sales is determined to design the best aluminum trailers in the industry!  The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest aluminum trailer dealer is the country!

GVWR: 24,990 lbs.
Shipping Weight: 8,980 lbs.
Interior Height: 10’
Axle Type: Triple 7,000 lb. Torsion Axles

Model: BGA8536TTA5
Product Number: 12126

Chassis:
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes- All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2) 5/16” Ball Coupler
Dual Leg Manual Landing Gear

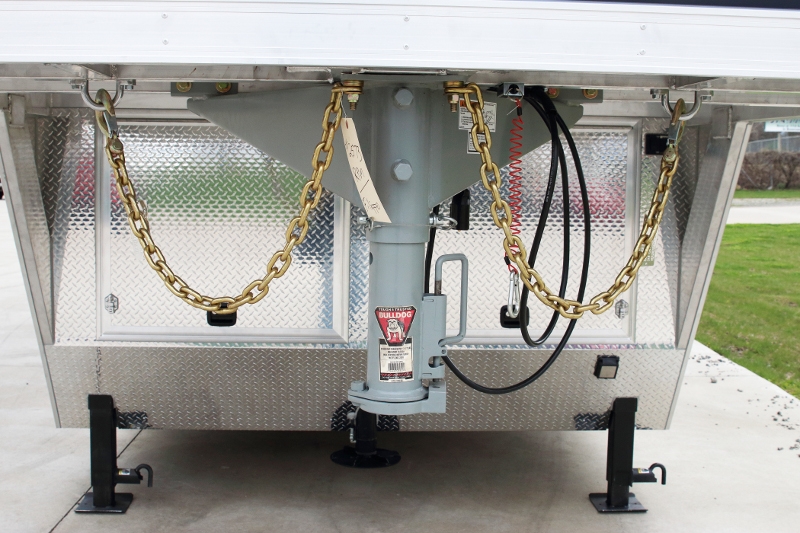

Safety Chains w/ Storage Loop
16” O/C Floor Crossmembers
16” O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axles Design w/ individual Fenderettes
ST 235 85 R 16 Nitro Filled Tires w/ Steel Wheels

Interior
One Piece Aluminum Subfloor Vapor Barrier
3) Dome Lights
7’ Interior Height
4’ Beavertail
¾” Plywood Subfloor
1) 12V Power Roof Vent
4) 5,000 lb. Recessed D-Rings

Exterior
.030 Aluminum Skin
One Piece Aluminum Roof
3” Upper and Lower Rub Rail
LED Slimline Tail Lights
36’ 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Aluminum Bar Lock on Ramp Door
ATP Enclosed Riser w/ 2) Storage Doors
Rear Ramp Door w/ Gapless Continuous Hinge
Rear Skid Plates
Screwless Exterior
Arched & Trussed Walk - On Roof System
LED Clearance Lights

Stacker Features
36' Stacker Lift Package:
2)12V Deep Cycle Batteries w/ Vented Box
4) D-Rings installed on Lift
.030 Screwless Aluminum Interior Walls & Ceiling

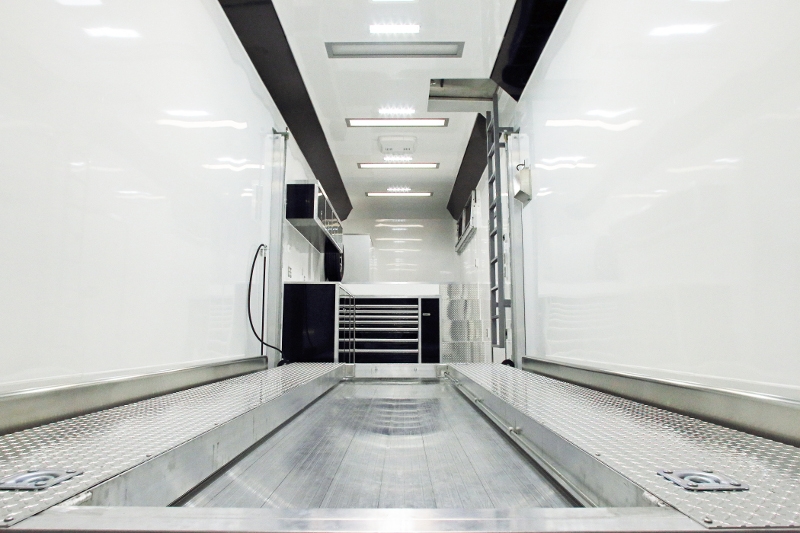

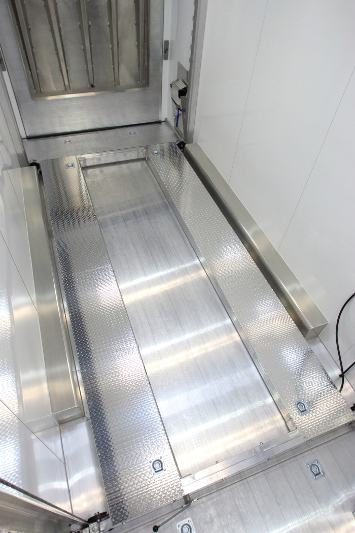

14’ All Aluminum Split Rail Lift w/ ATP Rail Covering
4” Upper & Lower Rub Rail Trim
Add Single Post Hydraulic Front Jack
Extruded Aluminum Ramp

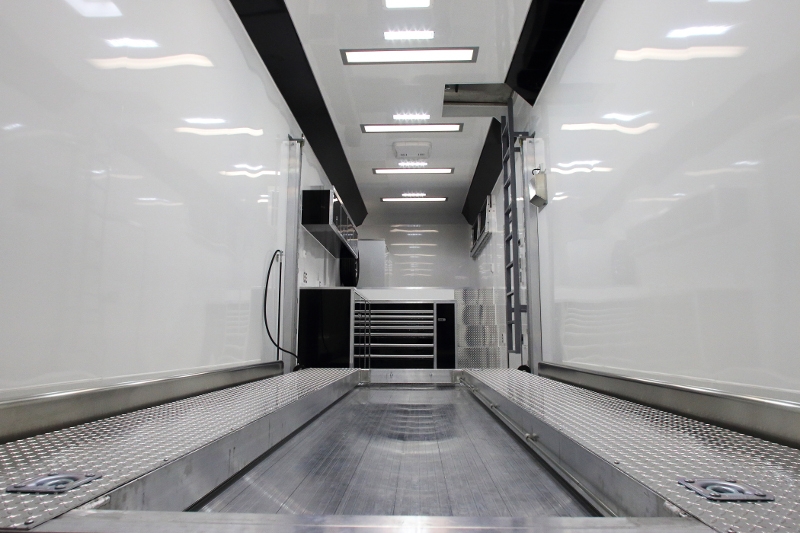

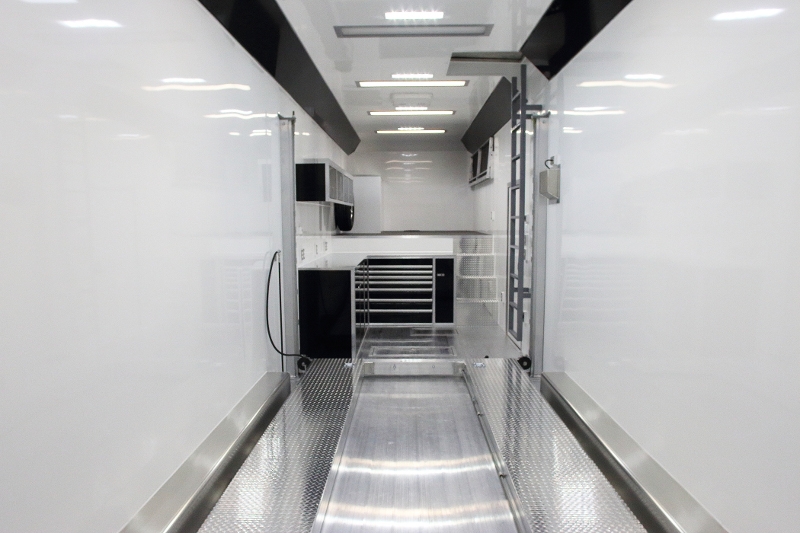

Extruded Aluminum Trailer Floor
Floor & Wall Backing for Lift

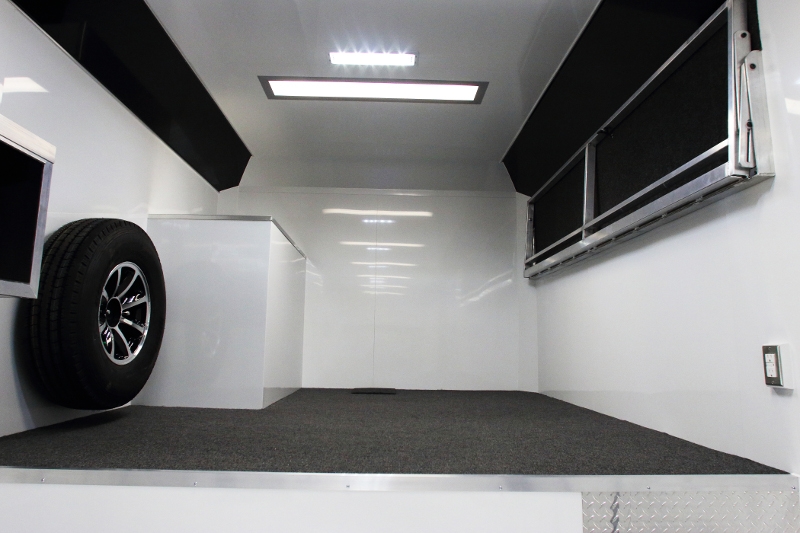

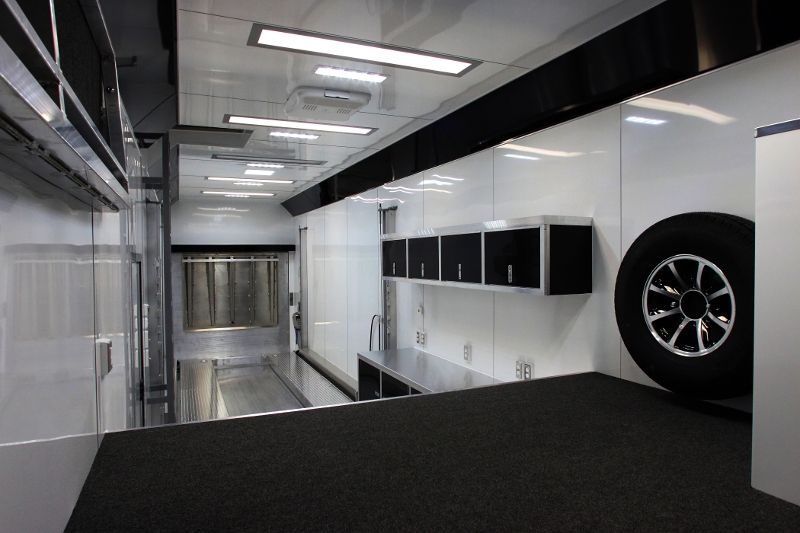

Gray Carpet on Bunk Floor

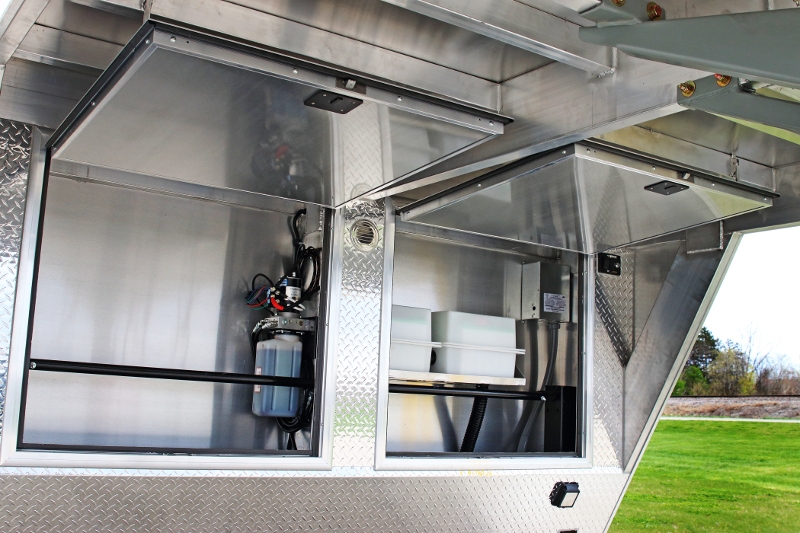

In Floor Battery & Pump Boxes
Polished Cast Corners w/ Stainless Verticals & Front Horizontal
Rear Stabilizer Jacks
Slimline LED Back Up Lights
SS Rear Paddle Latches for Rear Ramp Door
Underside of Lift finished with .030 Aluminum
Up Grade to 10’ Interior Height

Additional Upgrades:
.050 Exterior Aluminum
Upgrade to Heavy Duty Walk on Roof
Add 7,000 lb Axle for Triple Axle

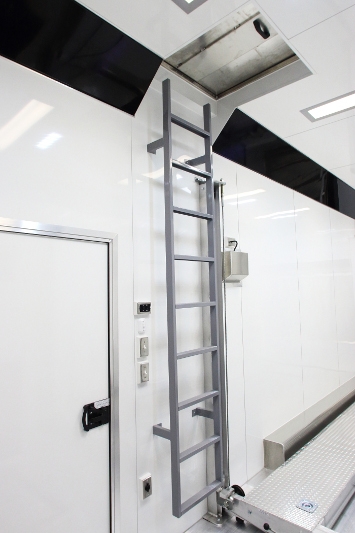

Roof Escape Hatch w/ Interior Ladder
Roof Mounted Viewing Rail
Rear Caster Wheels
Upgrade to Aluminum Wheels
Spare Tire on Aluminum Wheel
Spare Tire Wall Mount
40" x 36" Generator Door
Slide out Aluminum Step
5' Aluminum Ramp Extension 72" Wide w 3" Bumpers
50 Amp Gen Prep w/ Transfer Switch
Insulated Generator Compartment
Generator Slide Kit
50 amp Electrical Service Package
12) 120V 15 amp Recepts
3) 12V 18" LED Interior Light
Upgrade the 3) Standard Dome Lights to 12V 18" LED
6) 120V 48" Fluorescent Lights
1) upgrade to 3 way Light Switch
Side Mount LED Turn Signal / Clearance and Turn Combo
2) 120V 500W Quartz Halogen Lights

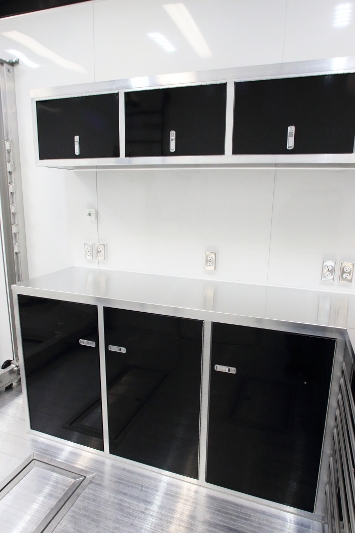

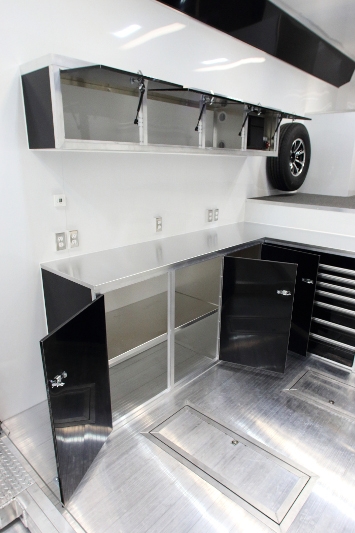

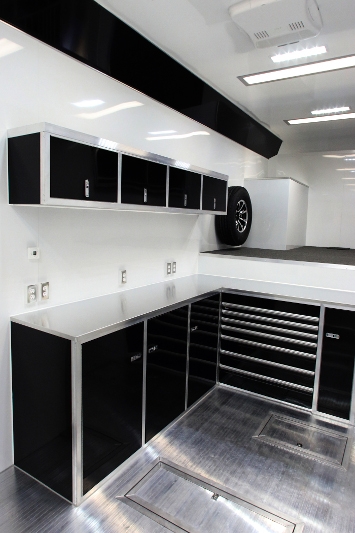

4' Premium Lower Aluminum Cabinet
8' Premium Lower Aluminum Cabinet
8' Premium Upper Aluminum Cabinet

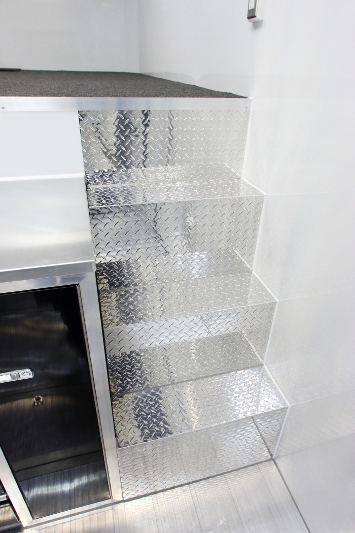

ATP Steps into Gooseneck Riser

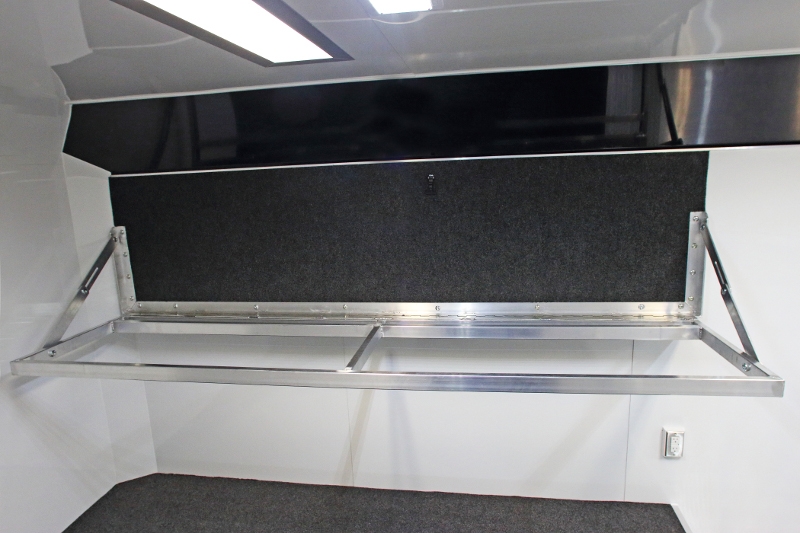

8' Fold Up Wall Mounted Tire Rack
Upgrade to mirror Finished Stainless Steel Rear Vertical Post
15,000 BTU AC with Heat Strip
Upgrade to Digital Wall Thermostat for AC

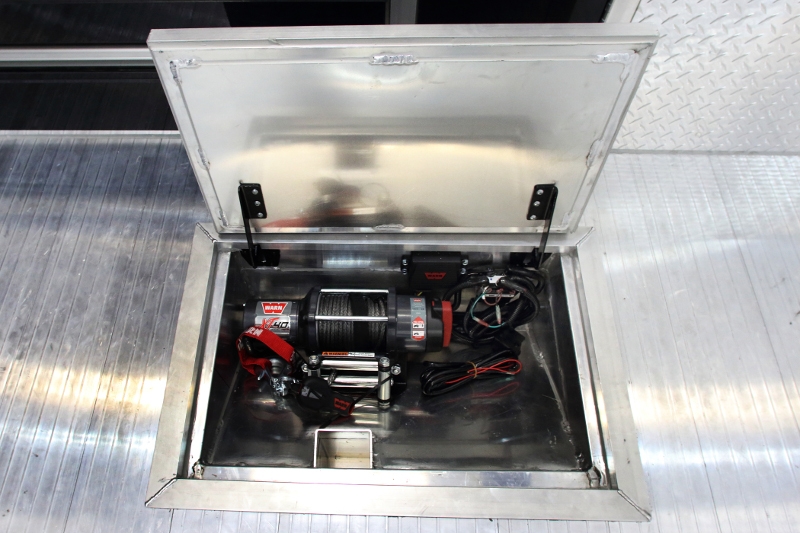

4,000 lb. Winch w/ Wireless Remote Control & Synthetic Rope
In Floor Winch Box w/ Pulley
C-Tech Tool Chest
Custom Aluminum Stacker Trailer by RPM Trailer Sales
"Often Imitated - Never Duplicated"
