24' Custom Aluminum inTech Trailer

Product Specs

  • New
  • 11504
  • BTA8524TA3
  • 8′ 6″ x 24′
Request More Info

Details

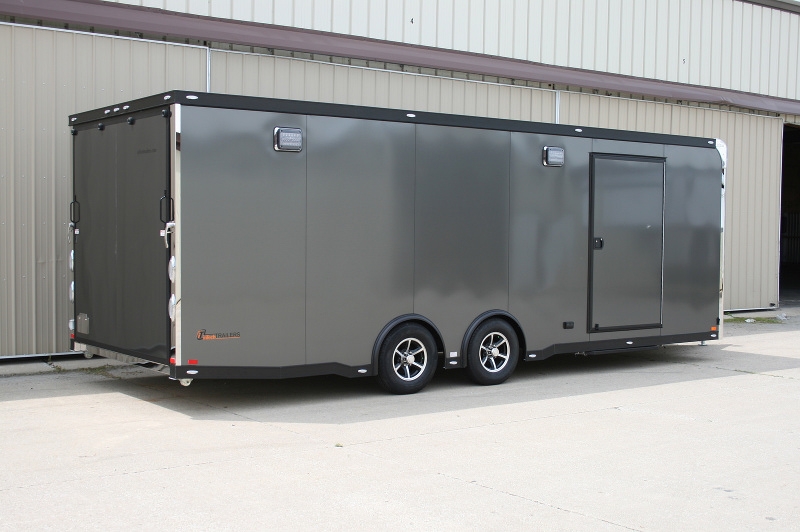

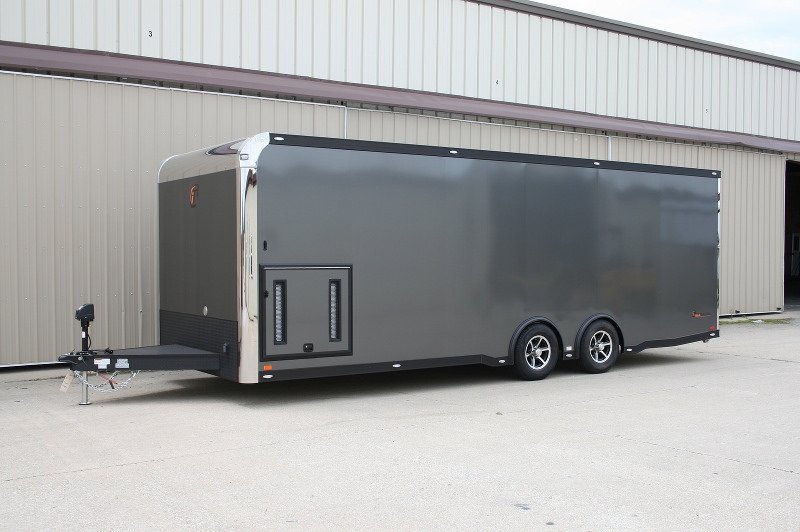

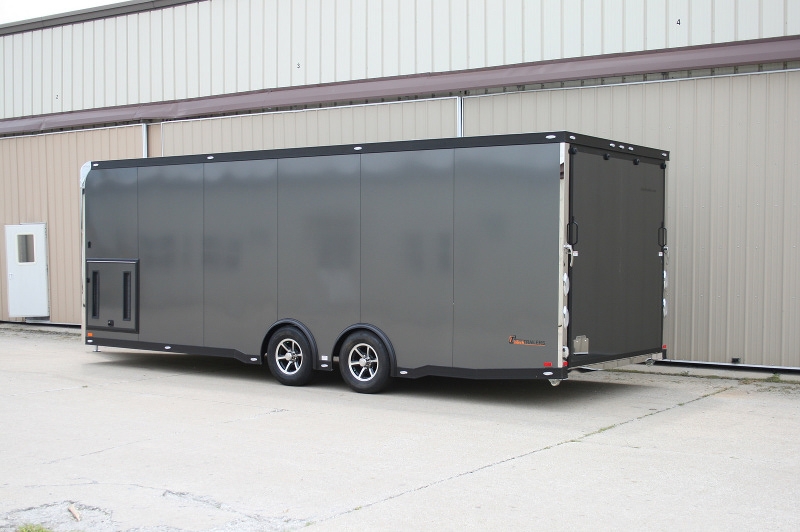

24' Charcoal Gray Custom Aluminum inTech Trailer

This inTech aluminum car hauler is set up to transport your car in style. The fully anodized exterior and interior aluminum package not only accents the trailer beautifully, but also protects the aluminum for a lifetime against any kind of corrosion. The top and bottom trim feature a rivetless installation, so there are no exposed fasteners giving the trailer an ultra-clean appearance. The exterior curbside features super bright and low amp 12V Whelen lights.
One thing that you will find on this and every inTech Trailer is our unmatched quality, fit, finish and attention to detail. Experience custom at its finest at RPM trailer Sales!  Take a look at the images of this spectacular custom trailer and let an RPM Sales Associate answer your questions regarding a custom trailer.


8.5 x 24 Custom Charcoal inTech Trailers All Aluminum Car Hauler

GVWR: 10,000 lbs.
Shipping Weight:
4,140 lbs.
Width: 8.50
Height: 7' Interior
Axle Type: Tandem 5,200 lbs. Dexter Torsion Axles

Model: BTA8524TA3         Product Number: 11504

Chassis
Full Perimeter Aluminum Frame
All-Tube Aluminum Construction
Triple Tube A-Frame
Dexter Torsion Axles
Electric Brakes - All Axle
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains w/ Storage Loop
5000# Manual Jack
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST225/75R15 Nitro Filled Tires w/ Steel Wheels

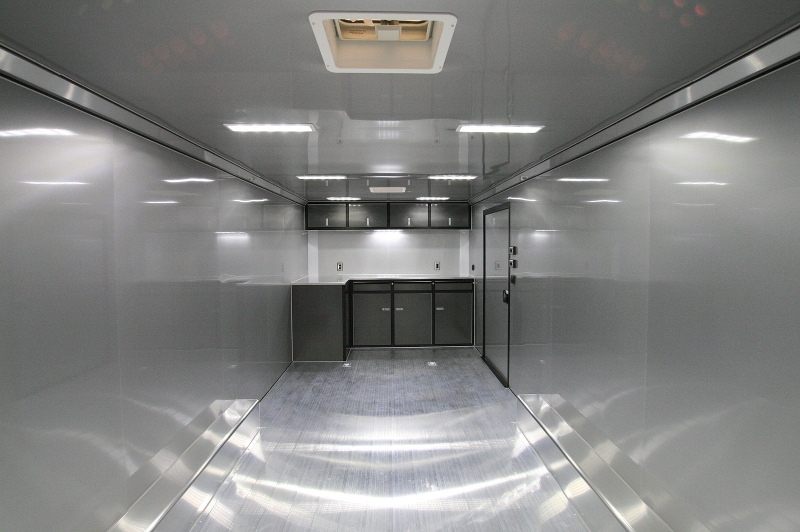

Interior
One-Piece Aluminum Subfloor Vapor Barrier
3/4" Plywood Subfloor
(2) 12V Dome Lights w/ Switch
(1) 12V Power Roof Vent w/ Switch
6.5' Interior Height
(4) 5000# Recessed D-Rings
4' Interior Beavertail

Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
24" ATP Stoneguard
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks - Rear Ramp Door
Rear Skid Plates

Upgrades & Additional Selected Options:
24' iCon Package
Exterior iCon Upgrades

Upgrade to 7' Interior Height
Extended Tongue

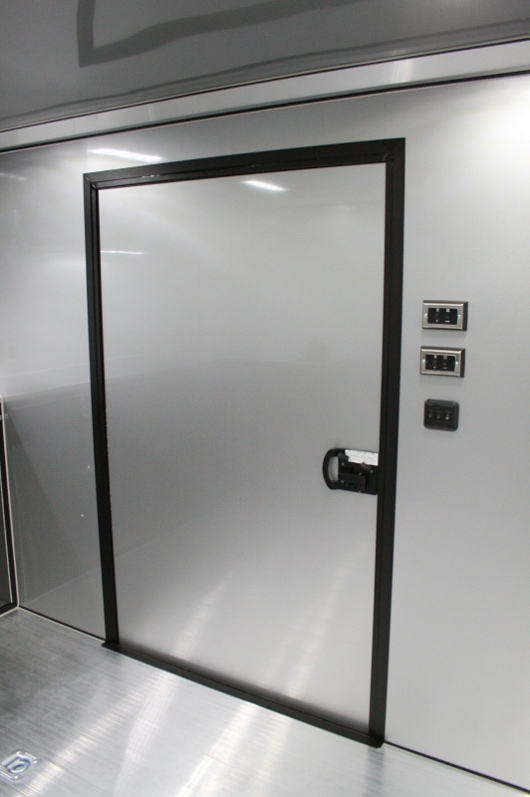

Upgrade to 48" 405 Series Door
FMVSS Side Door Lock
Aluminum Slide Out Step

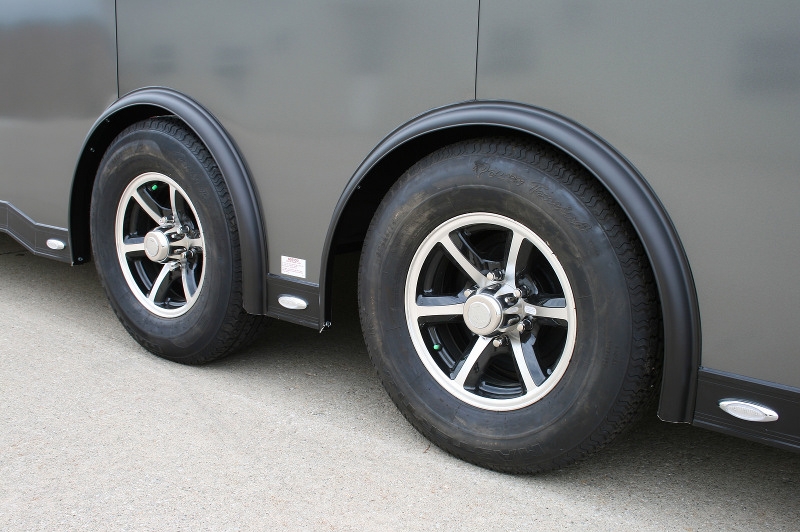

Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4" Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches

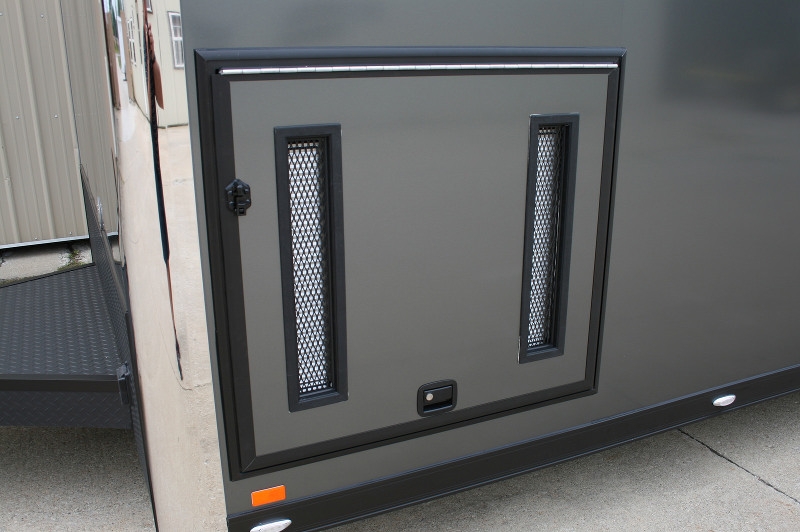

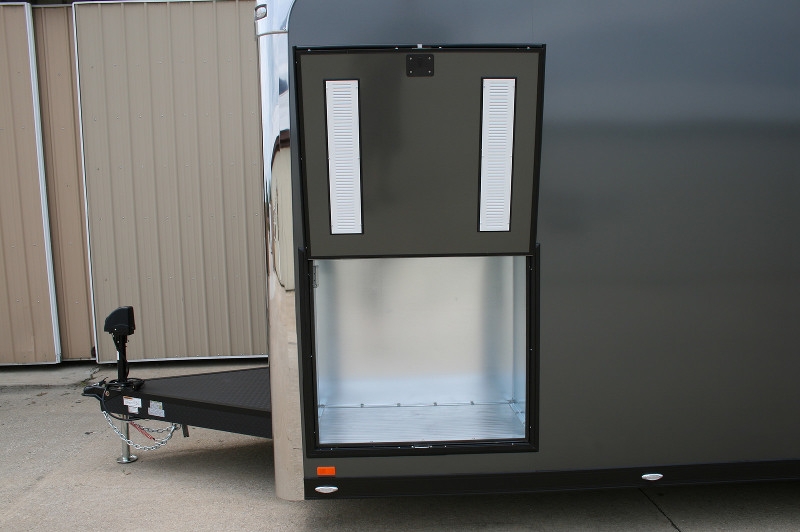

40" x 36" 405 Series Generator Door
Awning Rail

Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Motorbase Plug & 25' Shore Cord

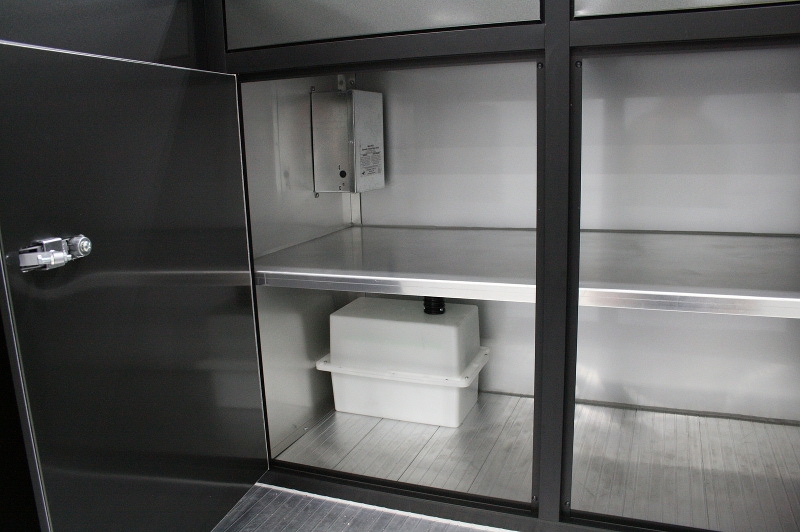

12V Battery & Box Wired
12V Fuse Panel
60 Amp Converter for 12V
(3) 15 Amp Interior Recepts
(1) 15 Amp Exterior Recept
(3) 48" Fluourescent Lights – Recessed
3 Way Light Switch for Fluourescent Lights
(2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights

Interior Upgrades

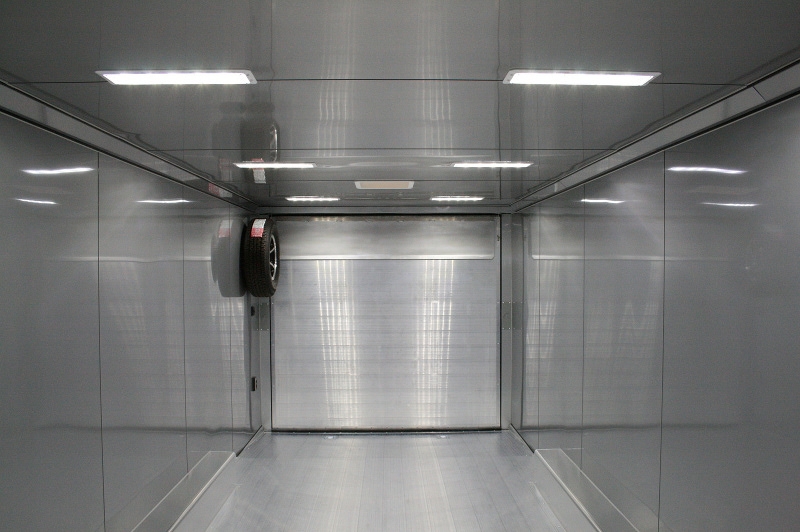

Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC
Extruded Aluminum Floor

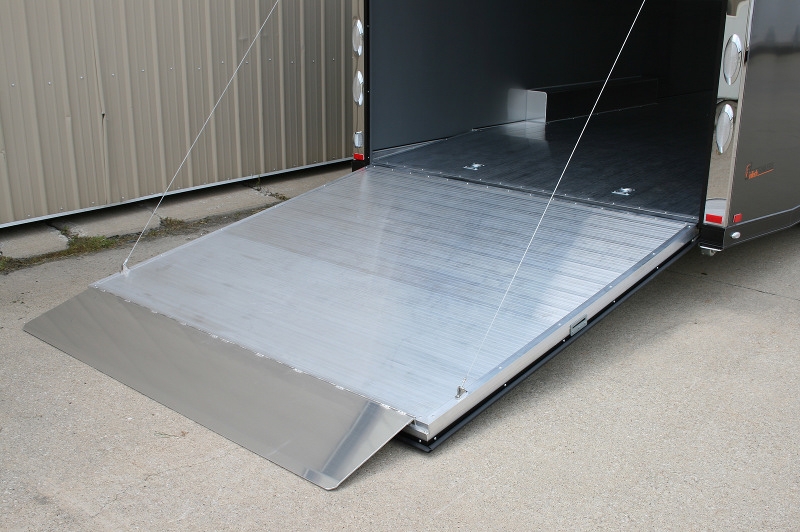

Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

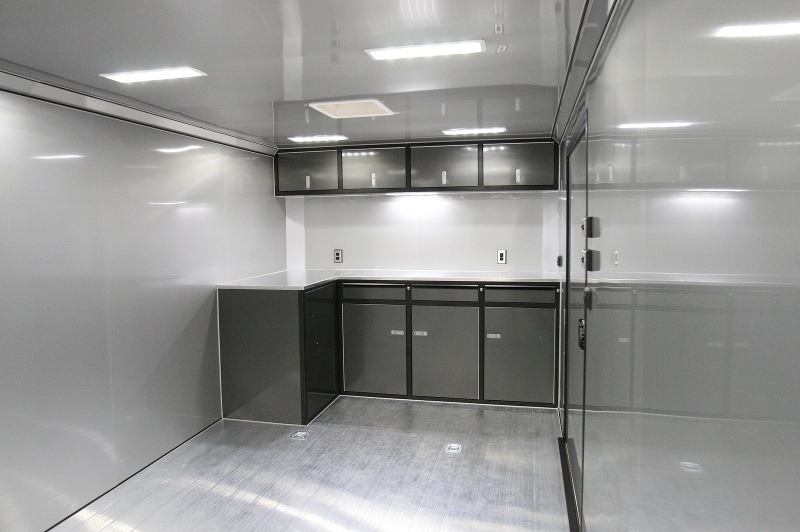

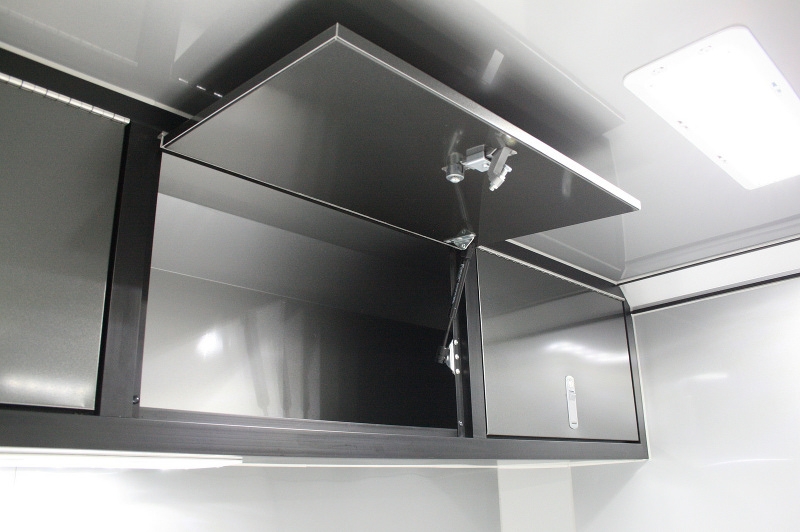

8' Premium Aluminum Upper Cabinet
8' Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet

Additional Upgraded Features:
3) Upgrade 48" Fluorescent Light to 18" 12V LED Light

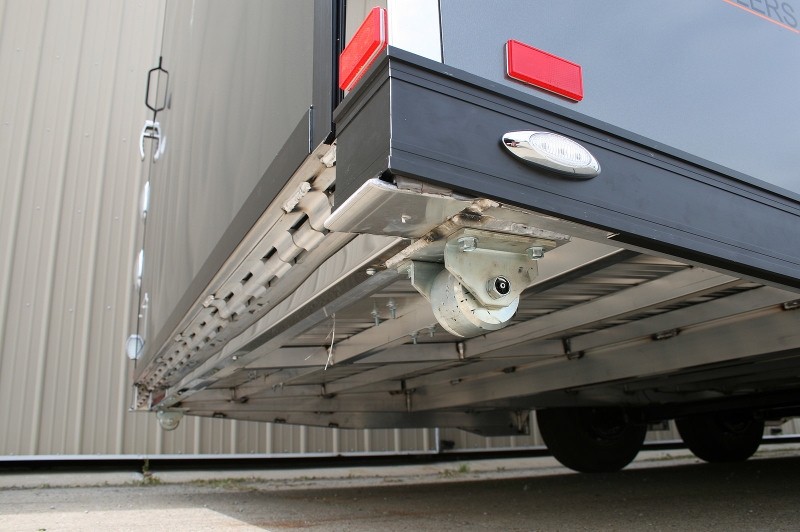

Rear Caster Wheels – Pair
Upgrade to 3500# Front Power Jack
Spare Tire ST225/75R15 on Aluminum 15" Wheels
Spare Tire Wall Mount
3) Additional 12V 18" LED Interior Light        - Total of (8) In Ceiling

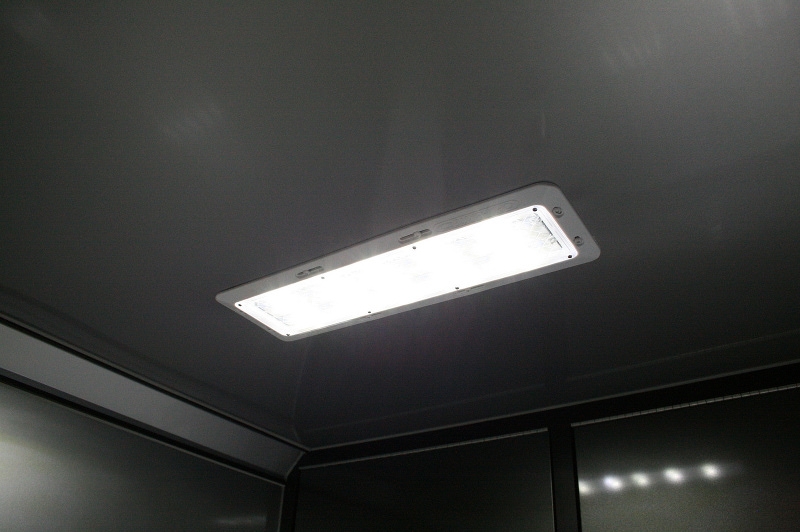

2 Standard Dome Lights upgraded to 12V 18" LED Light
3 Way Light Switches  - Used for Second Set of 18" Lights
12) additional LED Clearance Lights

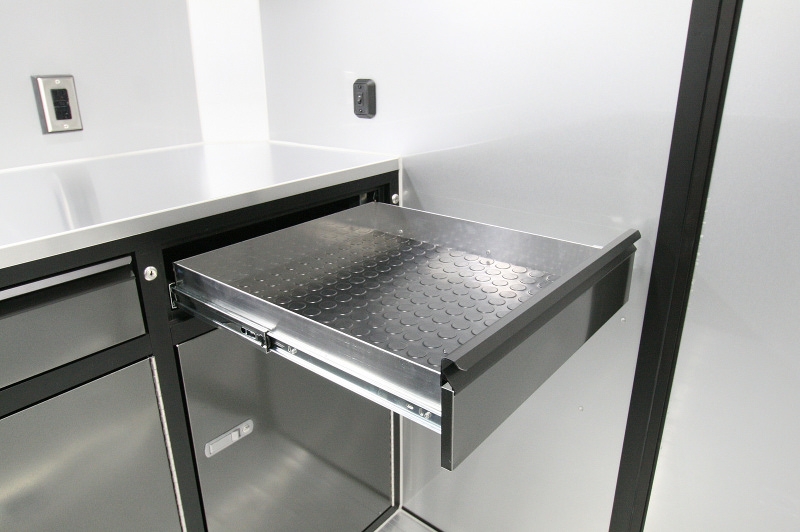

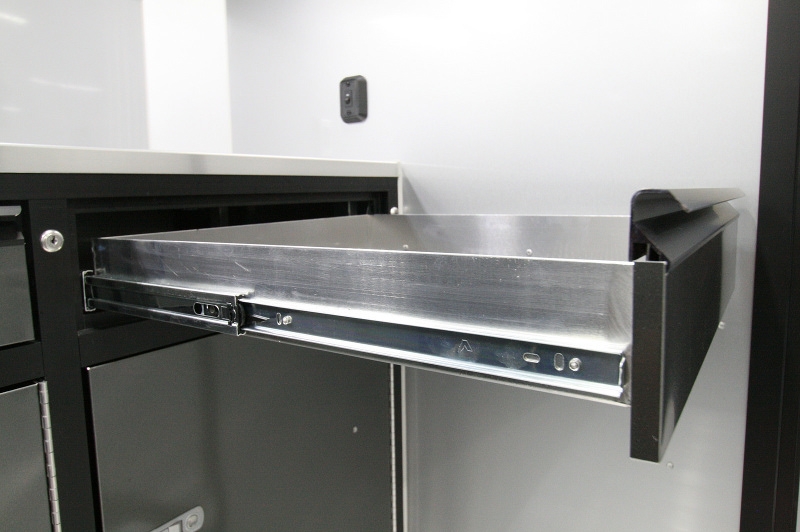

3) Single Drawer added to Base Cabinet Above Door
ATP Tongue Cover
Upgrade to Lowered Skirt w/ Reverse Beavertail Design
Upgrade to Fastenerless Upper & Lower Rub Rail

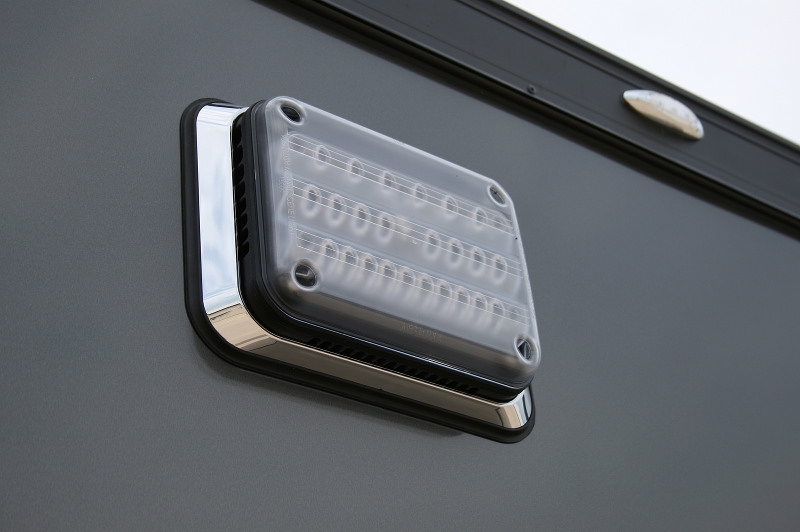

2) Exterior Whelen 900 Series Super LED Lights ILO of Standard Quartz
Black Anodized Exterior Package
Black Anodized Interior Package
Additional Notes regarding this trailer:
Used Black MB Cover
Used Black Recepts & Switches
Powder coated Exterior Door Catches
